Krowne KR24-C30R Royal Series Bar Equipment
Description

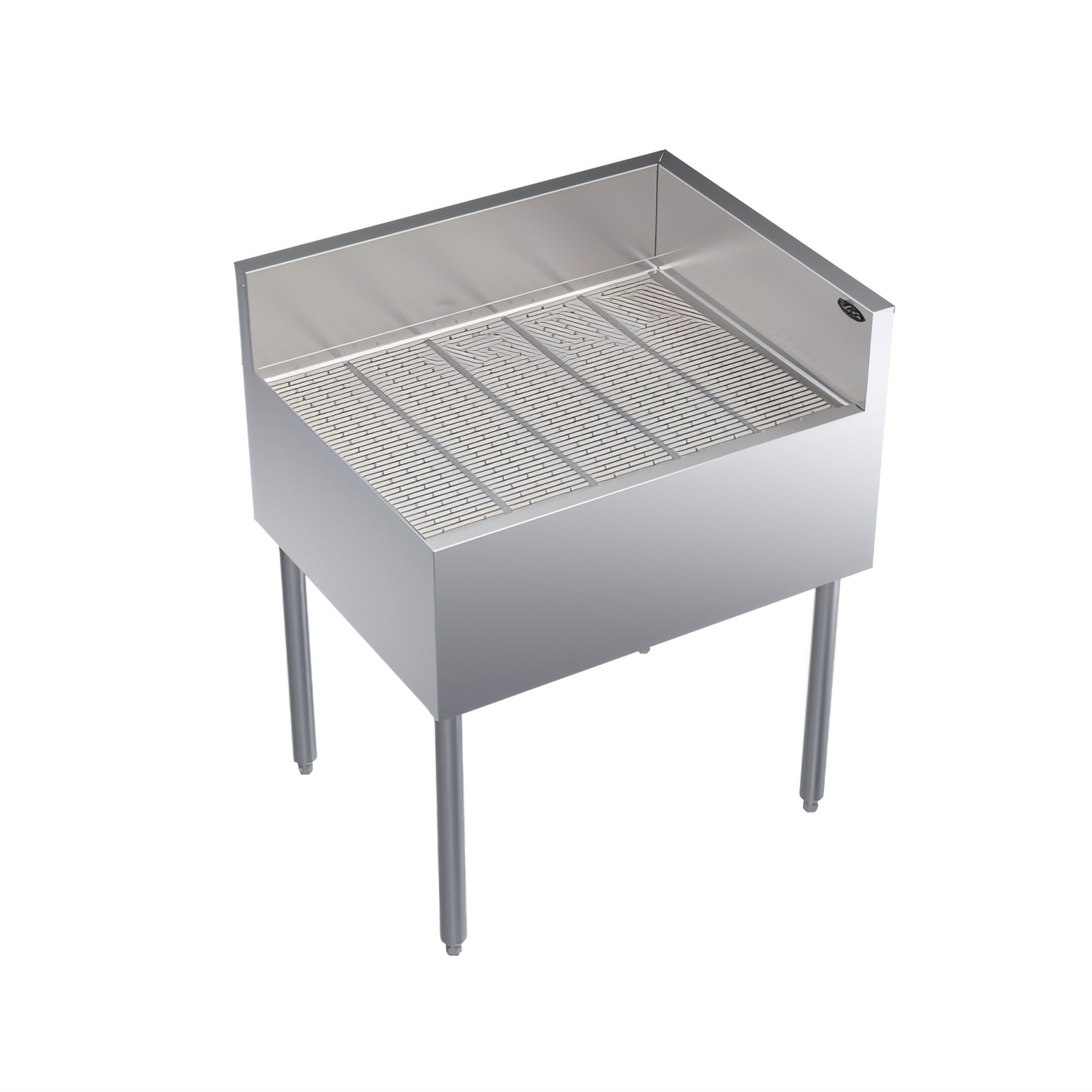

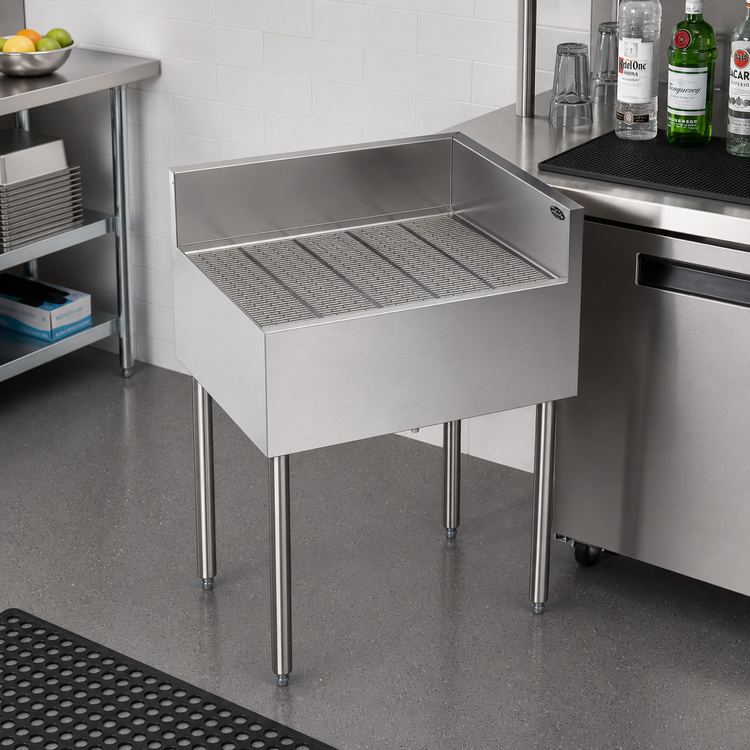

Krowne Royal Series 30" Underbar Corner Drainboard – Right End Return

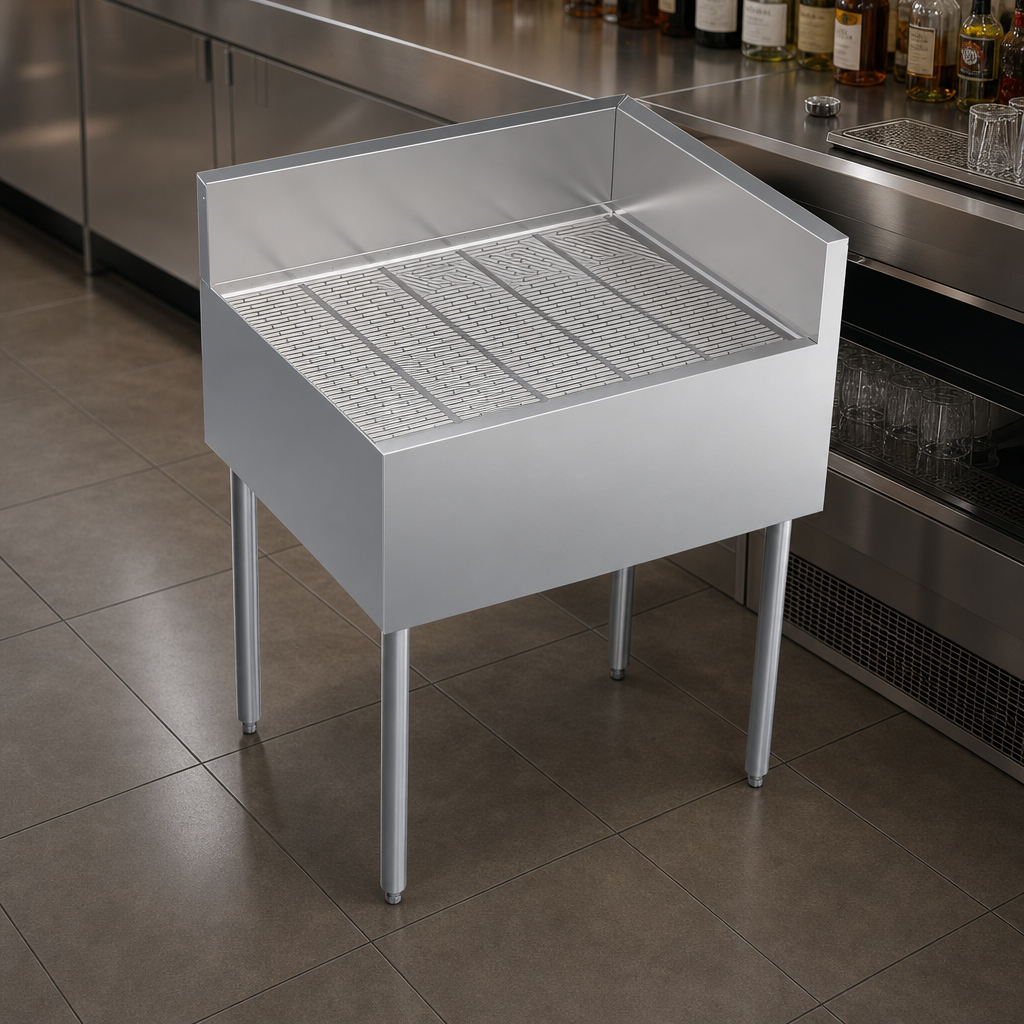

Free-standing NSF Approved Drainboard for Bar & Beverage ServiceMaximize corner space and speed up glassware turnover with the Royal Series right-return corner drainboard. Built from heavy-duty stainless steel and reinforced every 6", this 30" x 24" unit delivers professional durability, drainage, and hygiene in one compact footprint that drops seamlessly into any underbar layout.
Why You’ll Love It
- Embossed 20 ga. stainless steel drainboard with ¾" radius edges for fast, sanitary run-off
- Integrated 1" IPS drain connection—no extra adapters required
- Right-hand 90° end return turns dead space into usable landing area
- 20 ga. stainless top, front, sides, backsplash, back & bottom
- Front apron clad over galvanized steel for added rigidity
- 1 ⅝" OD, 16 ga. stainless legs with adjustable thermoplastic bullet feet for perfect leveling
- NSF Std. 2 listed for open foodservice installation
At-a-Glance Specs
| Overall Width | 30" (762 mm) |
|---|---|
| Overall Depth | 24" (610 mm) |
| Overall Height | 36 ½" (927 mm) to deck |
| Return Orientation | Right end (creates left-hand corner) |
| Drainboard Material | 20 ga. embossed stainless steel |
| Drain Connection | 1" IPS |
| Leg Construction | 1 ⅝" 16 ga. stainless tubing w/ adjustable bullet feet |
| Approx. Shipping Weight | 64 lb (29 kg) |
| Certifications | NSF Std. 2 |
Popular Add-Ons (Sold Separately)
- KR-401 Cap Catcher & Bottle Opener
- RS-“XX” Single Speed Rail (sound-deadened)
- RD-“XX” Double Speed Rail (sound-deadened)
- KR-310 / KR-311 End Splashes for added spill control
- KR-201 Chase for beer/soda lines
- KR-203 & KR-204 line cut-outs in backsplash or drainboard
Krowne Metal continually improves products; published specifications are subject to change without notice.
