Krowne KR24-C24R Royal Series Bar Equipment
Description

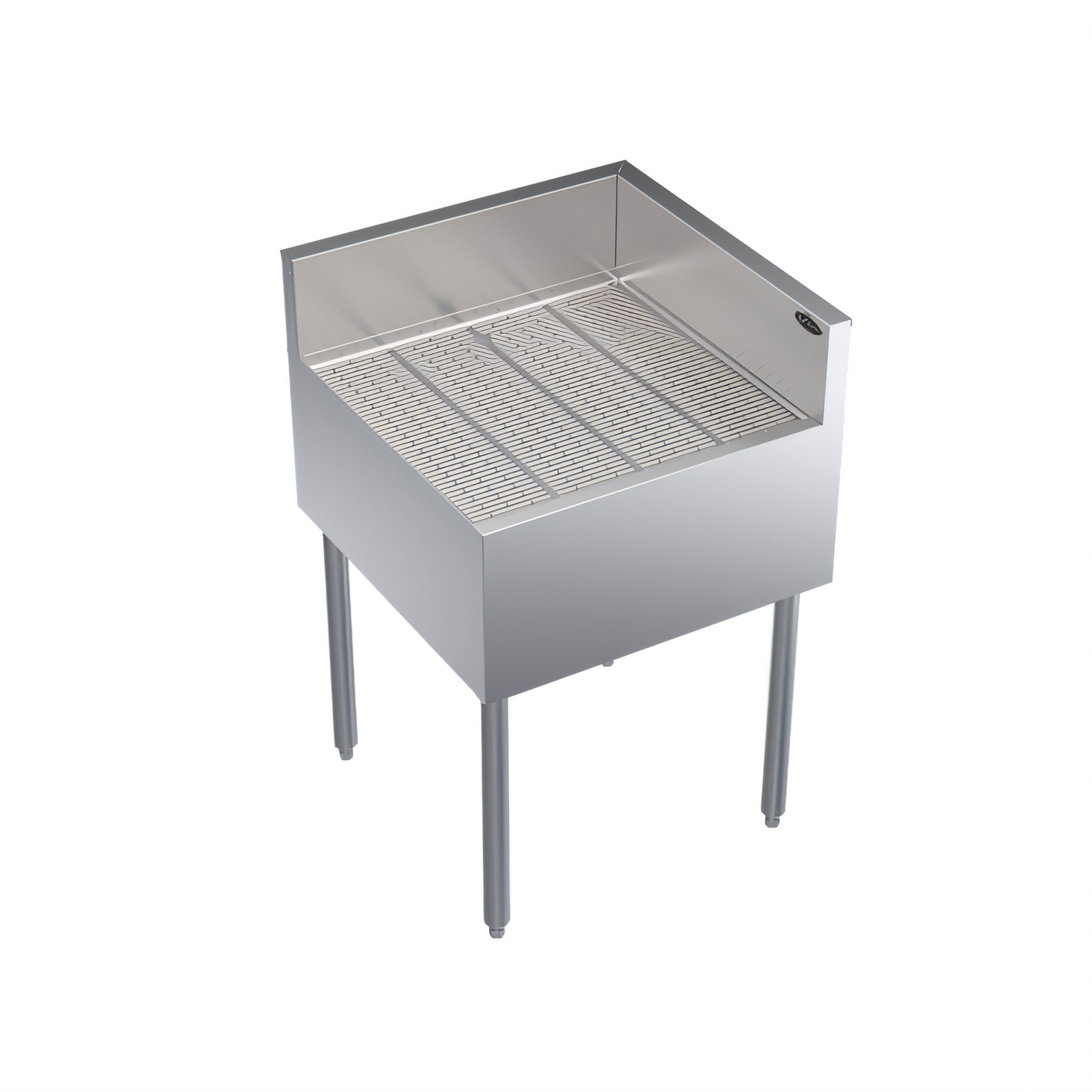

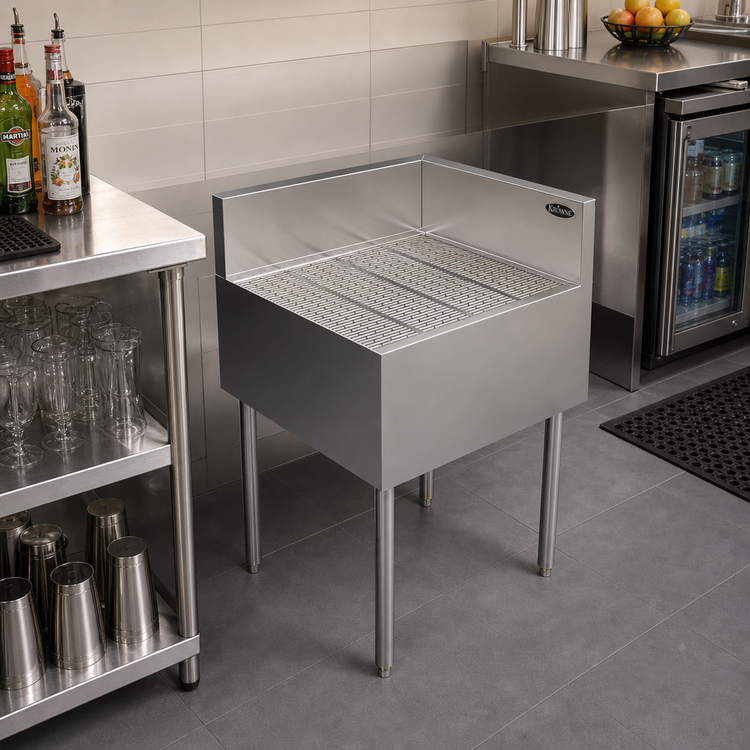

Krowne Royal Series 24" x 24" Underbar Corner Drainboard – Right End Return
Model KR24-C24R | NSF Certified Stainless SteelMaximize every inch behind the bar with Krowne’s Royal Series corner drainboard. The KR24-C24R tucks neatly into a 90° turn, creating a smooth workflow while giving bartenders a rugged, easy-clean surface for glassware, pitchers and bar tools.
Key Features

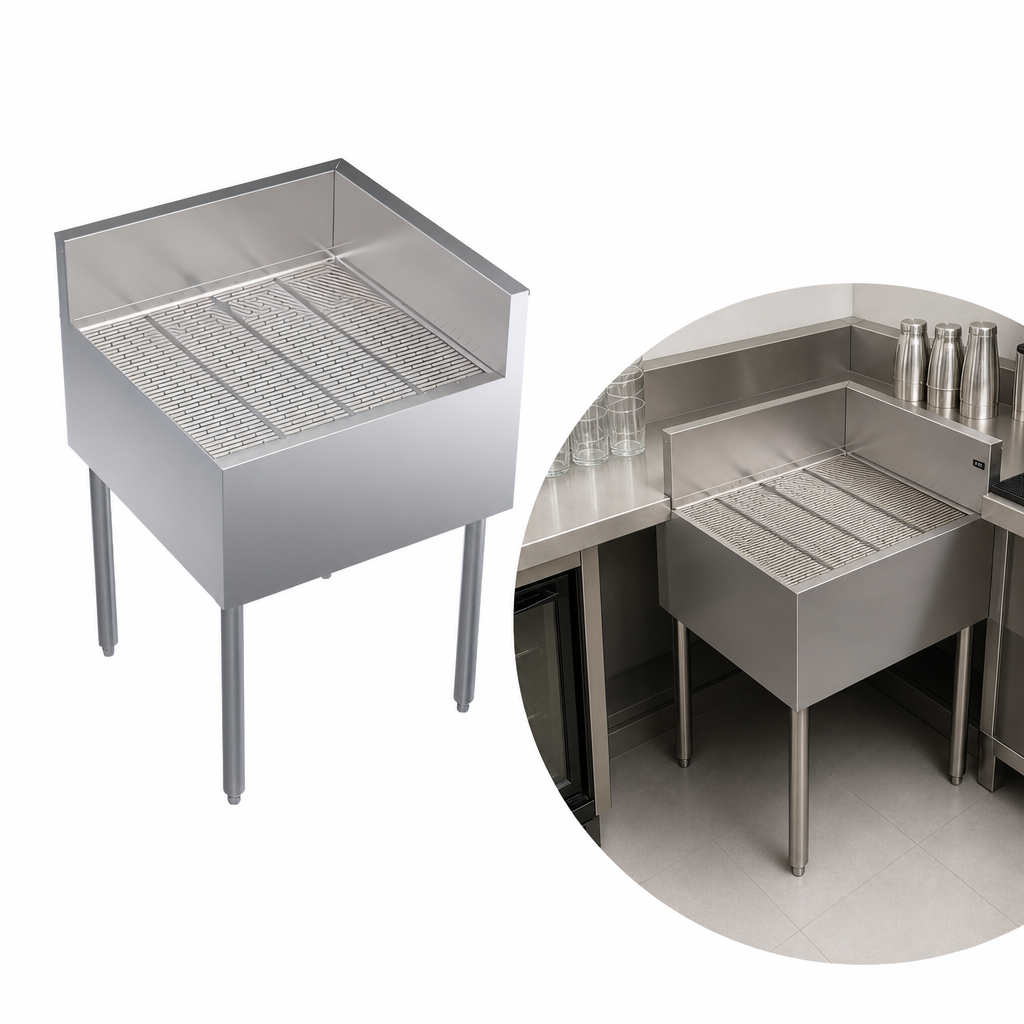

- Right-hand return design completes L-shaped bar layouts without custom fabrication
- 20 gauge embossed stainless steel drainboard reinforced with welded braces every 6"
- Smooth ¾" radius on all horizontal & vertical edges for faster cleaning and improved safety
- Integrated 1" IPS drain connection for rapid plumbing hook-up
- Front apron, sides, backsplash, back & bottom all stainless steel for full corrosion resistance
- 1 5/8" O.D. 16 gauge stainless steel legs with adjustable thermoplastic bullet feet
- Free-standing unit; no additional supports required
- NSF/ANSI Standard 2 listed for food-service sanitation
Specifications
| Model | KR24-C24R |
|---|---|
| Overall Dimensions (W × D × H) | 24" × 24" × 36 ½" |
| Drainboard Material | 20 ga. embossed stainless steel |
| Drain Connection | 1" IPS |
| Legs / Feet | 1 5/8" 16 ga. stainless legs | grey adjustable bullet feet |
| Approx. Weight | 57 lb |
| Certifications | NSF Standard 2 |
Popular Accessories (sold separately)
- KR-201 4" × 4" chase for beer / soda lines
- KR-204 3 ½" round cut-out in drainboard for beverage tubing
- RS-“XX” sound-deadened single speedrail
- RD-“XX” sound-deadened double speedrail
- KR-401 integrated cap catcher & bottle opener
Need help planning your bar run? Our team will map out compatible underbar units, speedrails and sinks to create a seamless Krowne line-up.
