Krowne KR24-C24L Royal Series Bar Equipment
Description

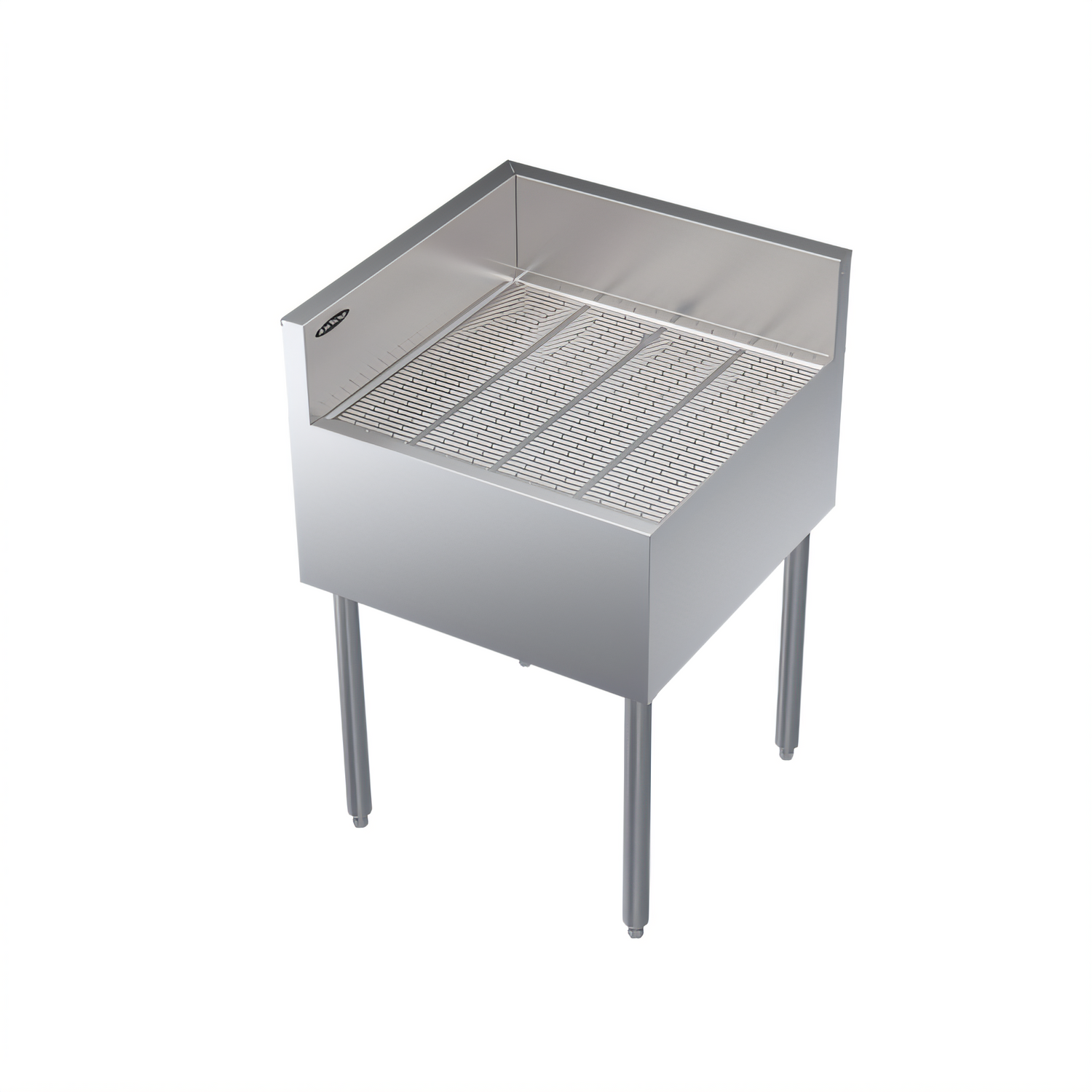

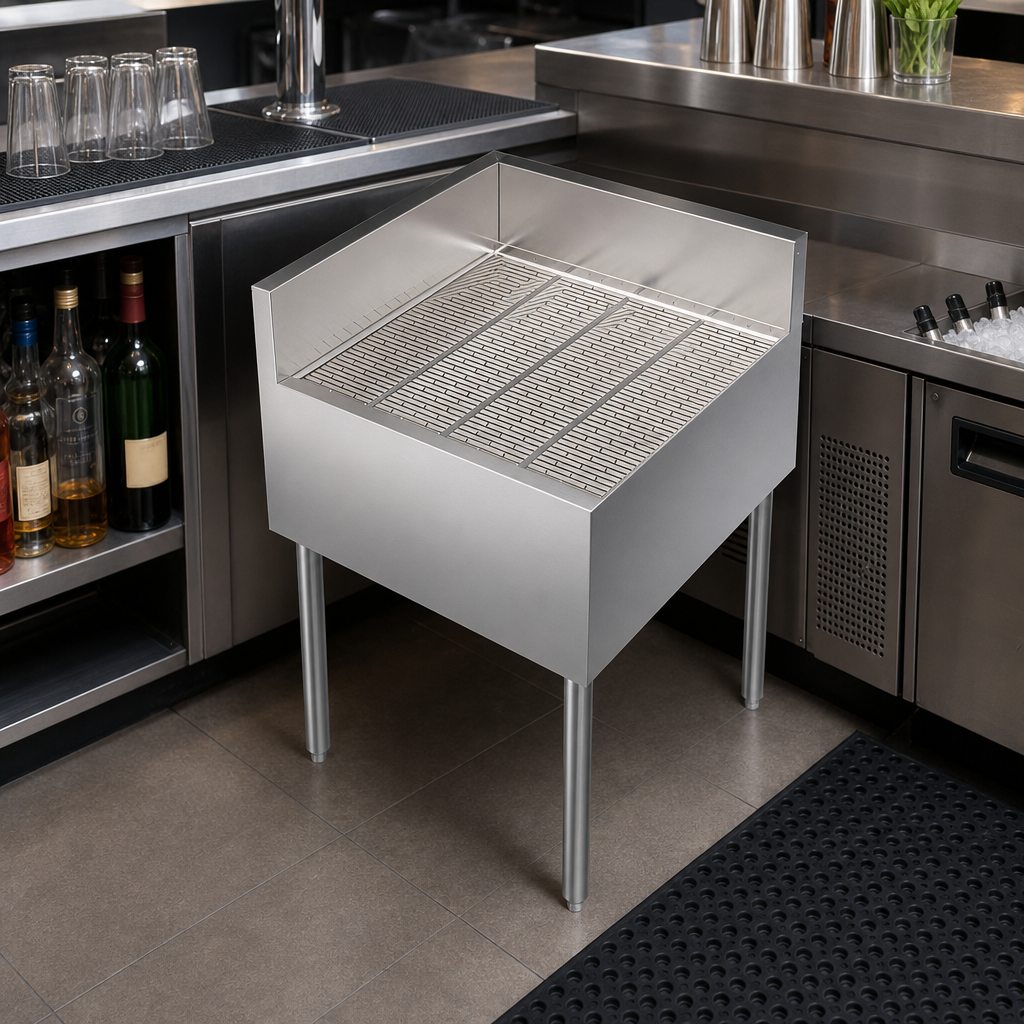

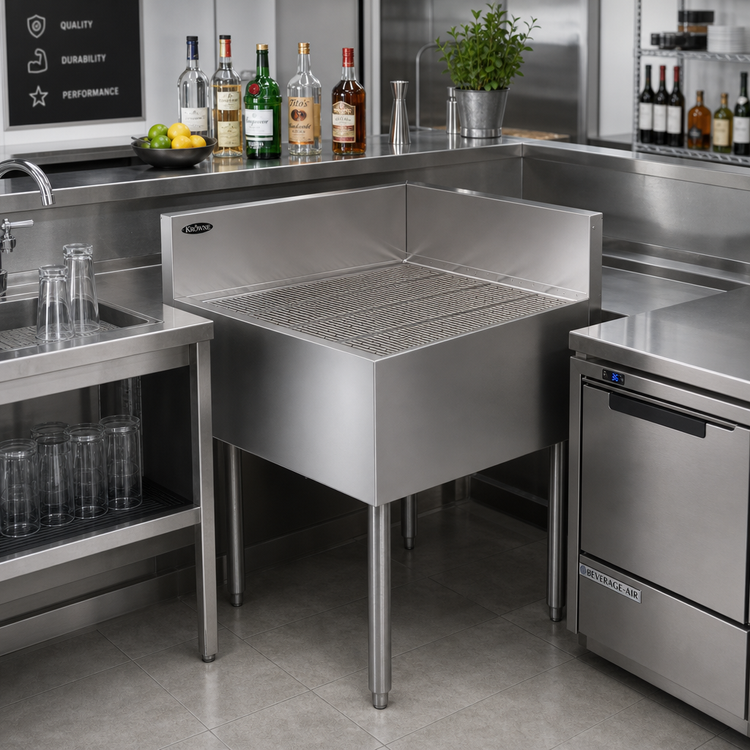

Royal Series 24" x 24" Corner Underbar Drainboard – Left End Return
Model KR24-C24L | by Krowne MetalBuild a seamless L-shaped bar layout and keep glassware traffic flowing with Krowne’s Royal Series free-standing corner drainboard. Designed for heavy-duty commercial use, this NSF-listed unit delivers generous draining space, rock-solid stainless steel construction and the industry’s easiest clean-up.
Why You’ll Love It
- Space-saving corner design with left-hand return fits perfectly between adjacent underbar sections.
- Embossed 20-gauge stainless drainboard reinforced every 6" to handle full racks of glassware without sagging.
- 1" IPS drain connection quickly evacuates melt water and spills.
- Easy-clean ¾" radius edges on all vertical & horizontal surfaces prevent grime build-up.
- All-stainless exterior (top, front, sides & backsplash) resists corrosion in the toughest bar environments.
- 1 5⁄8" Ø, 16-gauge stainless legs with grey thermoplastic bullet feet adjust for a perfect, wobble-free install.
- NSF Standard 2 listing for open-food service areas.
At-a-Glance Specs
| Overall Dimensions (W × D × H) | 24" × 24" × 36-1/2" |
|---|---|
| Return Orientation | Left end return (corner) |
| Drainboard Material / Gauge | Embossed stainless steel, 20 ga. |
| Front Apron | 20 ga. stainless clad over 20 ga. galvanized |
| Sides & Backsplash | 20 ga. stainless steel |
| Legs / Feet | 1 5⁄8" Ø, 16 ga. stainless legs with adjustable thermoplastic bullet feet |
| Drain Connection | 1" IPS |
| Certification | NSF Std 2 |
| Shipping Weight | Approx. 57 lb |
Popular Add-Ons (Sold Separately)
- KR-201 4" × 4" chase for beer or soda lines
- KR-204 3-1/2" round drainboard cut-out for beverage bundles
- KR-313 side splashes for 24-series units
- RS-“XX” sound-deadened single speed rails
- RD-“XX” sound-deadened double speed rails
- KR-401 cap catcher & bottle opener
Need a mirrored (right-hand) corner or different size? Explore the full Krowne Royal Series for a perfect match.
