Description

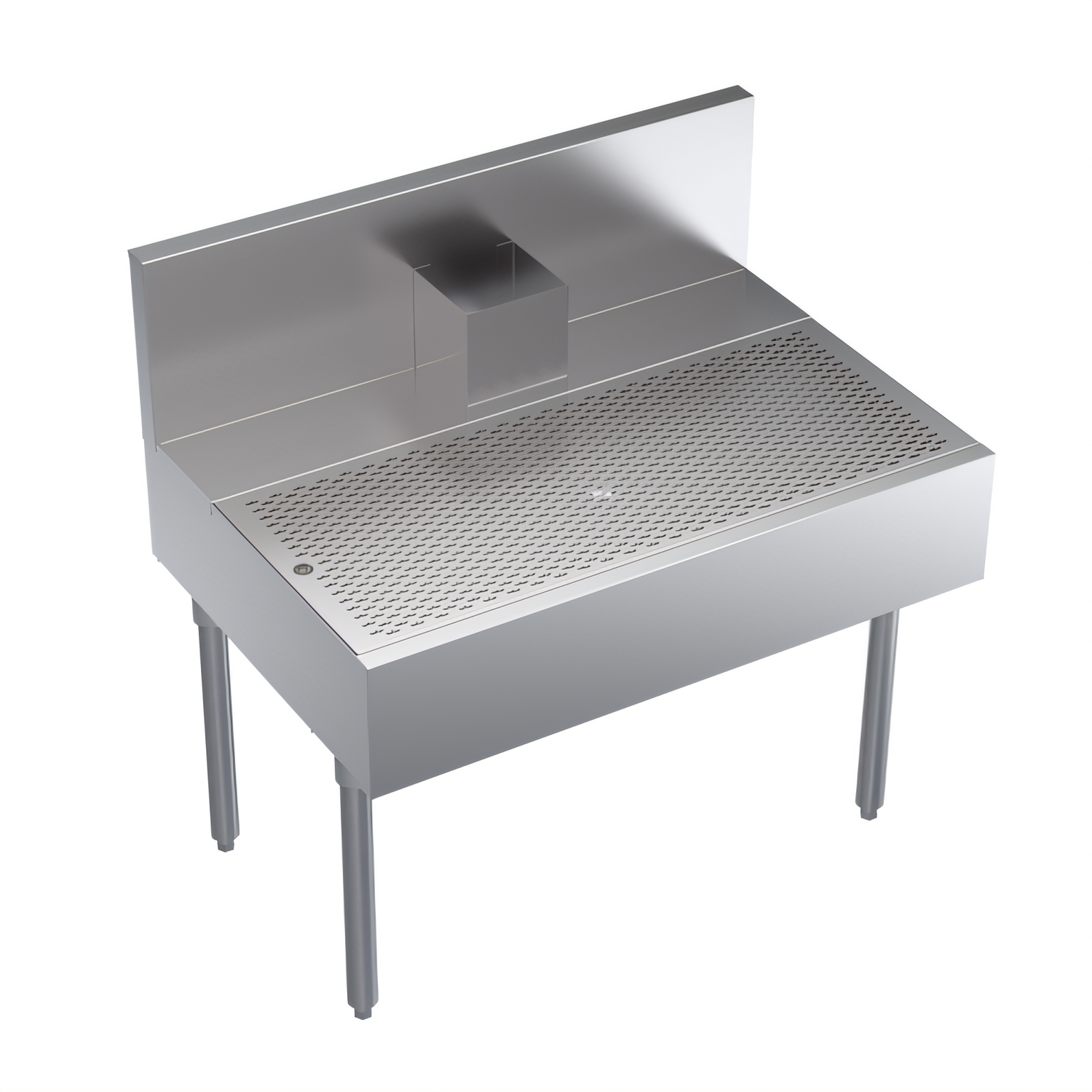

Krowne Royal Series 36" Underbar Beer Drainer

Model KR24-BD36 | 36" W x 24" D x 26" H

Keep your draft program clean, organized, and flowing smoothly. Built for high-volume bars, taprooms, and restaurants, the Krowne Royal Series 36" Beer Drainer combines rugged stainless-steel construction with a smart rear chase for tidy draft-line management—all in a compact underbar footprint.

Standard Features

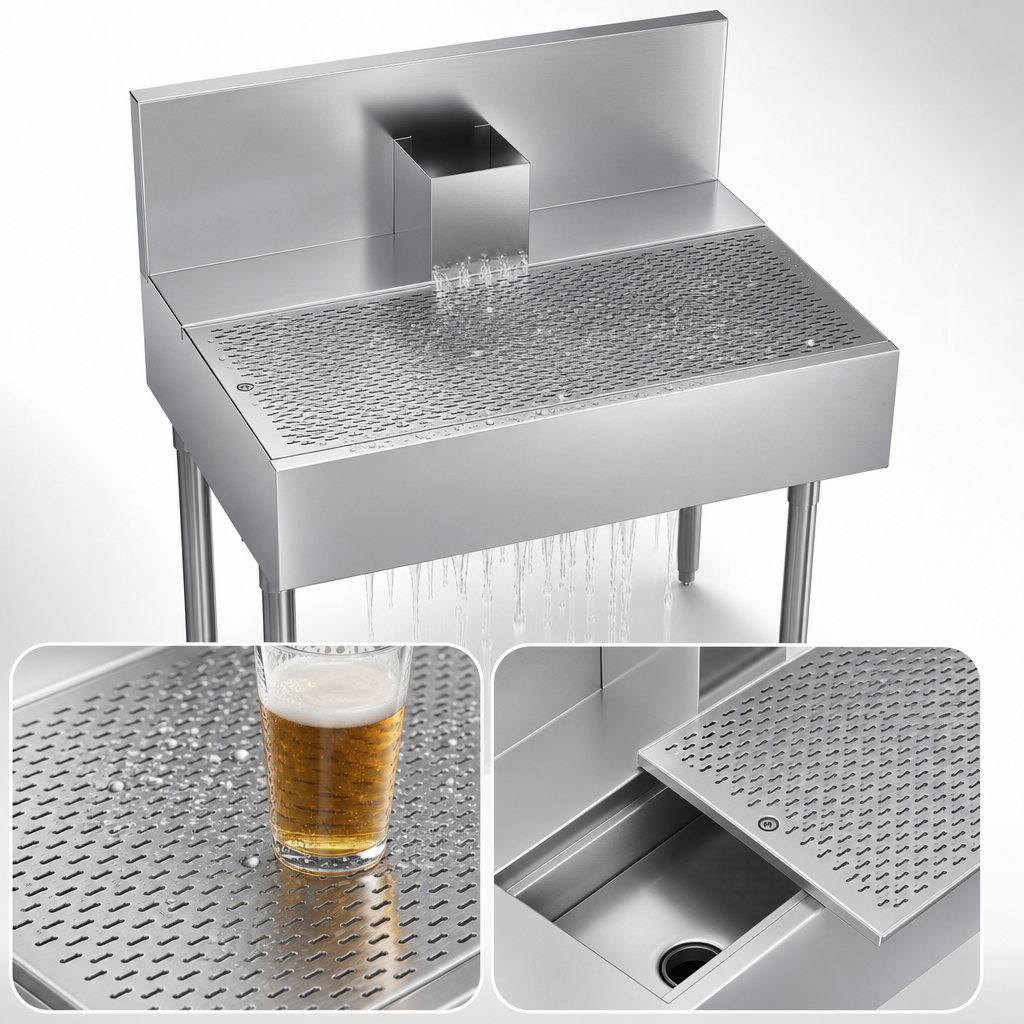

  • Stainless-steel perforated top with removable insert handles heavy beer flow and wipes clean fast.
  • Integrated rear tubing chase keeps draft lines concealed under the bar top.
  • 1" IPS center drain quickly evacuates excess beer and rinse water.
  • 20-ga. stainless top, front, sides & backsplash; galvanized back & bottom for long-term durability.
  • 1-5/8" Ø 16-ga. stainless-steel legs with adjustable thermoplastic bullet feet for rock-solid leveling.
  • 26" working height aligns perfectly with other Royal Series underbar equipment.
  • Ships fully welded—factory design cannot be field-modified, ensuring maximum strength.
  • NSF listed for safe, sanitary bar service.

Key Specifications

Model KR24-BD36
Overall Dimensions (W × D × H) 36" × 24" × 26"
Top Type Removable perforated stainless-steel insert with center drain
Draft-Line Chase Built-in rear chase
Drain Connection 1" IPS (center)
Body Material 20-ga. stainless steel (top, front, sides, backsplash)
Back / Bottom 20-ga. galvanized steel
Legs & Feet 1-5/8" Ø 16-ga. stainless steel legs, adjustable thermoplastic bullet feet
Working Height 26"
Shipping Weight 45 lb
NSF Listed Yes

Need a different length? Royal Series Beer Drainers are also available in 12", 18", 24", and 30" widths.

Important: This unit is built to factory specifications and cannot be modified in the field. Confirm all dimensions, utilities, and local code requirements before ordering.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Height

36.5in

Width

36.0in

Depth

24.0in

Shipping Weight

45.0lbs

Specifications

Royal Series Underbar Beer Drainer, 36"W x 24"D, 26" working height, tubing chase at rear, removable perforated insert, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet
