Krowne KR24-74C Royal Series Bar Equipment
Description

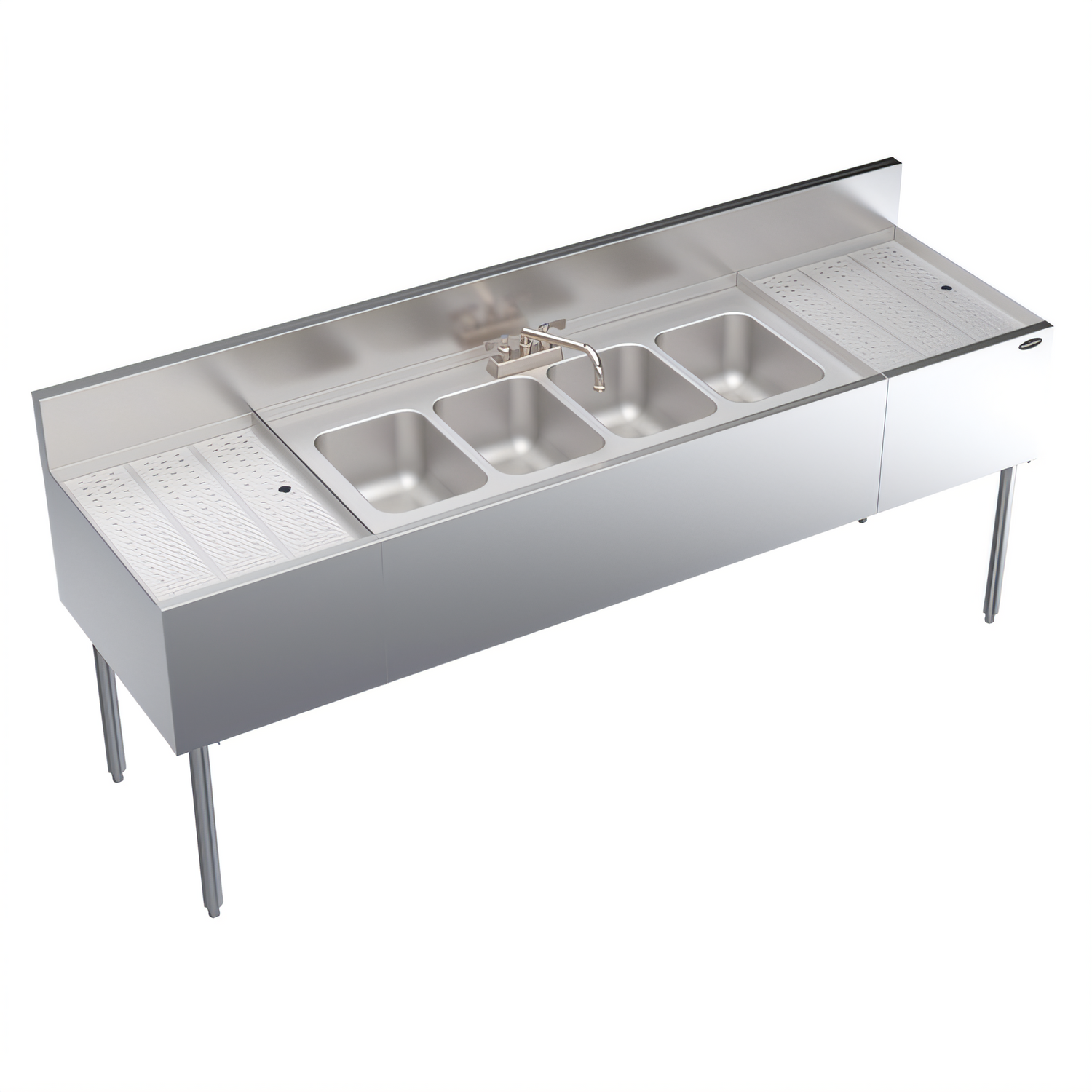

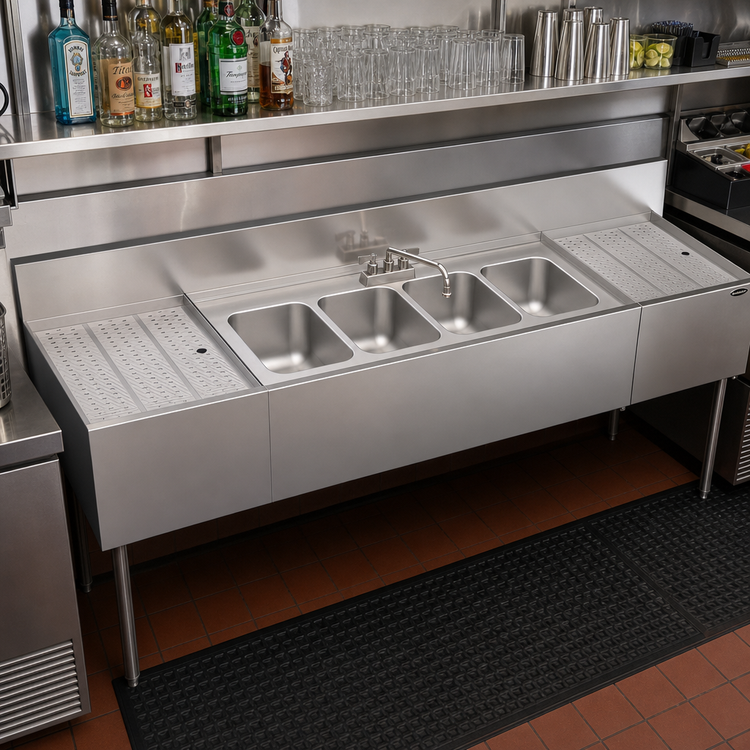

Krowne Royal Series KR24-74C Four-Compartment Underbar Sink
84" W x 24" D with dual 18" drainboards • NSF ListedEngineered for the busiest bars, taprooms and cocktail stations, the Krowne Royal Series KR24-74C delivers four deep sink bowls, generous drainboards on both sides and a rock-solid stainless-steel build that stands up to years of heavy use. From rapid glass turnover to strict health-code compliance, this workhorse keeps the back bar flowing smoothly shift after shift.
Why You’ll Love It

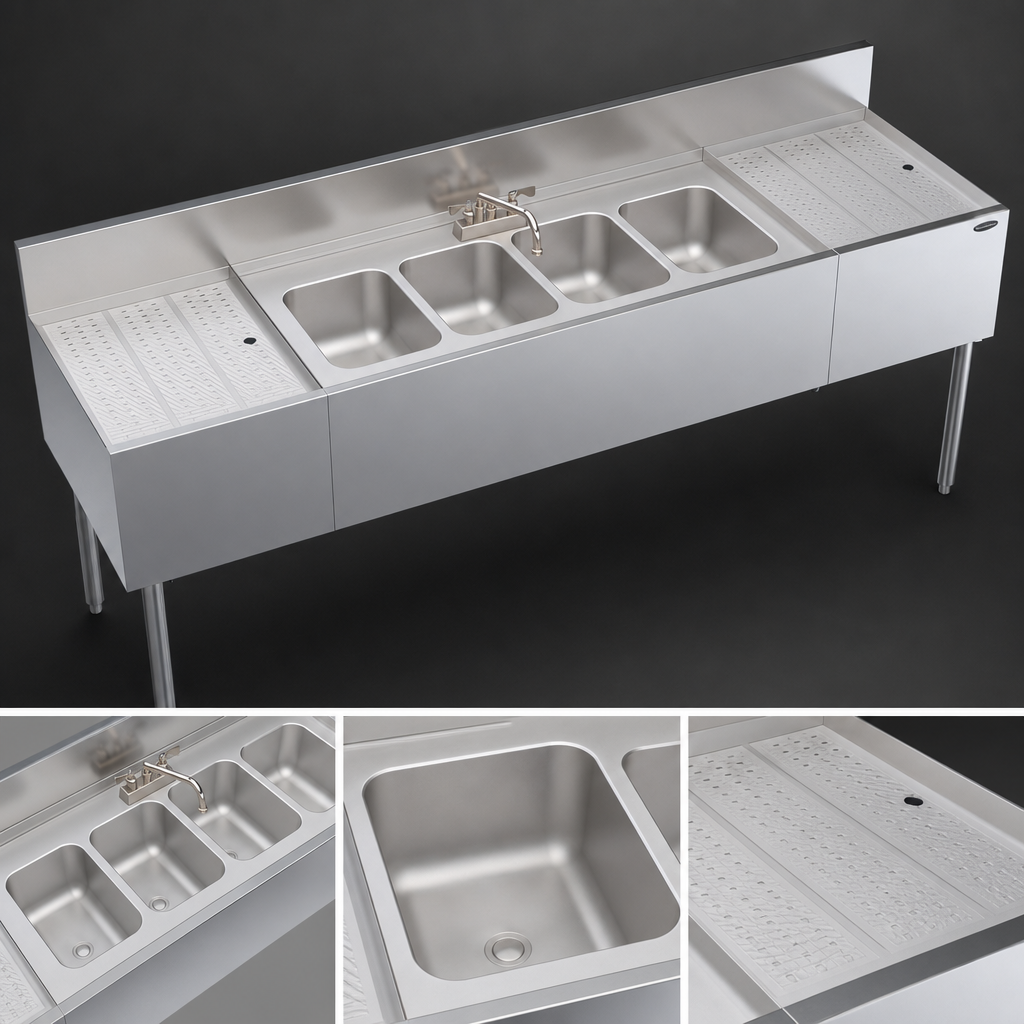

- Four 10" × 14" × 10" bowls handle soaking, washing, rinsing and sanitizing in one compact line-up.

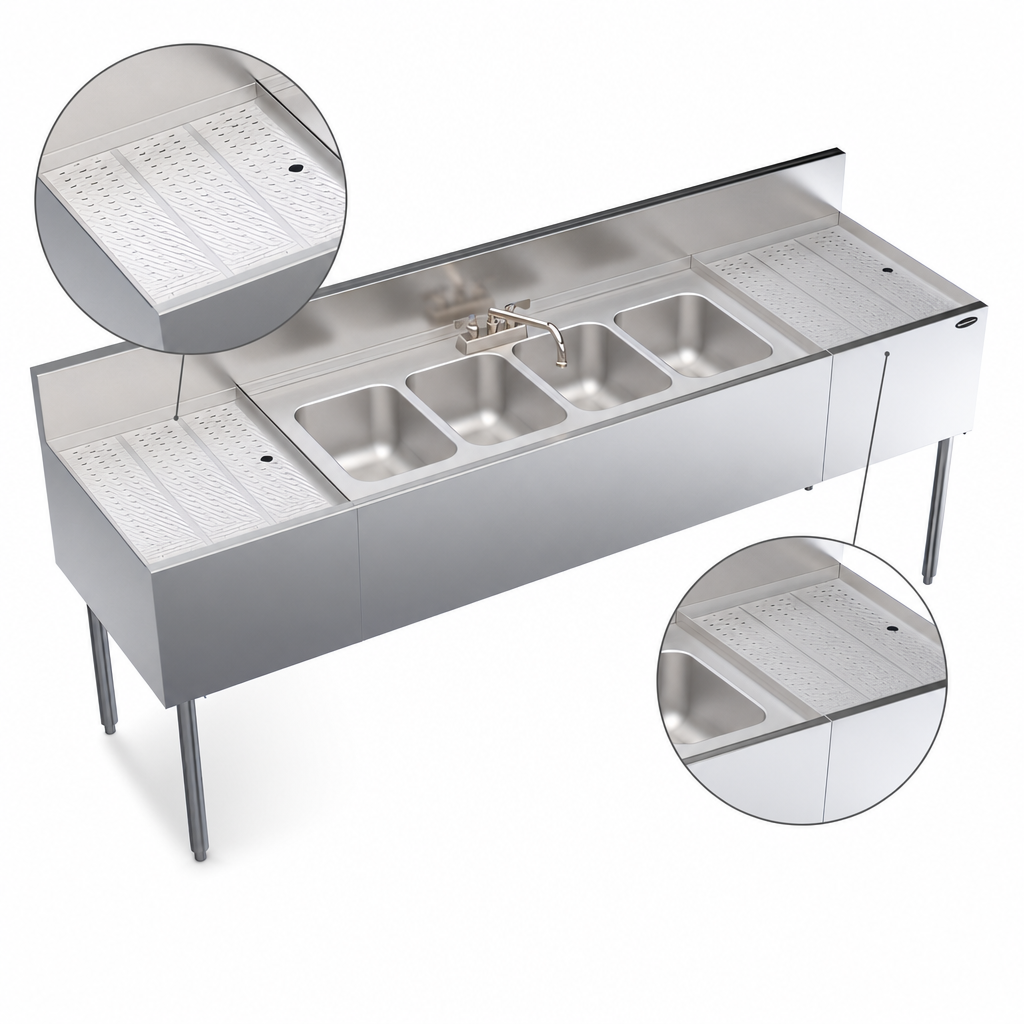

- Dual 18" embossed drainboards (left & right) speed up drying and staging without extra counter space.
- Royal Series deck-mount faucet with double-jointed spout and ¼-turn ceramic cartridges for smooth, drip-free control.
- Removable 7 ½" overflow standpipes keep water levels consistent and swap out in seconds for deep cleaning.
- All-stainless exterior – 20 ga top, front, sides & backsplash – resists rust, dents and harsh bar chemicals.
- 1 ⅝" 16-ga stainless legs with adjustable thermoplastic bullet feet level the unit on uneven floors.
- Fully NSF/ANSI 2 & ASME A112.19.3/CSA B45.4 compliant for worry-free inspections.
Technical Specifications
| Manufacturer / Series | Krowne Metal Corp. – Royal Series |
|---|---|
| Model | KR24-74C |
| Overall Dimensions | 84" W × 24" D × 30" H (work surface) / 36 ½" H (to top of backsplash) |
| Sink Compartments | (4) bowls – 10" W × 14" front-to-back × 10" deep |
| Drainboards | (2) integrated, 18" L – embossed & reinforced every 6" |
| Drains | 1 ½" IPS rear-corner drains with 7 ½" overflow standpipes |
| Faucet | 4" on-center deck mount, double-jointed spout, ½" IPS hot & cold inlets |
| Construction | 20 ga stainless top, bowls, sides & backsplash; apron clad in 20 ga stainless over galvanized steel |
| Legs / Feet | 1 ⅝" Ø 16 ga stainless tubular legs, adjustable thermoplastic bullet feet |
| Certifications | NSF/ANSI 2, ASME A112.19.3 / CSA B45.4 |
| Shipping Weight | Approx. 100 lb |
Need a different size or configuration? Explore the complete Krowne Royal Series here.
