Krowne KR24-73C Royal Series Bar Equipment
Description

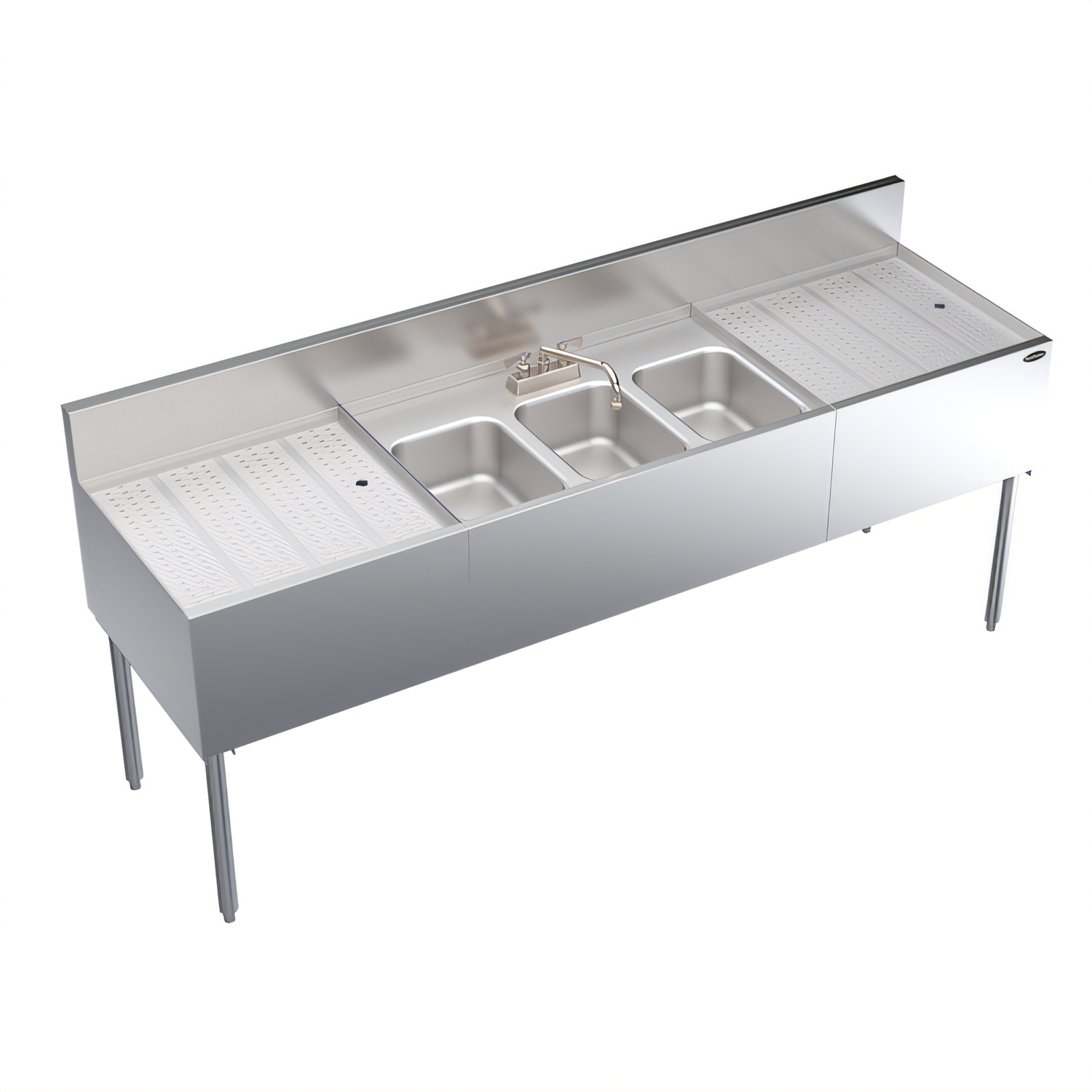

Krowne Royal Series 84" Three-Compartment Underbar Sink – Model KR24-73C
24" deep • Dual 24" embossed drainboards • NSF/ANSI 2 compliantKeep glassware moving and health codes satisfied with Krowne’s flagship Royal Series underbar sink. Engineered from durable stainless steel and delivered complete with faucet, drains and standpipes, this 84-inch workhorse creates a dedicated wash/rinse/sanitize station while doubling as a spacious landing zone for drying and staging.
Why You’ll Love It

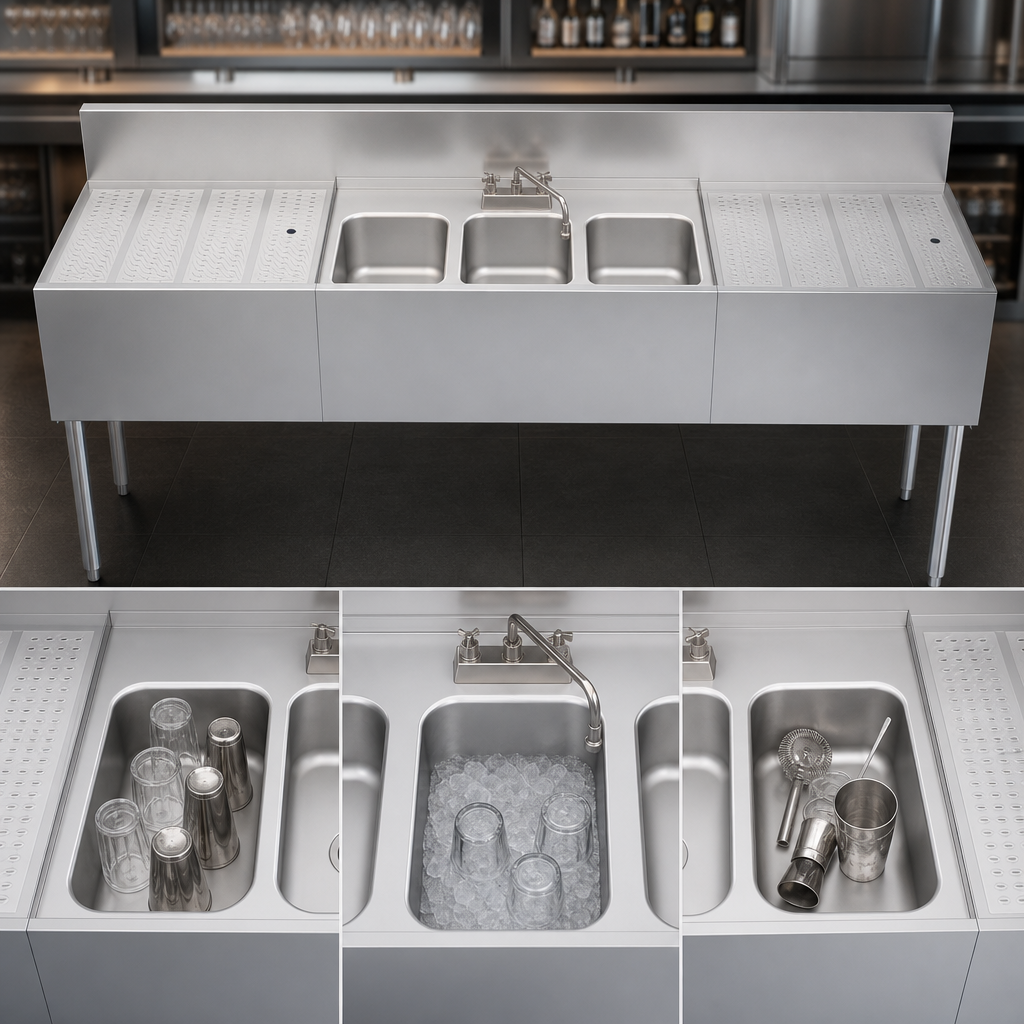

- Three 10" × 14" × 10" sink bowls meet most local code requirements for glassware sanitation.

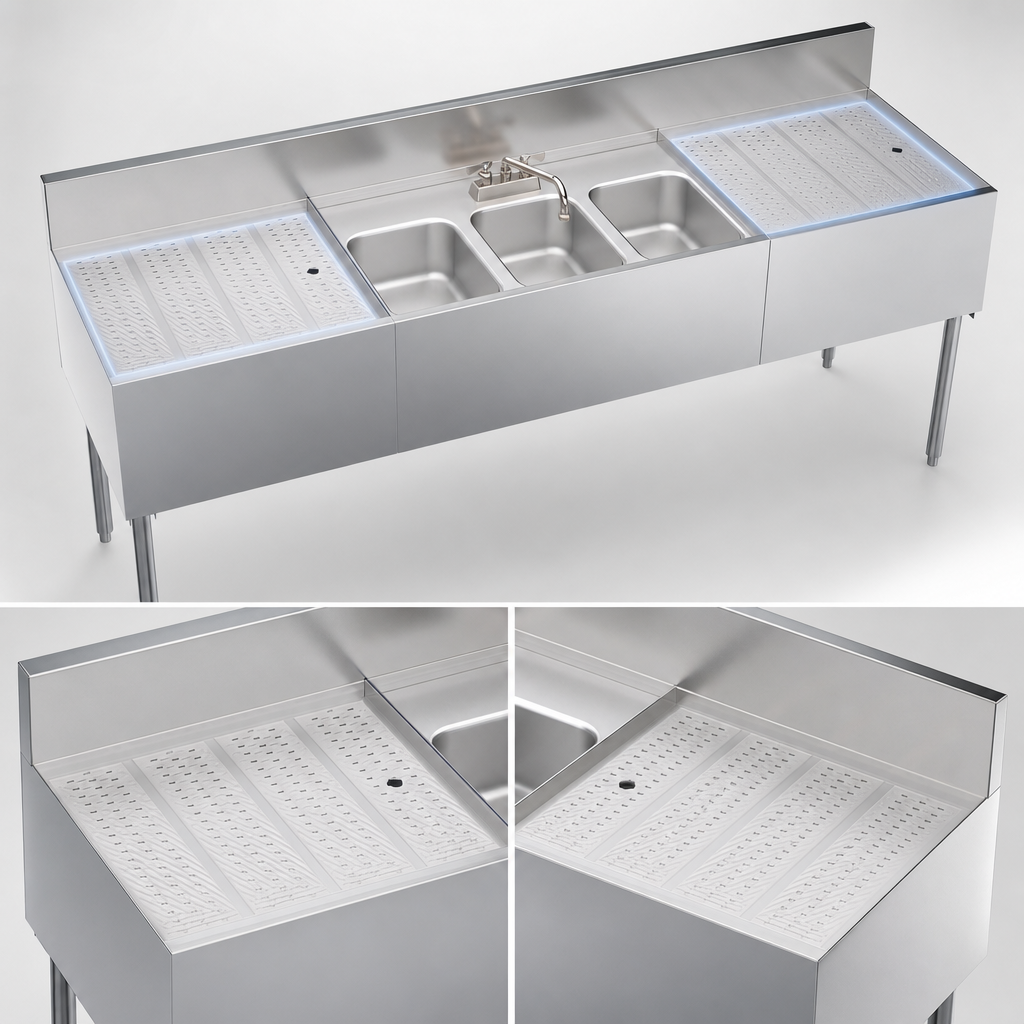

- (2) 24" embossed drainboards (left & right) speed draining and prevent puddling.
- Included Royal Series deck-mount faucet (4" on-center) with swing spout and long-life ceramic cartridges.
- (3) removable 7-1/2" standpipes hold wash water depth and lift out for rapid draining.
- All 20 ga stainless-steel top, bowls, drainboards, sides and backsplash for lasting corrosion resistance.
- Front apron clad in stainless over galvanized steel to withstand bumps from kegs & dollies.
- 1-5/8" O.D. 16 ga stainless legs with adjustable thermoplastic bullet feet for quick leveling.
- 1-1/2" IPS rear-corner drains simplify tie-in to existing plumbing.
- Certified to NSF/ANSI 2 & ASME A112.19.3/CSA B45.4 for food-service peace of mind.
Perfect For
- High-volume cocktail bars and taprooms
- Banquet and event beverage stations
- Nightclubs, casinos & hotel lounges
- Tasting rooms needing a compact three-bay sink with landing space
Technical Specifications
| Model | KR24-73C (center bowls) |
|---|---|
| Overall width | 84" (2134 mm) |
| Overall depth | 24" (610 mm) |
| Working height | Approx. 36" – 37" (adjustable bullet feet) |
| Bowl size (3) | 10" W × 14" F/B × 10" D |
| Drainboards | (2) 24" L embossed, left & right |
| Faucet | Deck mount, 4" centers, swing spout, ceramic valves |
| Plumbing connections | ½" IPS hot & cold; 1-½" IPS drains |
| Construction | 20 ga stainless top, bowls, drainboards, sides & backsplash; SS-clad apron |
| Legs / feet | 1-5/8" 16 ga SS tubular with adjustable thermoplastic bullet feet |
| Shipping weight | ≈ 93 lb (42 kg) |
| Certifications | NSF/ANSI 2, ASME A112.19.3/CSA B45.4 |
What’s in the Box
- Krowne Royal Series underbar sink – model KR24-73C
- Royal Series 4" O.C. deck-mount faucet with swing spout
- (3) Stainless 7-1/2" overflow standpipes
- (3) 1-1/2" IPS rear-corner drains with strainers
- Pre-installed stainless legs & adjustable bullet feet
Dimensions and weights are nominal and subject to change without notice as part of Krowne’s commitment to product improvement.
