Krowne KR24-63C Royal Series Bar Equipment
Description

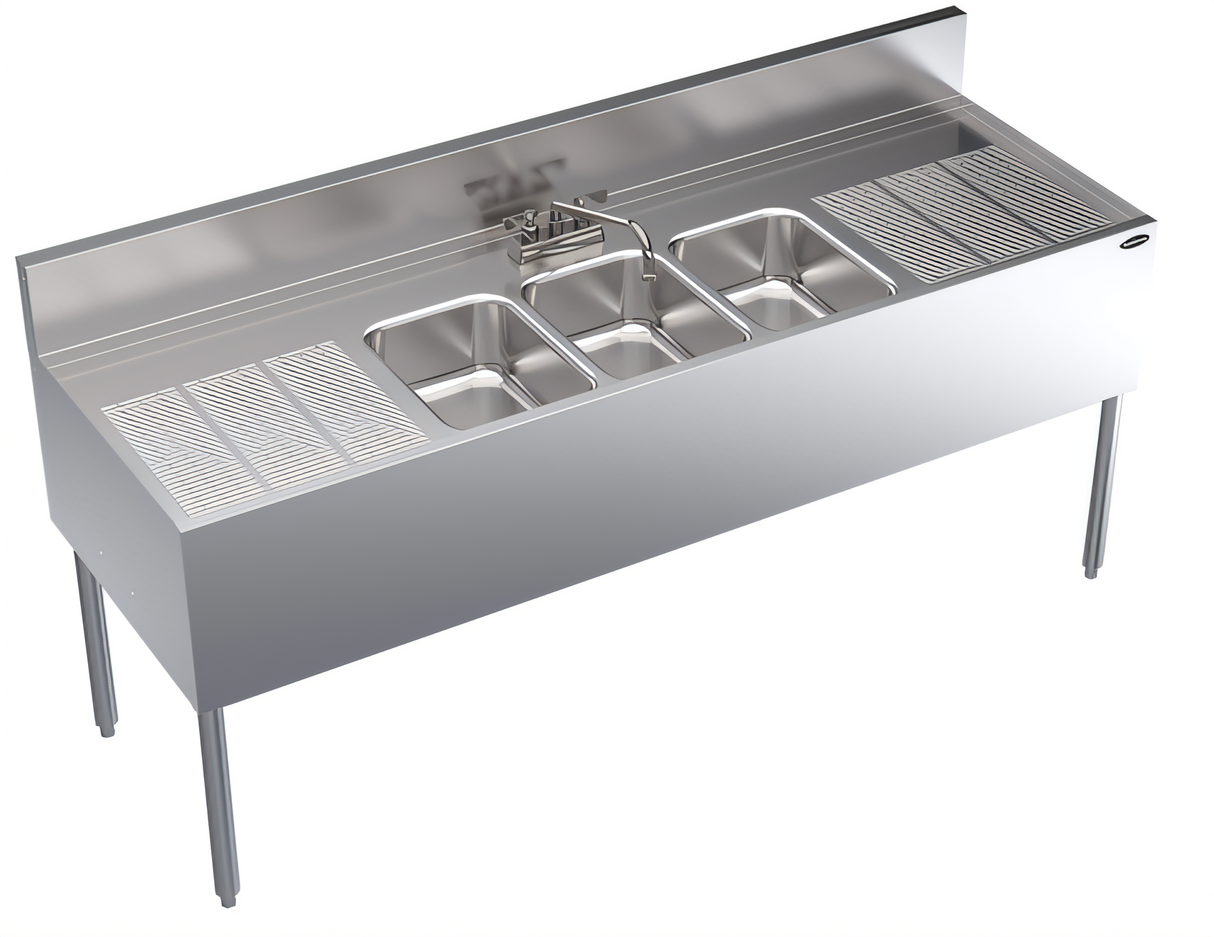

Krowne Royal Series 72" Three-Compartment Underbar Sink with Dual 18" Drainboards (Model KR24-63C)
10" x 14" x 10" bowls • Deck-mount faucet • NSF/ANSI 2Keep glassware moving and bartenders smiling with the Krowne Royal Series KR24-63C. This 72-inch underbar sink combines three deep washing compartments with full-size embossed drainboards on both the left and right, delivering a compact, all-in-one cleaning station built to thrive in high-volume environments.
Why You’ll Love It

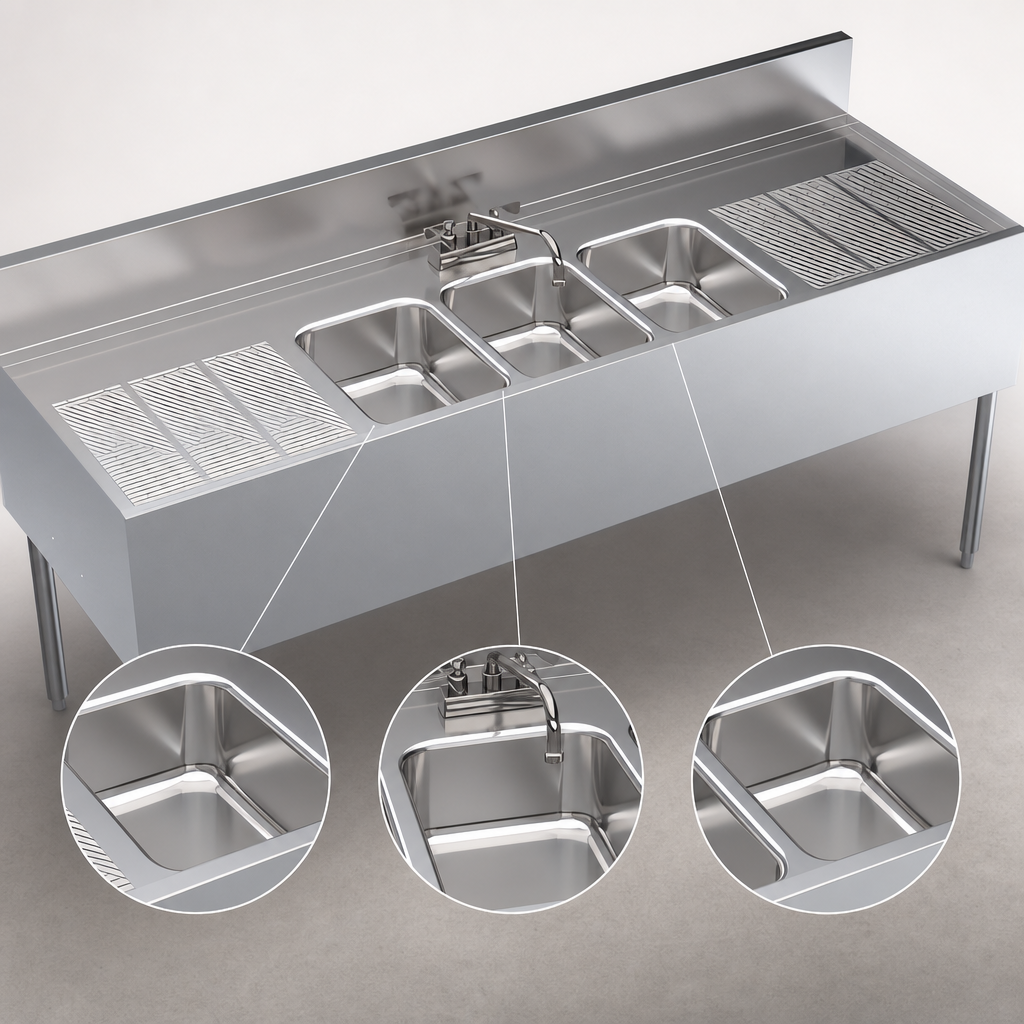

- Three 10" W x 14" F/B x 10" D sink bowls for dedicated wash, rinse & sanitize steps.

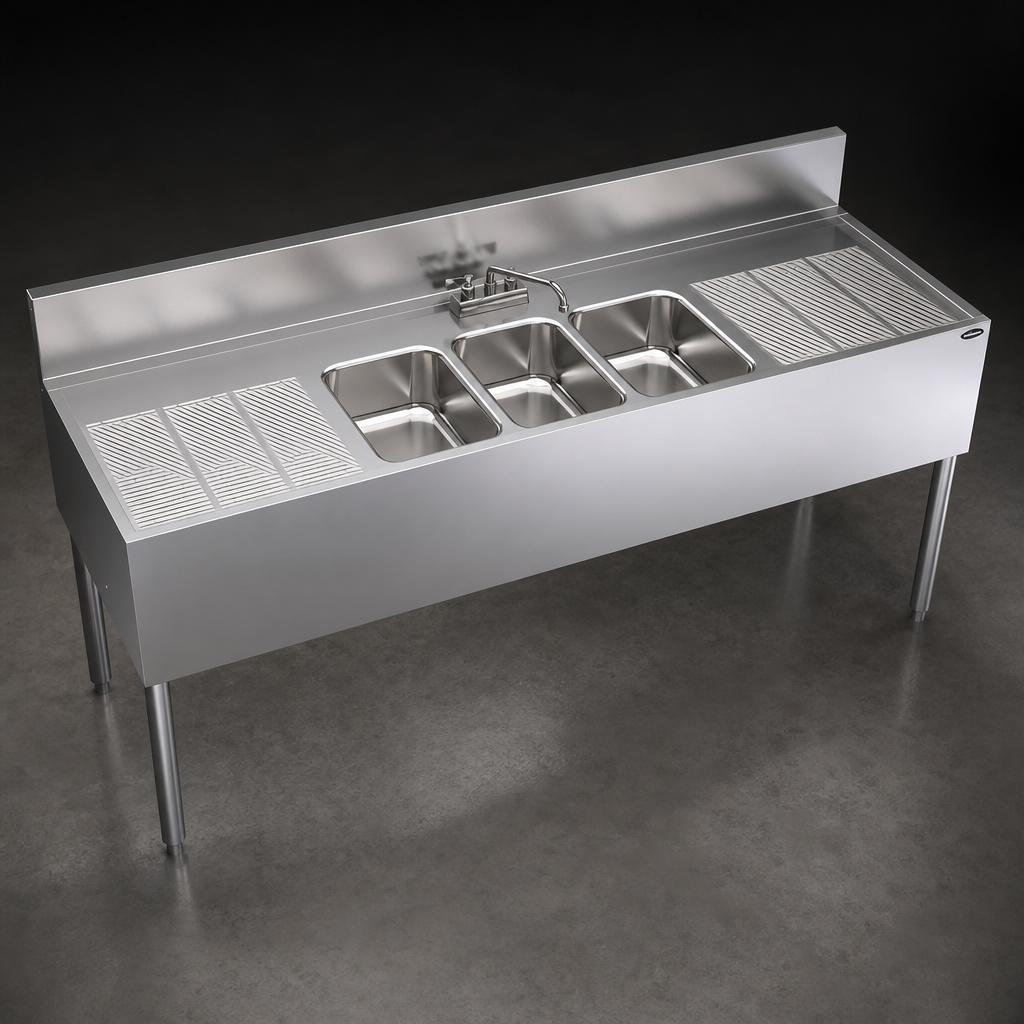

- (2) 18" integral drainboards—embossed & reinforced every 6" for extra strength.
- Royal Series 4" O.C. deck-mount faucet with swing spout & ¼-turn ceramic cartridges.
- Stainless steel top, front & sides (20 ga) with matching front/side aprons for a polished look.
- 1-5/8" Ø, 16 ga tubular stainless steel legs with adjustable thermoplastic bullet feet for rock-solid leveling.
- (3) Removable overflow standpipes & rear-corner 1½" IPS drains included—no extra kits required.
- NSF/ANSI 2 & ASME A112.19.3/CSA B45.4 listed for food-service peace of mind.
Technical Specifications
| Model | KR24-63C |
|---|---|
| Overall Width | 72" (1829 mm) |
| Overall Depth | 24" (610 mm) |
| Bowl Count / Location | 3 / Center |
| Individual Bowl Size | 10" W × 14" F/B × 10" D |
| Drainboard Size | (2) 18" L (left & right), embossed integral |
| Faucet | 4" O.C. deck-mount, swing spout, ¼-turn ceramic valves (hot/cold ½" IPS) |
| Drain Connection | 1½" IPS rear-corner drains (standpipes included) |
| Construction | 20 ga stainless steel top, bowls, front & sides; 16 ga SS legs |
| Adjustability | Thermoplastic bullet feet (height & leveling) |
| Approx. Net Weight | 83 lb (37.6 kg) |
| Certifications | NSF/ANSI 2, ASME A112.19.3/CSA B45.4 |
Certifications & Compliance
- NSF/ANSI 2 – Food Equipment
- ASME A112.19.3 / CSA B45.4 – Stainless Steel Plumbing Fixtures
Due to ongoing product improvements, specifications are subject to change without notice. For the most current information, please refer to the manufacturer’s documentation or contact us.
