Krowne  |  Royal Series  |  SKU: KR24-53C

Krowne KR24-53C Royal Series Bar Equipment

$2,723.05
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

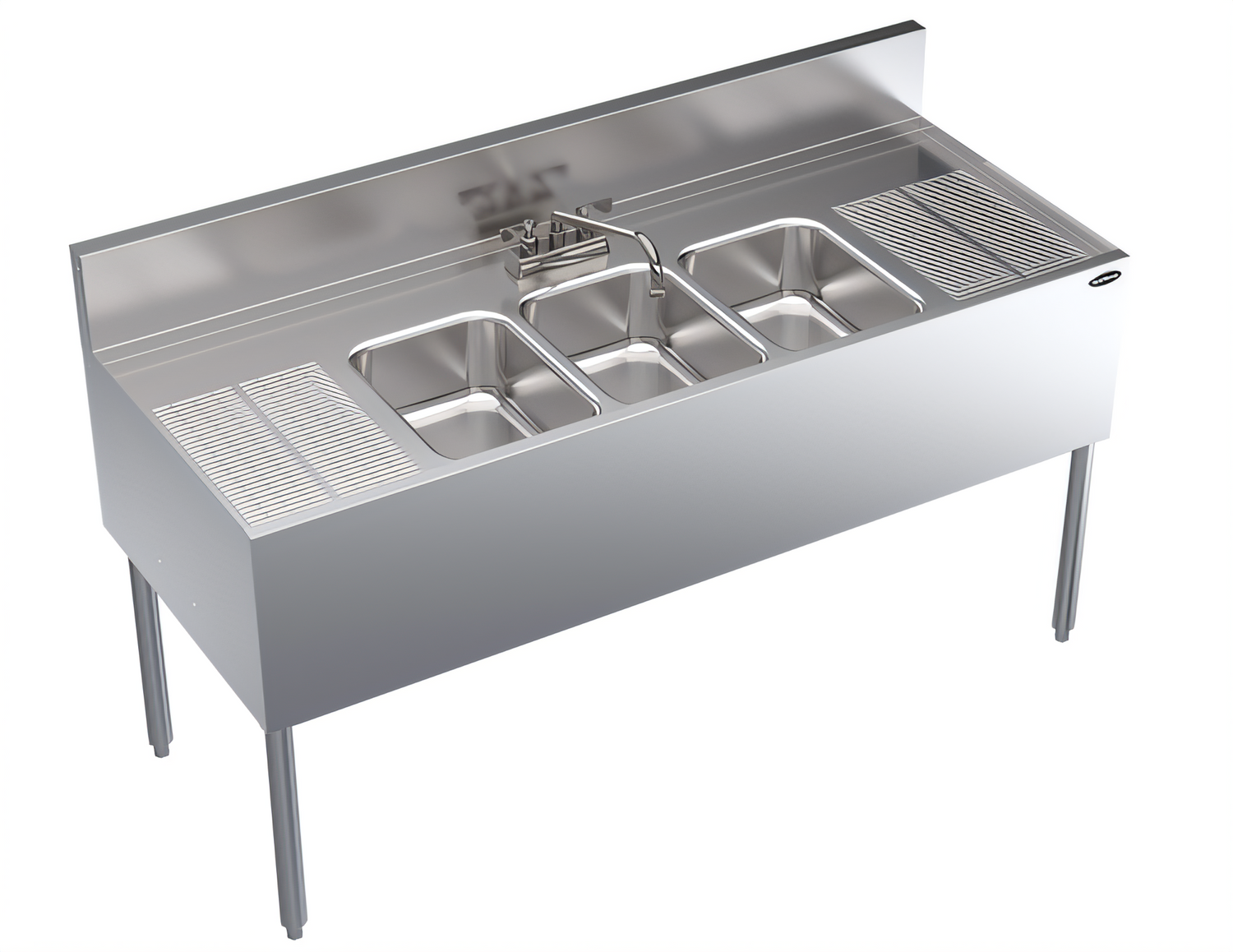

Krowne Royal Series 60" Three-Compartment Underbar Sink – Model KR24-53C

Dual 12" Integrated Drainboards • Deck-Mount Swing Faucet • NSF Listed

Keep the drinks flowing and the glassware sparkling with the KR24-53C. This Royal Series underbar sink delivers rugged stainless-steel construction, generous work surfaces, and smart plumbing features in a compact 60 inch footprint—perfect for busy bars that refuse to slow down.

Key Features

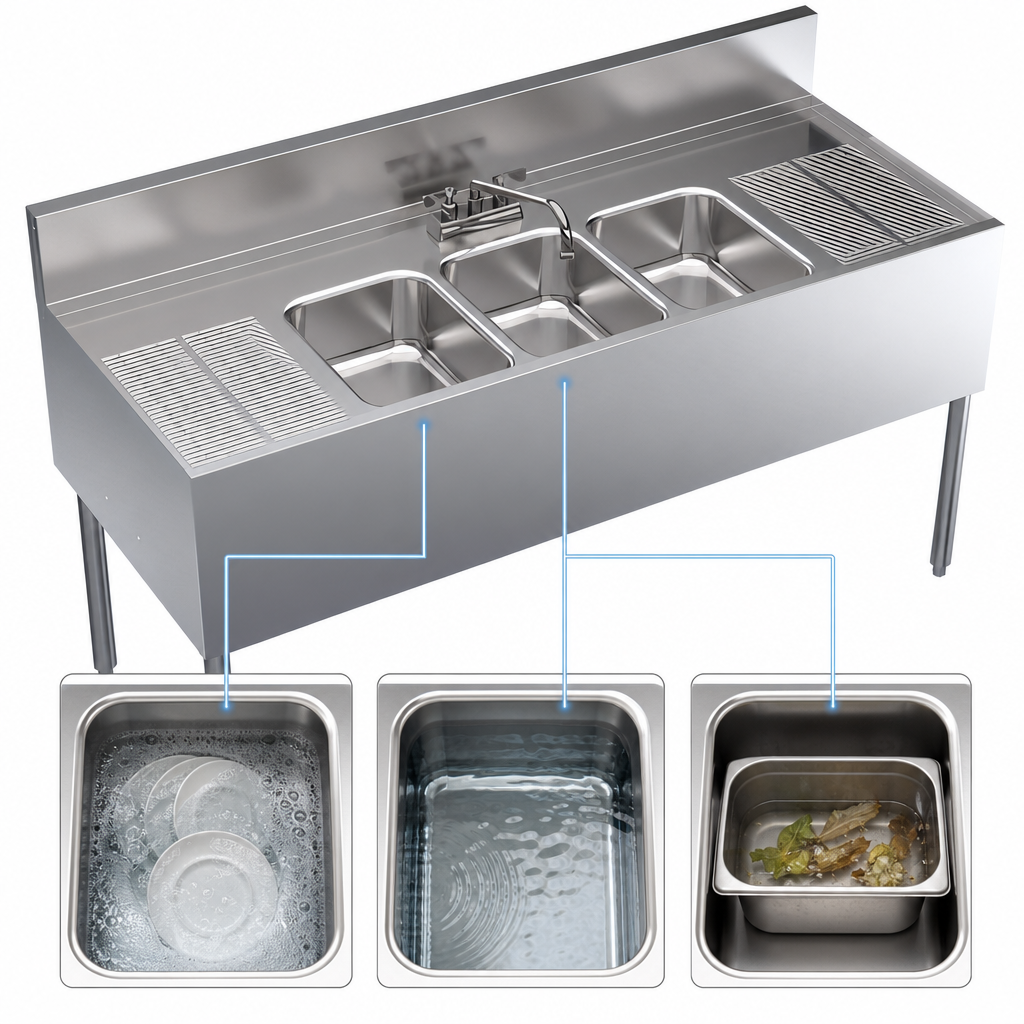

  • Three 10" W x 14" F-B x 10" D bowls let staff wash, rinse, and sanitize simultaneously.
  • Embossed 12" integral drainboards on both left and right keep glassware organized and air-drying fast.
  • Factory-installed Royal Series 4" O.C. deck-mount faucet with swing spout and quarter-turn ceramic cartridges for smooth, leak-free performance.
  • (3) removable overflow standpipes maintain proper water levels and swap out in seconds.
  • One-piece, 20 ga. stainless-steel top, bowls, front, and sides resist dents, rust, and harsh bar chemicals.
  • 1-5/8" Ø, 16 ga. stainless-steel legs with adjustable thermoplastic bullet feet level the sink on uneven floors.
  • Reinforced drainboards with welded braces every 6" eliminate sagging under heavy loads.
  • NSF/ANSI 2 & ASME A112.19.3/CSA B45.4 certified for sanitation and safety.

Technical Specifications

Manufacturer / Series Krowne – Royal Series Underbar
Model # KR24-53C
Overall Dimensions 60" W × 24" D (height adjustable with bullet feet)

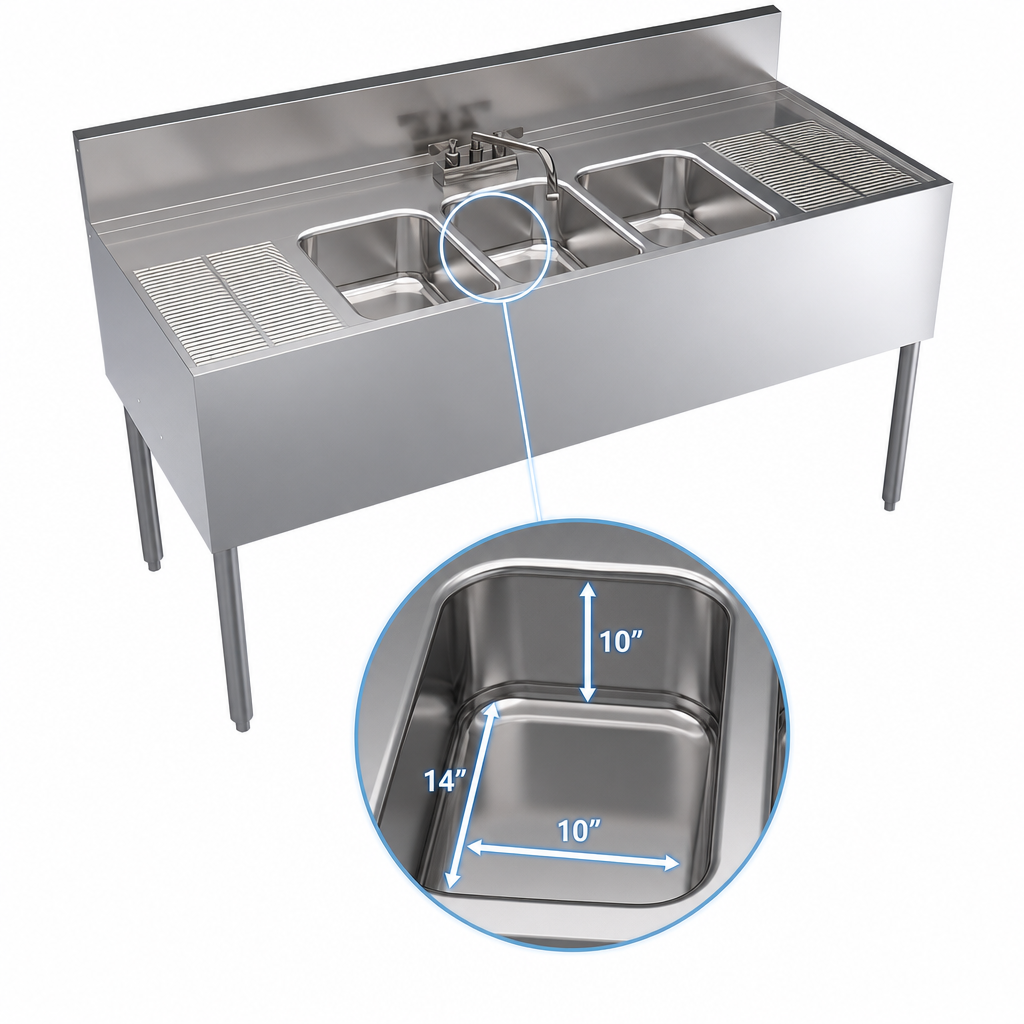

Sink Bowl Interior (each) 10" W × 14" F-B × 10" D
Number of Compartments 3 (centered)
Drainboards 12" L embossed, left & right
Faucet Deck-mount, 4" centers, swing spout, 1/2" IPS hot & cold, ceramic valves
Drains (3) 1-1/2" IPS rear-corner drains with removable overflow standpipes
Materials 20 ga. stainless-steel top/bowls/sides/front; galvanized back & bottom
Legs / Feet 1-5/8" Ø, 16 ga. tubular stainless legs with adjustable thermoplastic bullet feet
Shipping Weight ≈ 76 lb
Certifications NSF/ANSI 2, ASME A112.19.3/CSA B45.4

Ideal Applications

  • Craft cocktail, sports, and hotel bars
  • Tasting rooms & tap houses
  • Nightclubs & lounges
  • Banquet and event service stations
  • Cafés and coffee bars needing a compact triple-sink
Installation Note: All plumbing connections must be completed by a licensed professional in accordance with local codes. Legs ship knocked down; minimal assembly required.

Need speed rails, glass rinsers, or other accessories? Ask about the full lineup of Krowne Royal Series add-ons to build your perfect bar station.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

60.0in

Depth

24.0in

Shipping Weight

130.0lbs

Drainboards

drainboards on left & right

Construction

stainless steel top, front, ends & legs

Width (side - side) OA

55" - 60"

Bowl Size

10" x 14" front-to-back

Sink Compartments

(3)

Depth (front - back) OA

24" - 27"

Splash

6"

Bowl Depth (rim - drain)

10"

Specifications

Royal Series Underbar Sink Unit, three compartment, 60"W x 24"D, 10" wide x 14" front-to-back x 10" deep compartments, 12" embossed integral drainboards on left & right, deck mount Royal Series faucet with swing spout, apron on front & sides, (3) removable overflow standpipes, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
