Krowne  |  Royal Series  |  SKU: KR24-48-10

Krowne KR24-48-10 Royal Series Bar Equipment

$3,641.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Sell sheet
Related Searches
Bar Ice Bins Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

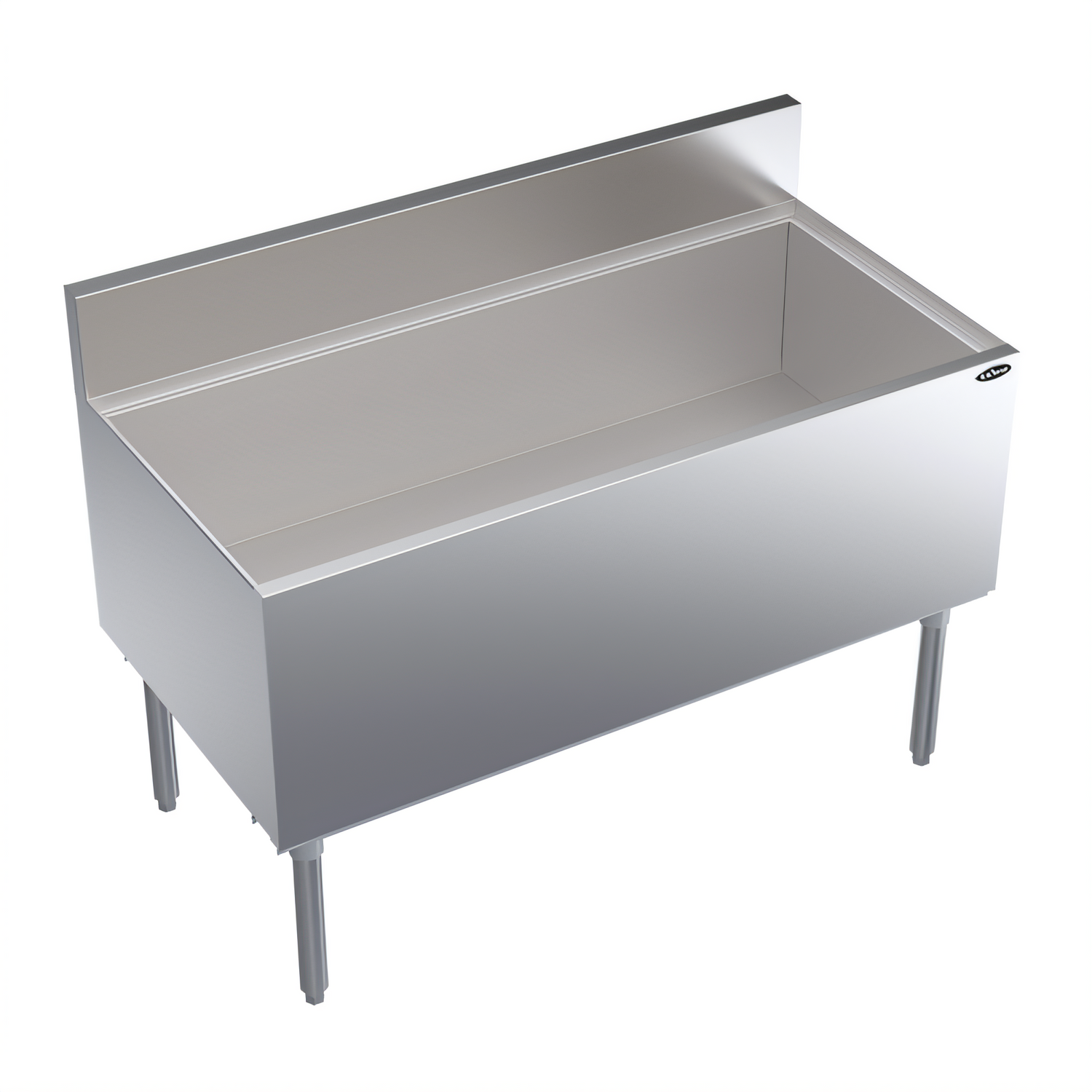

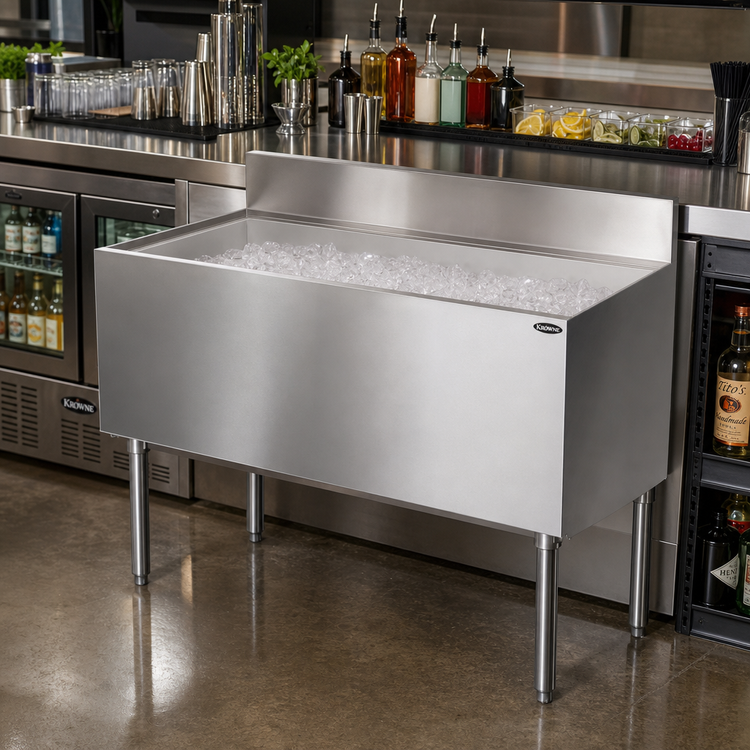

Krowne Royal Series 48" Underbar Ice Bin & Cocktail Station – 10-Circuit Cold Plate

Model KR24-48-10 | 184 lb Ice Capacity | NSF Listed

Give your bartenders the cold they crave and the durability they demand. The 48" Krowne Royal Series Ice Bin combines a high-performance 10-circuit cold plate with a rugged stainless build to keep beverages perfectly chilled and service running smooth.

Key Benefits

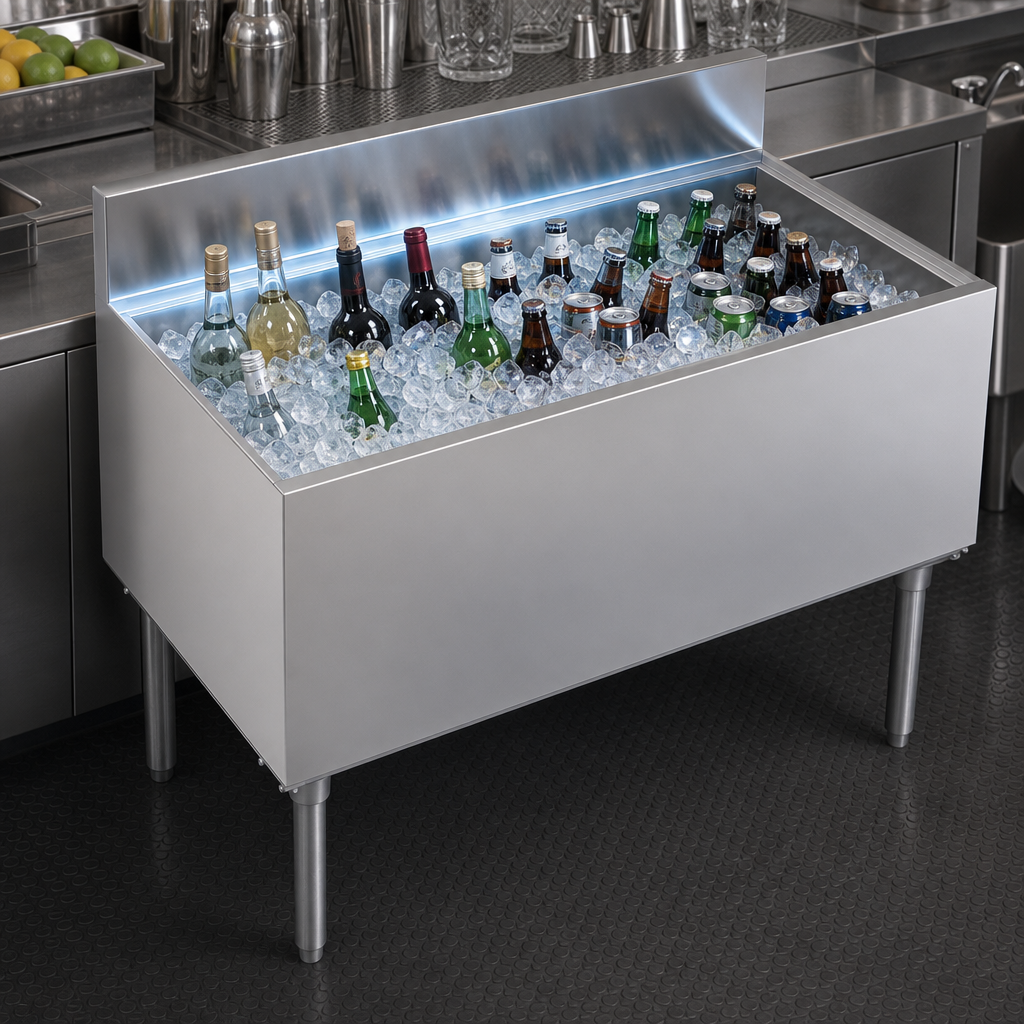

  • Integrated 10-circuit post-mix cold plate chills soda lines for crisp, foam-free pours.

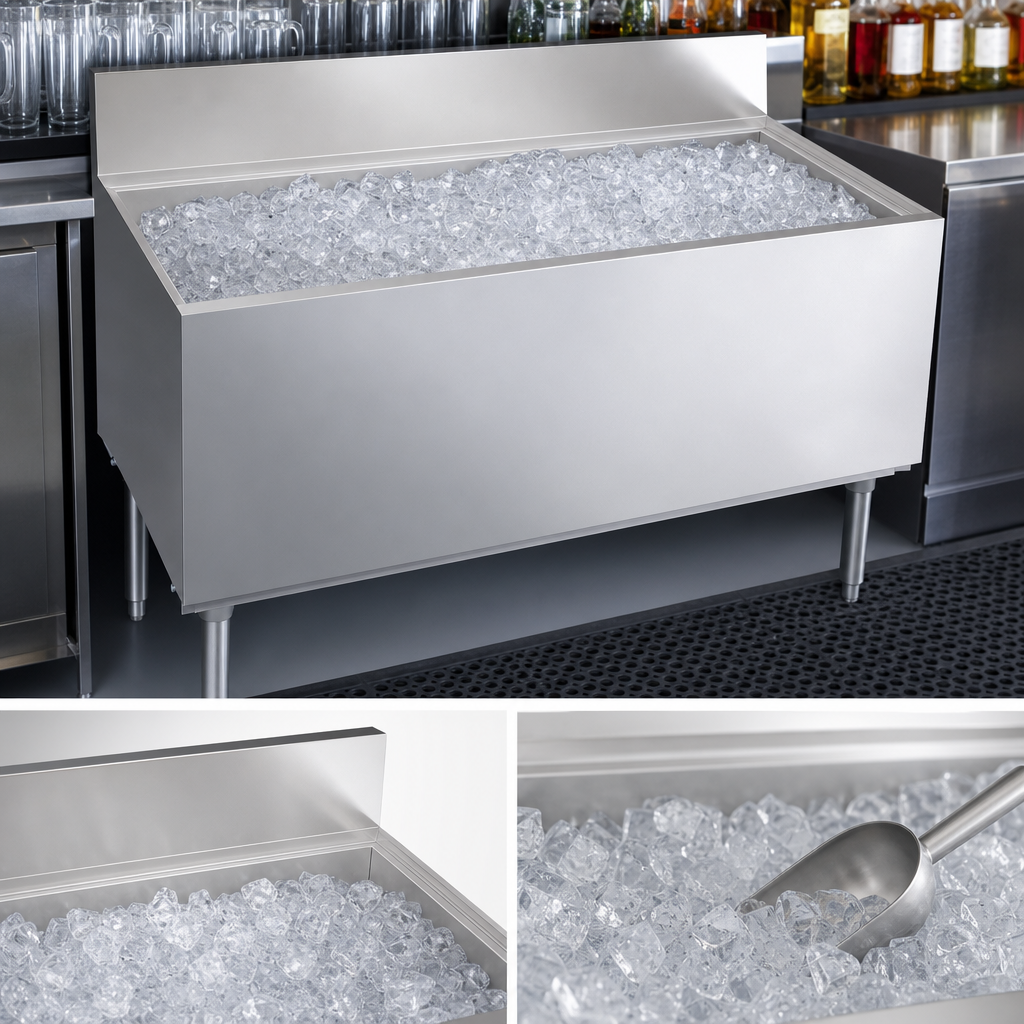

  • Huge 184 lb ice capacity powers through peak rushes without re-stocking.
  • 12"-deep, 20 ga stainless steel liner cleans easily and resists corrosion.
  • 3/4" × 3-1/2" backsplash cut-out offers quick, code-compliant soda line access.
  • Stainless steel top, front & sides with galvanized back/bottom for years of bar-proof durability.
  • 1-5/8" tubular stainless legs with adjustable thermoplastic bullet feet level the unit in seconds.
  • Foamed-in-place polyurethane insulation locks in cold and stops exterior sweating.
  • NSF certification ensures food-safe materials and construction.

Specifications

Overall Width 48"
Overall Depth 24"
Work Surface Height 30"
Ice Capacity 184 lb
Interior Liner (W × L × D) 20" × 46" × 12"
Cold Plate Built-in, 10 circuits, 5/16" OD stainless tubing
Drain ½" PVC tailpiece (included)
Soda Line Access ¾" × 3½" cut-out in backsplash
Construction 20 ga stainless steel liner, top, front & sides; 20 ga galvanized back & bottom
Insulation Foamed-in-place polyurethane
Legs / Feet 1-5/8" 16 ga stainless legs with adjustable thermoplastic bullet feet
Certifications NSF

Optional Accessories (Sold Separately)

  • Single or double speed rails
  • Sliding ice bin covers (partial or full)
  • Condiment trays & garnish stations
  • Stainless steel dividers & bottle wells
  • Cap catcher & opener

Ask our team to help configure accessories for your exact workflow.

Cold Plate Note: The cold plate is factory-sealed into the bin and cannot be added later. Choose a cold-plate model at the time of purchase if you plan to run a soda system.

Upgrade your back-bar with the Krowne Royal Series and keep every drink perfectly chilled, pour after pour.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

48.0in

Depth

24.0in

Shipping Weight

186.0lbs

Depth (front - back) OA

24" - 27"

Splash

6"

Bin Depth

12" deep ice bin

Cold Plate

(10) circuit

Construction

stainless steel & galvanized

Ice Capacity

150 - 199 lbs.

Width (side - side) OA

43" - 48"

Specifications

Royal Series Underbar Ice Bin/Cocktail Unit, built-in 10-circuit cold plate, 48"W x 24"D O.A., 184-lb capacity, 12" deep stainless steel bin liner, 3/4" x 3-1/2” Soda Line cut out in backsplash, 1/2" drain, stainless steel top, front & sides, galvanized steel back & bottom, stainless steel legs with adjustable thermoplastic bullet feet, NSF
