Krowne  |  Royal Series  |  SKU: KR24-44C

Krowne KR24-44C Royal Series Bar Equipment

$2,743.95
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

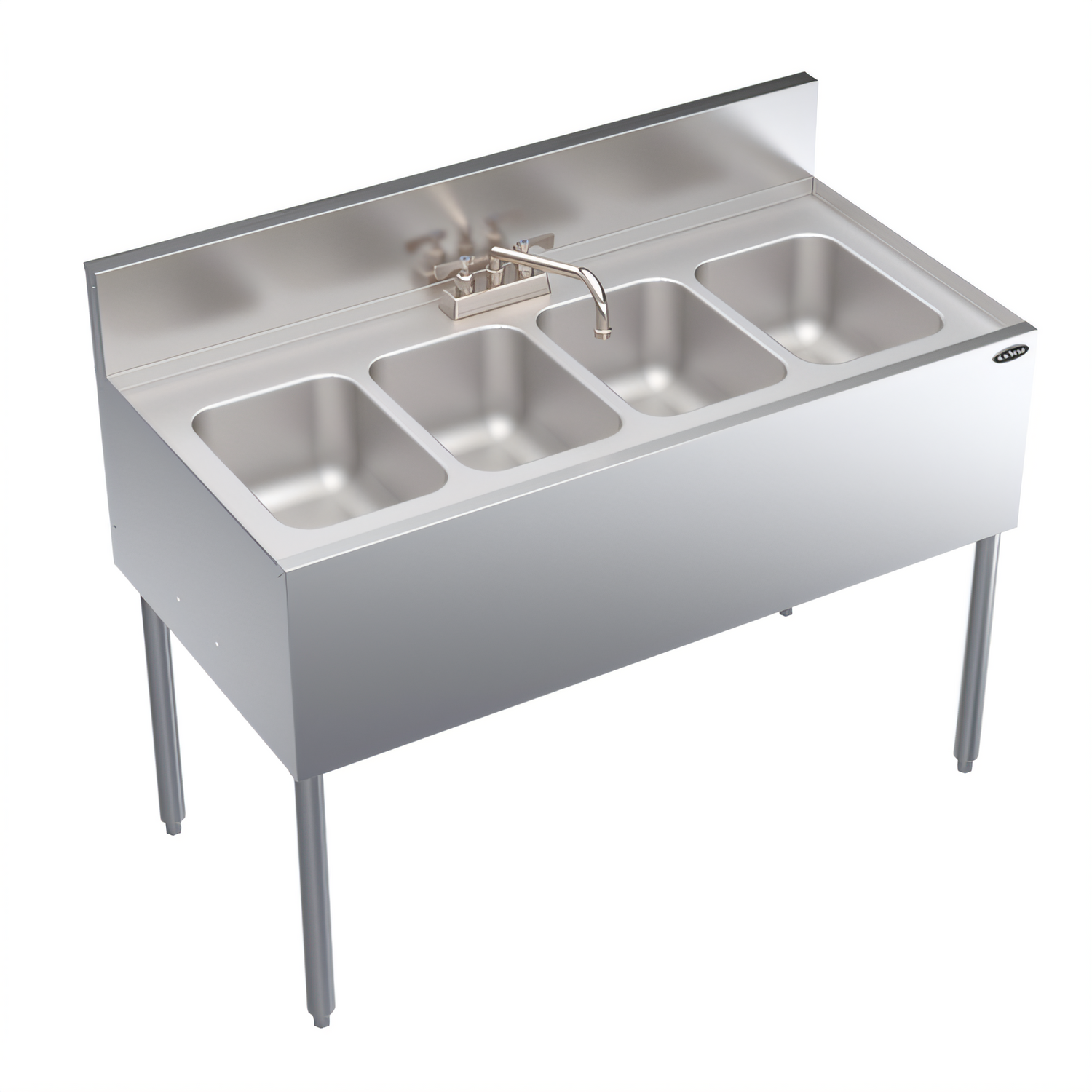

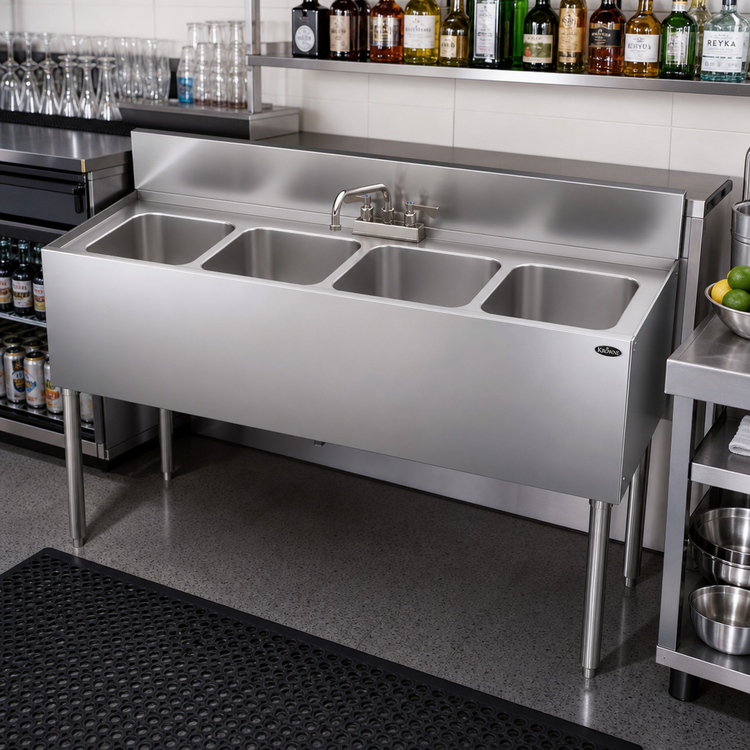

Krowne Royal Series 4-Compartment Underbar Sink – 48" W x 24" D

Model KR24-44C | NSF Listed

Engineered for demanding bar programs, the Krowne Royal Series four-compartment sink delivers rugged stainless-steel construction, an integrated drainboard, and a smooth-pivot Royal Series faucet—all inside a space-saving 48" footprint.

Key Features

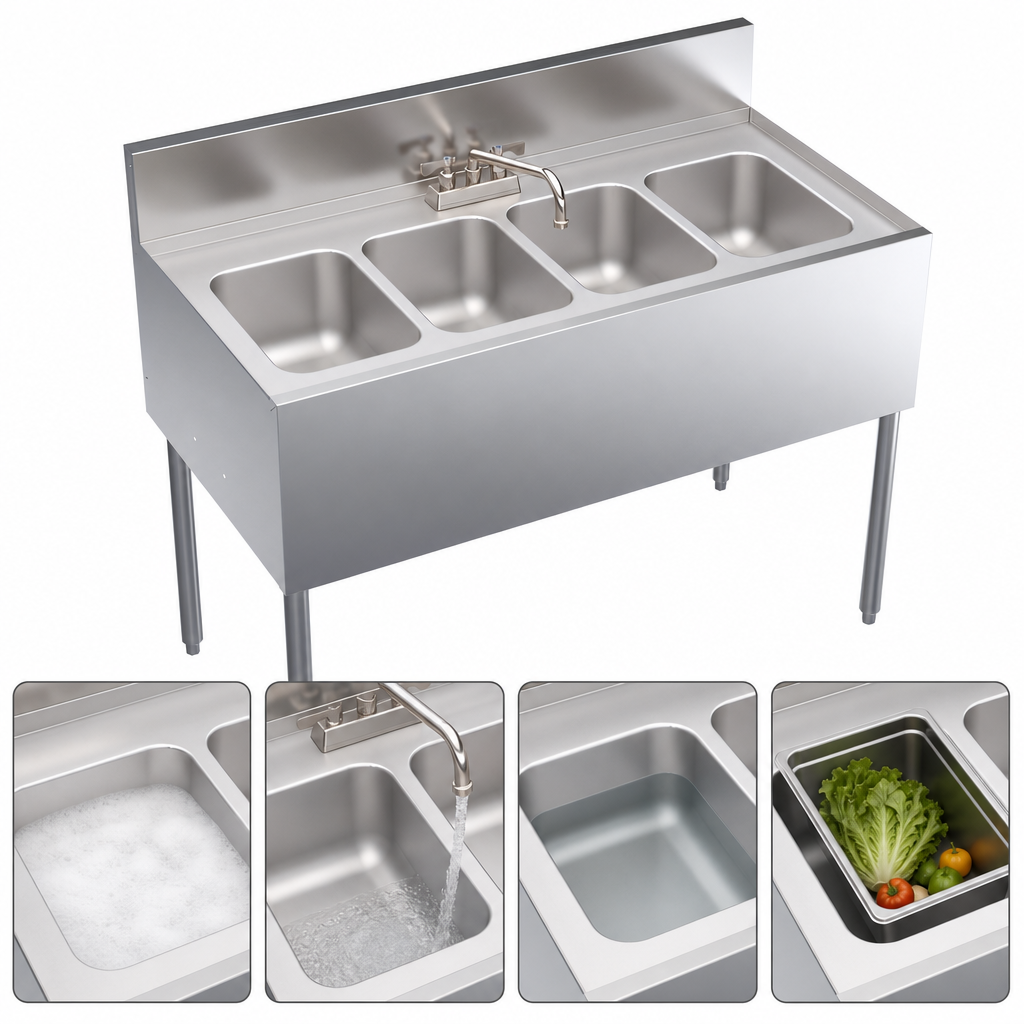

  • Four 10" W x 14" F-B x 10" D bowls for organized wash, rinse, sanitize & dump cycles.
  • 20-gauge stainless steel top, bowls, front & sides for superior corrosion resistance.
  • Deck-mount Royal Series faucet with 4" centers and double-jointed swing spout for maximum reach.
  • (4) removable 7-1/2" overflow standpipes safeguard against spills and speed water changes.
  • 4" left-side integrated drainboard reinforced with welded braces every 6".
  • 1-5/8" O.D. 16-gauge stainless steel legs with adjustable thermoplastic bullet feet for fast leveling.
  • Listed to NSF/ANSI 2 and ASME A112.19.3 / CSA B45.4 for open foodservice installations.

Ideal For

  • Full-service & craft cocktail bars
  • Hotel banquet or rooftop bars
  • Event venues & catering stations
  • Back-bar prep or glass-ware staging

Technical Specifications

Overall Width 48" (1219 mm)
Overall Depth 24" (610 mm)
Overall Height 36 1⁄2" (927 mm) to deck

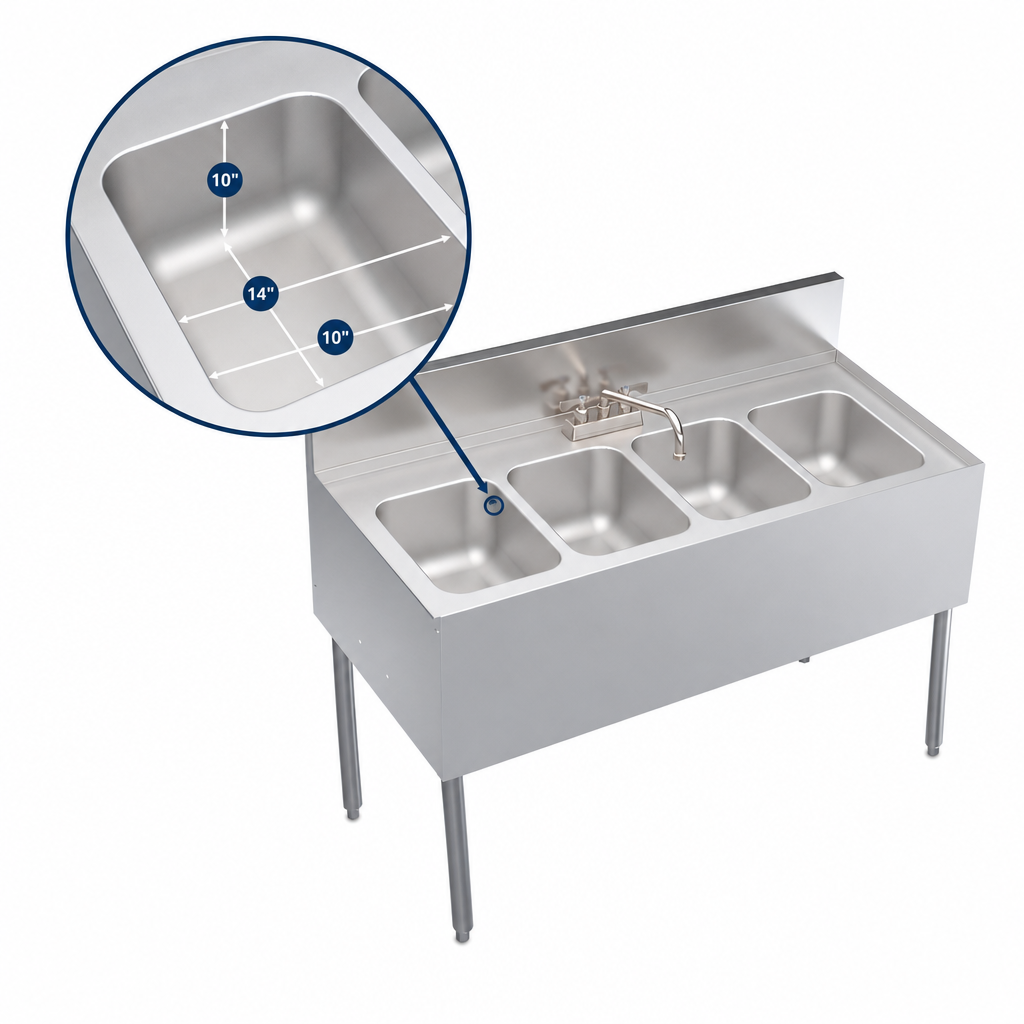

Compartment Size 10" W x 14" F-B x 10" D
Drainboard 4" left side, integrated
Drain Outlet 1-1/2" IPS rear corner (per bowl)
Overflow Standpipes (4) × 7-1/2" H, removable
Faucet Inlets 1/2" IPS hot & cold
Leg Construction 1-5/8" O.D. 16-ga stainless steel, adjustable bullet feet
Shipping Weight 72 lb (33 kg)
Certifications NSF/ANSI 2, ASME A112.19.3 / CSA B45.4

Need additional lengths or bowl configurations? Explore other Krowne Royal Series bar sinks to build a perfectly matched bar line-up.

Installation Note: All plumbing connections must be completed by qualified personnel in accordance with local codes.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

48.0in

Depth

24.0in

Shipping Weight

125.0lbs

Splash

6"

Depth (front - back) OA

24" - 27"

Bowl Depth (rim - drain)

10"

Construction

stainless steel top, front, ends & legs

Drainboards

without drainboards

Bowl Size

10" x 14" front-to-back

Sink Compartments

(4)

Width (side - side) OA

43" - 48"

Specifications

Royal Series Underbar Sink Unit, four compartment, 48"W x 24"D, 10" wide x 14" front-to-back x 10" deep compartments, deck mount Royal Series faucet with double jointed spout, apron on front & sides, (4) removable overflow standpipes, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
