Krowne  |  Royal Series  |  SKU: KR24-43R

Krowne KR24-43R Royal Series Bar Equipment

$2,448.05
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

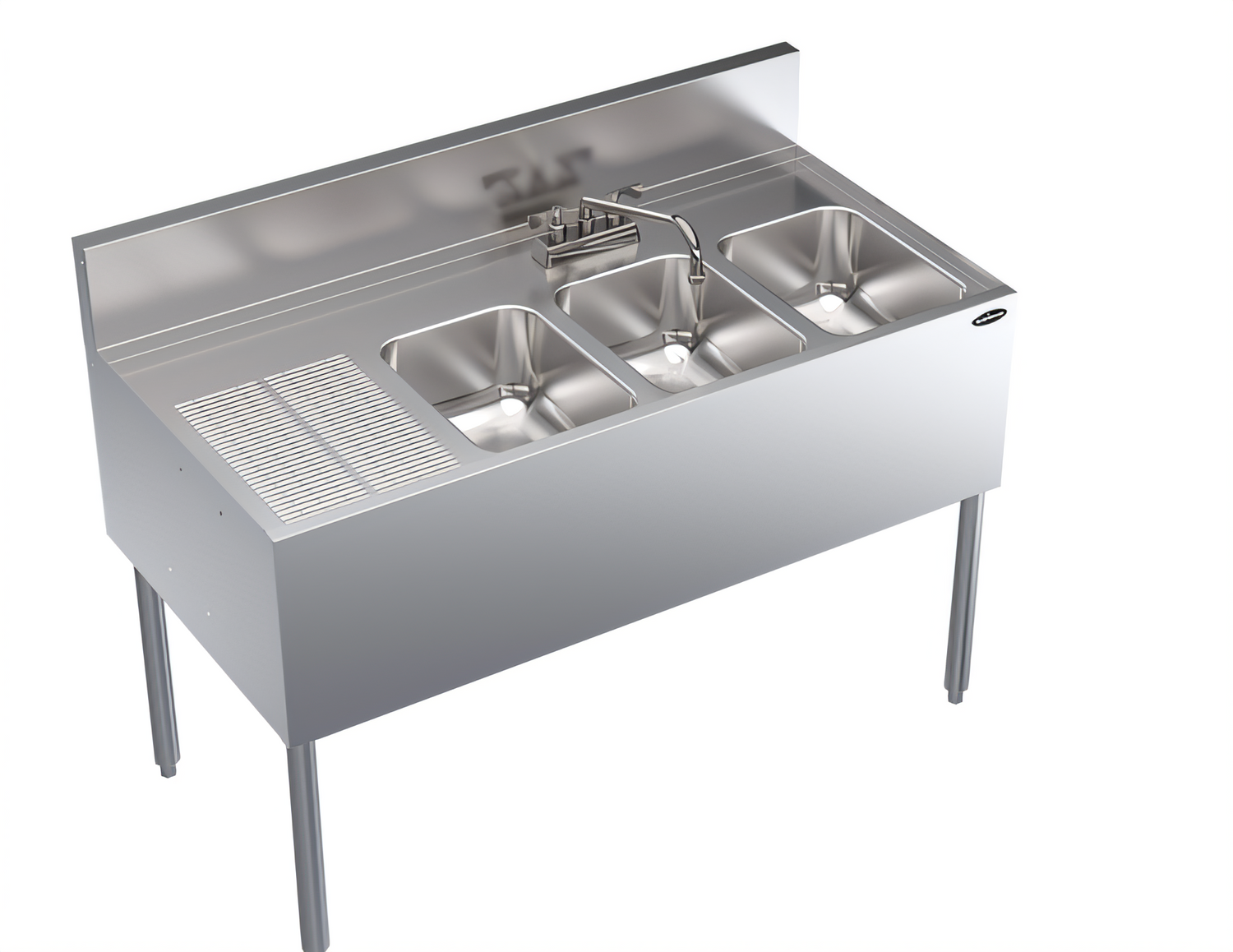

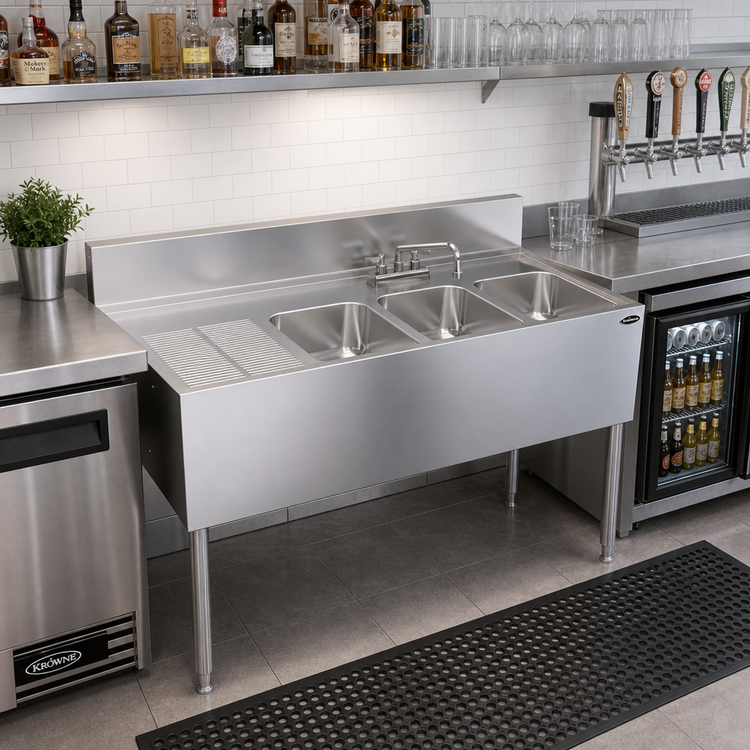

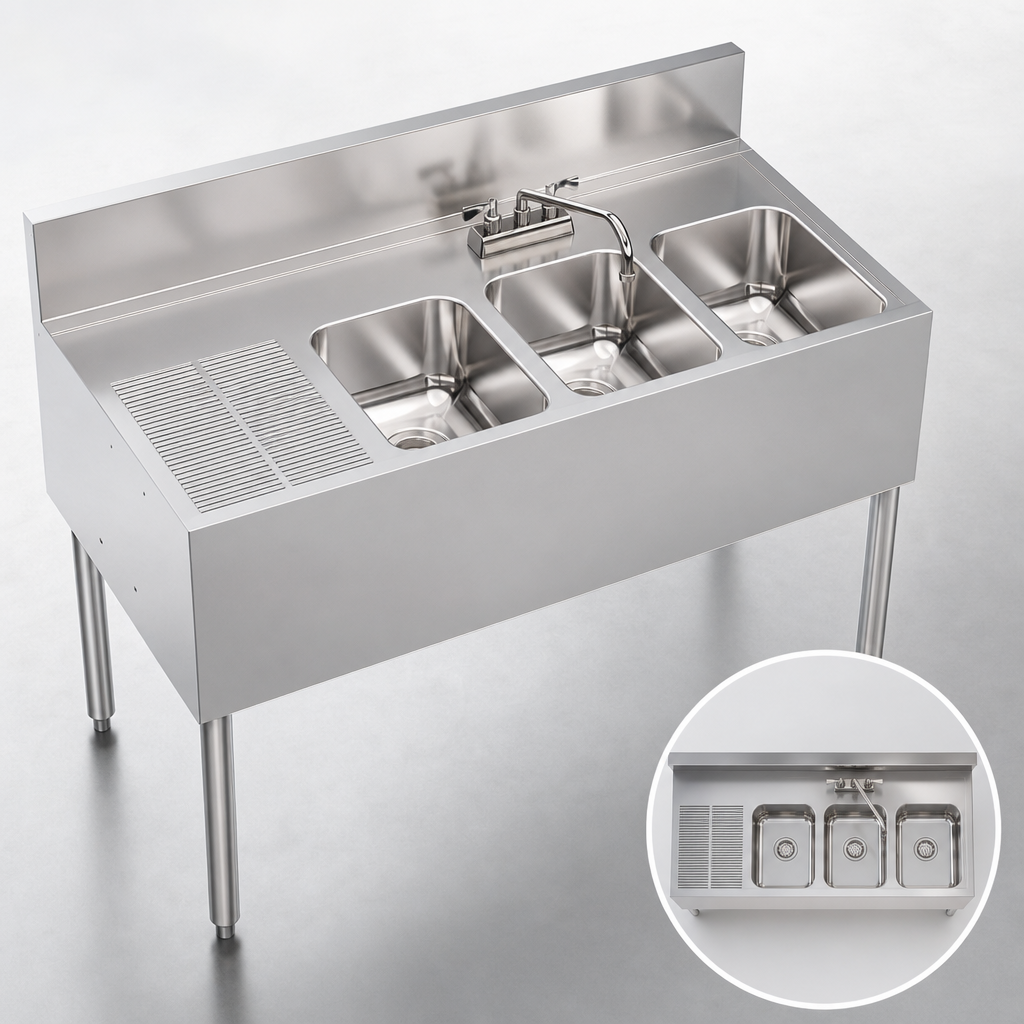

Krowne Royal Series 48" x 24" Three-Compartment Underbar Sink – Left Drainboard

Model KR24-43L | NSF/ANSI 2 Certified

Built for the rigors of a busy bar, the Royal Series underbar sink delivers reliable performance without eating up valuable floor space. Three deep compartments, an embossed left-side drainboard, and a smooth-swivel deck-mount faucet give bartenders everything they need to rinse, wash, and sanitize glassware fast.

Key Features

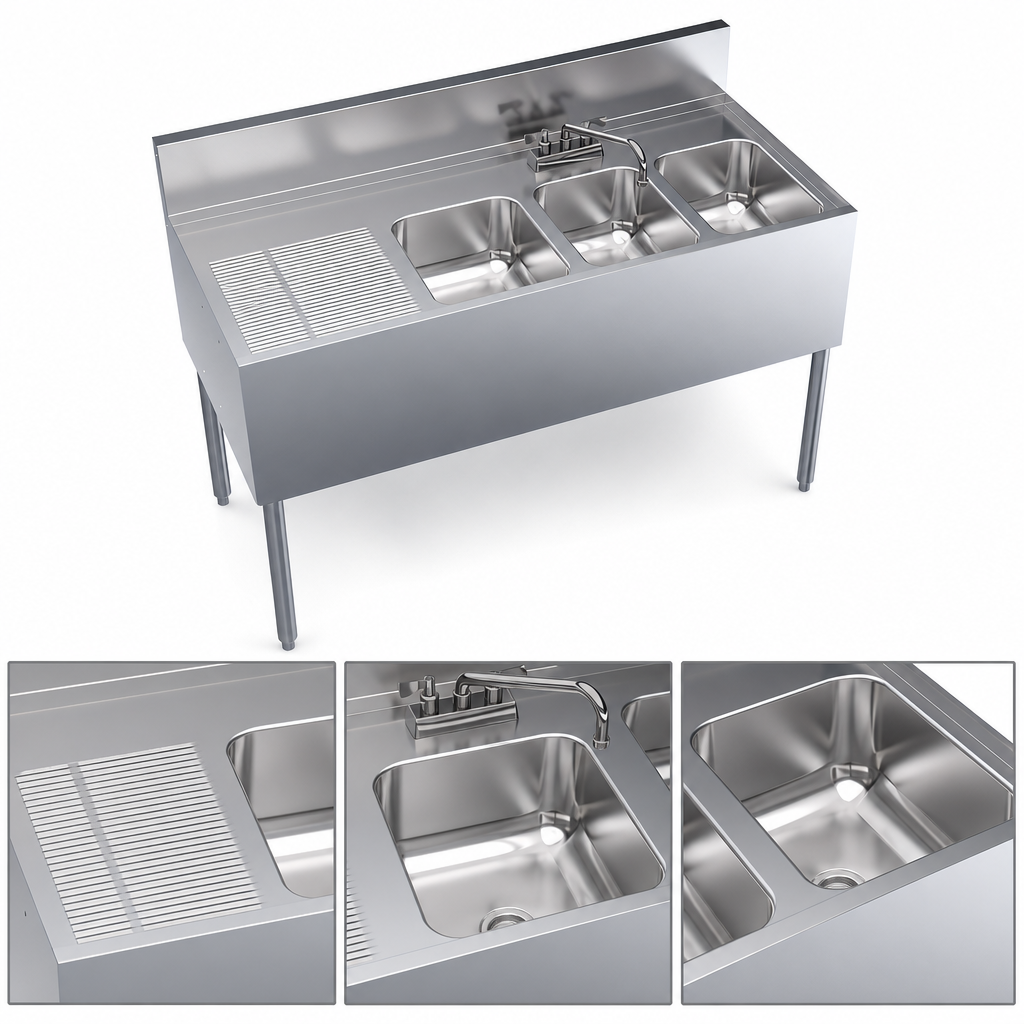

  • Three 10" W x 14" F/B x 10" D sink bowls – 20 ga. stainless steel
  • 12" integral embossed drainboard on the left; reinforced with welded braces every 6"
  • Deck-mount Royal Series faucet, 4" on-center, swing spout, ¼-turn ceramic cartridges
  • (3) removable 7½" overflow standpipes to maintain proper water level for sanitizing
  • 1½" IPS rear-corner drains for each compartment
  • 20 ga. stainless steel top, front & sides with front/side apron
  • 1-5/8" Ø, 16 ga. stainless steel legs with adjustable thermoplastic bullet feet
  • NSF/ANSI 2 & ASME A112.19.3/CSA B45.4 compliant for food-service use
Specifications
Overall Width 48" (1219 mm)
Overall Depth (front-to-back) 24" (610 mm)
Working Height / Backsplash Height 36" / 41"
Number of Compartments 3
Bowl Size (each) 10" W x 14" F/B x 10" D
Drainboard 12" integral, left side
Faucet Mounting 4" on-center deck mount (hot & cold ½" IPS)
Drain Connection 1½" IPS rear-corner (each bowl)
Construction Gauge 20 ga. stainless top/bowls/front/sides; 16 ga. legs
Shipping Weight 65 lb (29.5 kg)
Certifications NSF/ANSI 2, ASME A112.19.3/CSA B45.4
Installation Notice: Plumbing connections must be performed by qualified personnel in accordance with all applicable plumbing, sanitary, and safety codes.

Due to continuous product improvement, specifications are subject to change without notice.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

48.0in

Depth

24.0in

Shipping Weight

120.0lbs

Width (side - side) OA

43" - 48"

Sink Compartments

(3)

Bowl Size

10" x 14" front-to-back

Splash

6"

Construction

stainless steel top, front, ends & legs

Bowl Depth (rim - drain)

10"

Depth (front - back) OA

24" - 27"

Drainboards

drainboard on left

Specifications

Royal Series Underbar Sink Unit, three compartment, 48"W x 24"D, 10" wide x 14" front-to-back x 10" deep compartments, 12" embossed integral drainboard on left, deck mount Royal Series faucet with swing spout, apron on front & sides, (3) removable overflow standpipes, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
