Krowne  |  Royal Series  |  SKU: KR24-43L

Krowne KR24-43L Royal Series Bar Equipment

$2,448.05
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

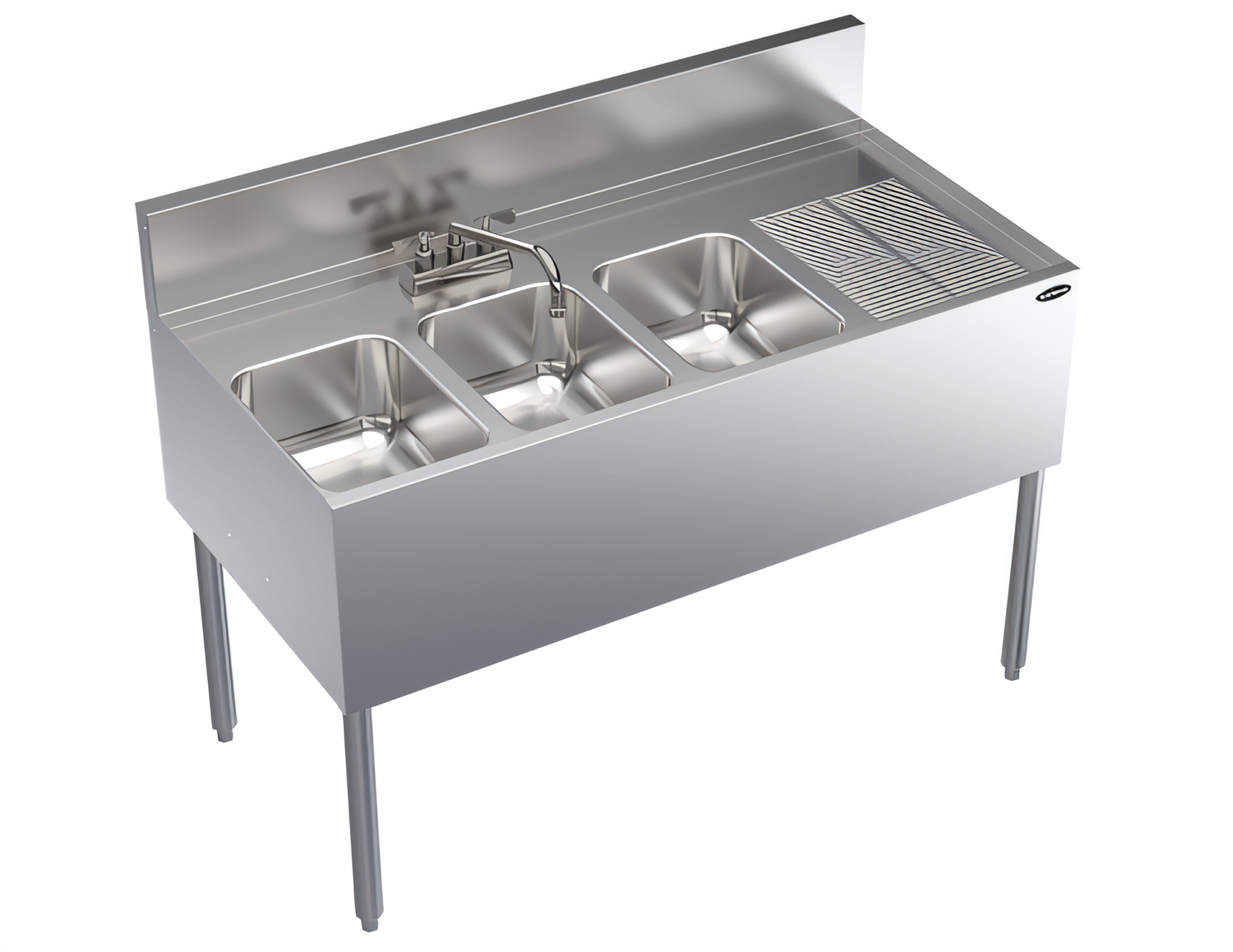

Krowne Royal Series 48" x 24" Three-Compartment Underbar Sink – Right Drainboard (KR24-43R)

Compact, NSF-listed performance for high-volume bars

Give your bartenders the workflow they deserve. Krowne’s Royal Series KR24-43R packs three generous sink bowls, an integrated right-side drainboard and a factory-installed deck-mount faucet into a slim 24" footprint—freeing up valuable aisle space without sacrificing speed, sanitation or durability.

Key benefits

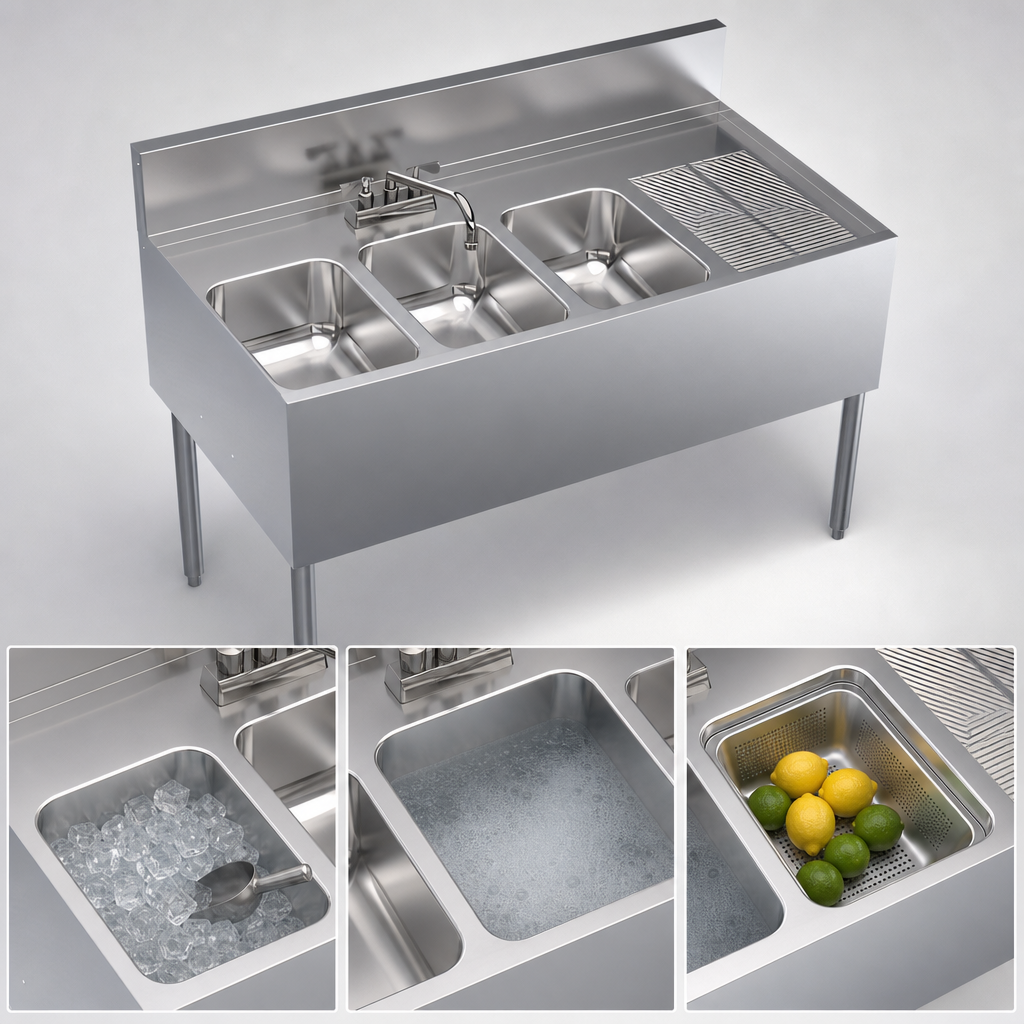

  • Three 10" W x 14" F-B x 10" D bowls handle glassware, barware & small wares simultaneously.

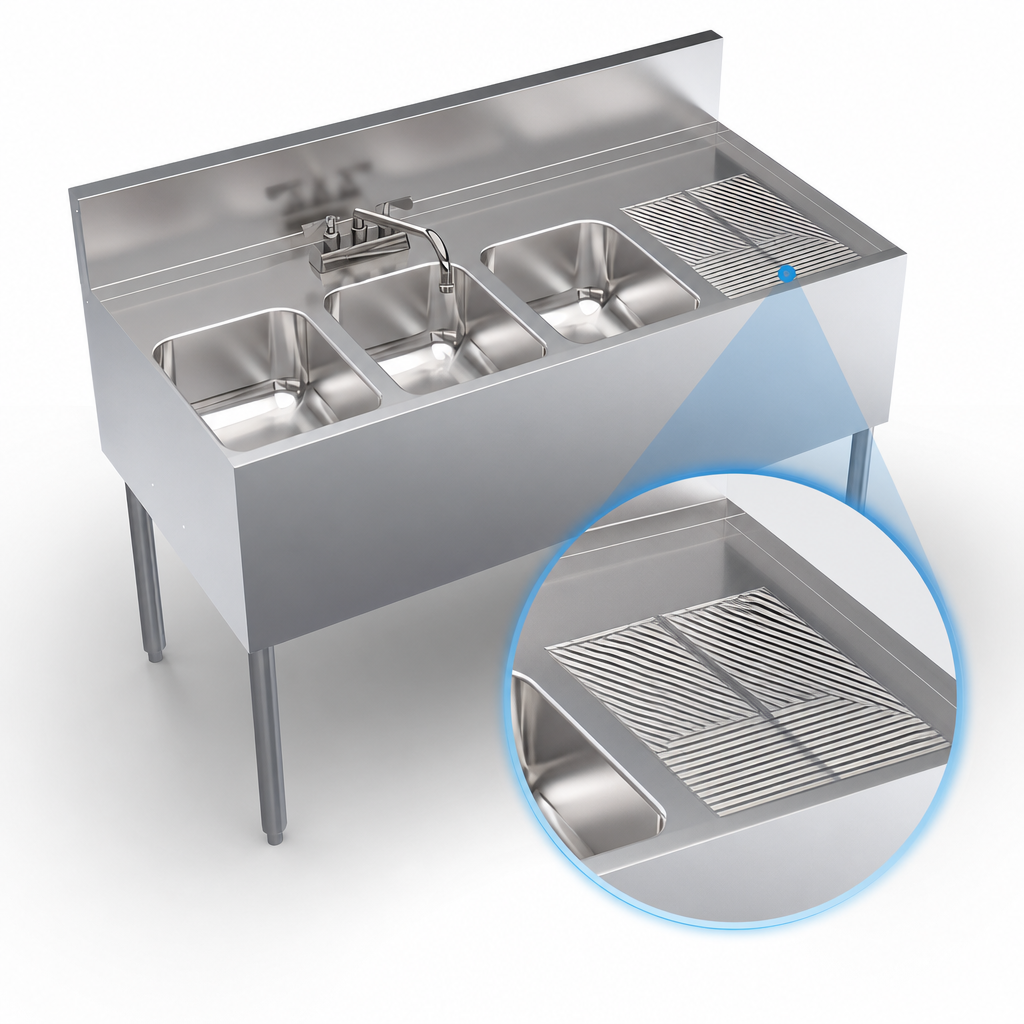

  • Embossed 12" drainboard (right side) promotes fast draining and air-drying.
  • Factory-supplied Royal Series 4" OC deck-mount faucet with swing spout and ¼-turn ceramic cartridges.
  • 20-gauge stainless steel top, bowls, drainboard, front & sides resist corrosion and bar chemicals.
  • 1 ⅝" 16-ga stainless legs with adjustable thermoplastic bullet feet level the sink on uneven floors.
  • Front & side aprons conceal plumbing lines for a cleaner look.
  • (3) removable overflow standpipes help maintain correct bowl levels and speed change-outs.
  • NSF/ANSI 2 & ASME A112.19.3/CSA B45.4 listed for code-compliant installation.

At-a-glance specs

Model KR24-43R (Royal Series)
Overall dimensions 48" W x 24" D
Number of compartments 3
Bowl dimensions (each) 10" W x 14" F-B x 10" D
Drainboard 12" integrated, embossed – right side
Drain size 1 ½" IPS rear-corner (per bowl) with 7 ½" overflow pipe
Faucet connection ½" IPS hot & cold, 4" on-center deck mount
Construction 20-ga stainless (top, bowls, drainboard, front & sides); galvanized steel back/bottom
Legs / feet 1 ⅝" 16-ga tubular stainless with adjustable thermoplastic bullet feet
Certifications NSF/ANSI 2, ASME A112.19.3/CSA B45.4
Installation notice: All plumbing connections must be made by qualified personnel in accordance with local codes. For optimal performance, level the unit using the adjustable bullet feet before final hook-up.

Due to ongoing product improvements, specifications are subject to change without notice.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

48.0in

Depth

24.0in

Shipping Weight

120.0lbs

Drainboards

drainboard on right

Bowl Depth (rim - drain)

10"

Bowl Size

10" x 14" front-to-back

Splash

6"

Construction

stainless steel top, front, ends & legs

Sink Compartments

(3)

Depth (front - back) OA

24" - 27"

Width (side - side) OA

43" - 48"

Specifications

Royal Series Underbar Sink Unit, three compartment, 48"W x 24"D, 10" wide x 14" front-to-back x 10" deep compartments, 12" embossed integral drainboard on right, deck mount Royal Series faucet with swing spout, apron on front & sides, (3) removable overflow standpipes, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
