Krowne  |  Royal Series  |  SKU: KR24-42R

Krowne KR24-42R Royal Series Bar Equipment

$2,230.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

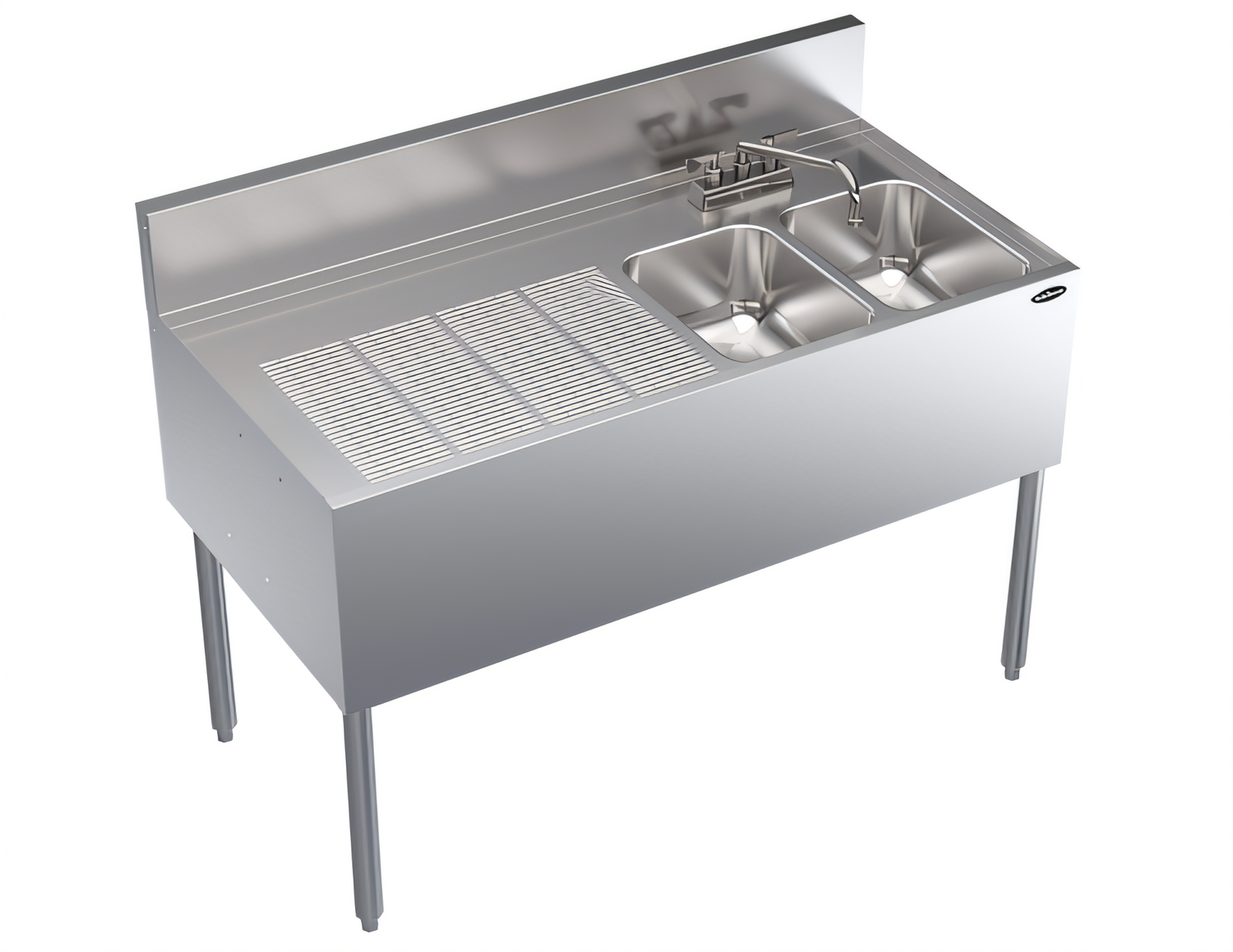

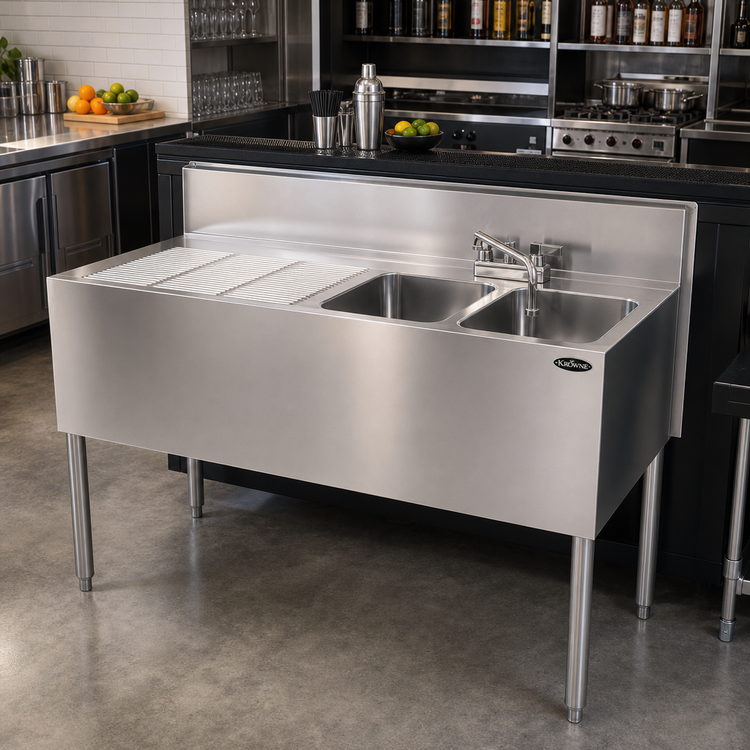

Krowne Royal Series 48" Two-Compartment Underbar Sink

Model KR19-42L  |  Left-Side 24" Drainboard  |  NSF Listed

Built for high-volume bar service, the Krowne Royal Series KR19-42L combines two spacious sink bowls with a full 24-inch embossed drainboard—giving bartenders a dependable, all-in-one workstation that fits neatly under any bar top.

Key Features

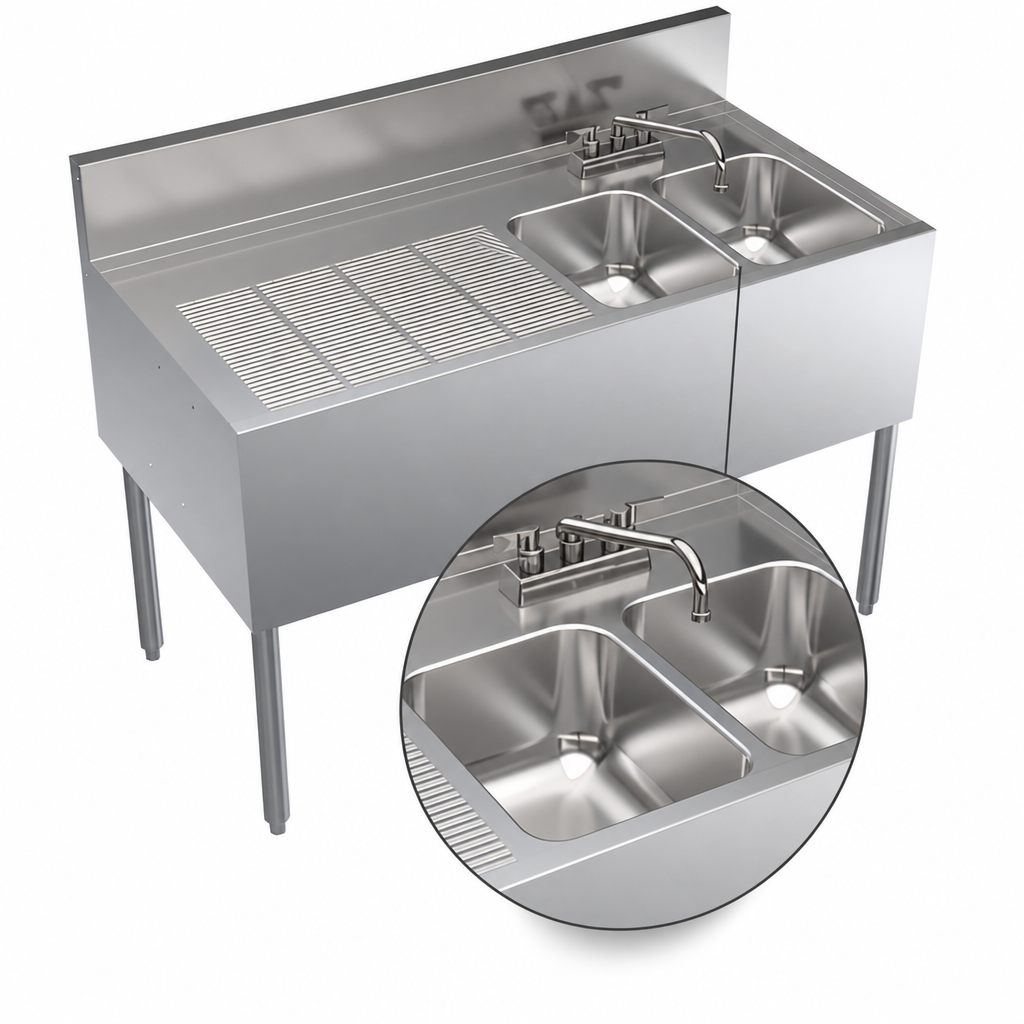

  • Two 10" × 14" × 10" deep compartments handle everything from glassware to bar tools.

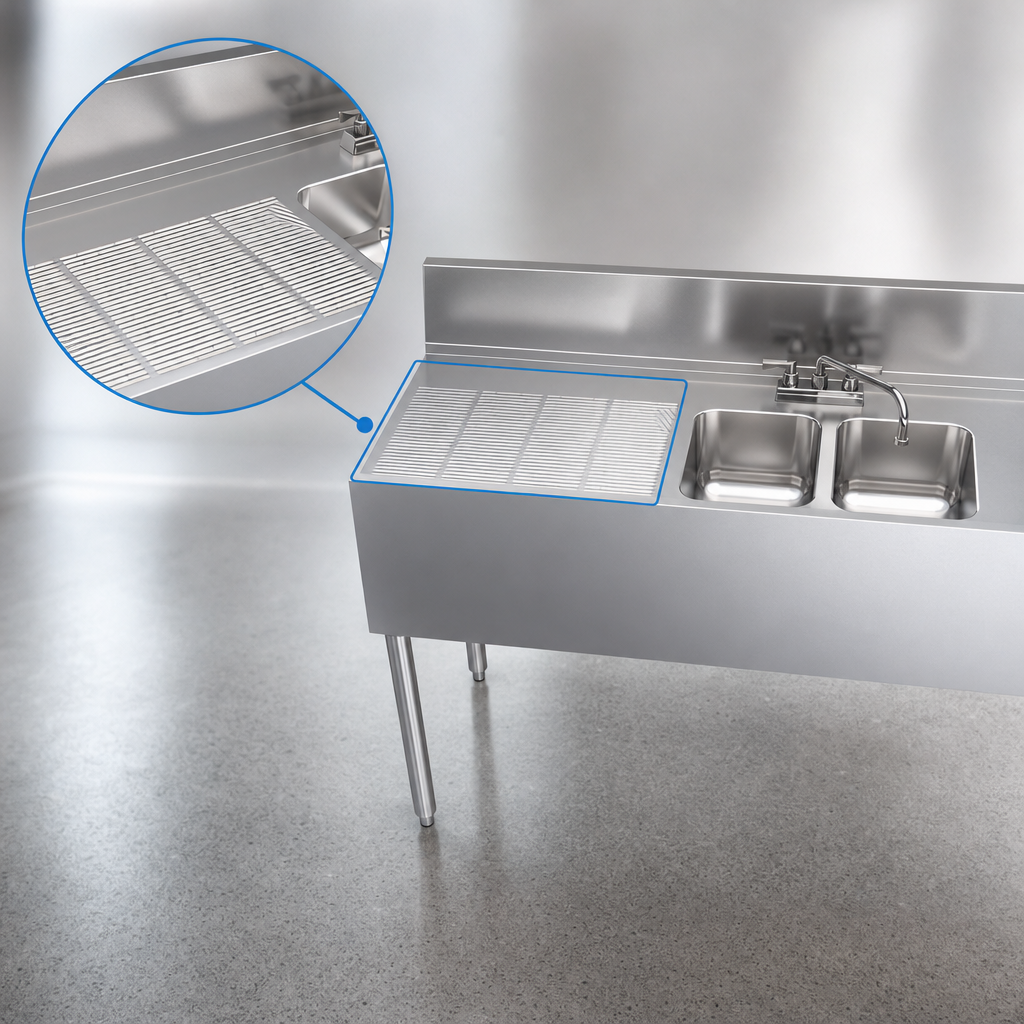

  • 24" left-side drainboard is fully embossed for faster draining and air-drying.
  • Deck-mount Royal Series faucet (4" O.C.) with swing spout included—no extra kit required.
  • (2) removable 7-½" overflow standpipes keep water levels consistent and prevent spills.
  • 20-gauge stainless steel top, bowls, drainboard, front, sides & backsplash for long-term durability.
  • 1-⅝" OD, 16-gauge tubular stainless steel legs with adjustable thermoplastic bullet feet for quick leveling.
  • 1-½" IPS rear-corner drains for easy plumbing tie-in.
  • NSF certified for safe, code-compliant installation in commercial environments.

Technical Specifications

Model KR19-42L
Overall Width 48" (1219 mm)
Overall Depth 19" (483 mm)
Overall Height 36 ½" (927 mm) to deck, adjustable
Sink Compartments 2
Compartment Size 10" W × 14" F/B × 10" D
Drainboard Size / Location 24" left side
Drain Opening 1-½" IPS (rear-corner)
Water Inlet ½" IPS hot & cold
Faucet Included Royal Series deck-mount, 4" O.C., swing spout
Material Thickness 20-gauge stainless steel (top & body)
Legs / Feet 16-gauge stainless steel tubular legs with adjustable thermoplastic bullet feet
Shipping Weight 55 lb (25 kg)
Certifications NSF
Installation Note: All plumbing connections must be performed by qualified personnel in accordance with local plumbing & sanitary codes.

Need a different configuration? Explore additional Royal Series models with right-side or center drainboards by contacting our sales team.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Height

36.5in

Width

48.0in

Depth

24.0in

Shipping Weight

60.0lbs

Construction

stainless steel top, front, ends & legs

Specifications

Royal Series Underbar Sink Unit, two compartment, 48"W x 19"D, 10" wide x 14" front-to-back x 10" deep compartments, 24" embossed drainboard on left, deck mount Royal Series faucet with swing spout, apron on front & sides, (2) removable overflow standpipes, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
