Krowne  |  Royal Series  |  SKU: KR24-42-10

Krowne KR24-42-10 Royal Series Bar Equipment

$3,462.25
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

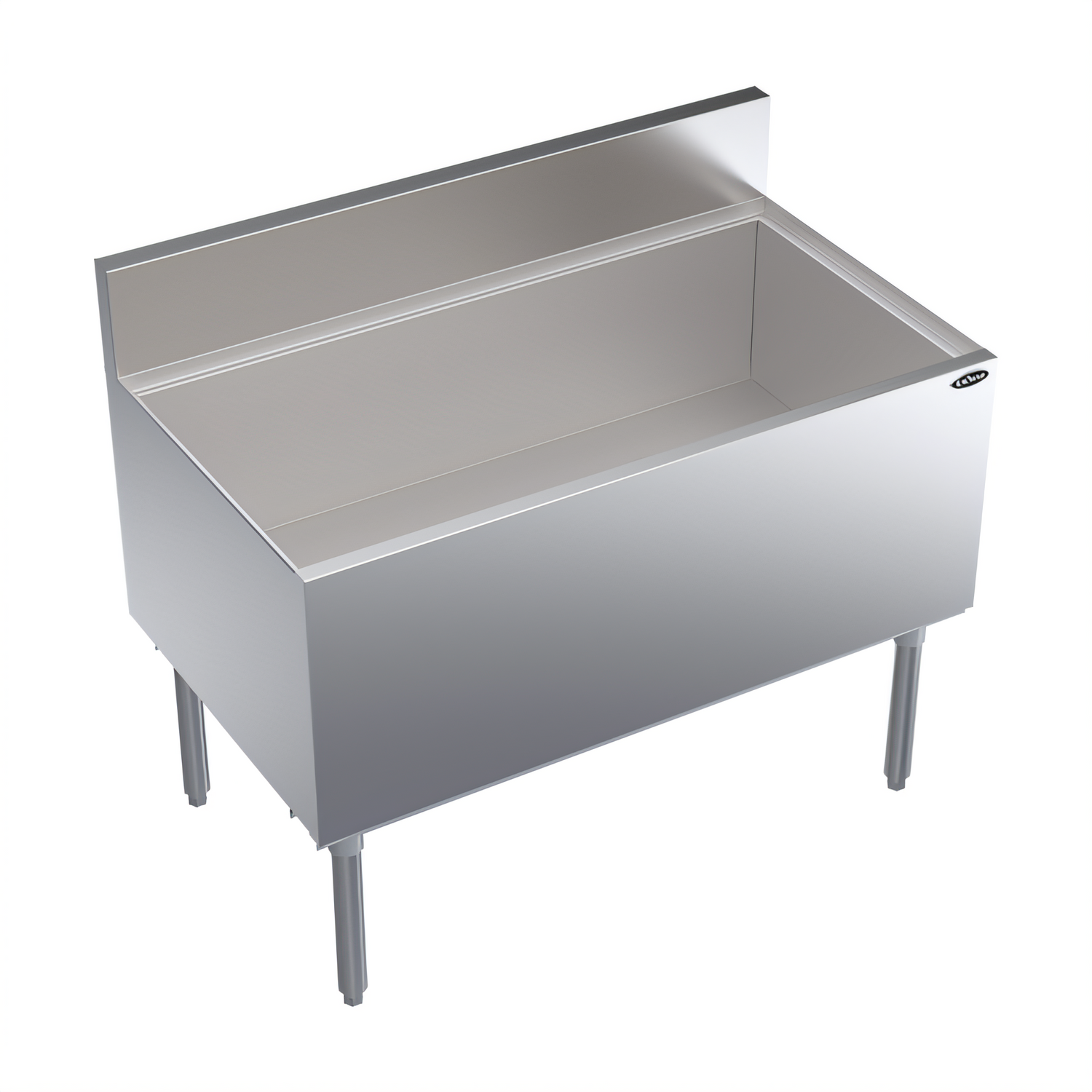

Krowne Royal Series Underbar Ice Bin & Cocktail Station – 42" x 24" with 10-Circuit Cold Plate

Model KR24-42-10  |  161 lb Ice Capacity  |  NSF Listed

Engineered for high-volume beverage programs, this Royal Series ice bin packs a generous 161 lb capacity and an integrated 10-circuit cold plate into a rugged 42" footprint—keeping every pour frosty and every bartender moving fast.

Why You’ll Love It

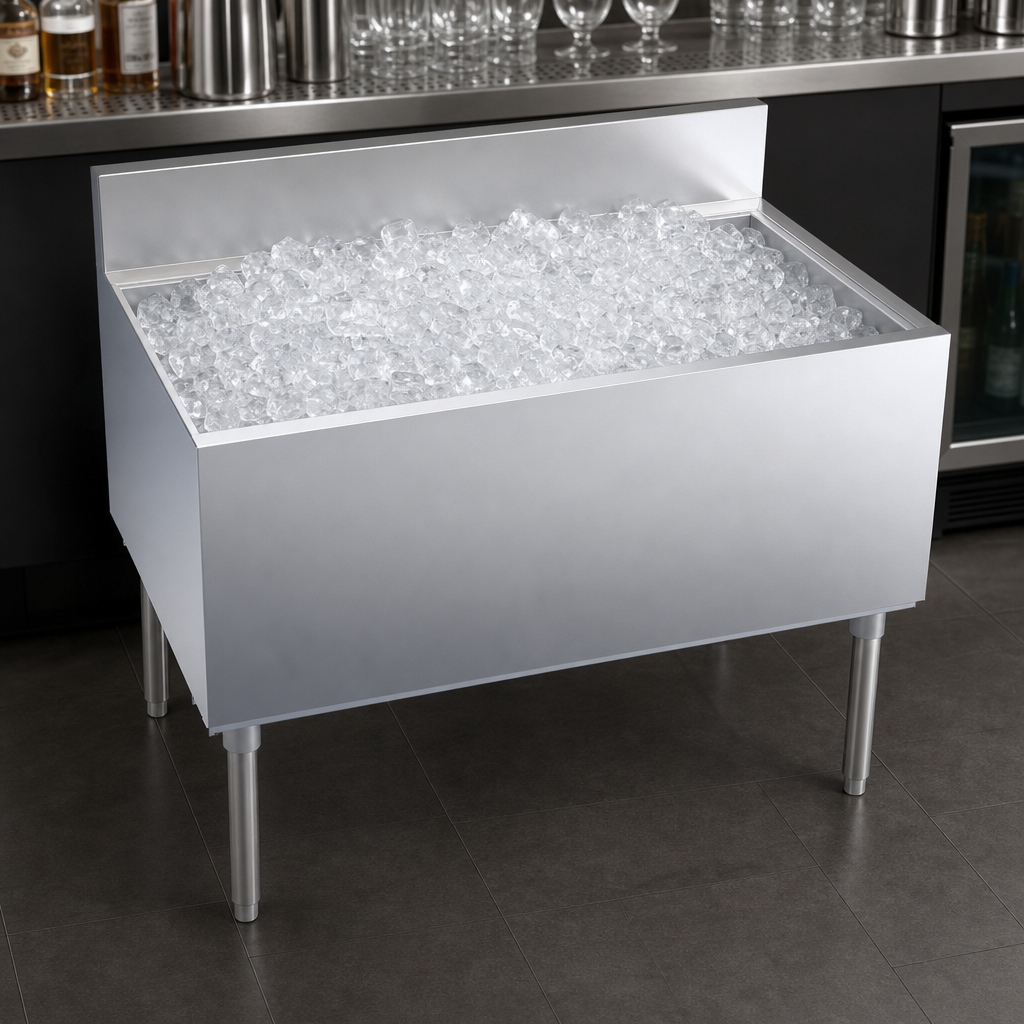

  • 161 lb ice capacity in a fully foamed 12" deep stainless liner for maximum cold retention.

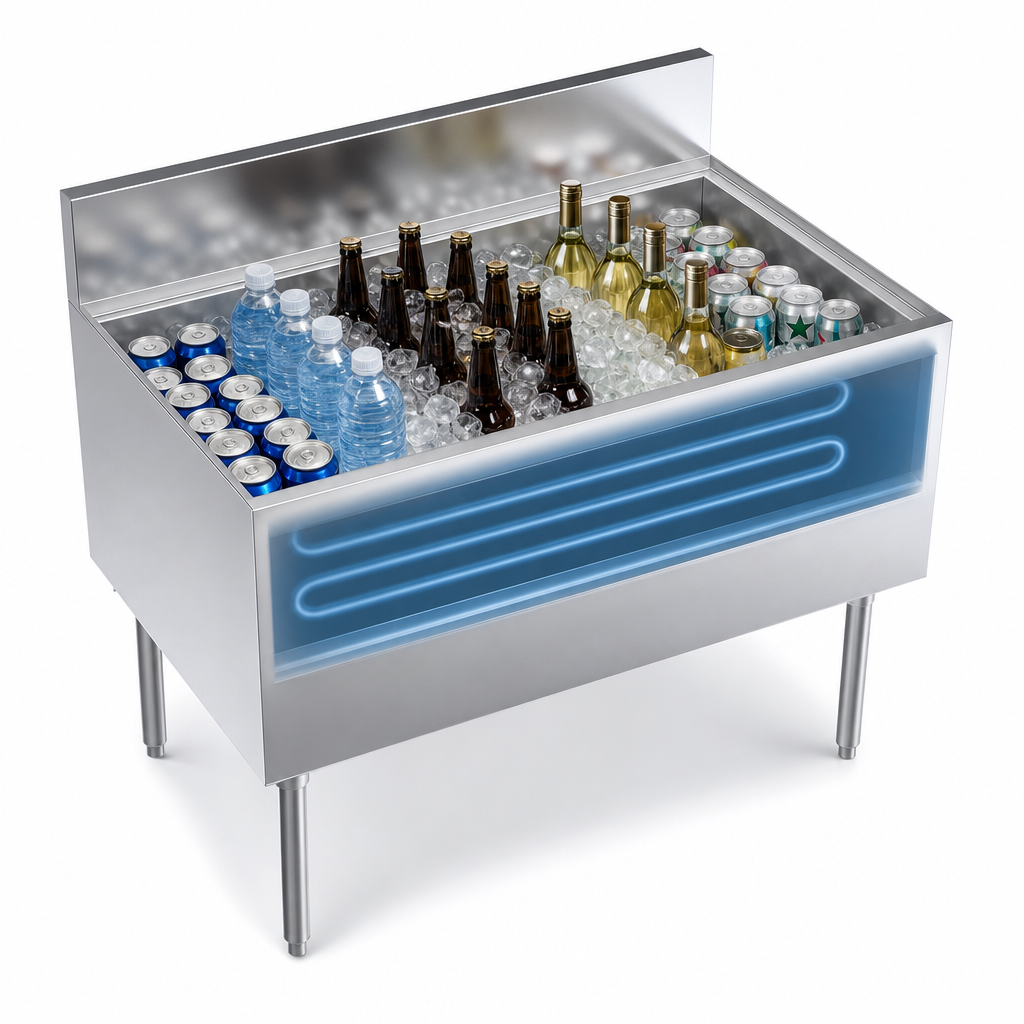

  • Built-in 10-circuit post-mix cold plate chills soda in-line—no external chillers, no off-flavors.
  • 3/4" x 3-1/2" soda line cut-out in backsplash keeps tubing organized and out of sight.
  • Premium 20 ga. stainless steel top, front & sides resist dings, scratches and corrosion.
  • 1-5/8" Ø stainless legs with adjustable thermoplastic bullet feet level the unit instantly.
  • NSF certified – passes the strictest health-department inspections.

Built for the Rush

  • Overall size: 42" W x 24" D x 36 ½" H (to top of backsplash).
  • Spacious 20" x 40" interior scoop area speeds service during peak hours.
  • 1/2" x 6" PVC tailpiece drain included—eliminates metal-to-metal sweat.
  • Compatible with Krowne speed rails, sliding covers, condiment trays and bottle wells—customize your dream bar.

Specifications

Manufacturer Krowne
Series Royal Series Underbar
Model KR24-42-10
Ice Capacity 161 lb
Overall Dimensions (W × D × H) 42" × 24" × 36 ½"
Bin Liner Depth 12" (stainless steel, foamed-in-place)
Cold Plate Sealed 10-circuit post-mix, 5/16" OD stainless tubing
Soda Line Access 3/4" × 3-1/2" cut-out in backsplash
Drain 1/2" PVC tailpiece (included)
Construction 20 ga. stainless top/front/sides; 20 ga. galvanized back & bottom
Legs / Feet 1-5/8" 16 ga. stainless legs with adjustable thermoplastic bullet feet
Insulation Foamed-in-place polyurethane
Shipping Weight Approx. 176 lb
Certifications NSF
Cold Plate Notice: The cold plate is factory-installed and cannot be added after purchase. Confirm soda system requirements before ordering.

Looking for covers, speed rails or garnish stations? Check out the compatible Krowne accessories in the add-ons section or chat with our product experts.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

42.0in

Depth

24.0in

Shipping Weight

176.0lbs

Cold Plate

(10) circuit

Construction

stainless steel & galvanized

Width (side - side) OA

37" - 42"

Bin Depth

12" deep ice bin

Ice Capacity

150 - 199 lbs.

Depth (front - back) OA

24" - 27"

Splash

6"

Specifications

Royal Series Underbar Ice Bin/Cocktail Unit, built-in 10-circuit cold plate, 42"W x 24"D O.A., 161-lb capacity, 12" deep stainless steel bin liner, 3/4" x 3-1/2” Soda Line cut out in backsplash, 1/2" drain, stainless steel top, front & sides, galvanized steel back & bottom, stainless steel legs with adjustable thermoplastic bullet feet, NSF
