Krowne  |  Royal Series  |  SKU: KR24-36DP-10

Krowne KR24-36DP-10 Royal Series Bar Equipment

$3,384.70
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Sell sheet
Related Searches
Bar Ice Bins Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

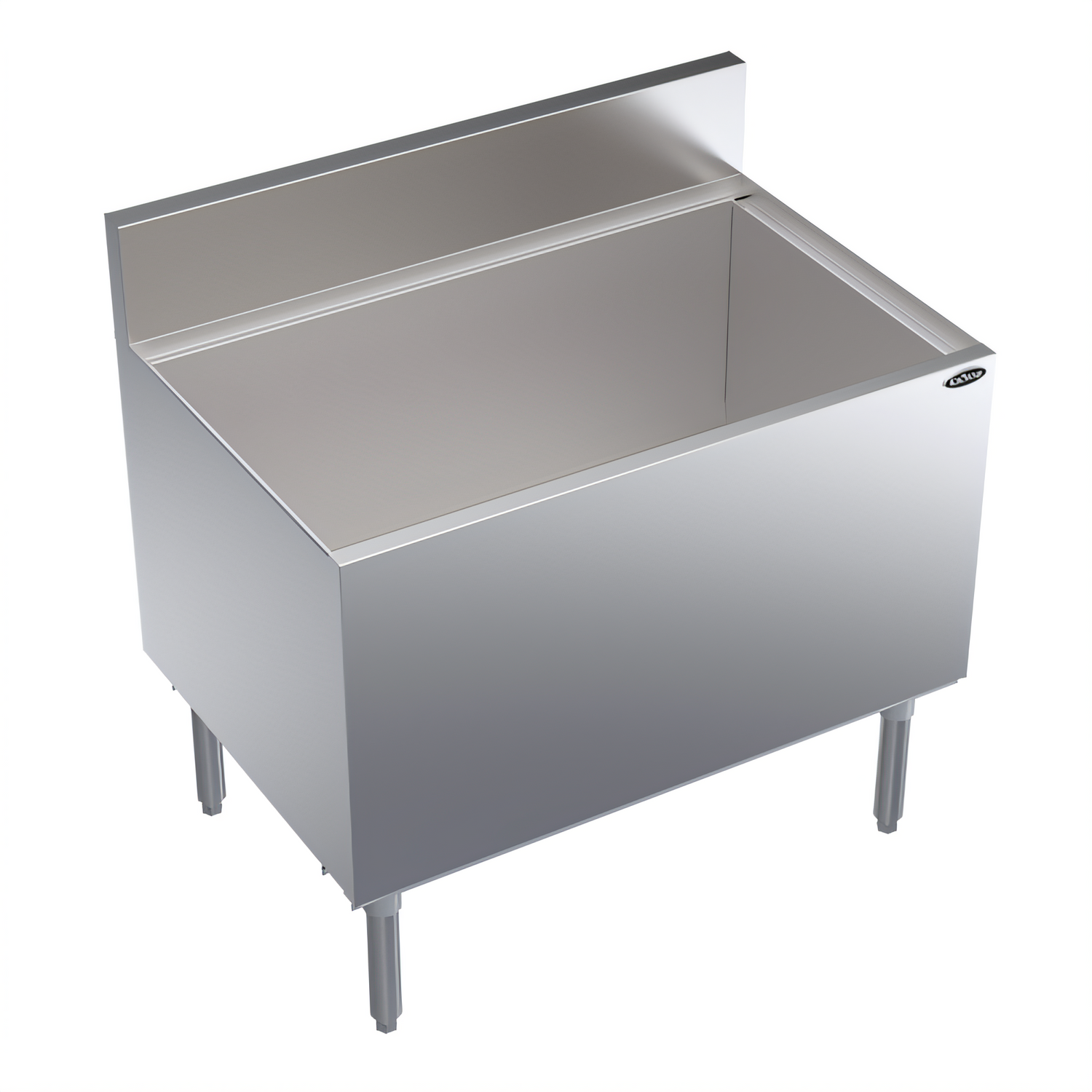

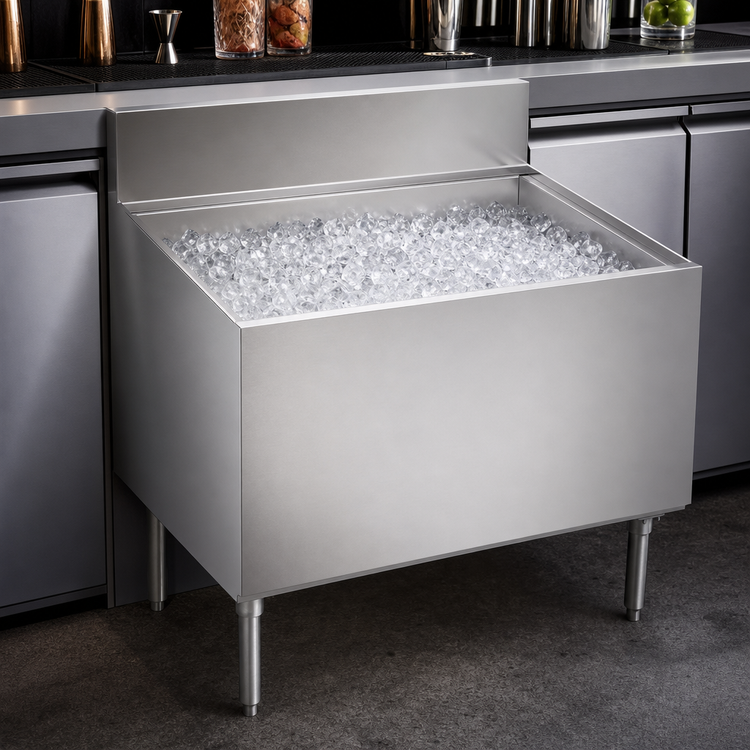

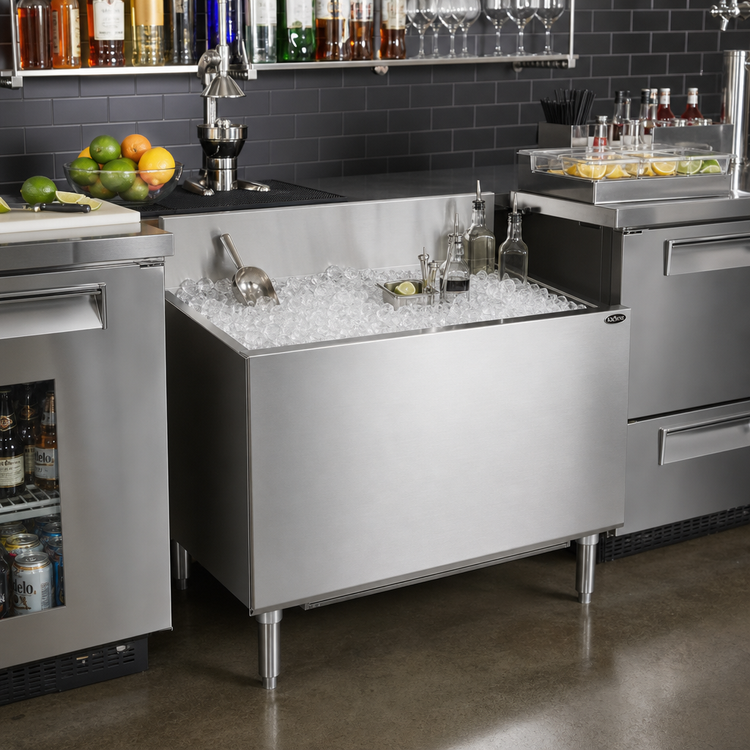

Krowne Royal Series Underbar Ice Bin w/ 10-Circuit Cold Plate, 36" x 24"

Model KR24-36DP-10  |  183-lb Ice Capacity  |  NSF Listed

Built for the busiest beverage programs, this Royal Series ice bin/cocktail unit delivers frosty ice, pre-chilled soda lines and rock-solid durability in one space-saving footprint.

Key Benefits

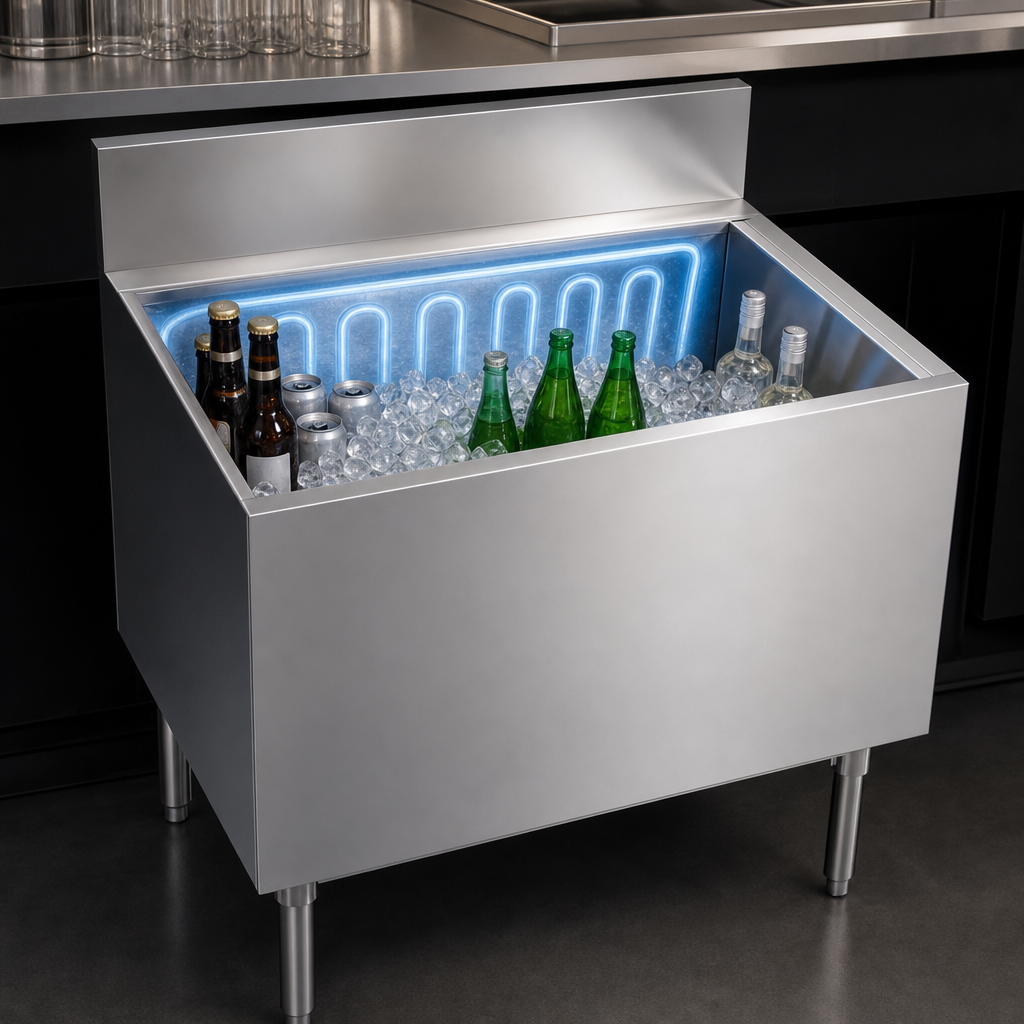

  • Factory-installed 10-circuit stainless steel cold plate chills post-mix beverages before they hit the gun.
  • Extra-deep 15" liner holds up to 183 lbs of ice—ideal for peak service hours.
  • Premium 20 ga stainless steel top, front, sides & 4" backsplash resist dents and speed up cleanup.
  • Foamed-in-place polyurethane insulation minimizes melt and preserves ice integrity.
  • 3/4" × 3-1/2" cut-out in backsplash keeps soda bundles organized and out of sight.
  • 1-5/8" 16 ga stainless steel legs with adjustable thermoplastic bullet feet level the unit on uneven floors.
  • NSF certified for worry-free health-department approval.
Specifications
Overall Dimensions (W × D × H) 36" × 24" × 36 1/2" (to top of backsplash)
Interior Liner 20" × 34" × 15" deep, 20 ga 304 stainless steel

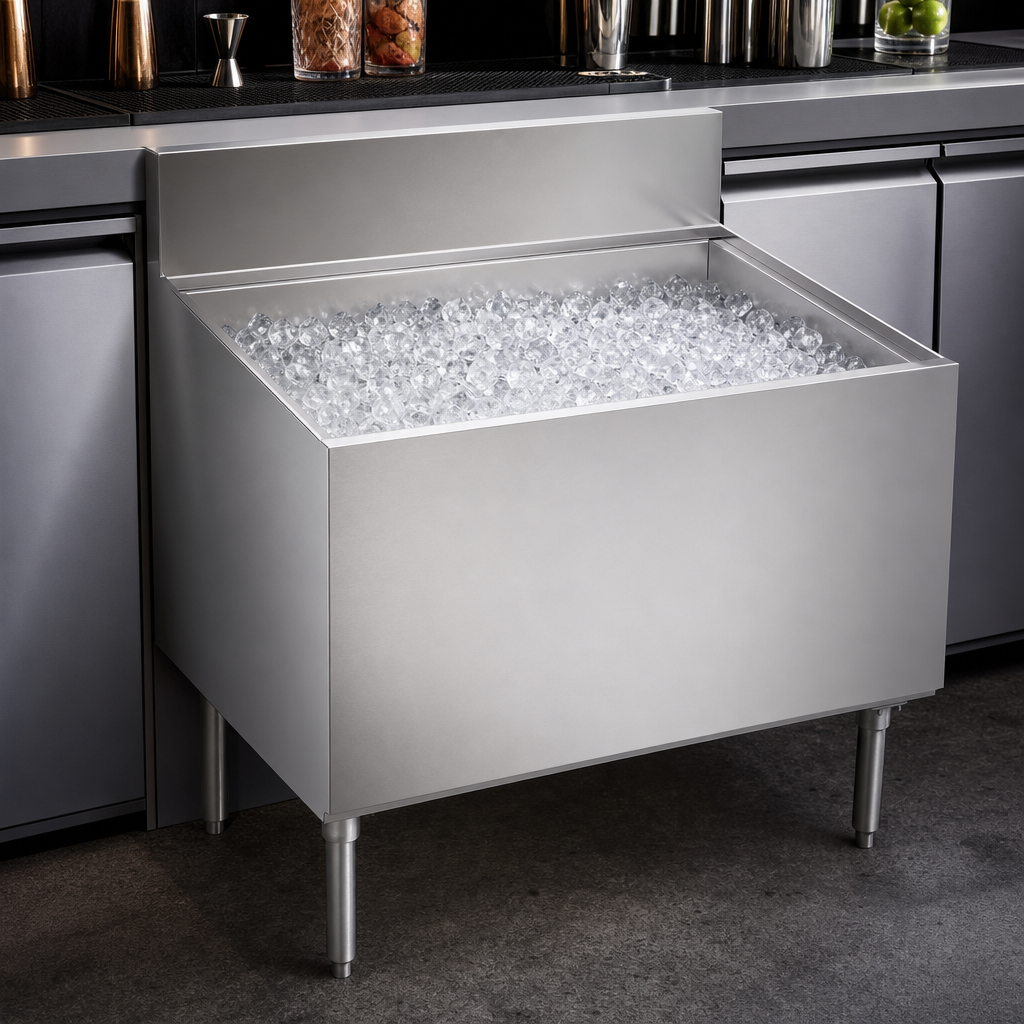

Ice Capacity 183 lbs
Cold Plate 10 circuits, 5/16" OD stainless tubing; bump & swedge ends
Soda Line Access 3/4" × 3-1/2" cut-out in left backsplash
Drain Connection 1/2" IPS with 6" PVC tailpiece (included)
Construction Stainless steel top / front / sides / backsplash; galvanized back & bottom
Legs & Feet 1-5/8" 16 ga stainless tubing, adjustable thermoplastic bullet feet
Insulation Foamed-in-place polyurethane
Shipping Weight Approx. 171 lbs
Certifications NSF
Cold Plate Note: The cold plate is permanently sealed to the bin at the factory and cannot be retrofitted later. Be sure to choose the correct configuration for your beverage system.
Popular Accessories (Sold Separately)
  • Single or double speed rails (RS-XX / RD-XX)
  • Sliding stainless steel covers (full or partial)
  • Left/right side splashes for adjoining equipment
  • Condiment trays & garnish stations up to 36" wide
  • Bottle wells, towel rings, faucets and more

Images may show optional accessories not included with the base unit.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

36.0in

Depth

24.0in

Shipping Weight

171.0lbs

Depth (front - back) OA

24" - 27"

Cold Plate

(10) circuit

Width (side - side) OA

31" - 36"

Splash

6"

Construction

stainless steel & galvanized

Ice Capacity

150 - 199 lbs.

Bin Depth

15" deep ice bin

Specifications

Royal Series Underbar Ice Bin/Cocktail Unit, built-in 10-circuit cold plate, 36"W x 24"D O.A., 183-lb capacity, 15" deep stainless steel bin liner, 3/4" x 3-1/2” Soda Line cut out in backsplash, 1/2" drain, stainless steel top, front & sides, galvanized steel back & bottom, stainless steel legs with adjustable thermoplastic bullet feet, NSF
