Krowne KR24-36 Royal Series Bar Equipment
Description

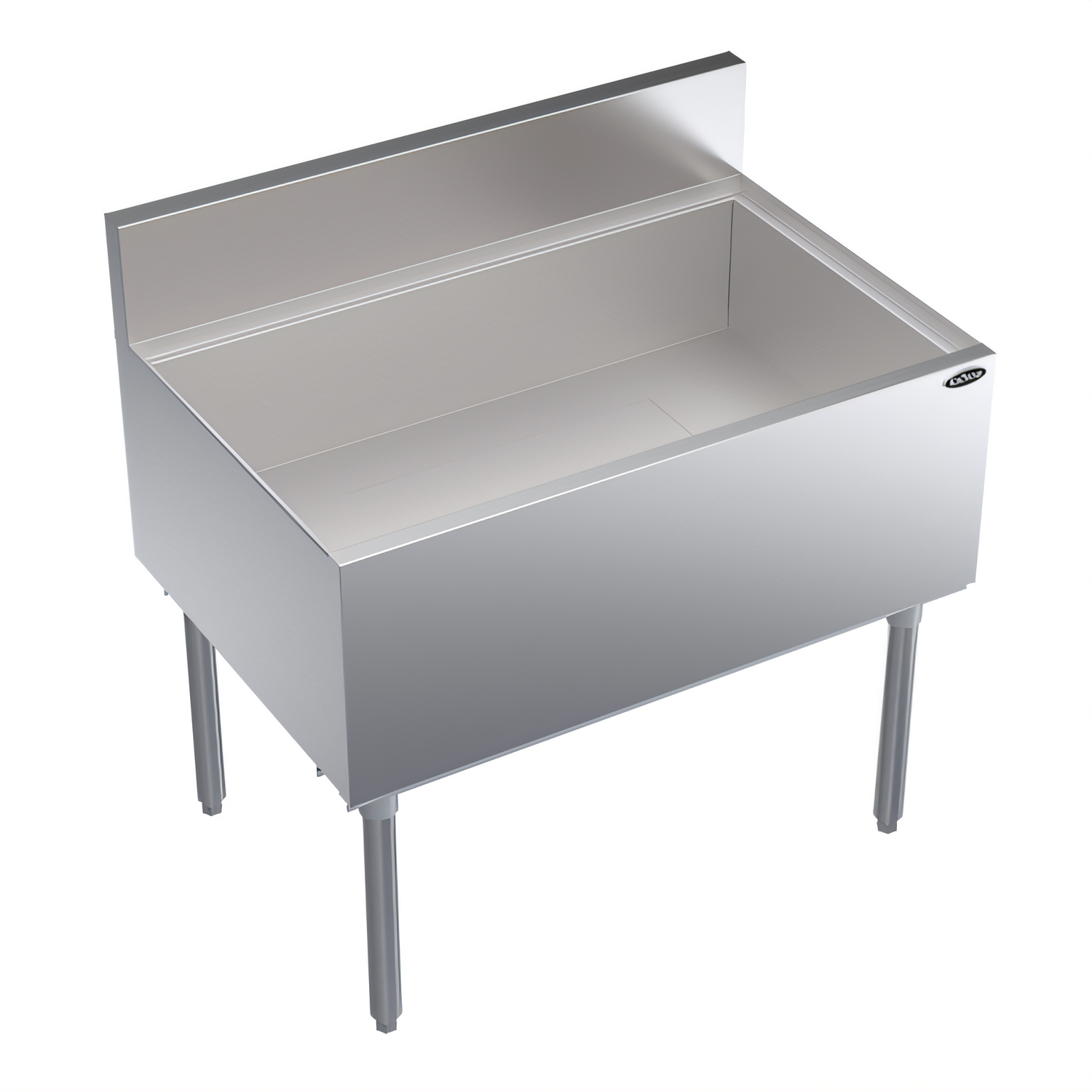

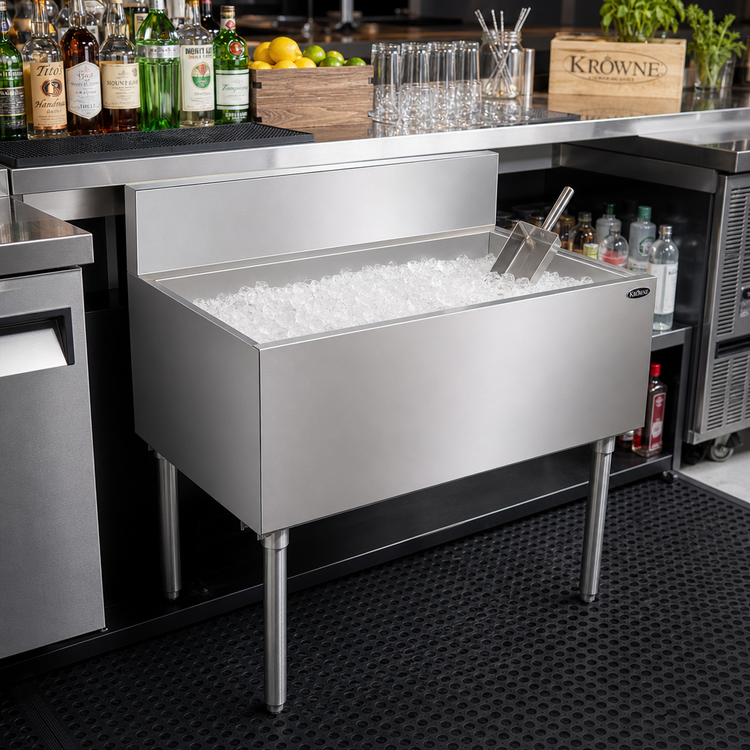

Krowne Royal Series 36" x 24" Underbar Ice Bin / Cocktail Station
Model KR24-36 | 138-lb ice capacity | NSF CertifiedKeep cocktails flowing and bar service efficient with Krowne’s Royal Series 36 in. underbar ice bin. Engineered from heavy-duty stainless steel and insulated with foamed-in-place polyurethane, this unit holds up to 138 pounds of ice while standing up to the daily rigors of a high-volume bar.
Key Features
- Generous 36 in. width and 24 in. front-to-back depth—fits seamlessly into standard 24 in. underbar lines.

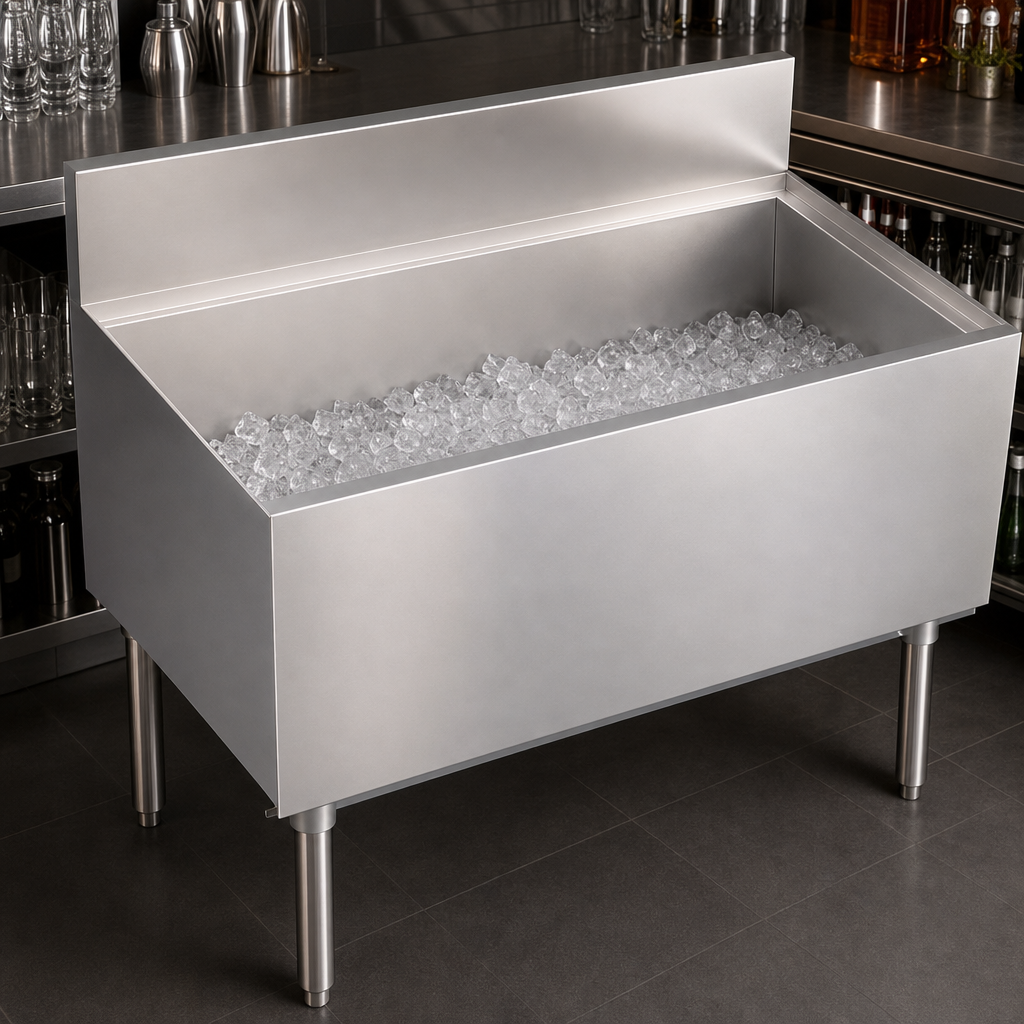

- 12 in. deep, one-piece 20 ga. stainless steel liner keeps ice colder, longer.

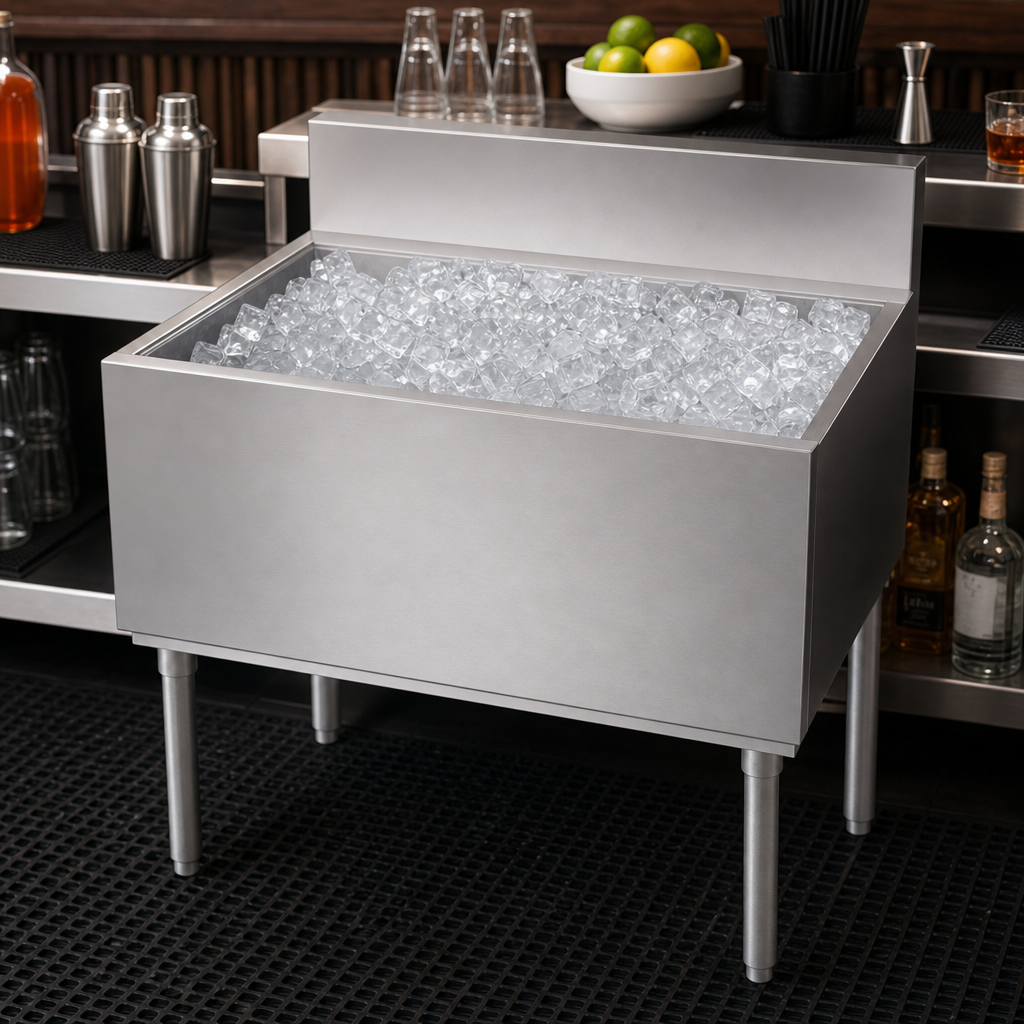

- 138-lb ice capacity—ideal for medium to high volume cocktail programs.
- Stainless steel top, front, sides & backsplash for a professional, easy-to-clean finish.
- Galvanized steel back and bottom offer added durability while controlling cost.
- 1 in.-dia. IPS (½ in. PVC tailpiece when cold-plate option is ordered) rear drain for fast, reliable drainage.
- 1-5/8 in. Ø, 16 ga. stainless steel legs with adjustable thermoplastic bullet feet level the bin on uneven floors.
- Foamed-in-place polyurethane insulation preserves ice and minimizes condensation.
- Ships fully assembled and carries NSF certification for food-zone safety.
Technical Specifications
| Model | KR24-36 (no cold plate) |
|---|---|
| Overall Dimensions (W × D × H) | 36" W × 24" D × 36 ½" H (to work surface) |
| Interior Liner | 20 ga. stainless steel, 20" W × 34" L × 12" D |
| Ice Capacity | 138 lb |
| Drain Connection | 1" IPS rear drain (½" x 6" PVC tailpiece included when ordered with cold plate) |
| Construction |
Top / Apron / Backsplash: 20 ga. stainless steel Back & Bottom: 20 ga. galvanized steel |
| Legs & Feet | 1-5/8" Ø, 16 ga. stainless legs with adjustable thermoplastic bullet feet |
| Insulation | Foamed-in-place CFC-free polyurethane |
| Certifications | NSF Listed |
| Ship Weight | Approx. 105 lb |
Popular Add-Ons (Sold Separately)
- Sliding ice bin covers (partial & full) for 24 in. depth units
- Single (RS-XX) or double (RD-XX) speed rails for quick bottle access
- 3- and 4-bottle plastic bottle wells
- Condiment trays & stainless steel dividers
- Garnish stations with sliding covers (18" – 36")
- Cold-plate version (KR24-36-10) with factory-sealed 10-circuit cold plate
Need a custom configuration? Contact us for assistance with accessories, adjacent equipment, or factory welded underbar layouts.
