Krowne  |  Royal Series  |  SKU: KR24-33C

Krowne KR24-33C Royal Series Bar Equipment

$2,169.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

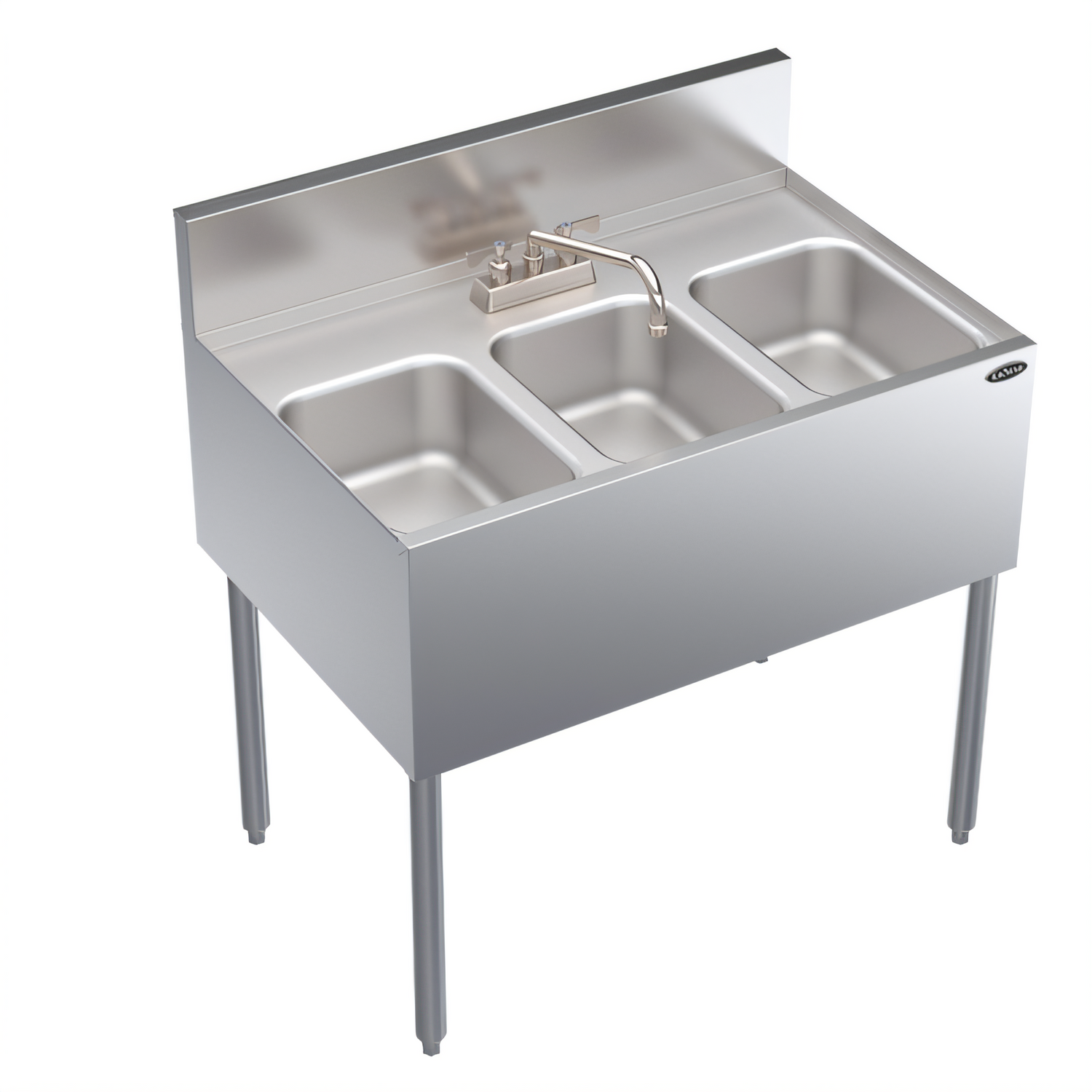

Krowne Royal Series 36" Three-Compartment Underbar Sink – Model KR24-33C

Space-saving NSF bar sink with stainless steel durability and deck-mount faucet

Engineered for high-volume bar service, the KR24-33C delivers three 10" × 14" × 10" deep sink bowls in a compact 36" footprint. Heavy-gauge stainless construction, removable overflow standpipes, and a smooth-action Royal Series swing spout faucet keep workflow fast, sanitary, and fully code-compliant.

Key Features

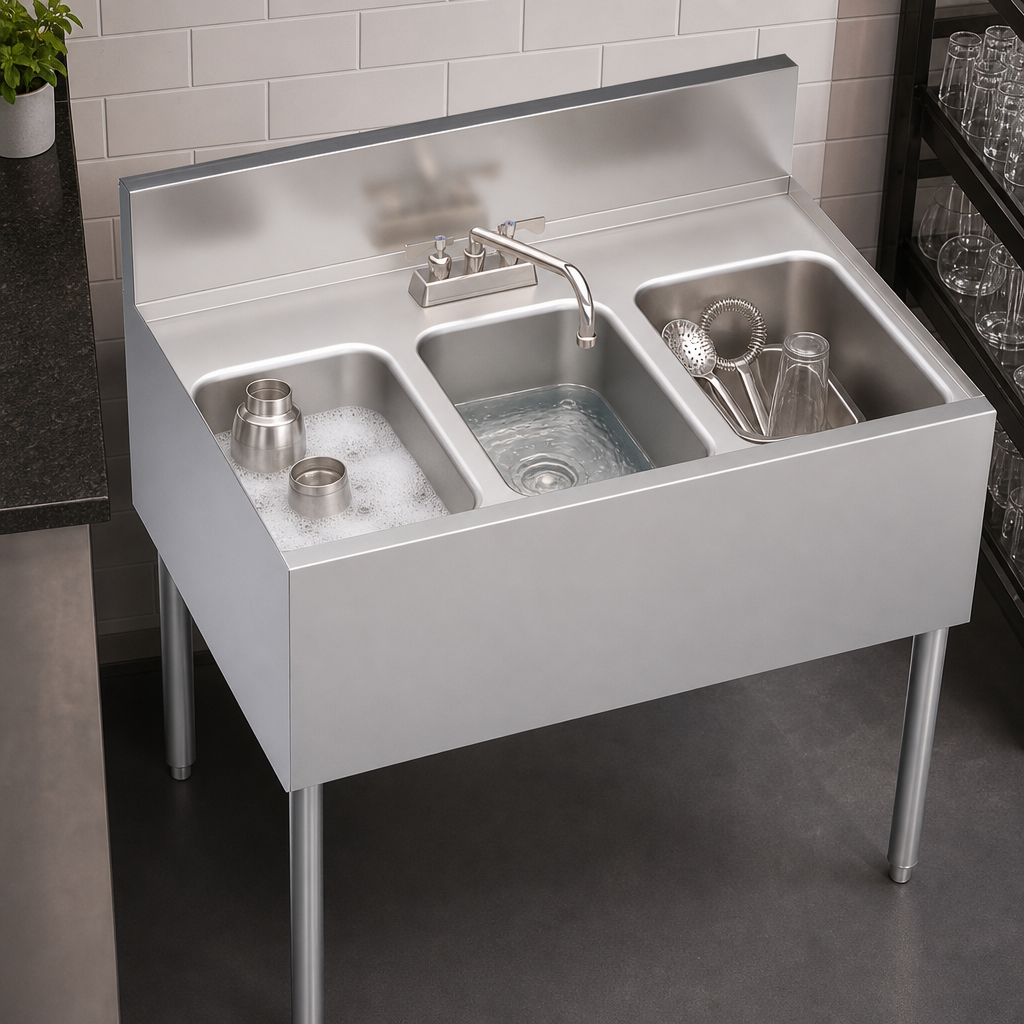

  • Three-compartment layout lets staff wash, rinse, and sanitize without slowing service.
  • 20-gauge stainless steel top, bowls, front, and sides for superior corrosion resistance.
  • Each bowl includes a 1 ½" IPS rear-corner drain and 7 ½" removable overflow standpipe.
  • Factory-installed 4" O.C. Royal Series deck-mount faucet with swing spout and ¼-turn ceramic valves.
  • Stainless steel front & side aprons neatly conceal plumbing for a polished underbar appearance.
  • 1 ⅝" Ø 16-gauge tubular stainless steel legs with adjustable thermoplastic bullet feet for quick leveling.
  • Fully welded design ships ready to plumb; all exposed edges are hemmed for safety.

Specifications

Model KR24-33C
Overall Dimensions 36" W × 24" D

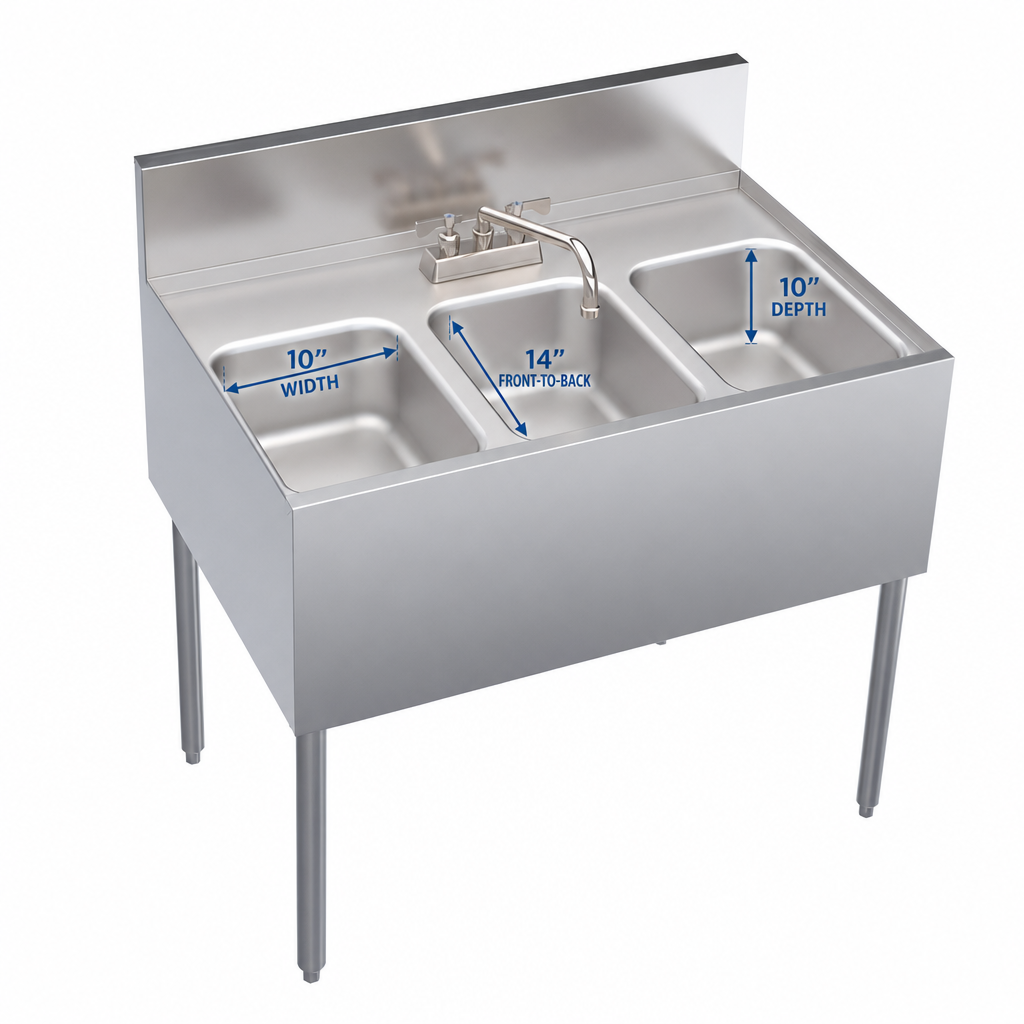

Compartment Qty / Size 3 / 10" W × 14" F-B × 10" D
Material Thickness 20-gauge stainless steel (top, bowls, aprons, sides)
Faucet 4" center deck-mount, swing spout, ¼-turn ceramic cartridges
Plumbing Connections Hot/Cold – ½" IPS  |  Drain – 1 ½" IPS
Overflow Protection (3) 7 ½" removable standpipes
Legs / Feet 1 ⅝" 16-ga stainless tubing with adjustable thermoplastic bullet feet
Shipping Weight ≈ 60 lb
Certifications NSF/ANSI 2 • ASME A112.19.3 / CSA B45.4
Important: All plumbing connections must be performed by qualified personnel in accordance with local codes.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

36.0in

Depth

24.0in

Shipping Weight

110.0lbs

Splash

6"

Bowl Size

10" x 14" front-to-back

Bowl Depth (rim - drain)

10"

Width (side - side) OA

31" - 36"

Drainboards

without drainboards

Depth (front - back) OA

24" - 27"

Sink Compartments

(3)

Construction

stainless steel top, front, ends & legs

Specifications

Royal Series Underbar Sink Unit, three compartment, 36"W x 24"D, 10" wide x 14" front-to-back x 10" deep compartments, deck mount Royal Series faucet with swing spout, apron on front & sides, (3) removable overflow standpipes, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
