Krowne  |  Royal Series  |  SKU: KR24-30RD

Krowne KR24-30RD Royal Series Bar Equipment

$1,412.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Liquor Displays Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

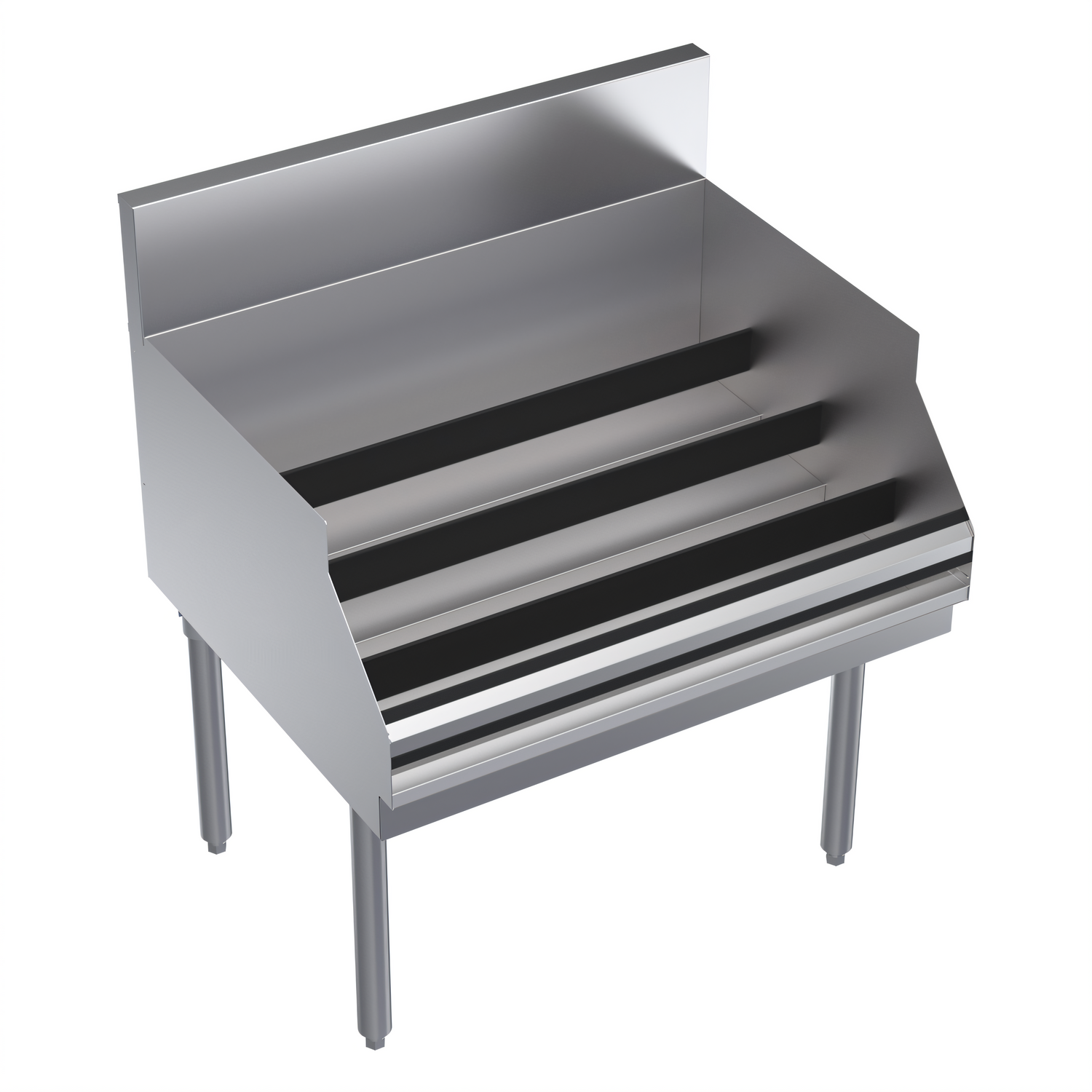

Royal Series 30" 4-Step Liquor Bottle Display

Freestanding underbar unit • 36-bottle capacity • NSF Certified

Give bartenders faster access to top-selling spirits and keep your backbar looking sharp with the Krowne Royal Series 4-Step Liquor Display. Engineered for heavy nightly use, this 30" wide unit delivers rock-solid stainless steel construction, quiet performance, and the perfect 24" depth to line up with matching Royal Series speed rails and ice bins.

Key Features & Benefits

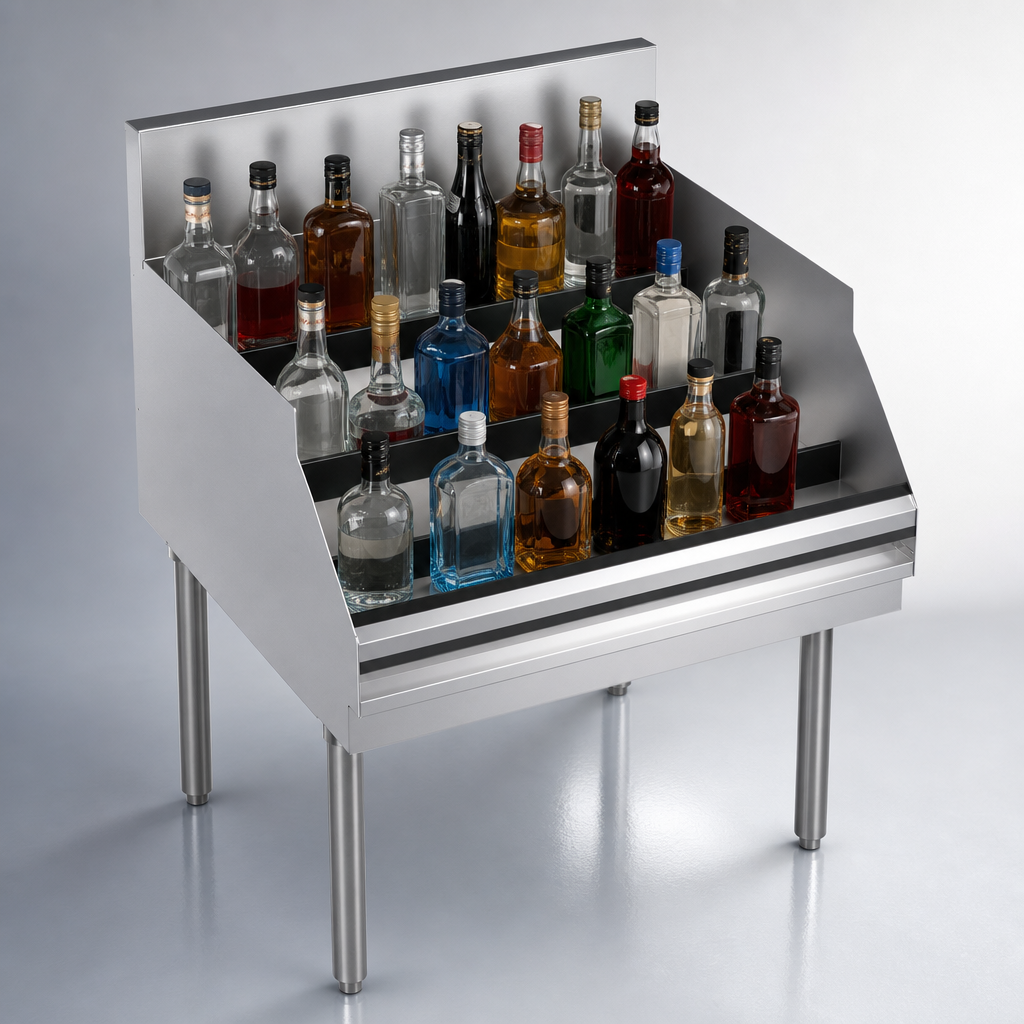

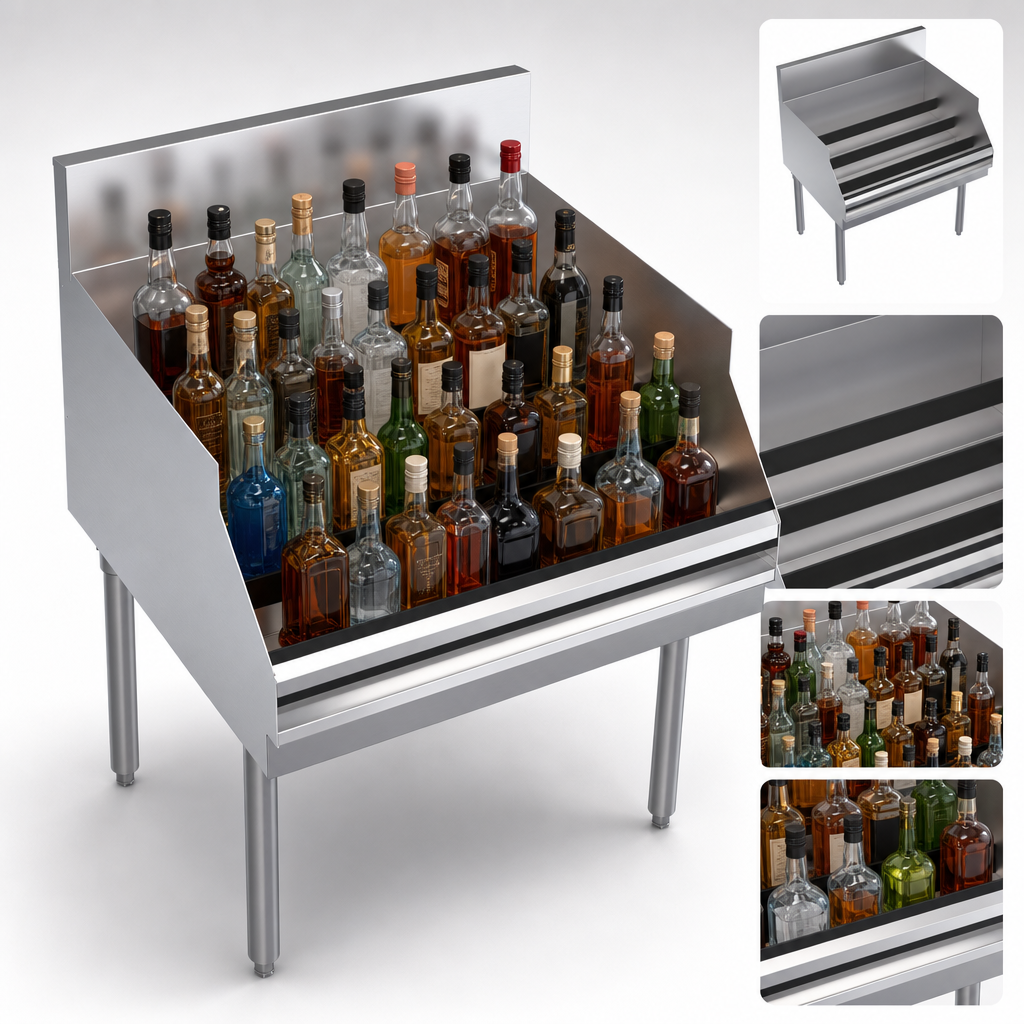

  • High-visibility, tiered design holds up to 36 standard 750 mL bottles while keeping labels forward for lightning-fast grabs.
  • 4 bottle steps fabricated from 20 ga stainless steel and protected by full-width guard rails to prevent tipping.
  • Integrated sound-deadening technology dampens noise during rush service.
  • Stainless steel top, front and sides (18–20 ga) stand up to acidic spills and nightly wipe-downs.
  • Galvanized steel back & bottom resist corrosion in high-moisture environments.
  • (4) 1-⅝" Ø 16 ga tubular stainless legs with adjustable thermoplastic bullet feet level the unit on uneven floors.
  • 24" front-to-back depth matches Royal Series speed rails for a seamless underbar line-up.
  • Ships fully welded and NSF listed—ready for immediate installation.

At-a-Glance Specs

Model No. KR24-30RD
Width 30" (762 mm)
Depth 24" (610 mm)
Height 36 1⁄2" overall (to top of backsplash)
Steps / Capacity 4 steps  |  36 bottles
Construction 20 ga S/S steps, guard rails & backsplash
18 ga S/S sides
20 ga galvanized back & bottom
Legs / Feet 1-⅝" Ø 16 ga S/S tubular legs with grey thermoplastic bullet feet (height-adjustable)
Net Weight ≈ 70 lb (31.8 kg)
Certifications NSF
Need a locking cover? A lockable version is available (model suffix “-LC”). Locking covers cannot be added in the field—please order the “-LC” unit if bottle security is required.

Due to ongoing product improvements, specifications are subject to change without notice. For the most current information or custom configurations, contact our product specialists or visit the official Krowne website.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

30.0in

Depth

24.0in

Shipping Weight

70.0lbs

Construction

stainless steel

Depth (front - back) OA

24" - 27"

Type

free standing

Width (side - side) OA

25" - 30"

Steps

(4)

Specifications

Royal Series Underbar Liquor Bottle Display Unit, freestanding, 30"W x 24"D (to match speedrail depth), holds (36) liquor bottles, (4) bottle steps with guard rails, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet
