Krowne KR24-30DP-10 Royal Series Bar Equipment
Description

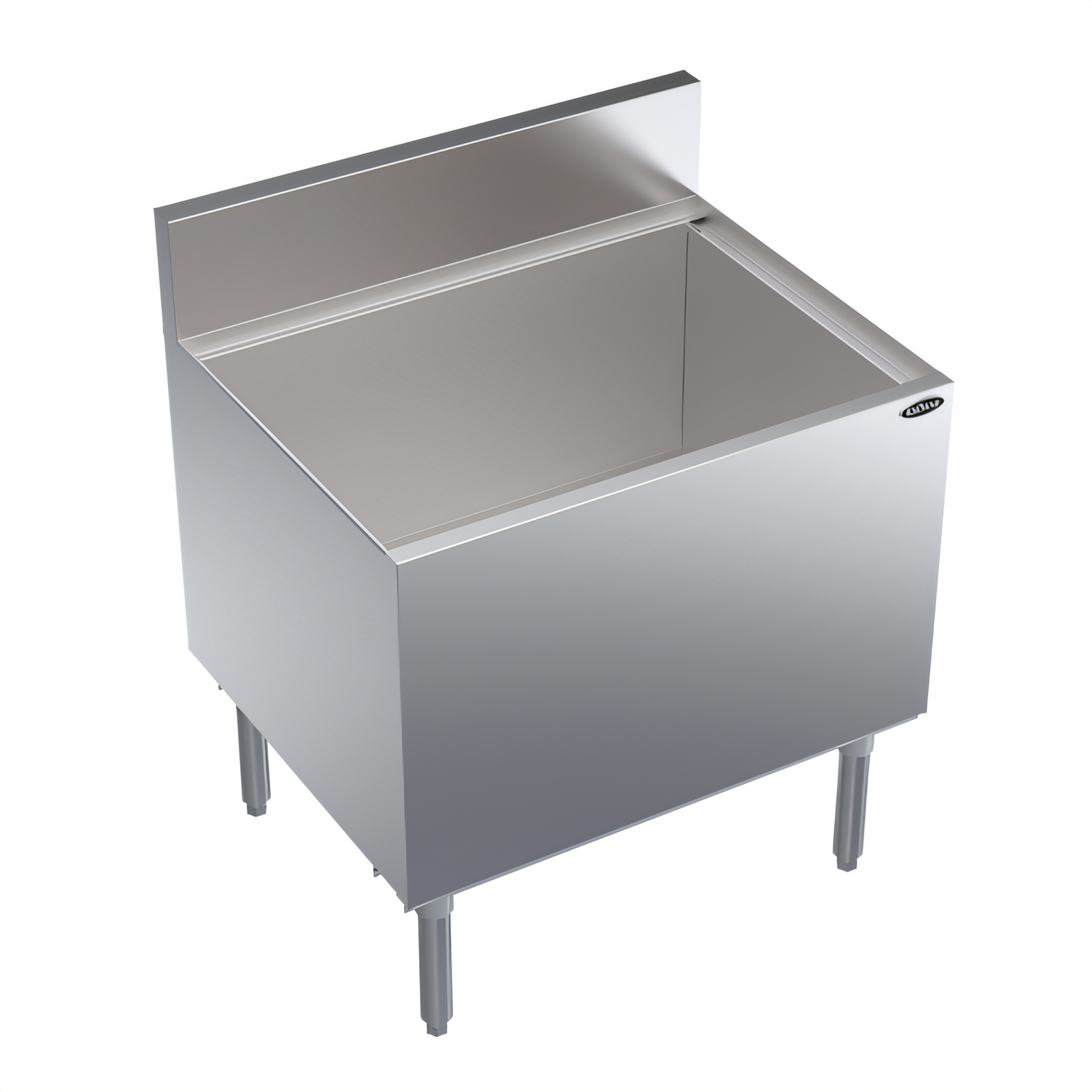

Krowne Royal Series 30" W × 24" D Underbar Ice Bin w/ 10-Circuit Cold Plate
Model KR24-30DP-10 • 15" Deep Liner • 153 lb Ice Capacity • NSFEngineered for today’s busiest beverage programs, this Royal Series ice bin keeps ice, soda and cocktail ingredients perfectly chilled and close at hand. A factory-installed 10-circuit cold plate delivers frosty post-mix beverages while the extra-deep 15" liner holds a generous 153 lbs of ice—enough for your entire shift.
Key Features

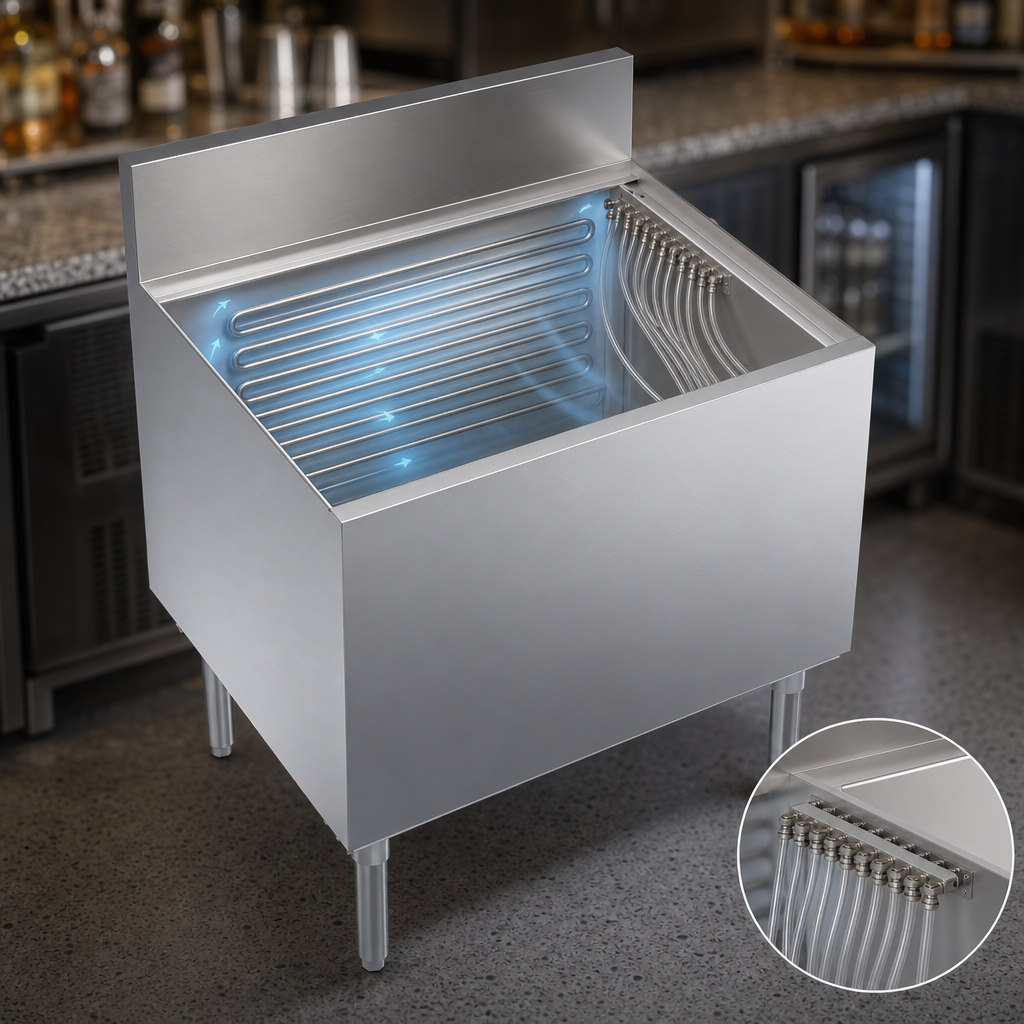

- High-performance 10-circuit post-mix cold plate sealed to the bin bottom—no retrofits required.
- Industry-leading 15" deep, foamed-in-place stainless steel liner retains ice longer and fights condensation.

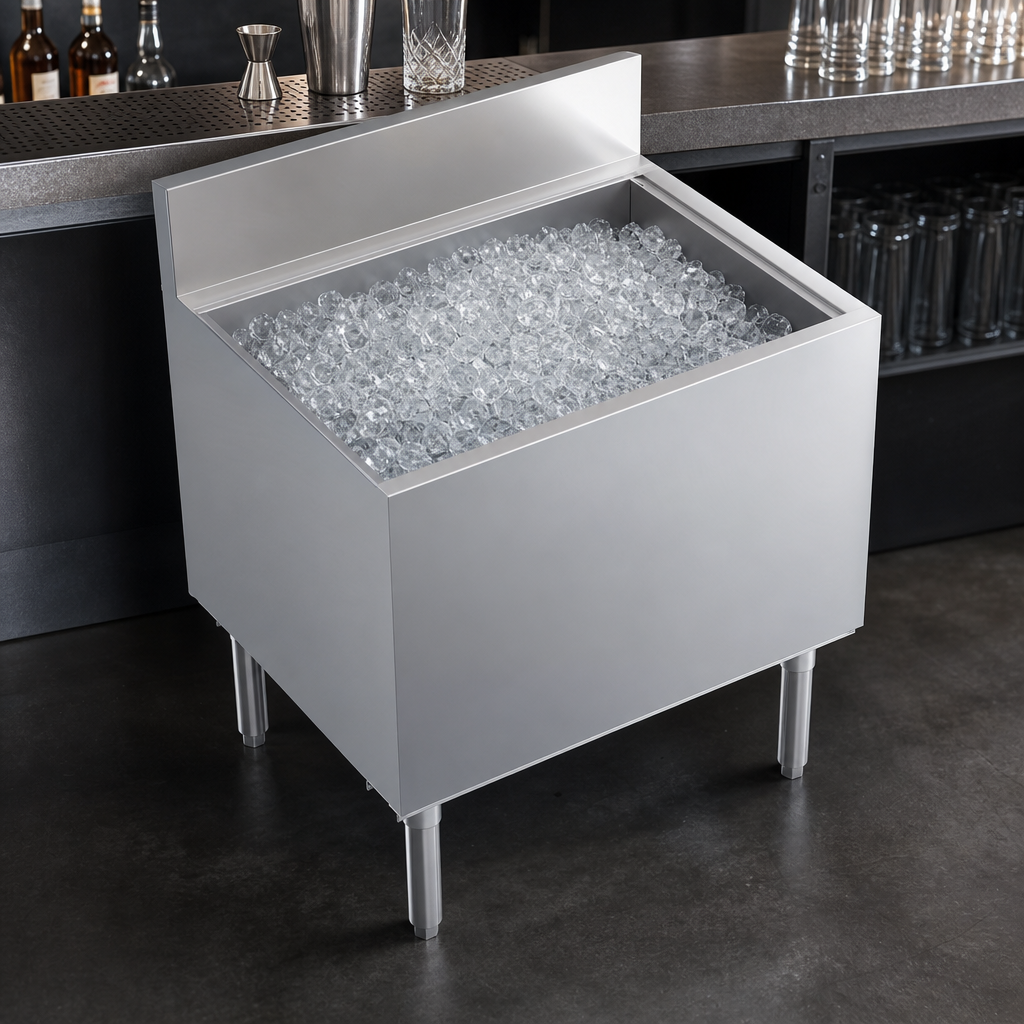

- 153 lb ice capacity supports peak-hour demand in high-volume bars and restaurants.
- Factory 3/4" × 3-1/2" soda-line cut-out in backsplash for fast, clutter-free beverage hookups.
- 1/2" IPS drain with included 6" PVC tailpiece prevents metal-to-metal sweating.
- All-stainless top, front, sides & backsplash stand up to constant moisture and corrosive bar cleaners.
- Rugged 1-5/8" Ø 16 ga stainless legs with adjustable thermoplastic bullet feet for rock-solid leveling.
- NSF listed—ready for any commercial bar, nightclub or hospitality venue.
At-a-Glance Specs
| Model | KR24-30DP-10 |
|---|---|
| Overall Dimensions | 30" W × 24" D × 36-1/2" H |
| Liner (Inside) Dimensions | 20" W × 28" L × 15" D |
| Ice Capacity | 153 lbs |
| Cold Plate | 10 stainless steel circuits, 5/16" OD tubing |
| Soda-Line Access | 3/4" × 3-1/2" cut-out (left backsplash) |
| Drain | 1/2" IPS with 6" PVC tailpiece (included) |
| Construction | 20 ga stainless (top, front, sides, backsplash) & 20 ga galvanized (back, bottom) |
| Insulation | Foamed-in-place polyurethane |
| Legs / Feet | 1-5/8" Ø 16 ga stainless legs, adjustable thermoplastic bullet feet |
| Certifications | NSF |
| Shipping Weight | Approx. 162 lbs |
Popular Accessories (Sold Separately)
- Single or Double Speed Rails (RS-30 / RD-30)
- Sliding Ice Bin Covers — partial or full length (SCD30H / SCD30F)
- 18" Garnish Station with Sliding Cover (KR-519)
- Condiment Tray & Stainless Steel Dividers (KR-101, KR-114)
- Left & Right End Splashes (KR-315 / KR-314)
Need a different size or depth? The Royal Series is available in lengths from 6" to 48" with 12" or 15" deep liners—contact us for a custom quote.
