Krowne KR24-30-10 Royal Series Bar Equipment
Krowne KR24-30-10 Royal Series Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Krowne KR24-30-10 Royal Series Bar Equipment
Description

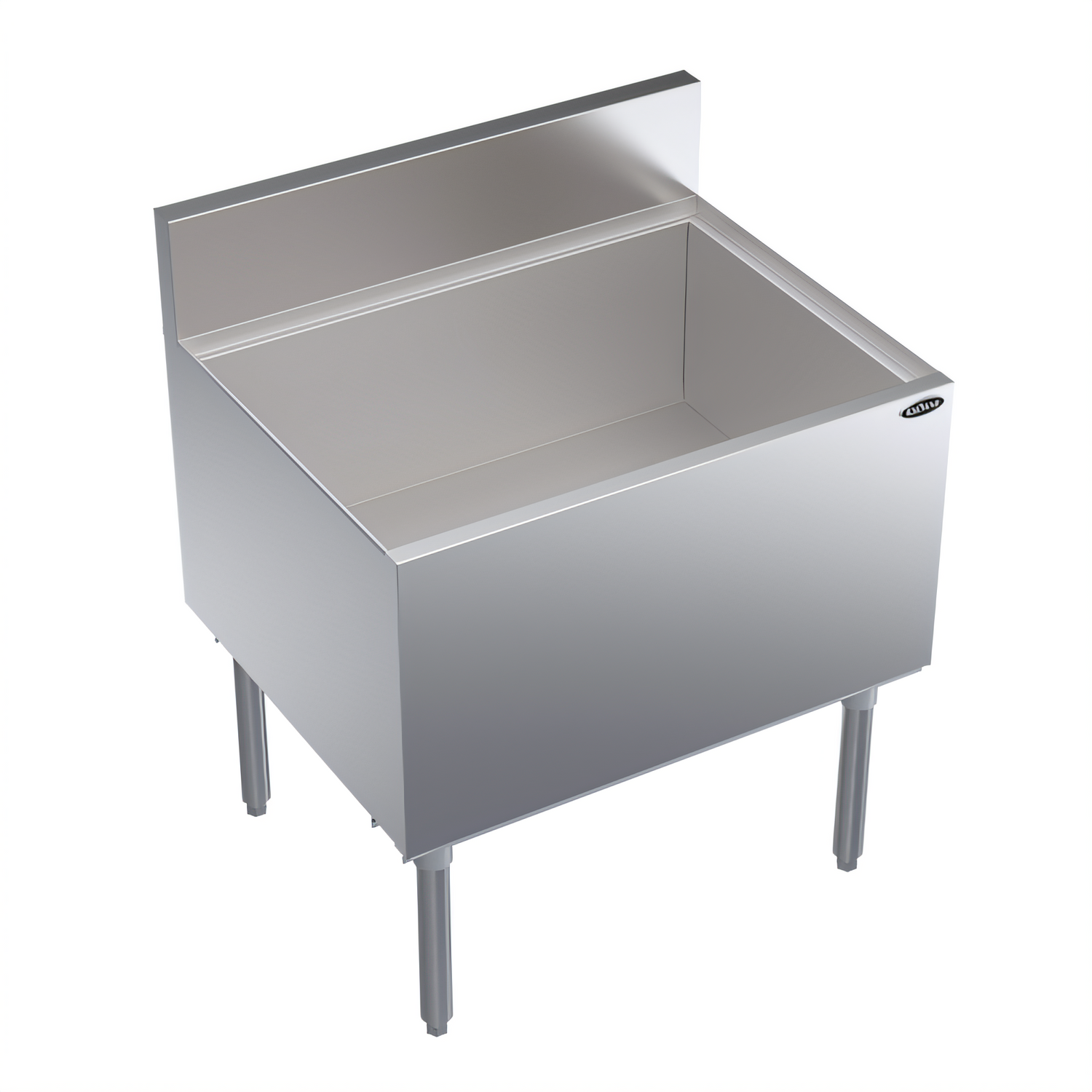

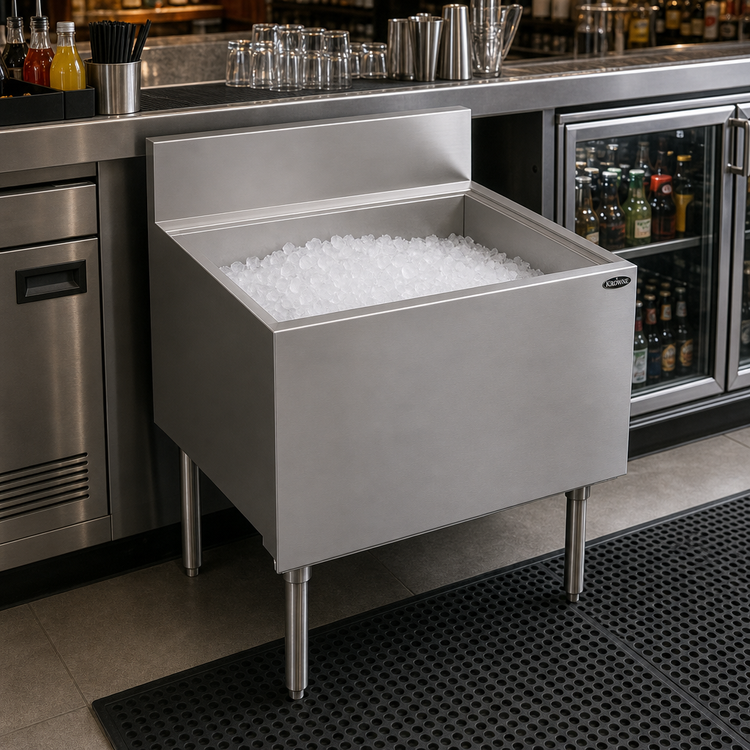

Royal Series 30" Underbar Ice Bin / Cocktail Unit
Krowne Model KR24-30-10 • 10-Circuit Cold Plate • NSF ListedEngineered for high-volume bars that refuse to compromise on speed or drink quality, this 30 inch Royal Series ice bin pairs a 115 lb ice reserve with a built-in 10-circuit cold plate. Post-mix lines run through the cold plate, ensuring every soda or cocktail is dispensed at the perfect serving temperature while saving valuable space below the counter.
Stand-Out Features

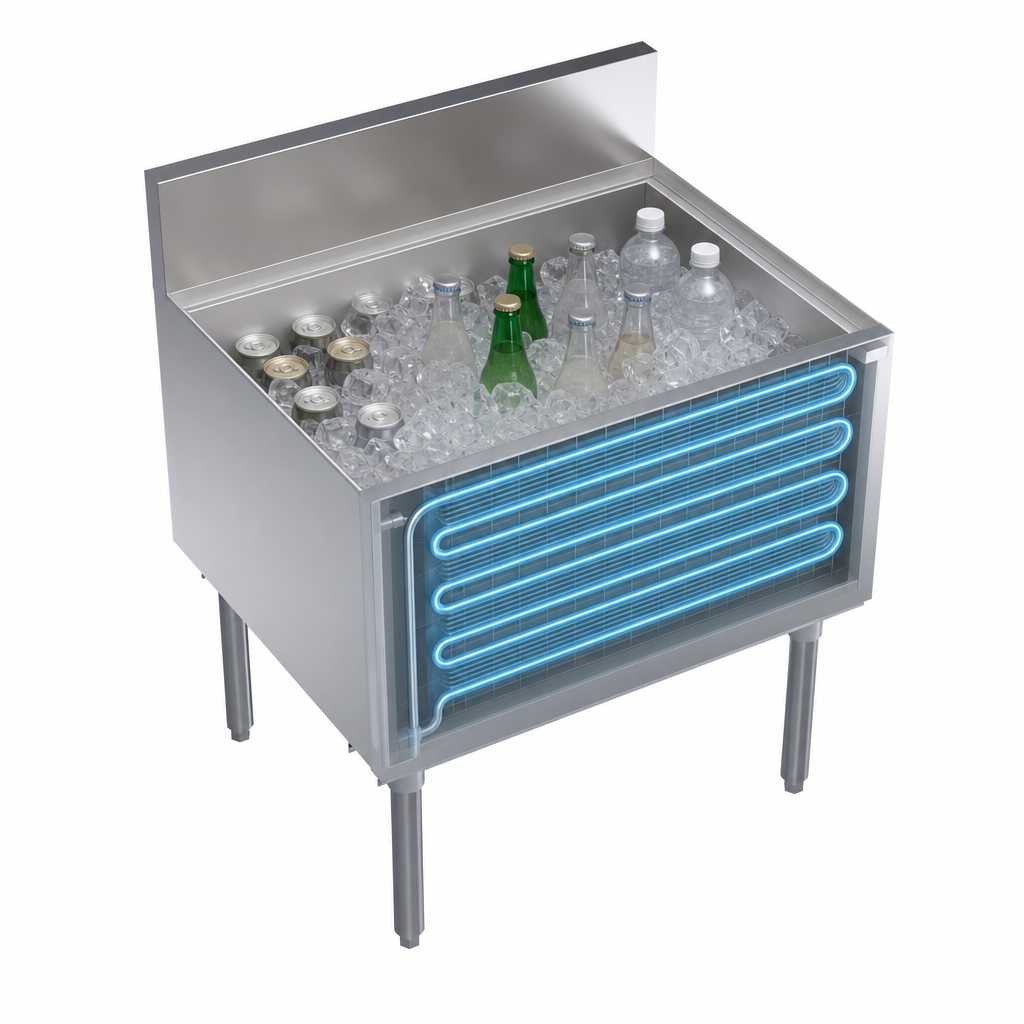

- Factory-sealed 10-circuit post-mix cold plate chills beverages in-line

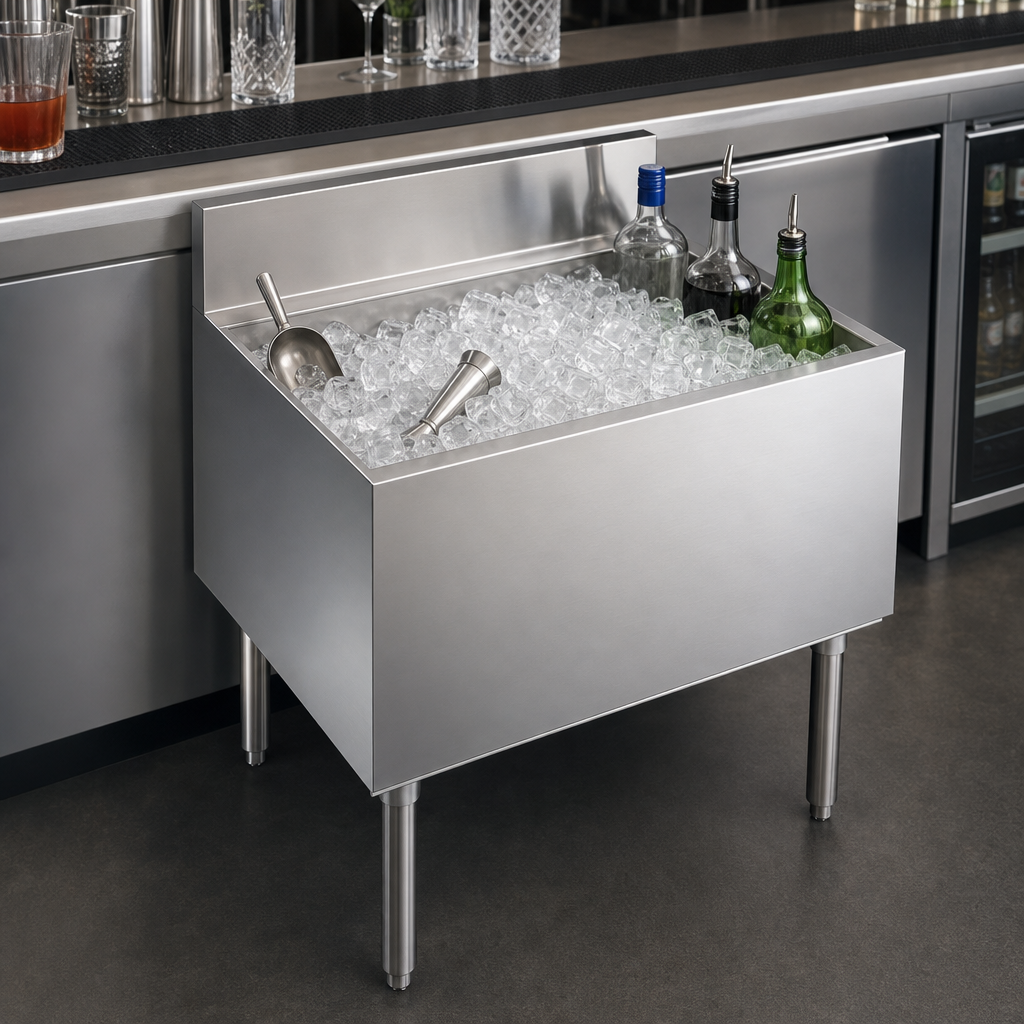

- Large 115 lb ice capacity keeps pace with peak service periods
- Durable 12" deep, foamed-in-place 20 ga stainless steel liner reduces ice melt
- 3/4" × 3-1/2" soda-line cut-out in backsplash for simple tubing routing
- 1 " IPS drain with included 1/2" × 6" PVC tailpiece to prevent condensation transfer
- All stainless steel top, front, sides & backsplash for a professional appearance
- Galvanized steel back and bottom for corrosion resistance where you need it most
- 1-5/8" O.D. 16 ga stainless steel legs with adjustable thermoplastic bullet feet
- NSF listed for sanitation compliance in any jurisdiction
Technical Specifications
| Manufacturer / Series | Krowne Metal – Royal Series Underbar |
|---|---|
| Model No. | KR24-30-10 |
| Overall Dimensions (W × D × H) | 30" W × 24" D × 36 1/2" H (to work surface) |
| Ice Capacity | 115 lb |
| Bin Liner | 20 ga stainless steel, 12" deep (interior 20" × 28") |
| Cold Plate | Factory-installed, 10 circuits, 5/16" O.D. stainless tubing |
| Soda Line Access | 3/4" × 3-1/2" cut-out in left side of backsplash |
| Drain Connection | 1" IPS with included 1/2" × 6" PVC tailpiece (½-20 male thread) |
| Construction | Top / Front / Sides / Backsplash: Stainless steel Back & Bottom: 20 ga galvanized steel |
| Legs & Feet | 1-5/8" 16 ga stainless legs, adjustable grey thermoplastic bullet feet |
| Insulation | Foamed-in-place polyurethane |
| Net / Shipping Weight | ≈ 91 lb / 152 lb |
| Certifications | NSF |
Popular Accessories (Sold Separately)
- Single or double speed rails (RS-30 / RD-30) for bottle storage
- Sliding stainless steel ice covers (SCD30-H partial or SCD30-F full)
- Condiment trays, divider racks & bottle wells for optimized mise-en-place
- Left / right end splashes to contain overspray
Accessories ship loose for field installation and can be added to your order on request.
