Description

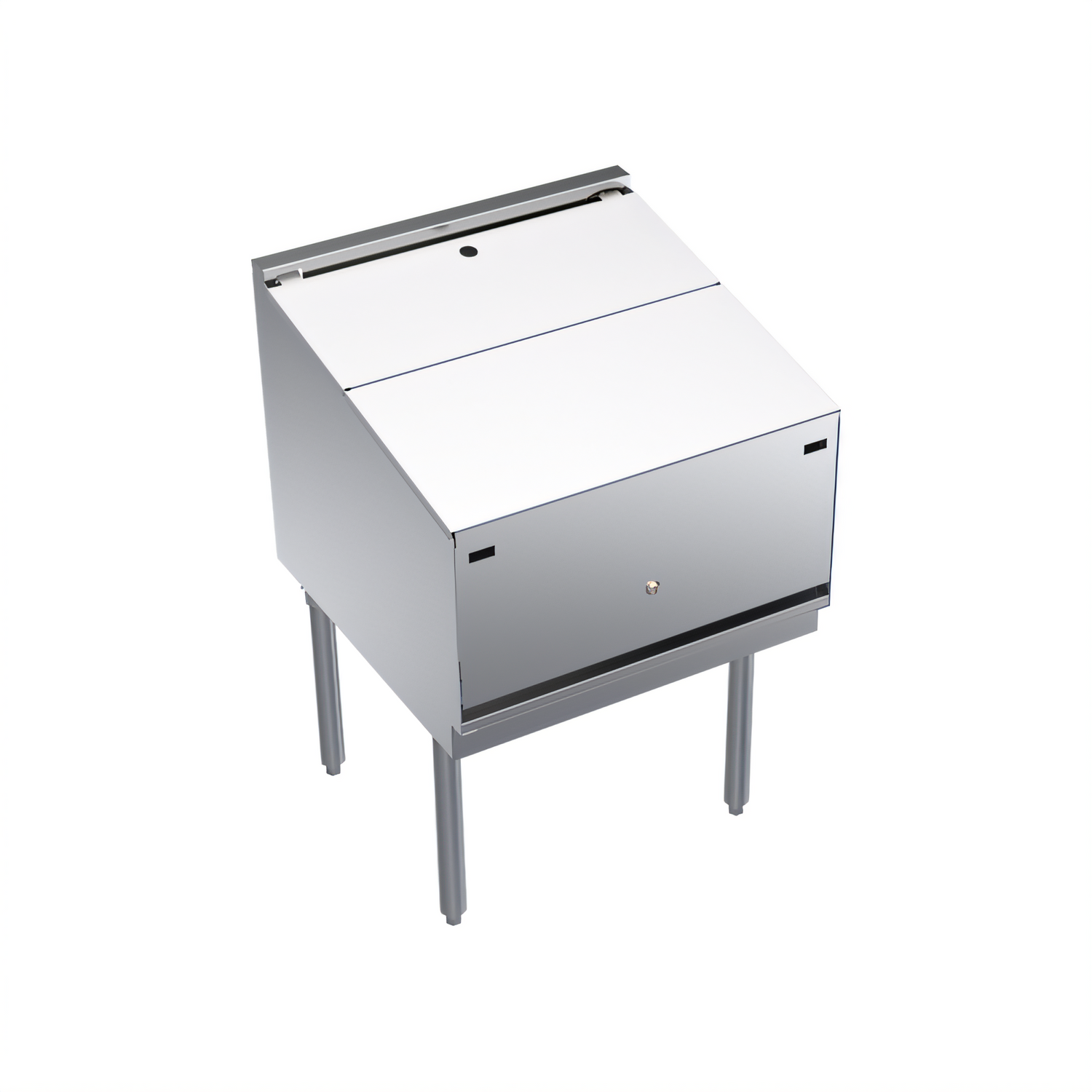

Krowne Royal Series 24" x 24" 4-Step Liquor Bottle Display with Locking Cover

Model KR24-24RD-LC  |  NSF Certified Freestanding Underbar Unit

Keep top-shelf spirits organized, secure, and always within reach. The Krowne Royal Series 4-Step Liquor Display combines rugged stainless-steel construction with a removable locking cover, giving bartenders quick access during service and owners peace of mind after hours.

Why You’ll Love It

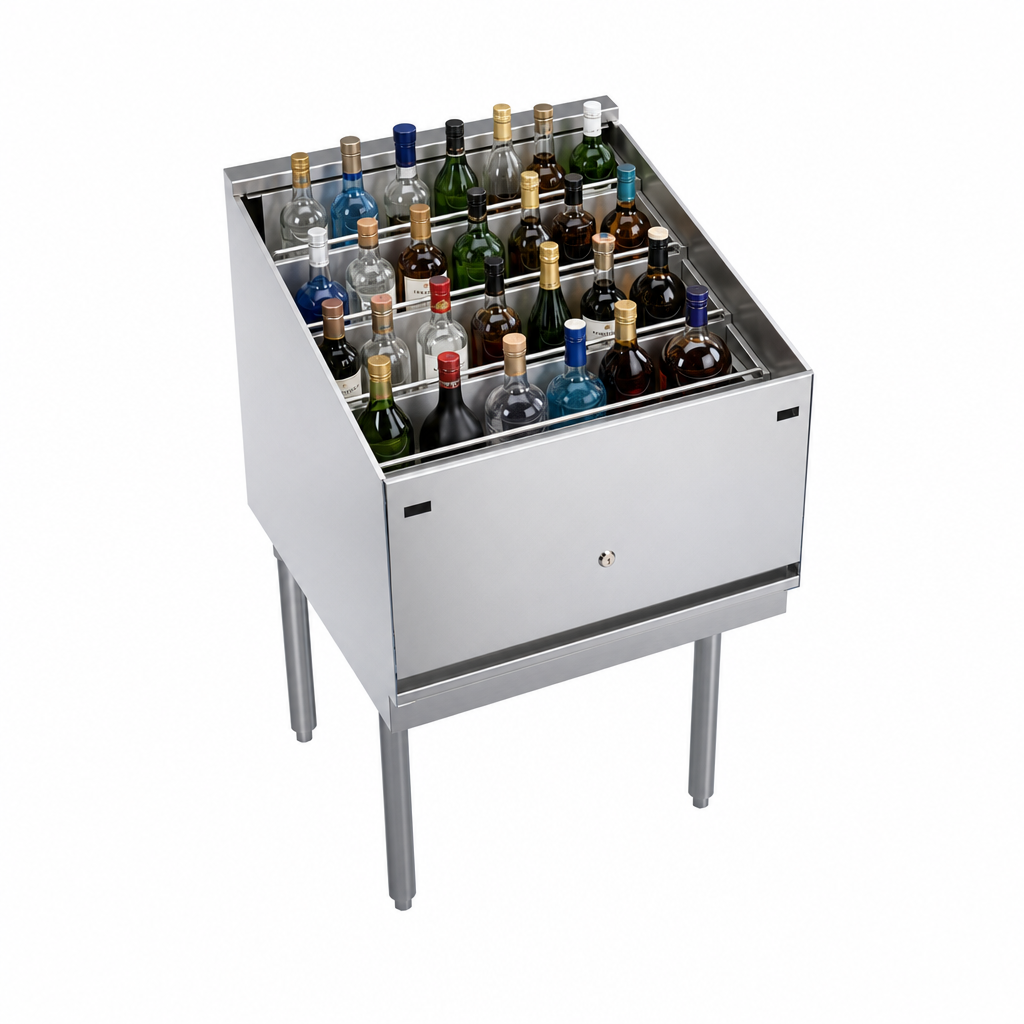

  • 4-level stepped rack holds 24 full-size liquor bottles for instant product visibility.
  • Integrated stainless-steel guardrails keep bottles safely in place—no accidental tip-overs.

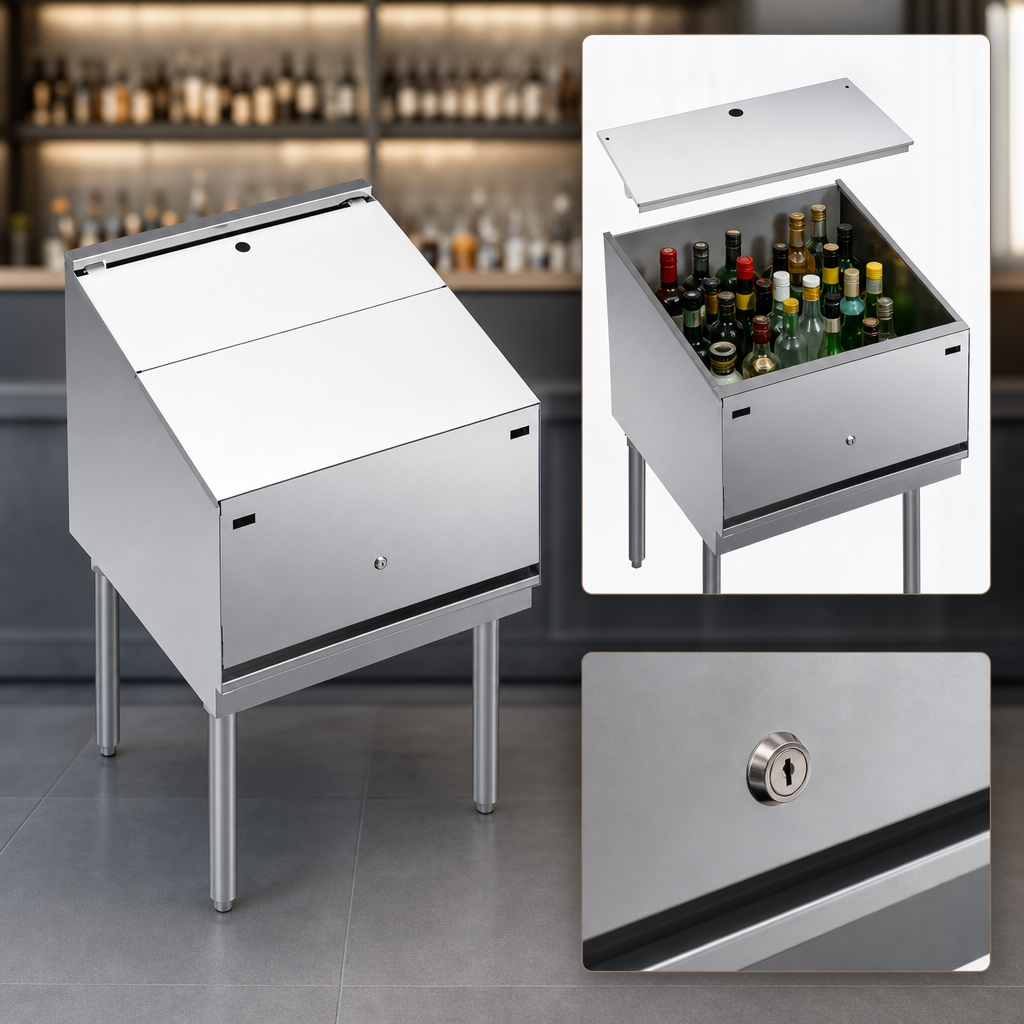

  • Factory-installed locking cover protects premium inventory when the bar is closed.
  • Sound-deadening design minimizes clanging and improves front-of-house ambience.
  • 24" depth aligns perfectly with Krowne speed rails and adjacent underbar equipment.
  • All exposed surfaces are corrosion-resistant stainless steel; galvanized back & bottom add strength where it counts.
  • 1-5/8" Ø 16-ga stainless-steel legs with adjustable thermoplastic bullet feet ensure a level, wobble-free setup.
  • NSF listed for safe, sanitary beverage service.
Technical Specifications
Model KR24-24RD-LC
Overall width 24" (610 mm)
Overall depth 24" (610 mm)
Bottle capacity 24 × 750 ml bottles
Steps / Guardrails 4 stainless-steel tiers with full-length guardrails
Locking cover Removable, keyed stainless-steel cover
Construction Top, front, sides, steps & guardrails: 20-ga stainless steel
Back & bottom: 20-ga galvanized steel
Legs / Feet 1-5/8" Ø 16-ga stainless steel legs with adjustable gray thermoplastic bullet feet
Weight Approx. 65 lb (29.5 kg)
Certifications NSF
Heads-up: Locking covers are factory-installed and cannot be added in the field. Choose model KR24-24RD-LC when bottle security is required.

Need a different size or step count? Royal Series displays are also offered in 3-step and 5-step configurations from 12" to 36" wide. Chat with our team for details.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

24.0in

Depth

24.0in

Shipping Weight

65.0lbs

Width (side - side) OA

19" - 24"

Construction

stainless steel & galvanized

Depth (front - back) OA

24" - 27"

Steps

(4)

Type

free standing

Specifications

Royal Series Underbar Liquor Bottle Display Unit with removable locking cover, freestanding, 24"W x 24"D (to match speedrail depth), holds (24) liquor bottles, (4) bottle steps with guard rails, stainless steel top, front, & sides, galvanized steel back & bottom, stainless steel legs with adjustable thermoplastic bullet feet, NSF
