Krowne KR24-24-10 Royal Series Bar Equipment
Description

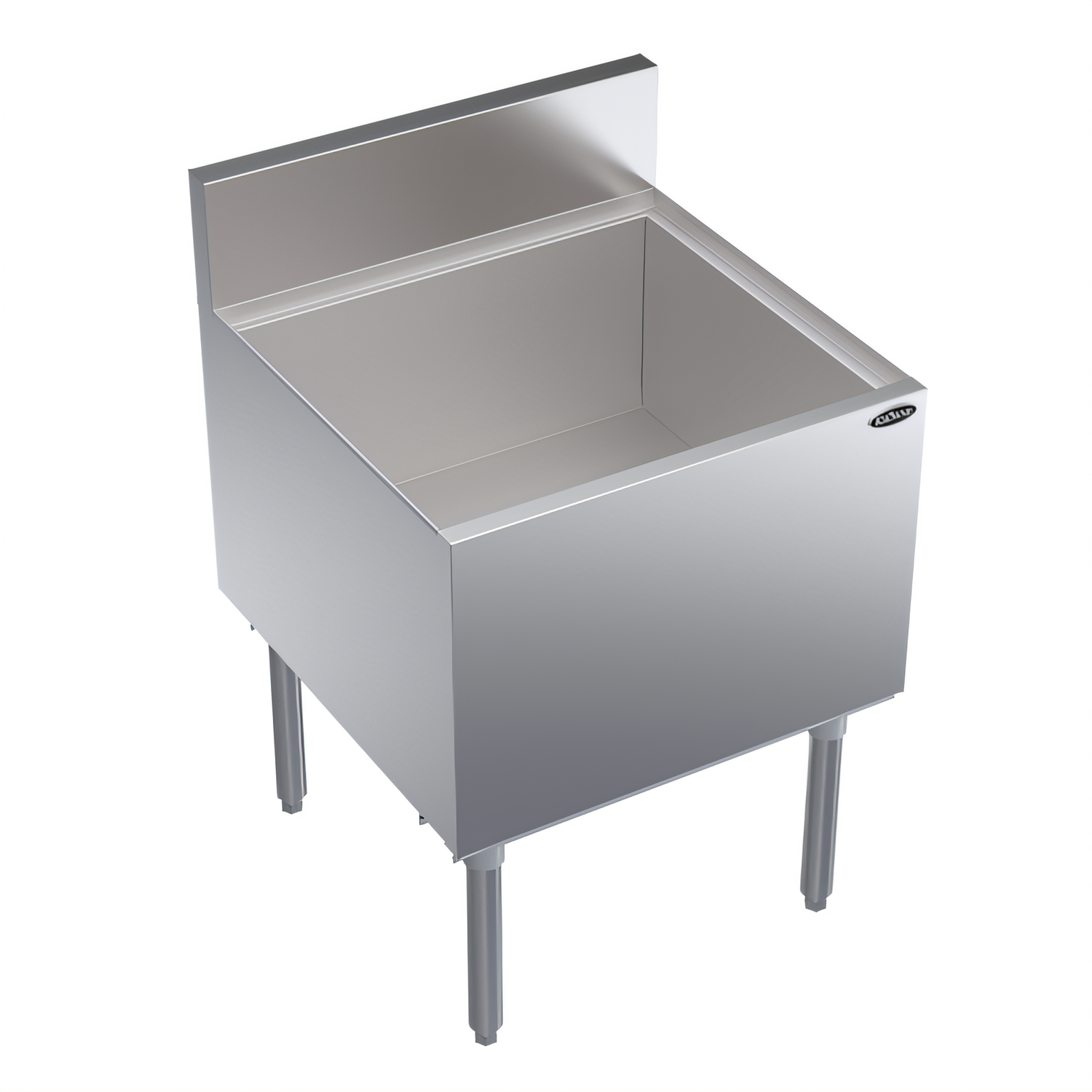

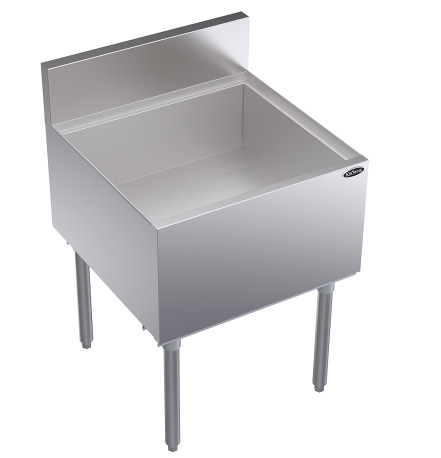

Krowne Royal Series 24" x 24" Underbar Ice Bin / Cocktail Unit with 10-Circuit Cold Plate
Model KR24-24-10 • 92 lb Ice Capacity • NSF ListedBuilt for high-volume bars that refuse to compromise on speed or sanitation, the Royal Series underbar ice bin with integrated cold plate chills, stores and serves with uncompromising reliability—all in a compact 24" x 24" footprint that slides neatly into any underbar line-up.
Why You’ll Love It

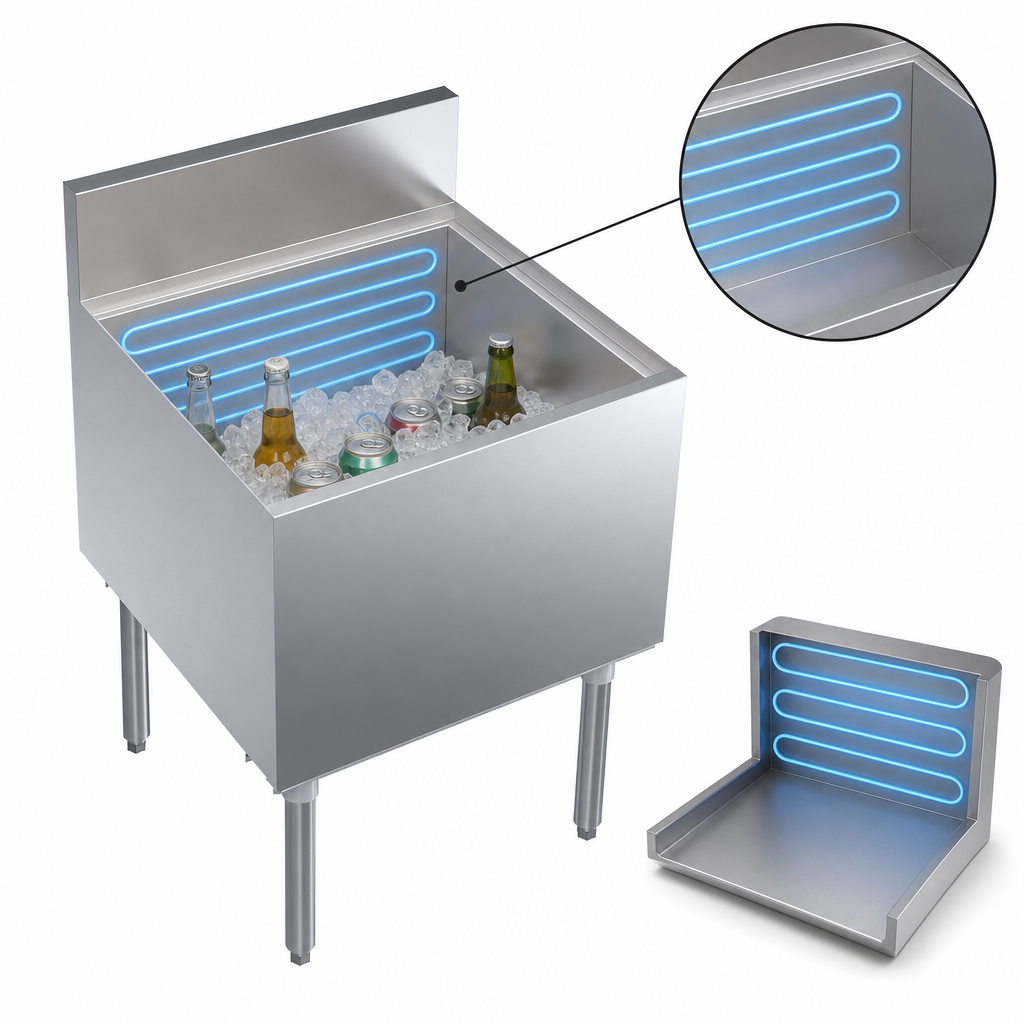

- Factory-sealed 10-circuit post-mix cold plate (5/16" OD stainless tubing) chills product lines before the pour.

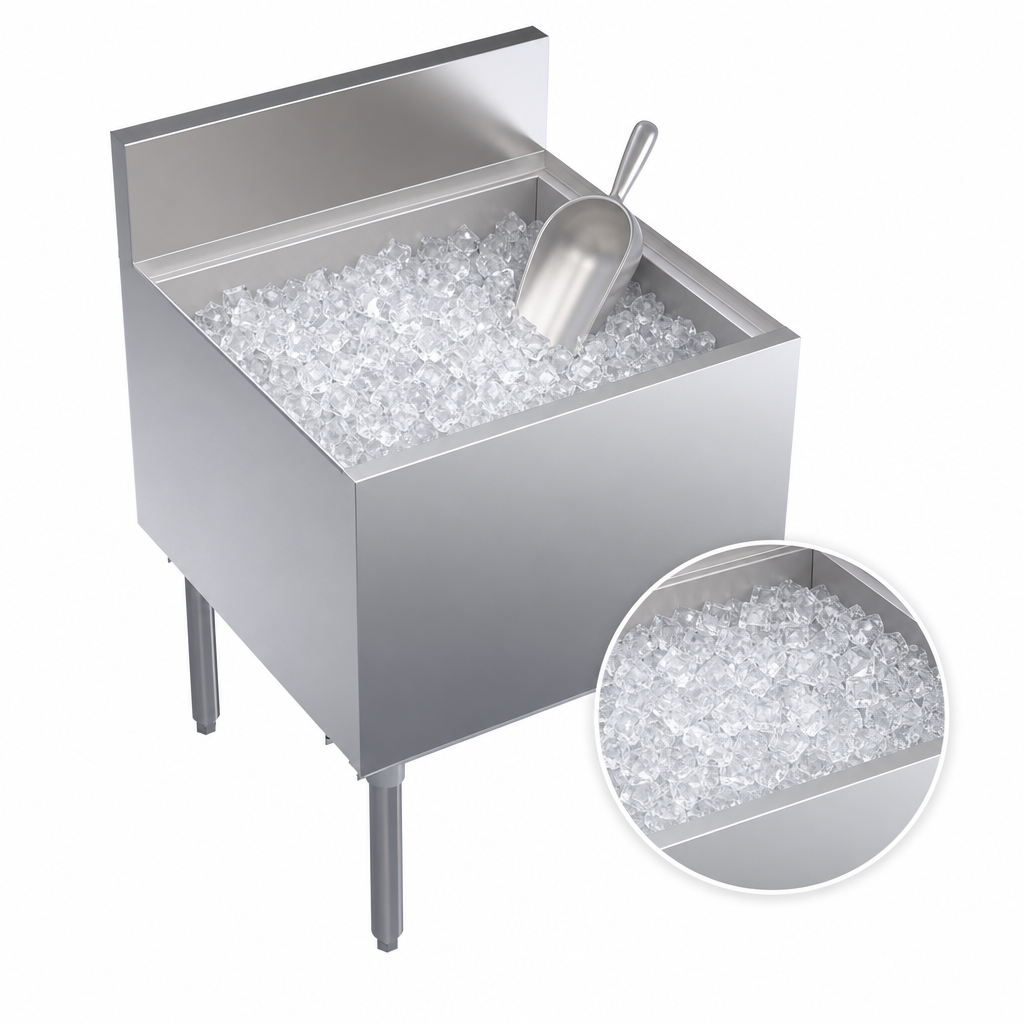

- Generous 92 lb ice capacity and a 12" deep, 20 ga. stainless steel liner keep service moving.
- Foamed-in-place polyurethane insulation maximizes ice retention.
- 24" overall width fits standard underbar designs while offering a roomy 20" × 22" interior.
- 3/4" × 3-1/2" soda-line access cut-out in the backsplash speeds installation.
- 1/2" IPS drain with included 6" PVC tailpiece prevents condensation and meets health codes.
- All stainless steel top, front, apron and sides with galvanized back & bottom for long-term durability.
- 1-5/8" Ø, 16 ga. stainless steel legs with adjustable thermoplastic bullet feet for fast, wobble-free leveling.
- NSF listed and ready for immediate commercial use.
At-a-Glance Specs
| Model | KR24-24-10 |
|---|---|
| Overall Dimensions (W × D) | 24" × 24" |
| Interior Liner (W × L × D) | 20" × 22" × 12" |
| Ice Capacity | 92 lb |
| Cold Plate | Built-in 10-circuit, stainless tubing, bump & swedge fittings |
| Soda Line Access | 3/4" × 3-1/2" cut-out (left side of backsplash) |
| Drain | 1/2" IPS with 6" PVC tailpiece (included) |
| Construction | 20 ga. stainless steel interior, apron & backsplash; 20 ga. galvanized back & bottom |
| Insulation | Foamed-in-place polyurethane |
| Legs / Feet | 1-5/8" Ø, 16 ga. stainless legs • adjustable thermoplastic bullet feet |
| Shipping Weight | Approx. 138 lb |
| Certifications | NSF |
Popular Add-Ons (Sold Separately)
- Single or double speed rails – keep top sellers at arm’s reach.
- Sliding stainless steel covers (full or partial) for health-department compliance.
- Condiment trays, garnish stations & bottle wells for efficient cocktail prep.
- End-splash kits to contain meltwater and protect adjacent equipment.
Need a different length, depth or accessory package? Explore the full Krowne Royal Series or chat with our equipment specialists for a custom underbar layout.
