Krowne KR24-18DP-7 Royal Series Bar Equipment
Description

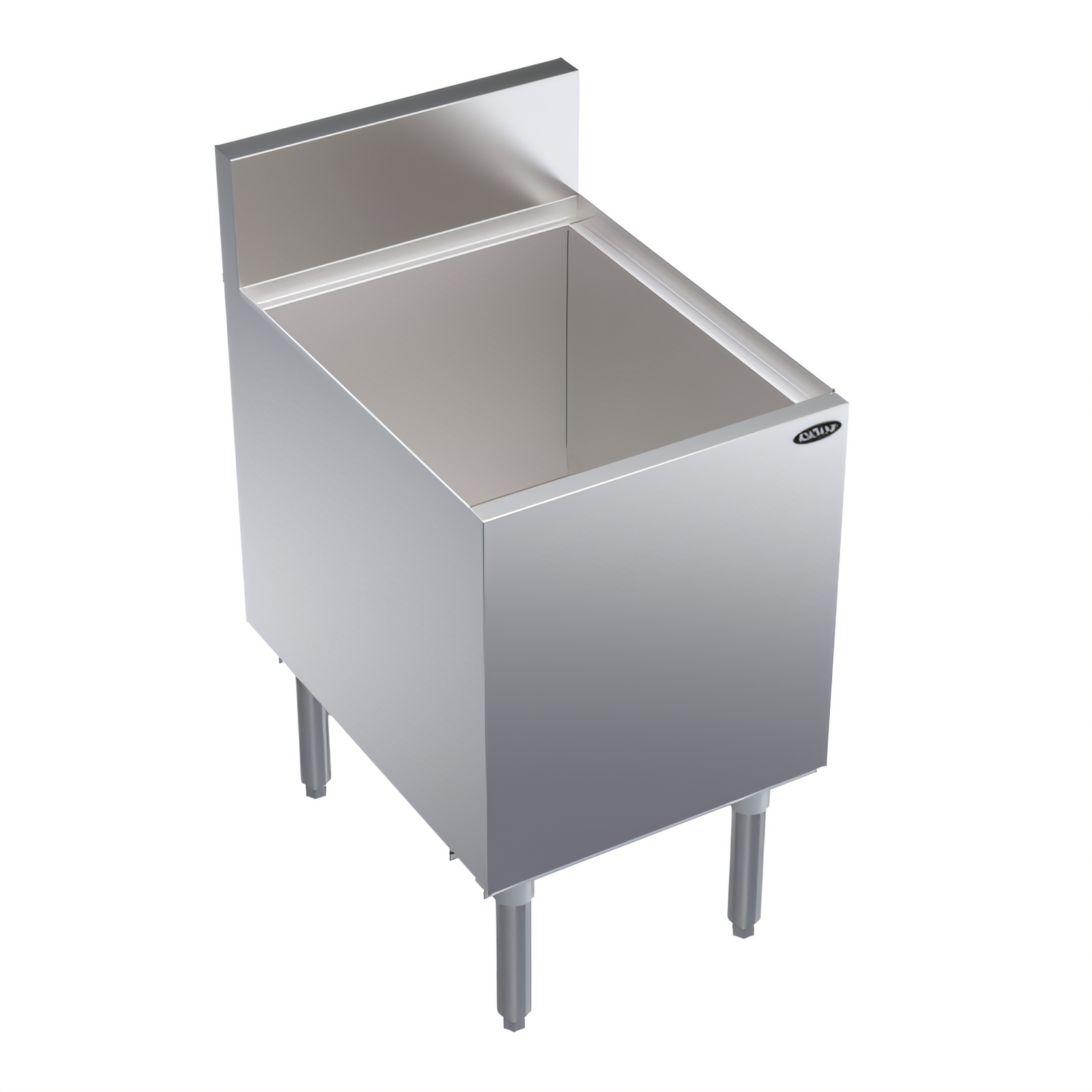

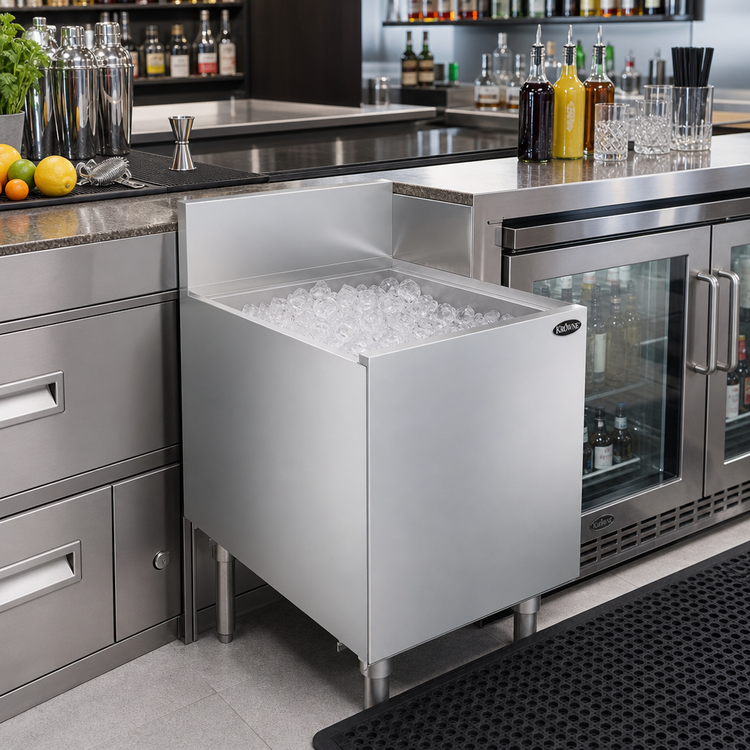

Krowne Royal Series 18" W x 24" D Underbar Ice Bin / Cocktail Unit
Model KR24-18DP-7 • Built-in 7-Circuit Cold PlateEngineered for high-volume bars that refuse to compromise on speed or sanitation, this Royal Series ice bin keeps 91 lbs. of ice at the ready while simultaneously chilling post-mix lines through an integral cold plate. Rugged stainless construction, generous 15 inch liner depth, and NSF approval make it a long-term asset behind any bar, service station, or beverage counter.
Key Features

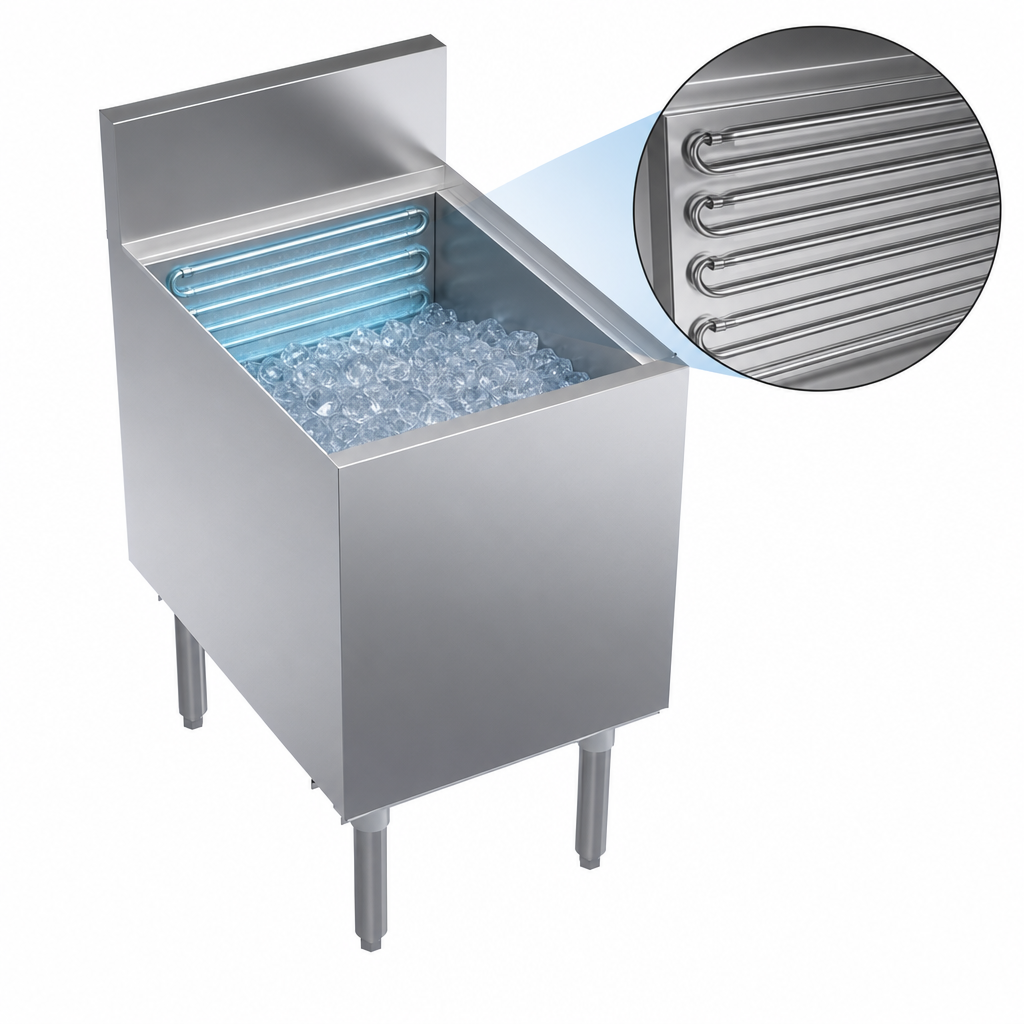

- Factory-sealed 7-circuit post-mix cold plate chills syrups and carbonated water before dispensing.

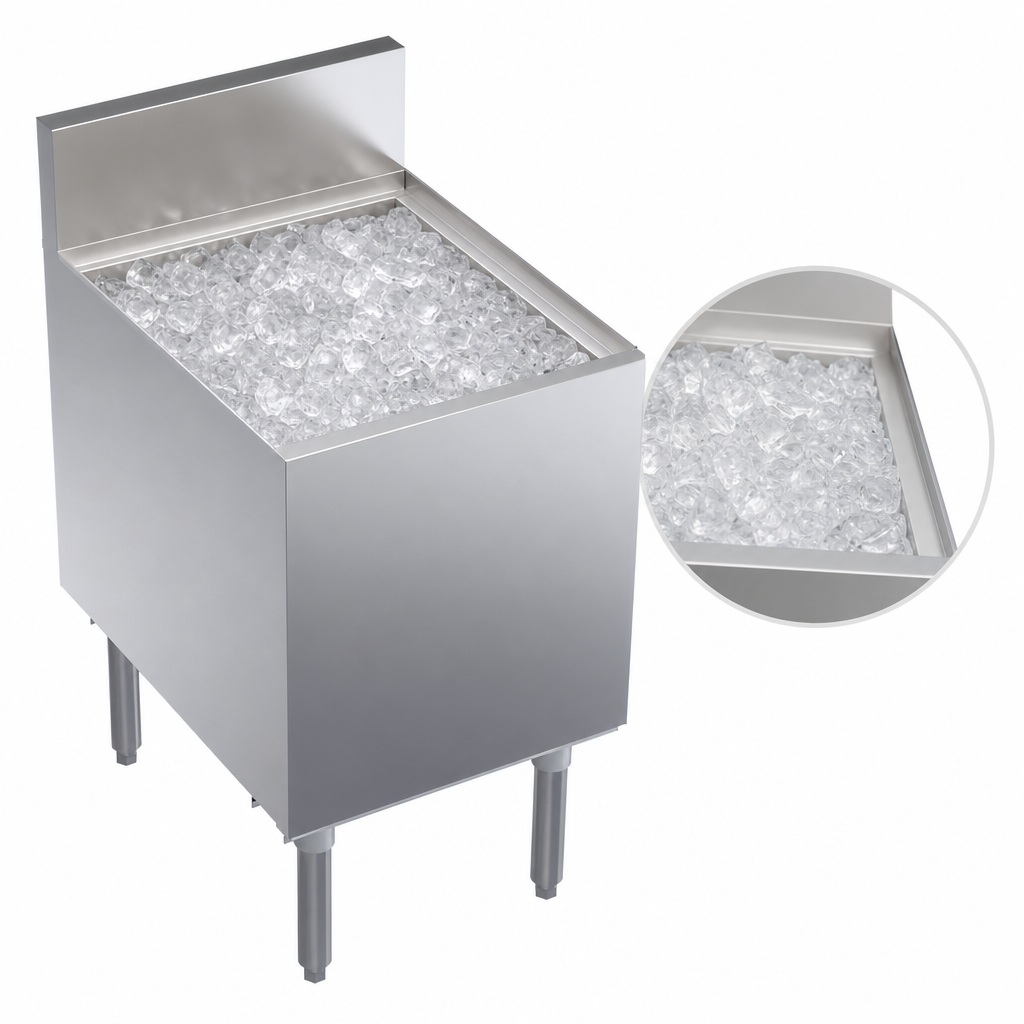

- 15" deep, 20-gauge stainless steel liner stores up to 91 lbs. of ice for all-night service.
- 3/4" × 3-1/2" soda-line access in backsplash keeps beverage tubing organized and hidden.
- Foamed-in-place polyurethane insulation slows melt and reduces ice costs.
- Stainless steel top, front & sides with galvanized back/bottom for strength where you need it, economy where you don’t.
- 1-5/8" Ø 16-ga. stainless legs with adjustable thermoplastic bullet feet for fast, wobble-free leveling.
- 1/2" PVC drain tailpiece (included) prevents condensation caused by metal-to-metal contact.
- NSF listed to simplify local health-department approval.
At-a-Glance Specs
| Manufacturer | Krowne Metal |
|---|---|
| Series | Royal Series Underbar |
| Model | KR24-18DP-7 |
| Ice Capacity | 91 lb. |
| Cold Plate | Integral 7-circuit, 5/16" OD stainless tubing with bump & swedge fittings |
| Overall Dimensions | 18" W × 24" D × 36 1/2" H (to top of backsplash) |
| Liner Dimensions | 20" W × 16" D × 15" H |
| Drain | 1" IPS with 1/2" × 6" PVC tailpiece (1/2-20 male thread) |
| Construction | 20-ga. stainless liner/top/front/sides; 20-ga. galvanized back & bottom |
| Insulation | Foamed-in-place polyurethane |
| Legs / Feet | (4) 1-5/8" Ø stainless legs with grey thermoplastic bullet feet (adjustable) |
| Regulatory | NSF listed |
| Approx. Shipping Weight | ≈133 lb. |
Popular Add-Ons (sold separately)
- Sliding partial or full bin covers
- Single or double speed rails
- Garnish stations in 18", 24", 30" & 36" lengths
- Stainless steel dividers & condiment trays
- End-splash kits, cap catchers, towel rings and more
Looking for a different size or a 10-circuit cold plate? Explore the full Krowne Royal Series for dozens of additional configurations.
