Krowne KR24-18-7 Royal Series Bar Equipment
Description

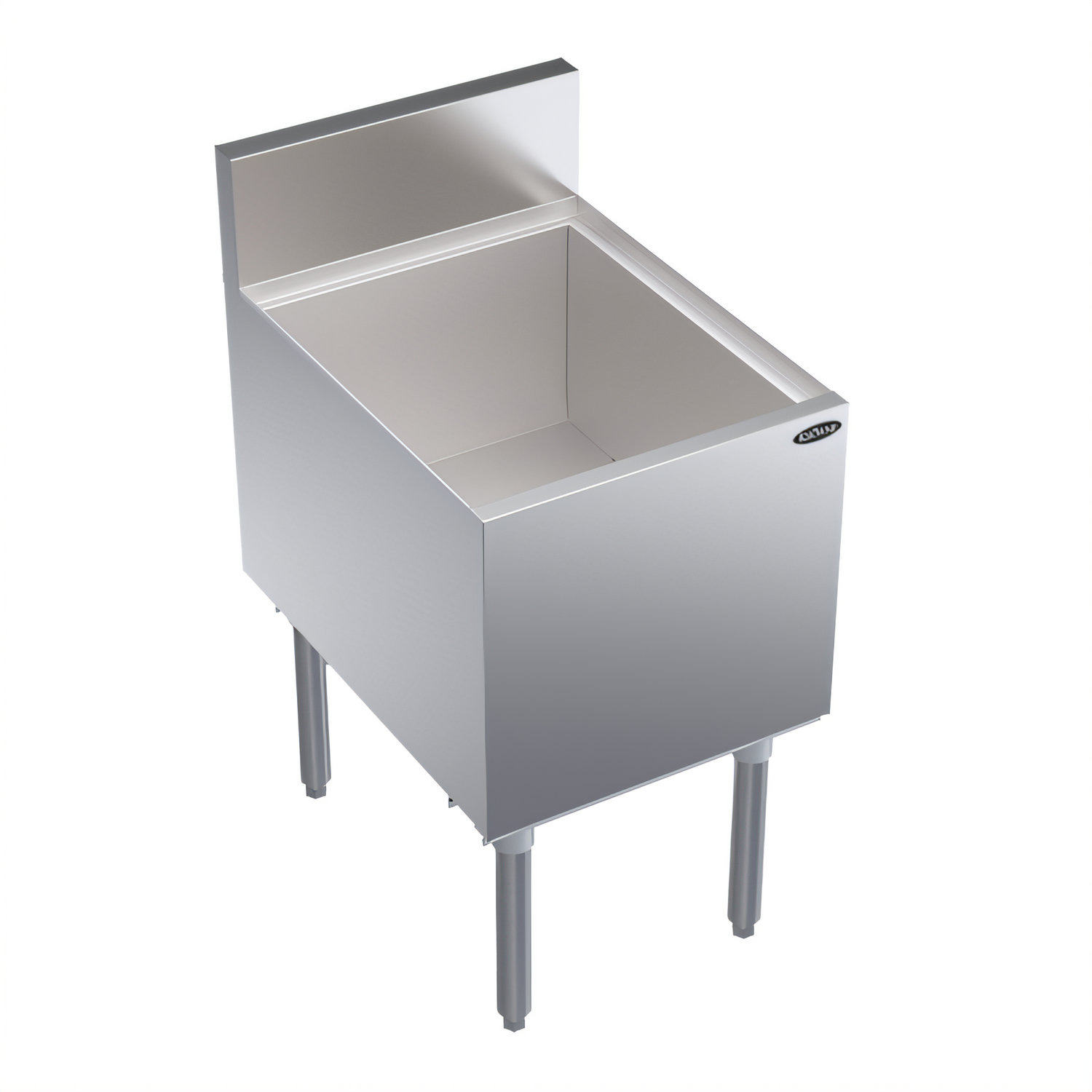

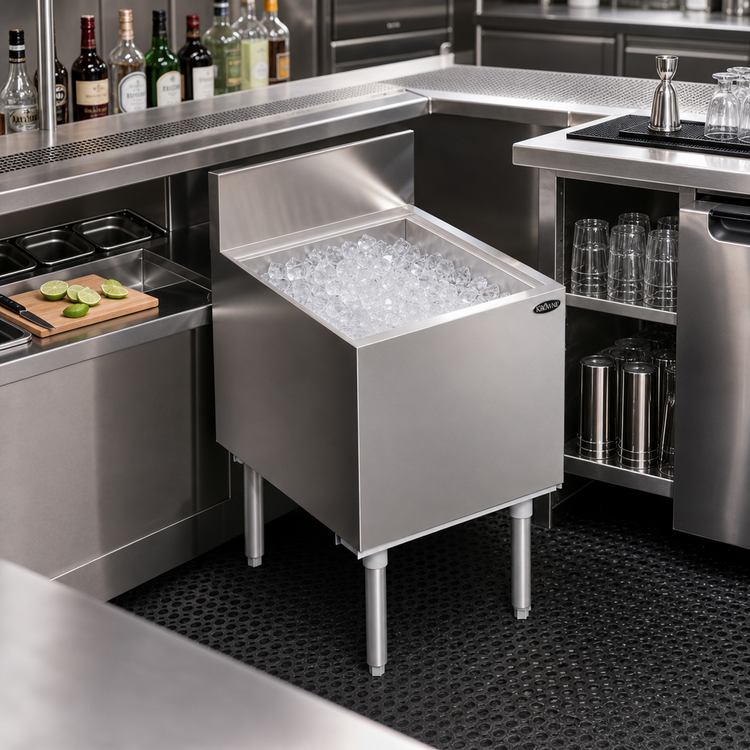

Krowne Royal Series Underbar Ice Bin with 7-Circuit Cold Plate – 18" W x 24" D
Model KR24-18-7 | NSF ListedEngineered for busy cocktail stations, this compact 18" ice bin delivers 69 lb. of ice storage and features a factory-sealed 7-circuit stainless steel cold plate to chill post-mix lines right at the bar. Rugged stainless construction, foamed-in insulation and easy plumbing connections make it a plug-and-pour powerhouse for any beverage program.
Highlights

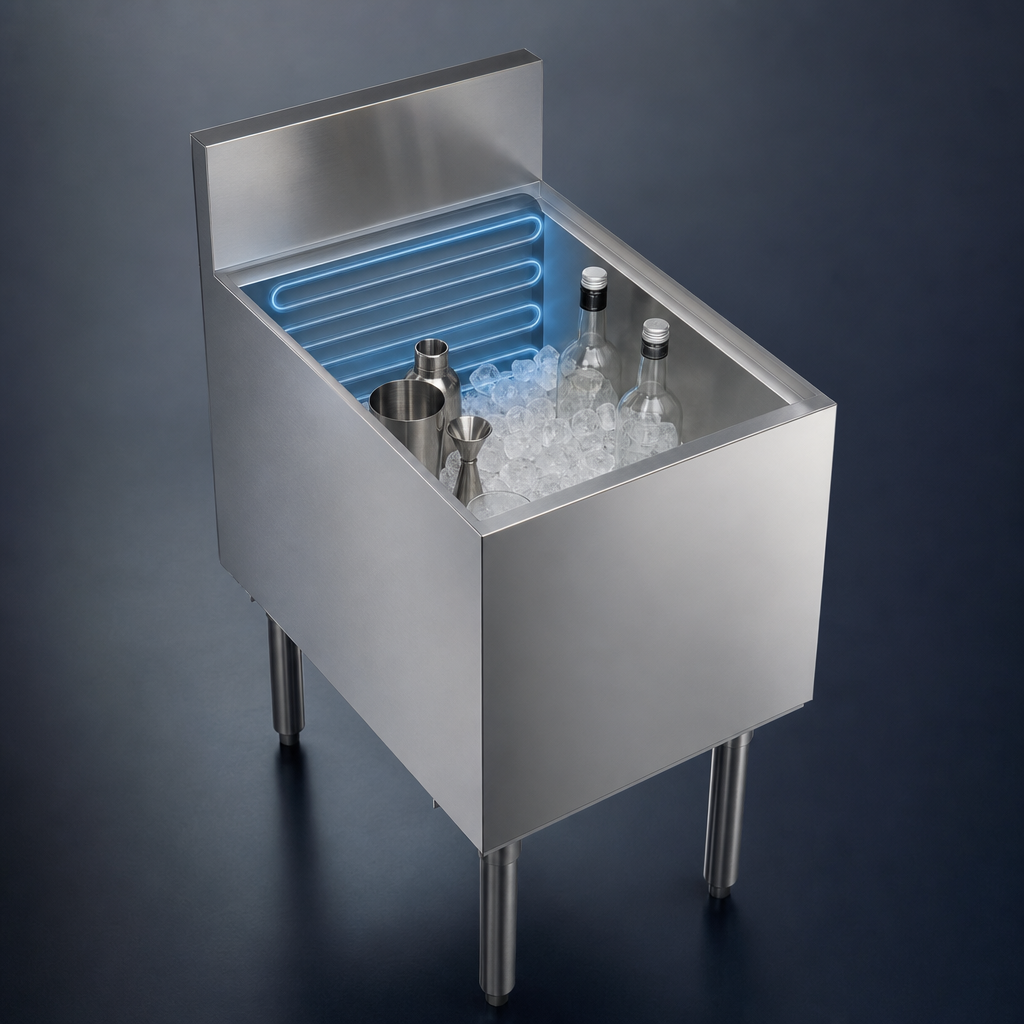

- Integrated 7-circuit cold plate eliminates the need for remote soda chillers.

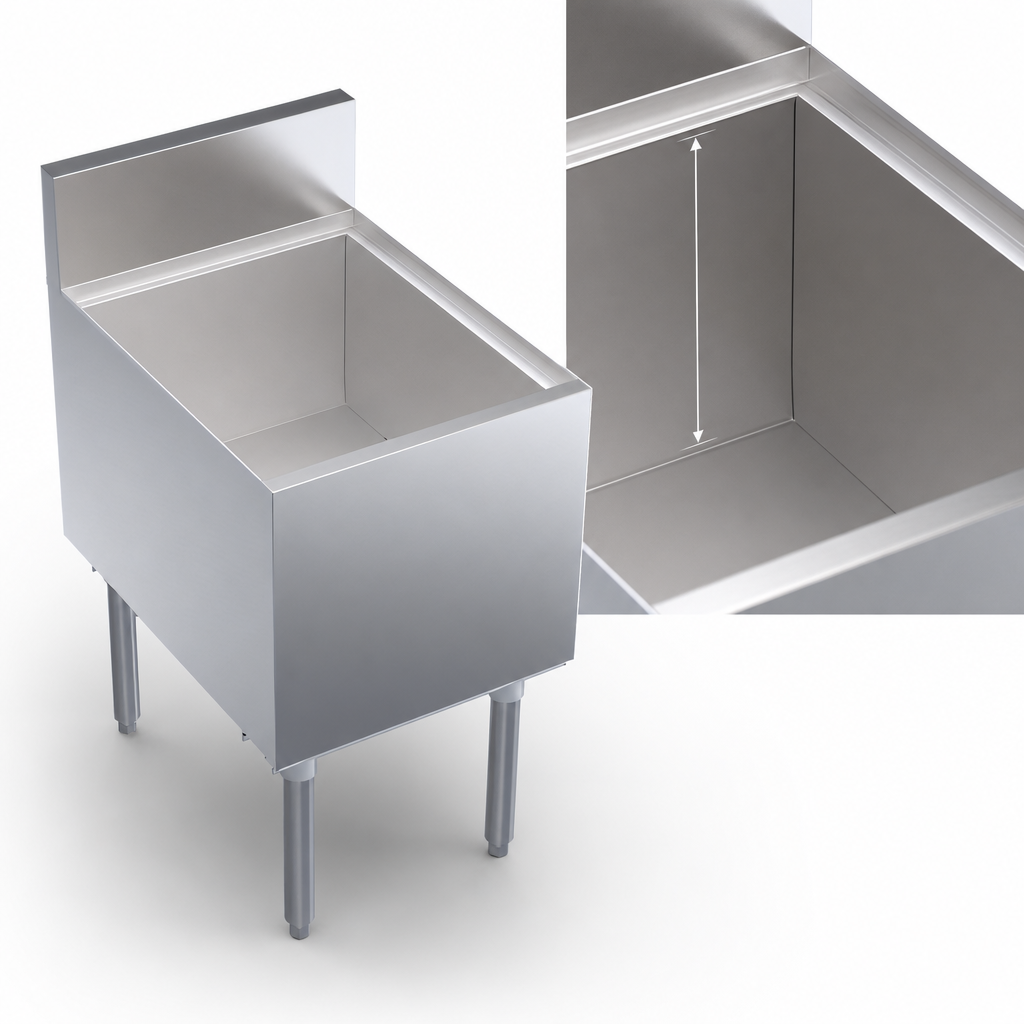

- 12" deep, 20 ga. stainless steel liner holds up to 69 lb. of ice.
- Space-saving 18" width pairs perfectly with standard 24" underbar depth.
- 3/4" × 3-1/2" soda-line cut-out in backsplash for quick tubing access.
- 1/2" IPS drain with included 6" PVC tailpiece reduces condensation.
- All stainless top, front, sides & backsplash; galvanized back & bottom for cost-effective durability.
- 1-5/8" Ø stainless legs with adjustable grey thermoplastic bullet feet for fast leveling.
- NSF certified—meets the latest sanitation standards.
Specifications
| Overall Dimensions (W × D × H) | 18" × 24" × 36 1/2" |
|---|---|
| Liner Interior (W × D × H) | 20" × 16" × 12" |
| Ice Capacity | 69 lb. |
| Cold Plate | 7 circuits, 5/16" OD stainless lines, bump & swedge ends |
| Soda Line Access | 3/4" × 3-1/2" backsplash cut-out |
| Drain | 1/2" IPS with 6" PVC tailpiece (included) |
| Construction | 20 ga. stainless top, front, sides & liner; 20 ga. galvanized back & bottom |
| Insulation | Foamed-in-place polyurethane |
| Legs / Feet | 1-5/8" 16 ga. stainless tube legs with adjustable thermoplastic bullet feet |
| Approx. Shipping Weight | 124 lb. |
Popular Add-Ons (sold separately)
- Single & double speed rails (RS / RD series)
- Sliding stainless steel ice-bin covers
- Condiment & garnish stations (KR-519, KR-520, etc.)
- End splashes & stainless divider kits
Looking for another size? Royal Series ice bins range from 6" to 48" widths and are offered with 7- or 10-circuit cold plates. Contact us for a custom configuration.
