Krowne KR24-14BD Royal Series Bar Equipment
Description

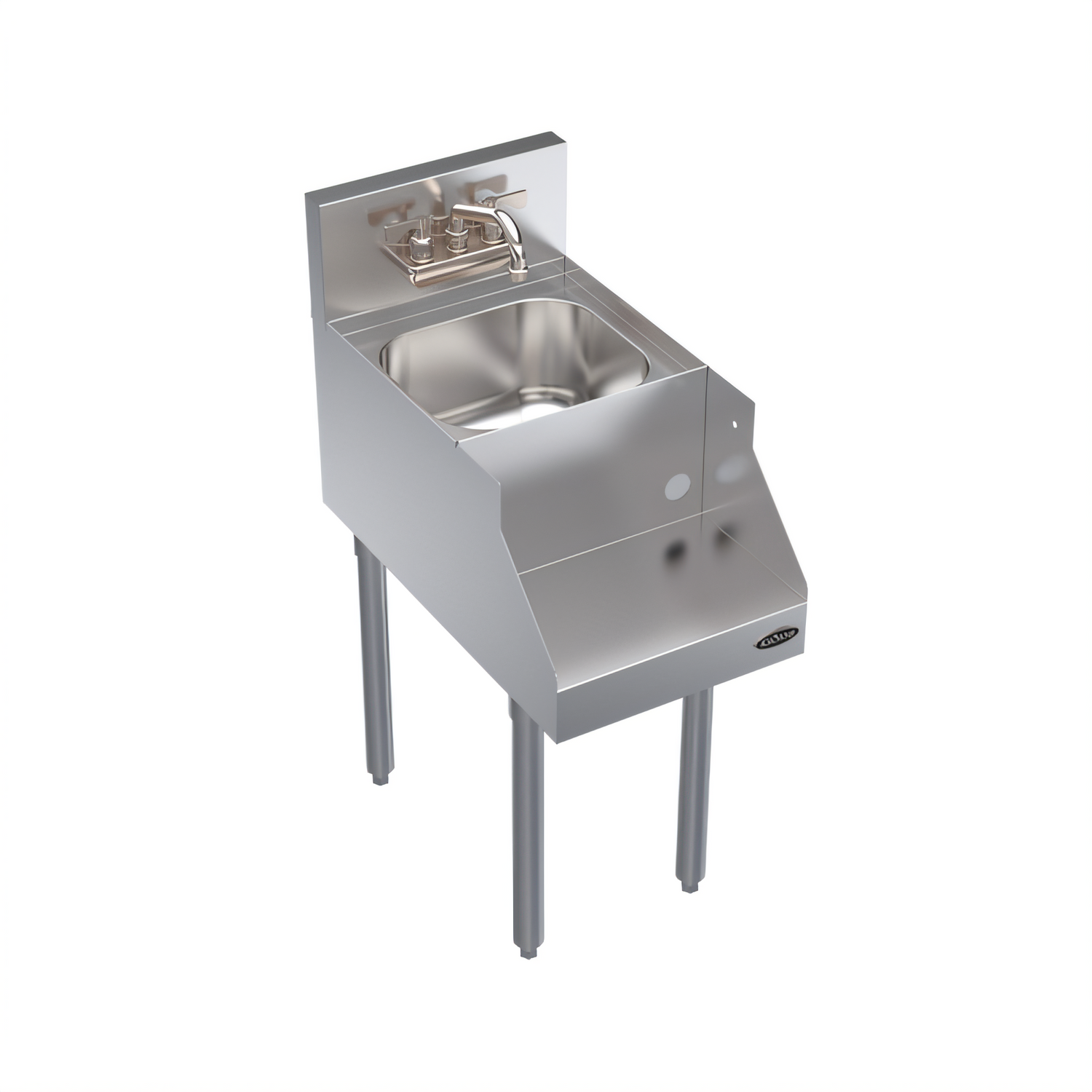

Krowne Royal Series Underbar Blender Station – 14" W x 24" D
Model KR24-14BD | NSF CertifiedDesigned for high-volume bars that demand speed, sanitation, and consistency, the Krowne Royal Series 14" Blender Station combines a recessed blender shelf, integrated dump sink, and Royal Series faucet in one compact footprint. Match it to your single-speed-rail underbar line and keep your beverage program flowing.
Key Features
- Space-saving 14" (356 mm) width with 24" (610 mm) depth—5" deeper to align with underbar units that include a speed rail.

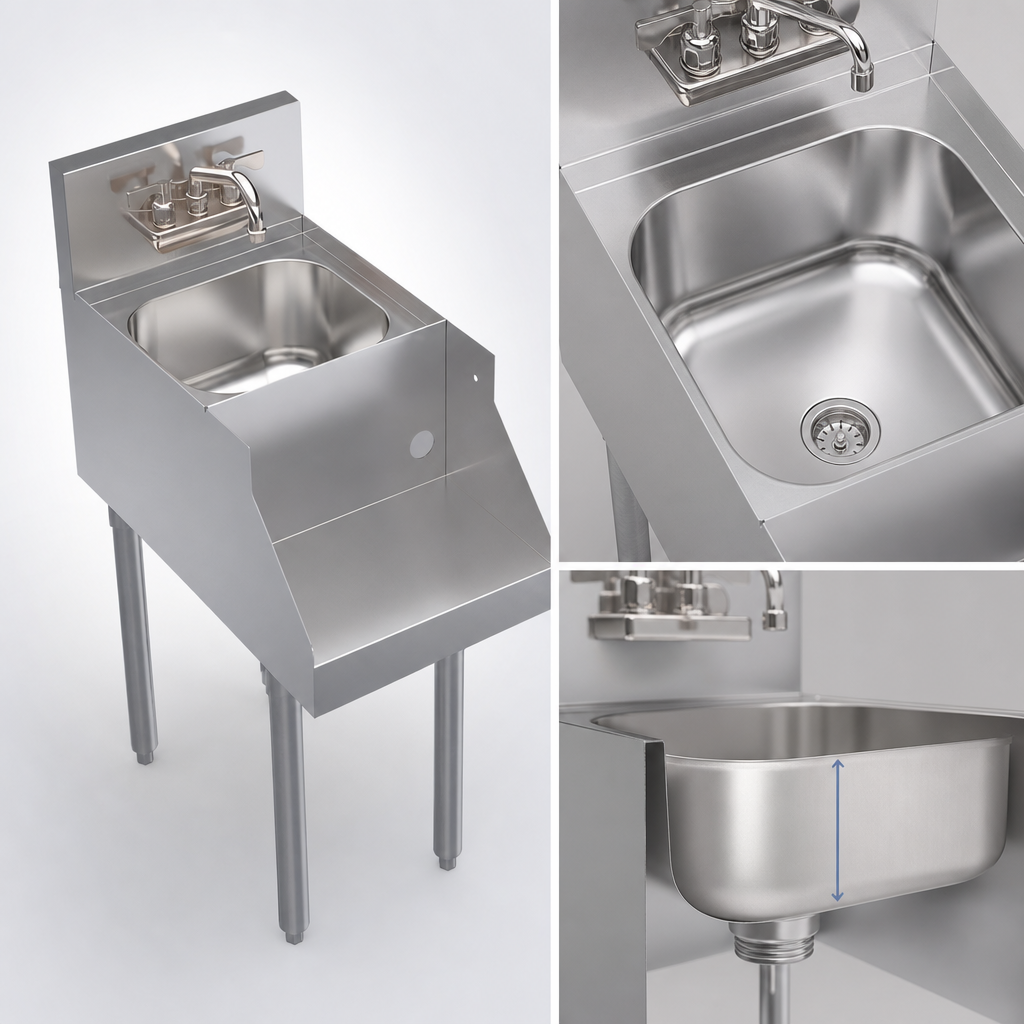

- 7" deep dump sink (10" × 12") speeds blender rinse-downs and drink disposal.
- 4"-center splash-mount Royal Series faucet is included and factory-installed.

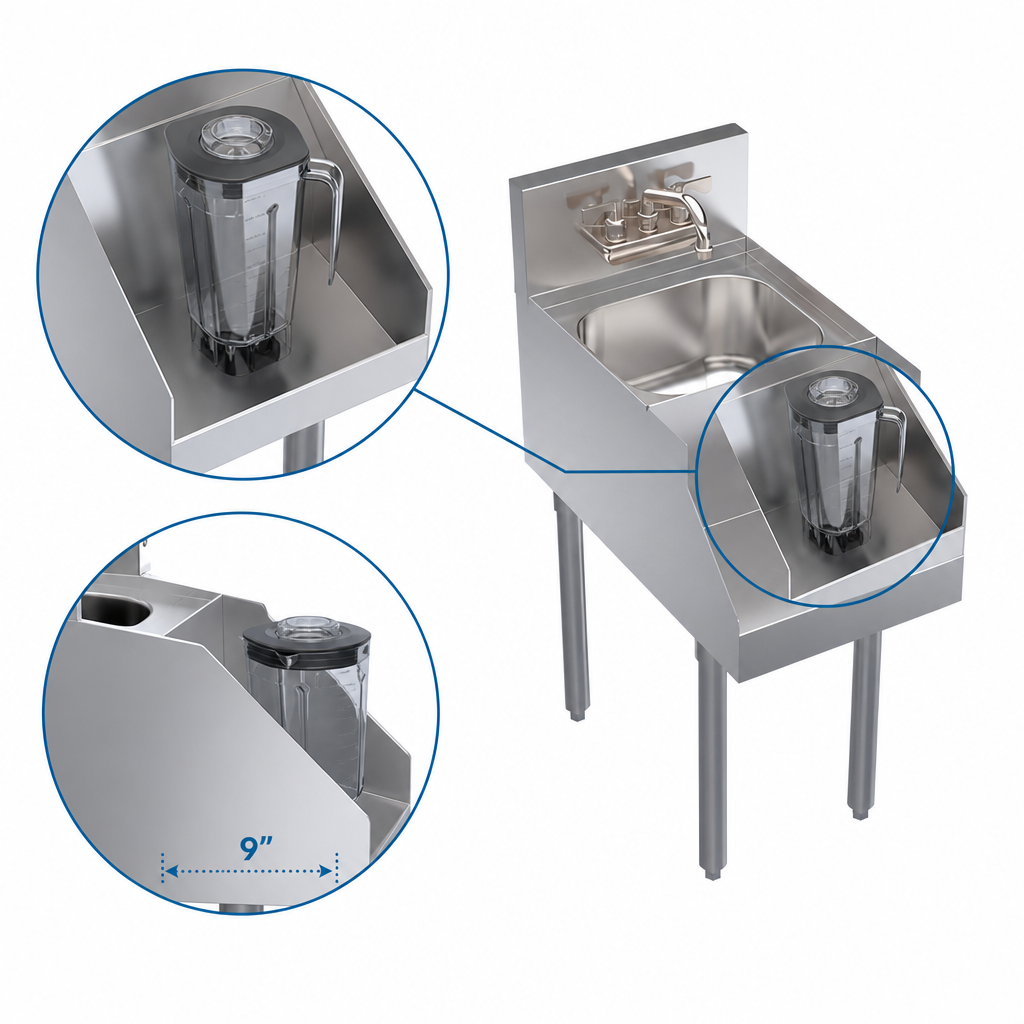

- 9" recessed blender shelf keeps blender base flush with the bar top, reducing noise and splash.
- Utility box pre-mounted beneath shelf for a duplex receptacle (GFCI required by installer).
- 20 ga stainless steel top, apron, sides, and backsplash; galvanized back & bottom for long-term corrosion resistance.
- 1-5/8" OD 16 ga stainless steel legs with adjustable thermoplastic bullet feet for rock-solid leveling.
- NSF listed for open food-service use.
Specifications
| Model | KR24-14BD |
|---|---|
| Overall Width | 14" / 356 mm |
| Overall Depth | 24" / 610 mm |
| Work Height | 36-1/2" / 927 mm (to top of deck) |
| Dump Sink Bowl (W × L × D) | 10" × 12" × 7" (254 × 305 × 178 mm) |
| Blender Shelf Recess | 9" / 229 mm |
| Drain Connection | 1-1/2" center outlet |
| Water Inlets | 1/2" hot & cold |
| Material Thickness | 20 ga stainless steel (top, apron, sides, backsplash) |
| Shipping Weight | 48 lb / 22 kg (approx.) |
Optional Accessories
- KR-313 Left & Right End Side Splashes
- KR-314 Right End Splash | KR-315 Left End Splash
- KR-501 Stainless Steel Towel Ring
- 30-152 Stainless Steel Sink Strainer (fits 10" × 14" bowls)
- 30-160 Universal Plastic Sink Strainer
Due to continuous product improvements, specifications are subject to change without notice. Please confirm critical dimensions prior to fabrication or installation.
