Krowne KR24-12BD Royal Series Bar Equipment
Description

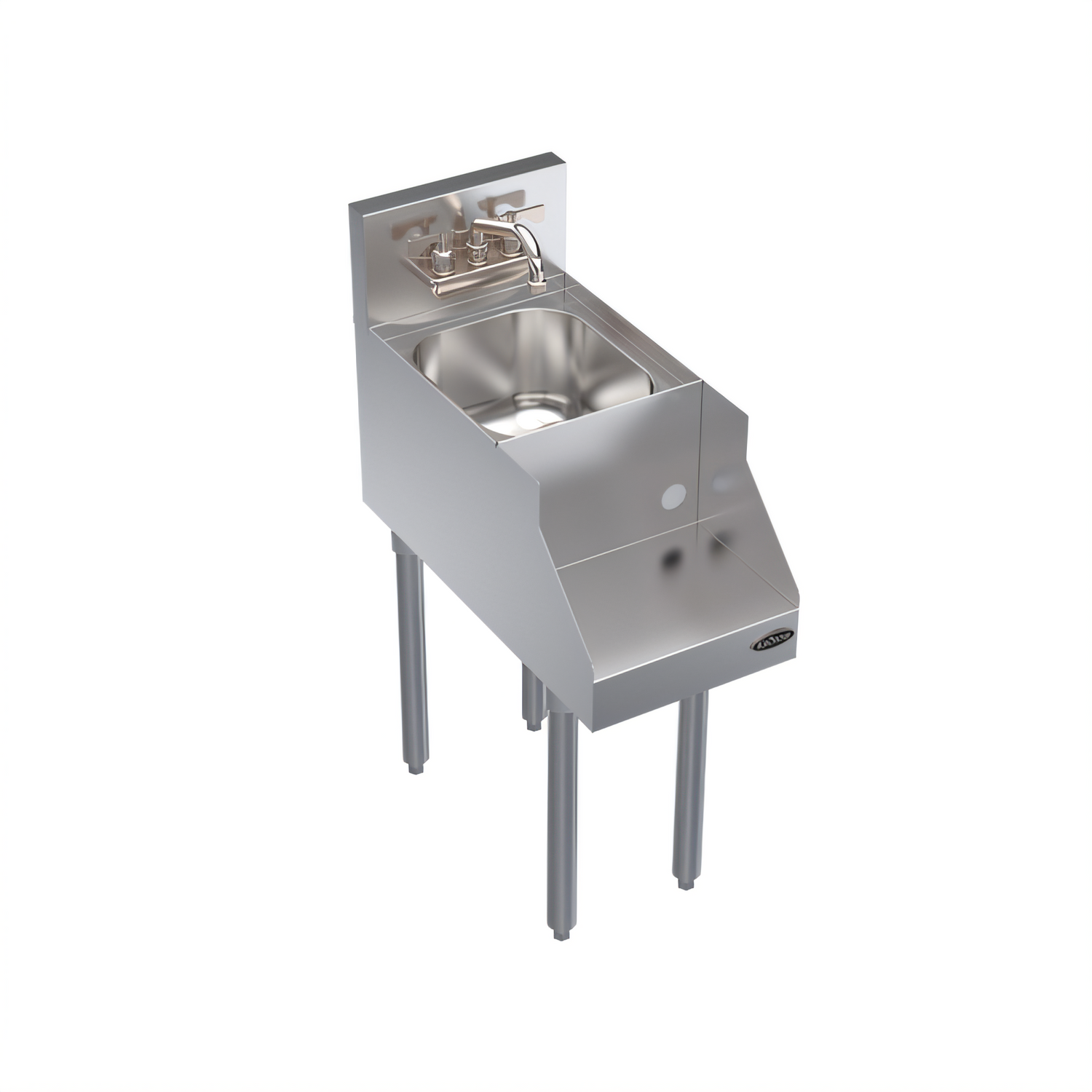

Krowne Royal Series Underbar Blender Station, 12"W
Model KR24-12BD • 24" D x 36-1/2" H O.A. • NSF ListedPurpose-built for high-volume bars, cafés, and resort beverage programs, the Krowne Royal Series Blender Station combines a recessed blender shelf, integrated dump sink, and splash-mount faucet in one compact 12" footprint. Constructed from durable 20-gauge stainless steel and mounted on heavy-duty tubular legs, it delivers decades of reliable service while keeping your work area clean, organized, and code-compliant.

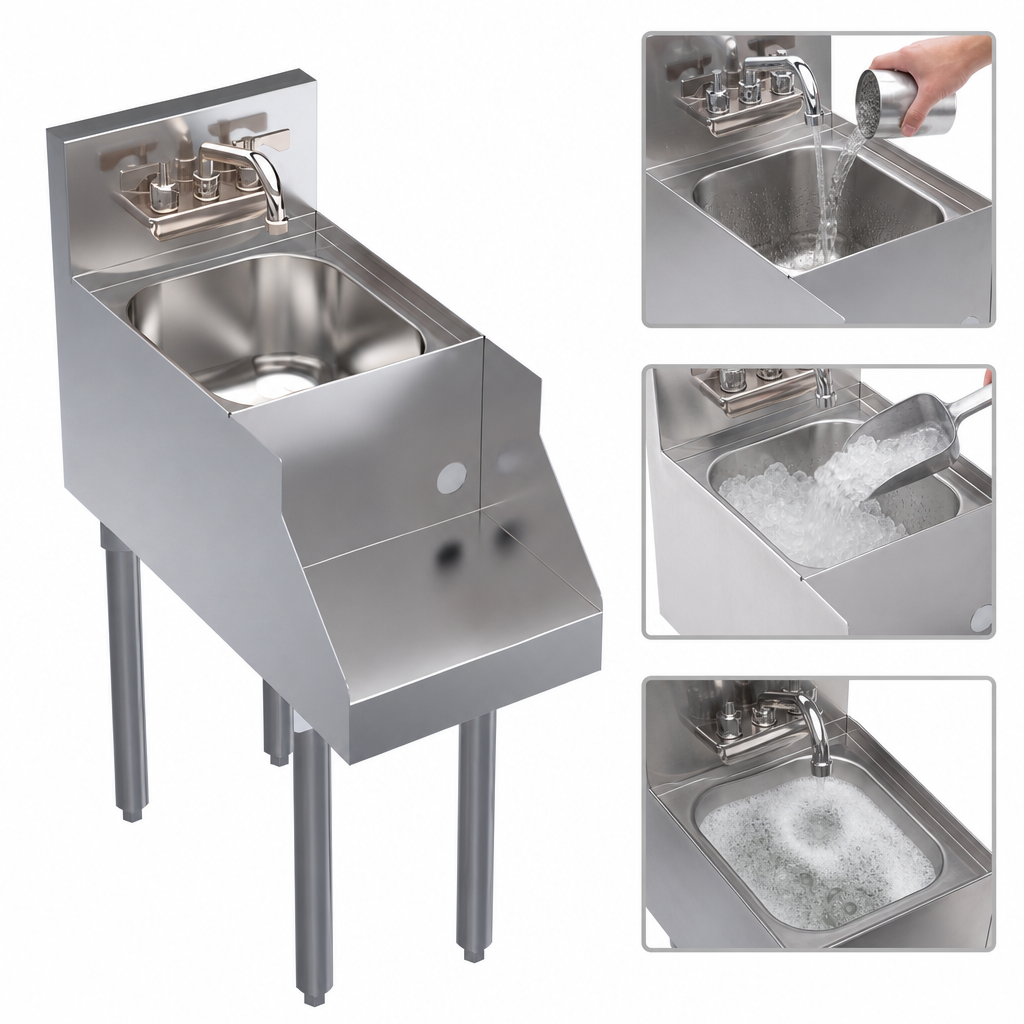

- 7" deep dump sink with 10" x 12" bowl simplifies pitcher rinsing and waste disposal.

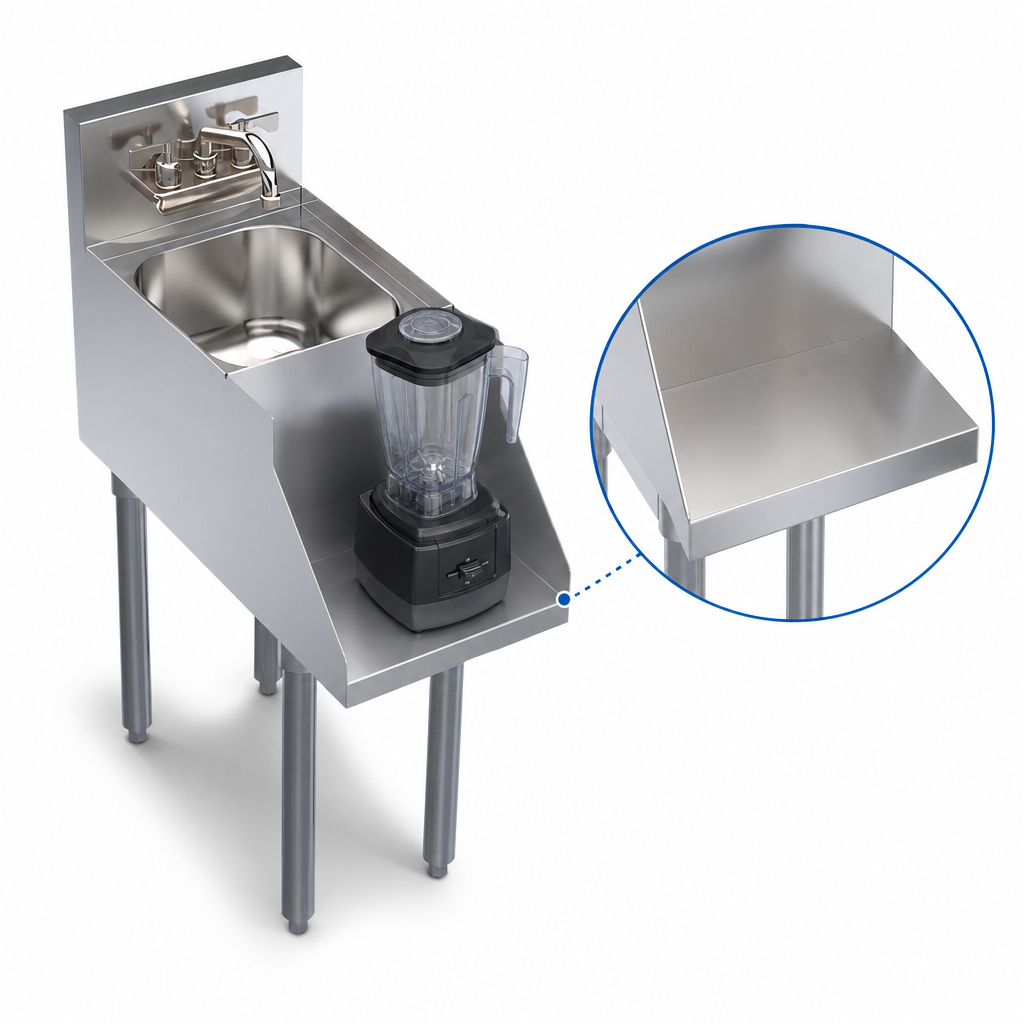

- 9" recessed blender shelf drops your blender below the bartop, reducing noise and splatter.
- Splash-mount Royal Series faucet (4" centers) included—no need to source a separate tap.
- Stainless steel top, front, sides, and backsplash resist corrosion and chemicals.
- Galvanized steel back and bottom add strength while keeping weight to just 43 lb.
- 1-5/8" Ø, 16-gauge stainless legs with adjustable thermoplastic bullet feet for fast leveling.
- Metal utility box mounted beneath shelf for a duplex receptacle (GFCI required).
- Extra-deep 24" front-to-back dimension aligns perfectly with single speed rails.
Technical Specifications
| Overall Width | 12" (305 mm) |
|---|---|
| Overall Depth | 24" (610 mm) |
| Overall Height | 36-1/2" (927 mm) to work surface |
| Blender Shelf Depth | 9" (229 mm) |
| Sink Bowl Size | 10" x 12" x 7" deep |
| Drain | 1-1/2" center drain (model 23-122) |
| Water Inlets | 1/2" hot & cold |
| Shipping Weight | 43 lb (19.5 kg) |
| Certification | NSF |
Utility Connections
- Plumbing: 1/2" hot and cold water; 1-1/2" IPS drain.
- Electrical: Customer-supplied GFCI duplex receptacle mounts inside pre-installed metal utility box.
- Power cord access hole located in front apron for a clean, unobtrusive run.
Optional Accessories (Sold Separately)
- Side splashes (left, right, or both) for KR24 series – models KR-313, KR-314, KR-315.
- Towel ring (KR-501) to keep bar towels within reach.
- Stainless (30-152) or universal plastic (30-160) sink strainers.
The Royal Series Advantage
- Designed and manufactured by Krowne Metal, the leader in underbar solutions since 1946.
- Modular sizing integrates seamlessly with other Royal Series speed rails, ice bins, and cocktail stations.
- Backed by Krowne’s commitment to quality, support, and rapid ship programs.
Due to continuous product improvement, specifications are subject to change without notice.
