Description

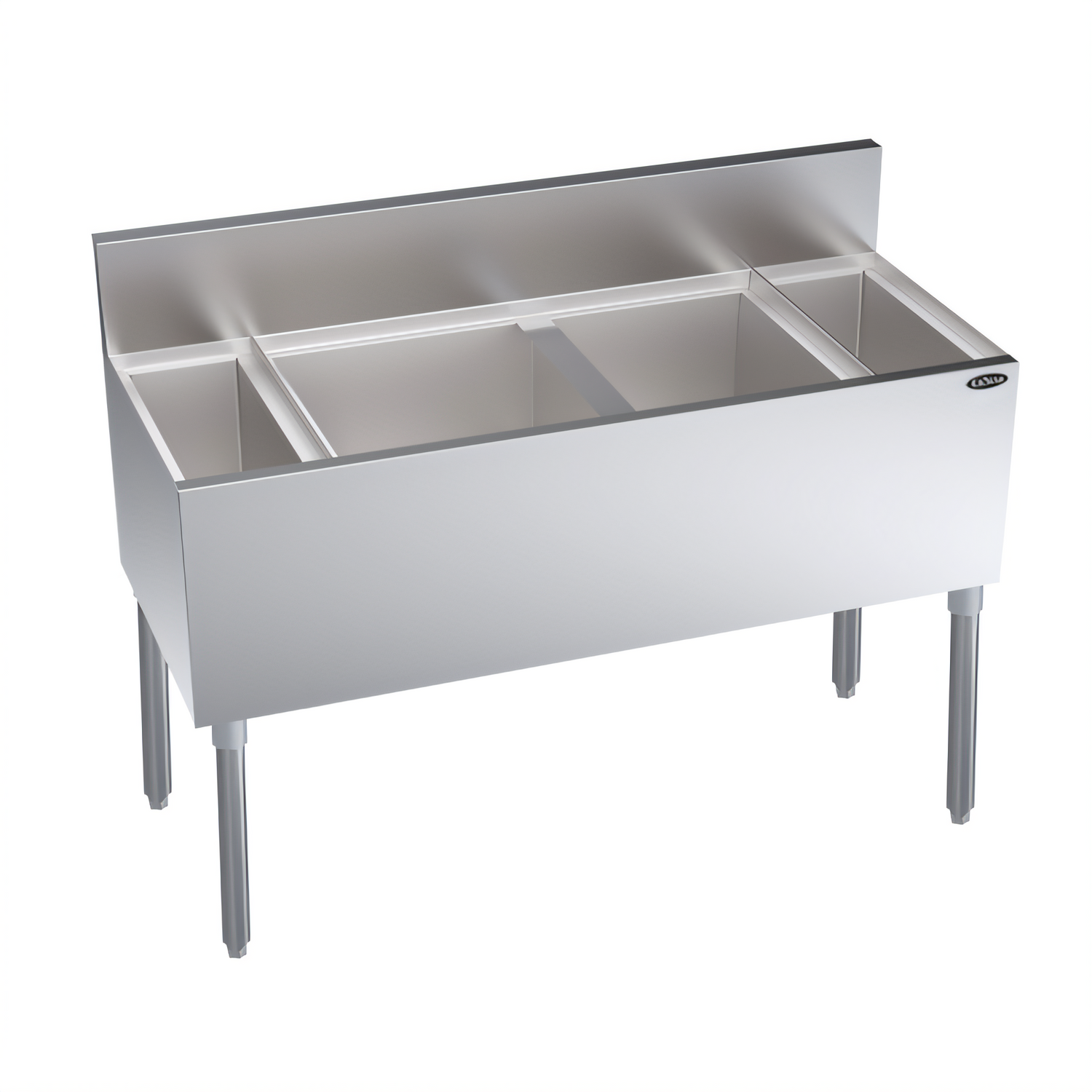

Krowne Royal Series 46" Underbar Speed Multi Station w/ 10-Circuit Cold Plate

Model KR19-MS46C-10

Engineered for high-volume bar programs, this 46" Royal Series multi station combines a massive ice bin, dedicated bottle storage and an integrated 10-circuit cold plate to keep every pour icy cold and within easy reach.

Key Features & Benefits

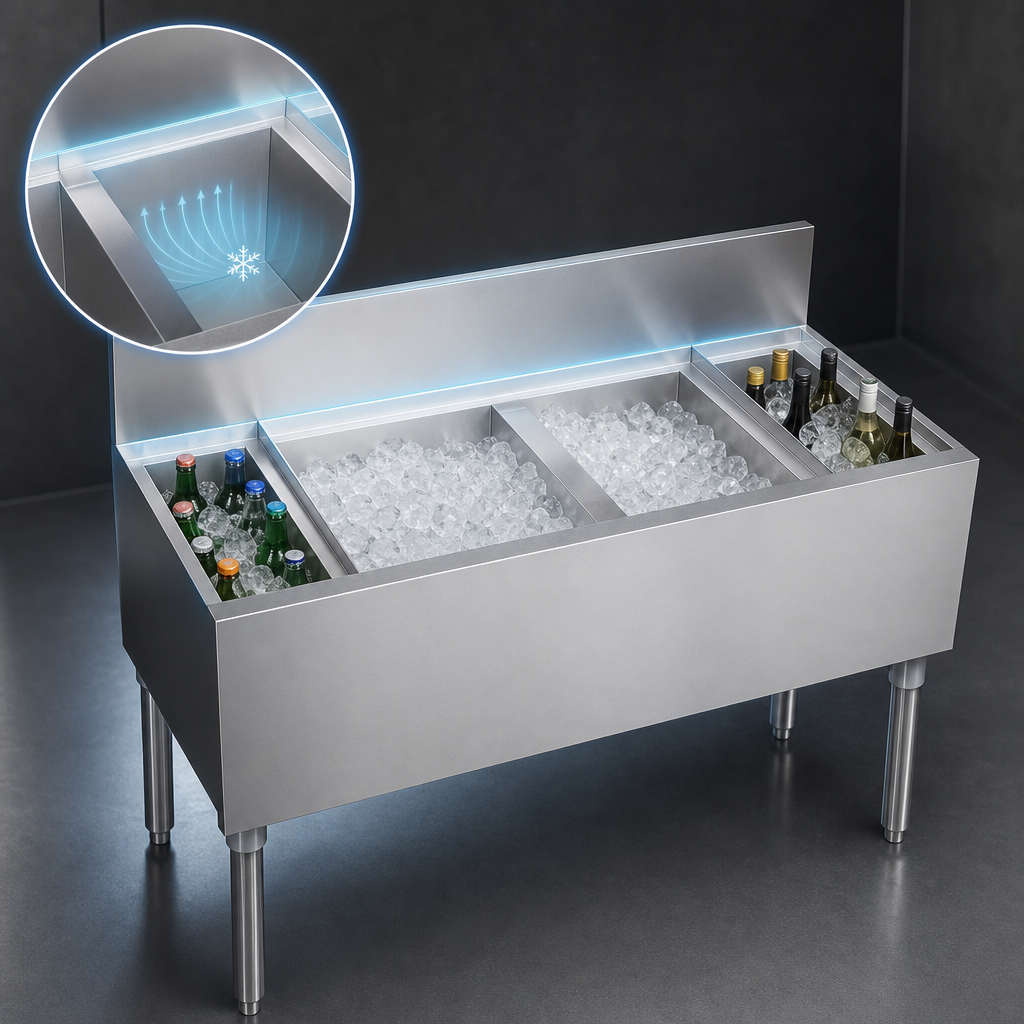

  • 10-circuit cast-aluminum cold plate (5/16" OD stainless tubing) delivers consistently chilled post-mix beverages.

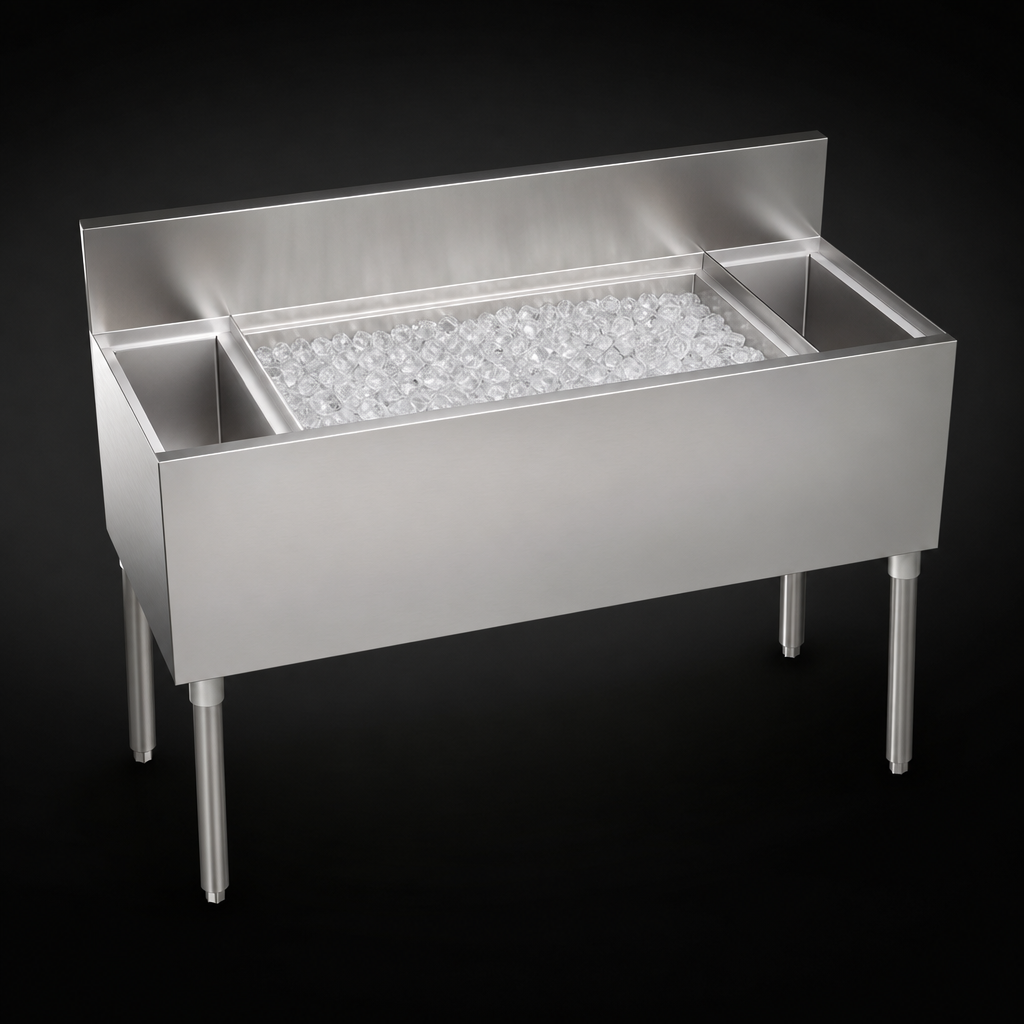

  • 30" center ice bin is 12" deep and holds up to 115 lb of ice for all-night service.
  • (2) insulated 8" bottle wells hold approximately 20 liquor/elixir bottles—perfect for speed pours and craft cocktail ingredients.
  • Pre-punched ¾" × 3-1/2" soda line access cut-out in backsplash simplifies connection to your beverage system.
  • Stainless steel top, front, sides and 6-1/2"H backsplash resist corrosion and wipe clean in seconds.
  • 1/2" drain with included 6" PVC tailpiece eliminates ice melt quickly while preventing condensation.
  • 1-5/8" stainless steel legs with adjustable thermoplastic bullet feet keep the station rock-steady on uneven floors.
  • Ships fully assembled—drop it in place, hook up utilities and start serving.

Ideal For

  • Cocktail & craft spirits bars
  • Nightclubs and music venues
  • Hotel, casino & stadium concession bars
  • High-volume restaurant bar lines

Specifications

Overall dimensions (W × D × H) 46" × 19" × 36-1/2" (to top of backsplash)
Ice bin size / capacity 30" L × 12" D  |  115 lb
Bottle wells (2) 8" W × 10" D insulated wells — approx. 20-bottle capacity
Cold plate Cast aluminum, 10 circuits, sealed into bin
Drain 1/2" NPS with 6" PVC tailpiece (included)
Soda line access ¾" × 3-1/2" cut-out (left side of backsplash)
Construction 20-ga. stainless steel interior, top, front, sides & backsplash; galvanized back & bottom
Legs / feet 1-5/8" stainless legs with adjustable thermoplastic bullet feet
Shipping weight ≈ 190 lb
Certifications ETL-Sanitation & NSF listed

Optional Accessories (sold separately)

  • Single or double speed rails (26"–46")
  • Ice bin dividers & liners
  • Left/right side splashes
  • Cap catcher & opener, towel ring, wire racks
  • Faucet kit for ice bin

Images may show optional accessories. Bottles not included.

Features & Specs

Manufacturer

Krowne

Certifications

NSF, ETL-Sanitation

Height

36.5in

Width

46.0in

Depth

19.0in

Shipping Weight

190.0lbs

Depth (front - back) OA

18" - 19"

Cold Plate

(10) circuit

Bottle Capacity

(10)

Splash

6"

Width (side - side) OA

43" - 48"

Components (left to right)

bottle well, ice bin, bottle well

Construction

stainless steel & galvanized

Bin Depth

12" deep ice bin

Ice Capacity (approximate)

115 lbs.

Specifications

Royal Series Underbar Speed Multi Station with built-in 10-circuit cold plate, 46" overall size, 30" center ice bin, (2) 8" insulated bottle wells, (20) elixir bottle capacity (bottles not included), 1/2" drain, 3/4" x 3-1/2” Soda Line cut out in backsplash, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, ETL-Sanitation, NSF
