Krowne  |  SKU: KR19-MS40C

Krowne KR19-MS40C Bar Equipment

$4,240.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

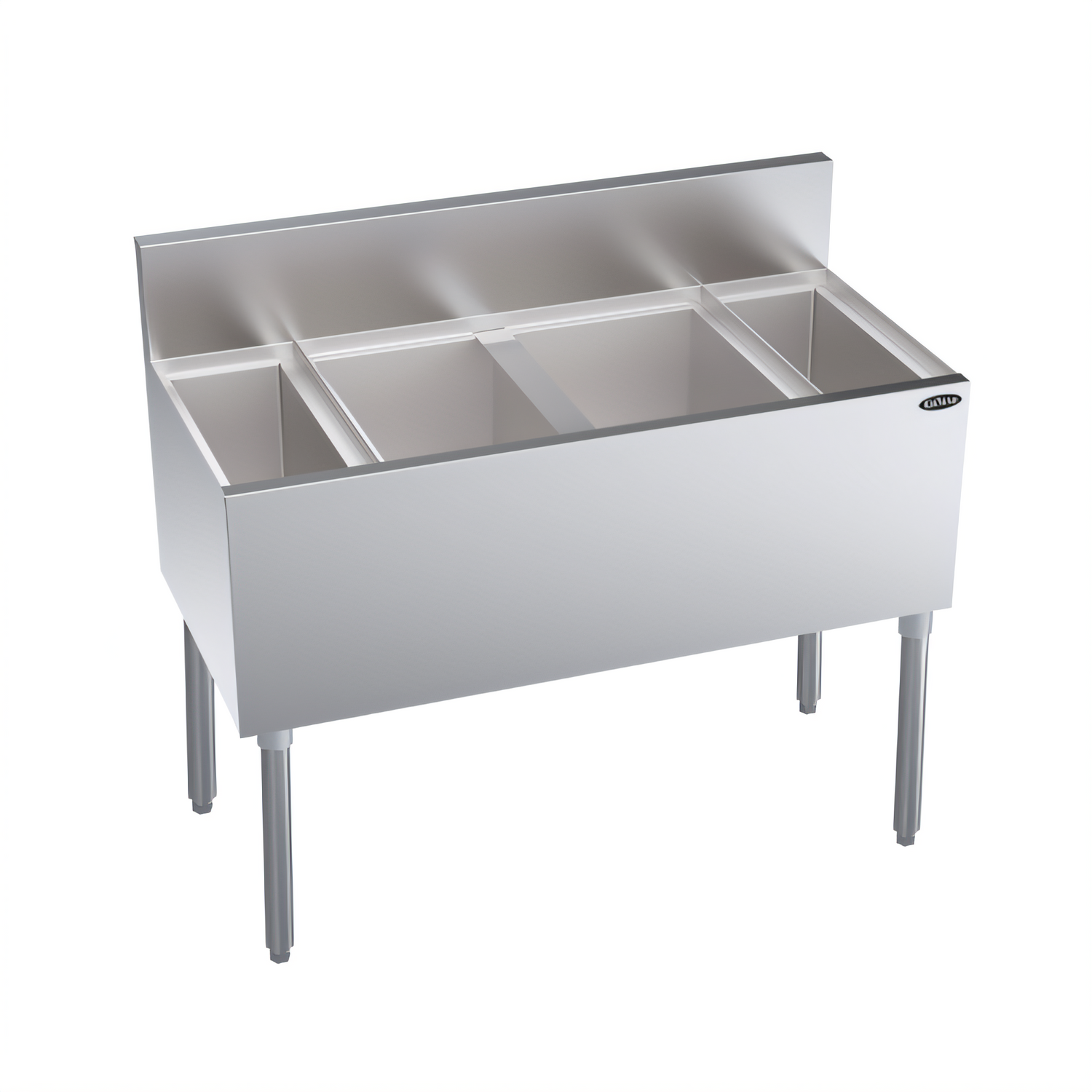

Krowne Royal Series Underbar Speed Multi-Station – 40"

Model KR19-MS40C | Center Ice Bin

Give your bartenders a purpose-built command centre that keeps ice, mixers and top-shelf elixirs right at their fingertips. The KR19-MS40C combines a high-capacity ice bin with dual insulated bottle wells in a compact 40 inch footprint—perfect for high-volume cocktail programs that demand speed and sanitation.

Key Features

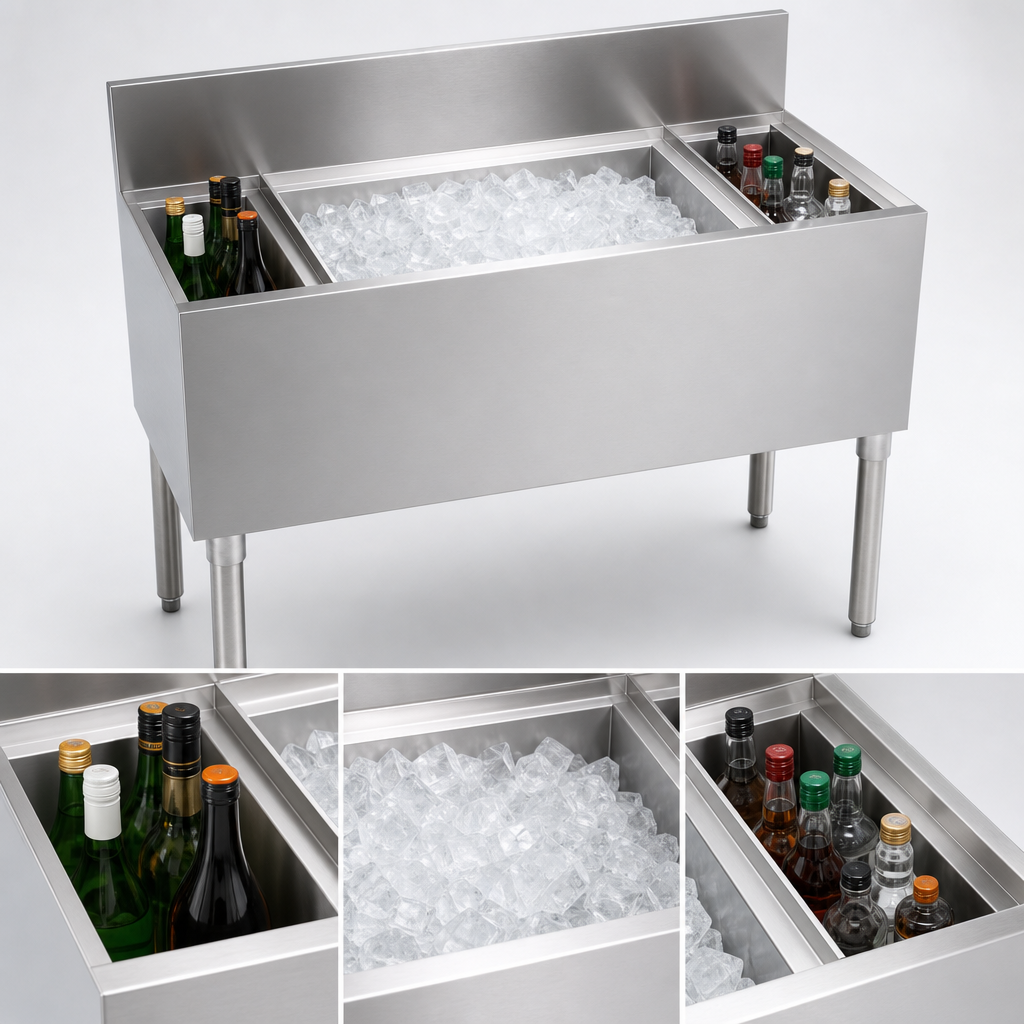

  • 24" centre ice bin holds up to 92 lb of ice and includes a 1" IPS drain for quick melt-water removal.

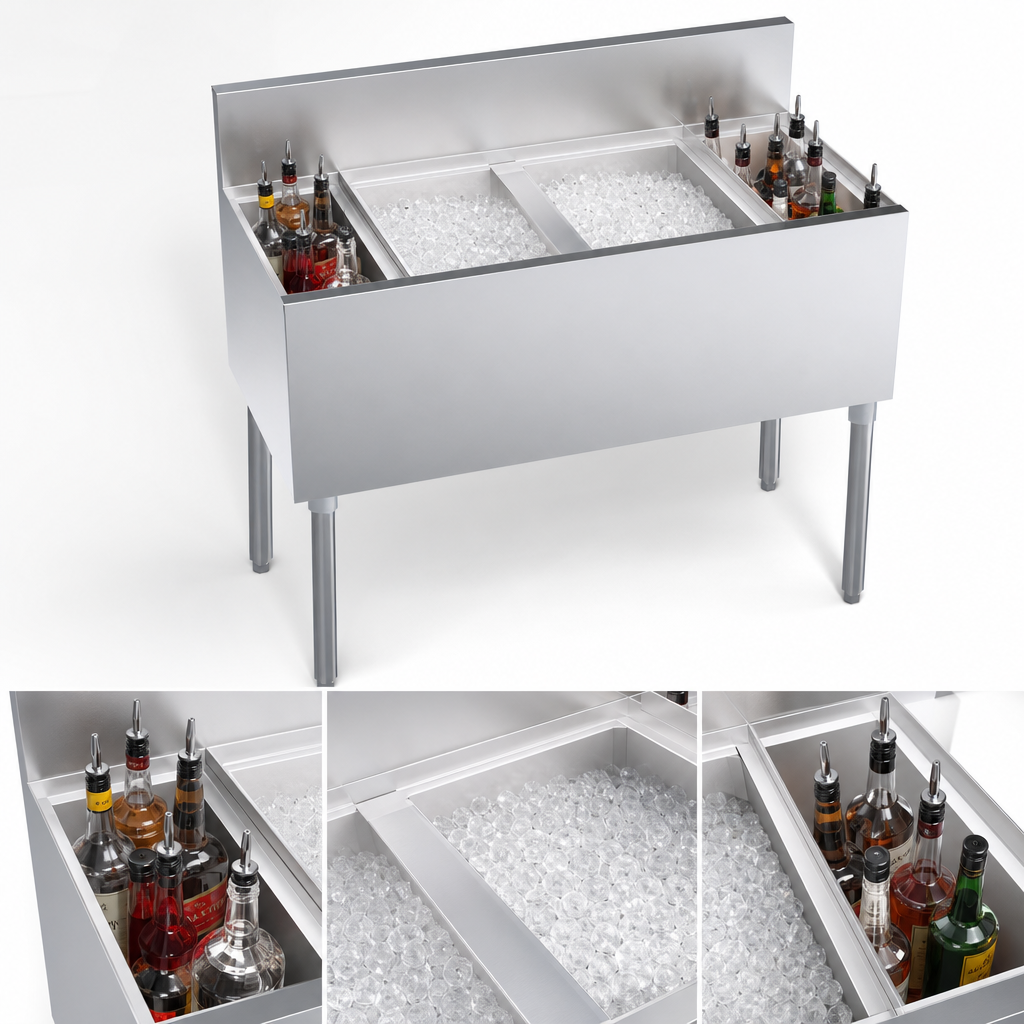

  • (2) 8" wide x 10" deep insulated bottle wells – stores up to 20 liquor or elixir bottles (bottles not included).
  • 12" deep ice compartment provides generous scooping area.
  • All SS top, front and sides fabricated from durable 20-gauge stainless steel.
  • Foamed-in-place polyurethane insulation keeps ice cold and product chilled for hours.
  • 1-5/8" stainless steel legs with adjustable thermoplastic bullet feet for easy leveling on uneven floors.
  • Ships fully assembled and ETL-Sanitation & NSF certified for worry-free code compliance.

Specifications

Model KR19-MS40C
Overall Dimensions 40" L x 19" D x 36 1/2" H (to work deck 30" H, backsplash 6 1/2")
Ice Bin Size / Capacity 24" L x 12" D, 92 lb ice (center mounted)
Bottle Wells 2 x 8" W x 10" D insulated; 20-bottle total capacity
Drains 1" IPS (ice bin)  |  1" NPS (bottle wells)
Construction 20-ga. stainless steel top, front, sides & interior; galvanized back & bottom
Legs / Feet 1-5/8" Ø stainless legs with grey adjustable thermoplastic bullet feet
Insulation Foamed-in-place polyurethane
Shipping Weight Approx. 106 lb
Certifications ETL-Sanitation, NSF

Popular Add-Ons (Sold Separately)

  • Single or double speed rails (26"–46" lengths)
  • 10-circuit cold plate for post-mix soda lines
  • Side splashes, cap catcher & opener, towel ring and more

Bottles, speed rails and accessories are shown for reference only and are not included with the base unit.

Features & Specs

Manufacturer

Krowne

Certifications

NSF, ETL-Sanitation

Height

36.5in

Width

40.0in

Depth

19.0in

Shipping Weight

106.0lbs

Splash

6"

Bottle Capacity

(10)

Ice Capacity (approximate)

90 lbs.

Width (side - side) OA

37" - 42"

Components (left to right)

bottle well, ice bin, bottle well

Construction

stainless steel & galvanized

Bin Depth

12" deep ice bin

Depth (front - back) OA

18" - 19"

Cold Plate

without

Specifications

Royal Series Underbar Speed Multi Station, 40" overall size, 24" center ice bin, (2) 8" insulated bottle wells, (20) elixir bottle capacity (bottles not included), 1" drain, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, ETL-Sanitation, NSF
