Krowne KR19-MS40C-10 Bar Equipment

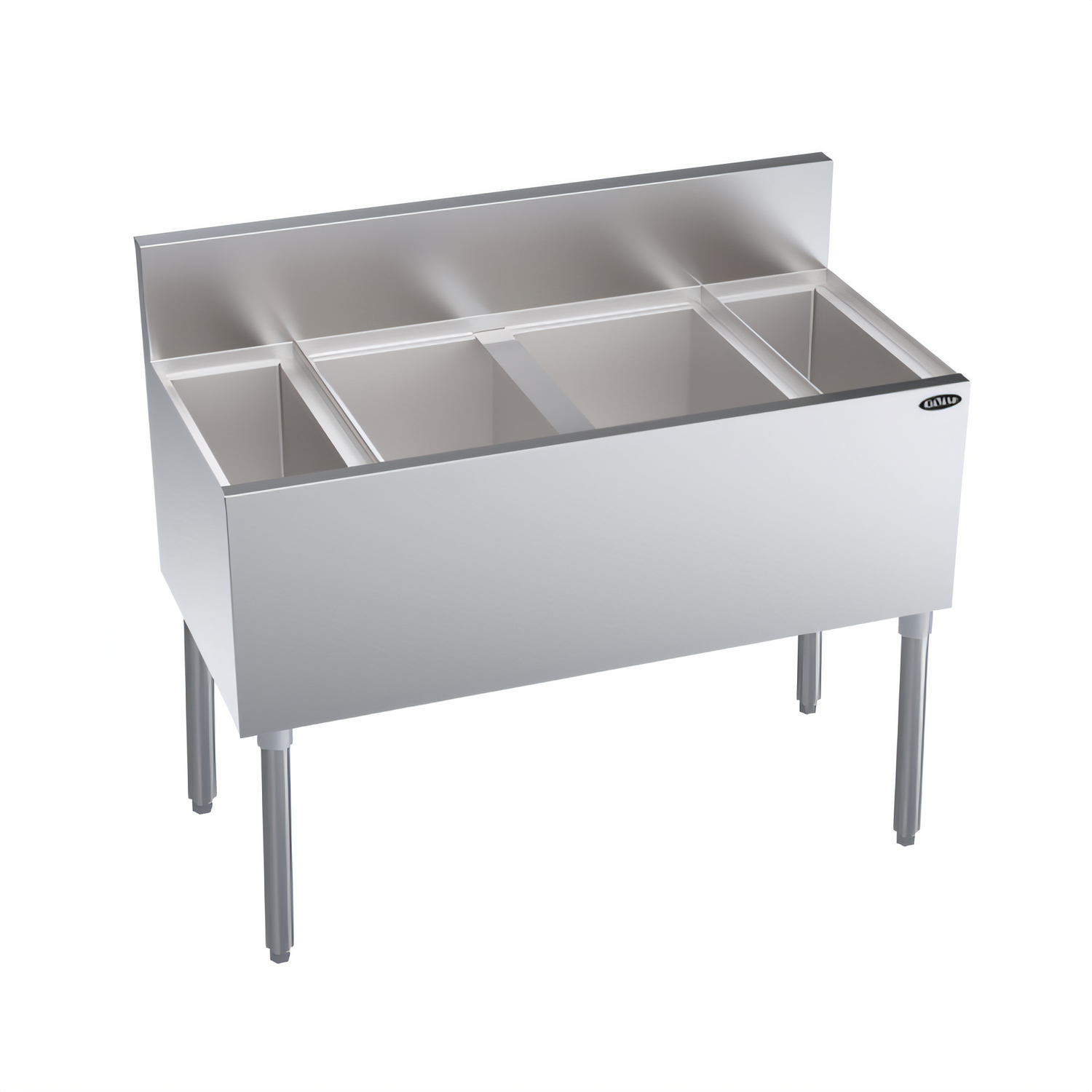

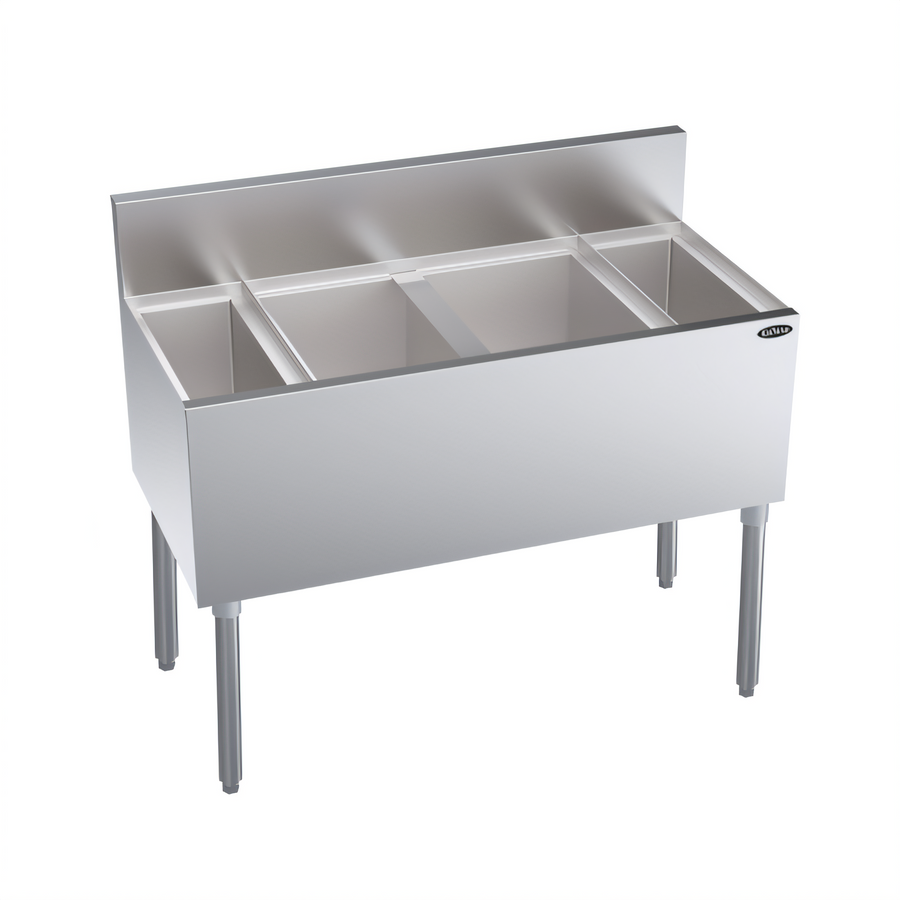

Krowne Royal Series 40" Underbar Speed Multi Station w/ 10-Circuit Cold Plate

Engineered for the fast-paced bar, the Krowne KR19-MS40C-10 combines a high-capacity ice bin, built-in 10-circuit cold plate, and dual bottle wells into one durable stainless-steel workstation that keeps every ingredient ice-cold and always within reach.

Key Performance Features

• 40" wide, 19" deep footprint integrates seamlessly into new or existing bar layouts.

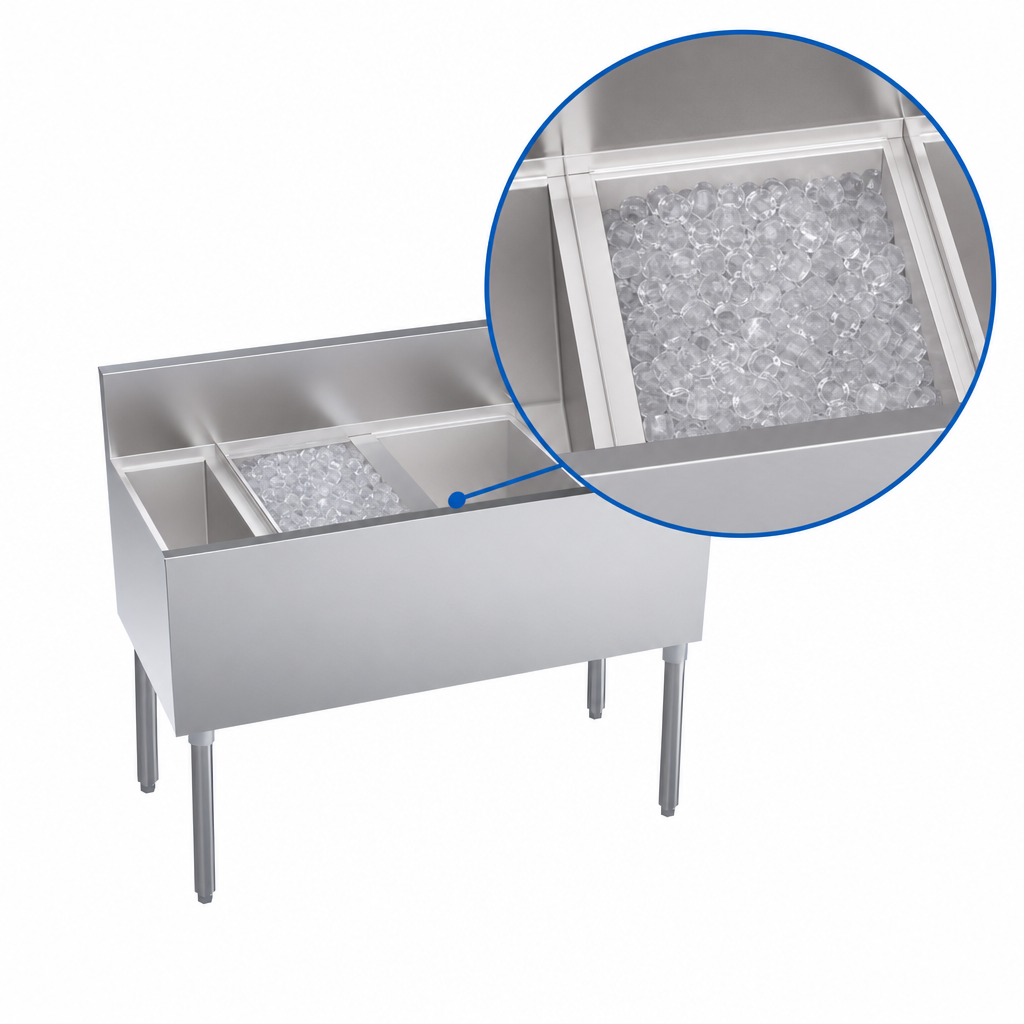

• Center-mount 24" ice bin holds up to 92 lb. of ice and is 12" deep for all-night capacity.

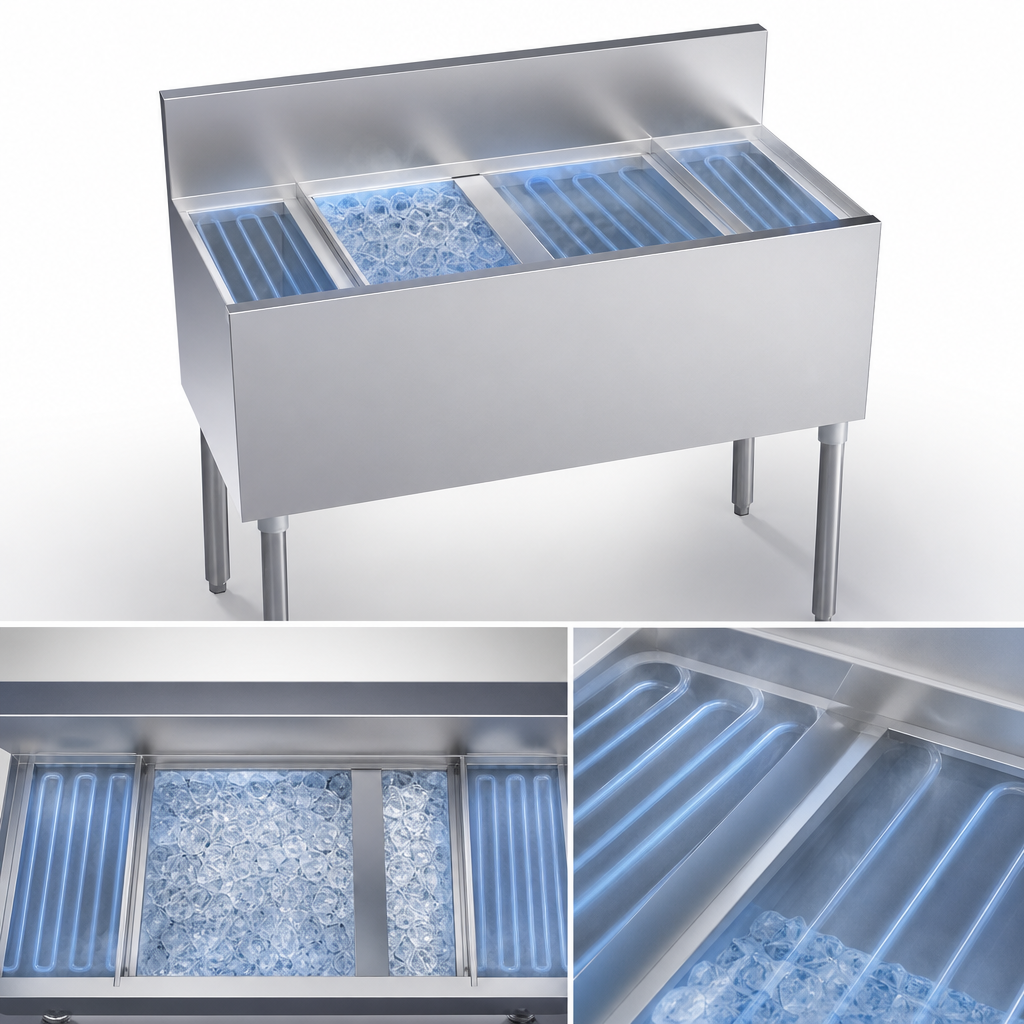

• 10-circuit cast-aluminum post-mix cold plate (5/16" OD stainless tubes) chills syrup and soda lines at the point of dispense.
• Two fully insulated 8" bottle wells keep up to 20 elixir, juice, or cheater bottles ice-cold (bottles not included).
• 3/4" × 3-1/2" soda-line access cut-out in backsplash simplifies post-mix hookup.
• 1/2" NPS drain with included 6" PVC tailpiece prevents condensation transfer on cold-plate models.

Built to Last

• 20-gauge stainless-steel top, front, sides, and backsplash resist corrosion and routine bar wear.
• Foamed-in-place polyurethane insulation locks in cold and adds structural rigidity.
• 1-5/8" stainless-steel tubular legs with adjustable thermoplastic bullet feet level the station on uneven floors.
• Galvanized steel back & bottom for extra strength where you need it most.

Smart Underbar Ergonomics

• Center ice bin orientation lets bartenders serve from either side of the station.
• Bottle wells mount flush with the ice bin—no reaching, no wasted motion.
• Optional single or double speed rails, side splashes, and other accessories let you customize the station to your exact workflow.

Specifications

Bottles, speed rails, and other accessories shown in photos are sold separately.
Specifications subject to change without notice.
