Krowne  |  SKU: KR19-MS34C-7

Krowne KR19-MS34C-7 Bar Equipment

$5,540.15
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

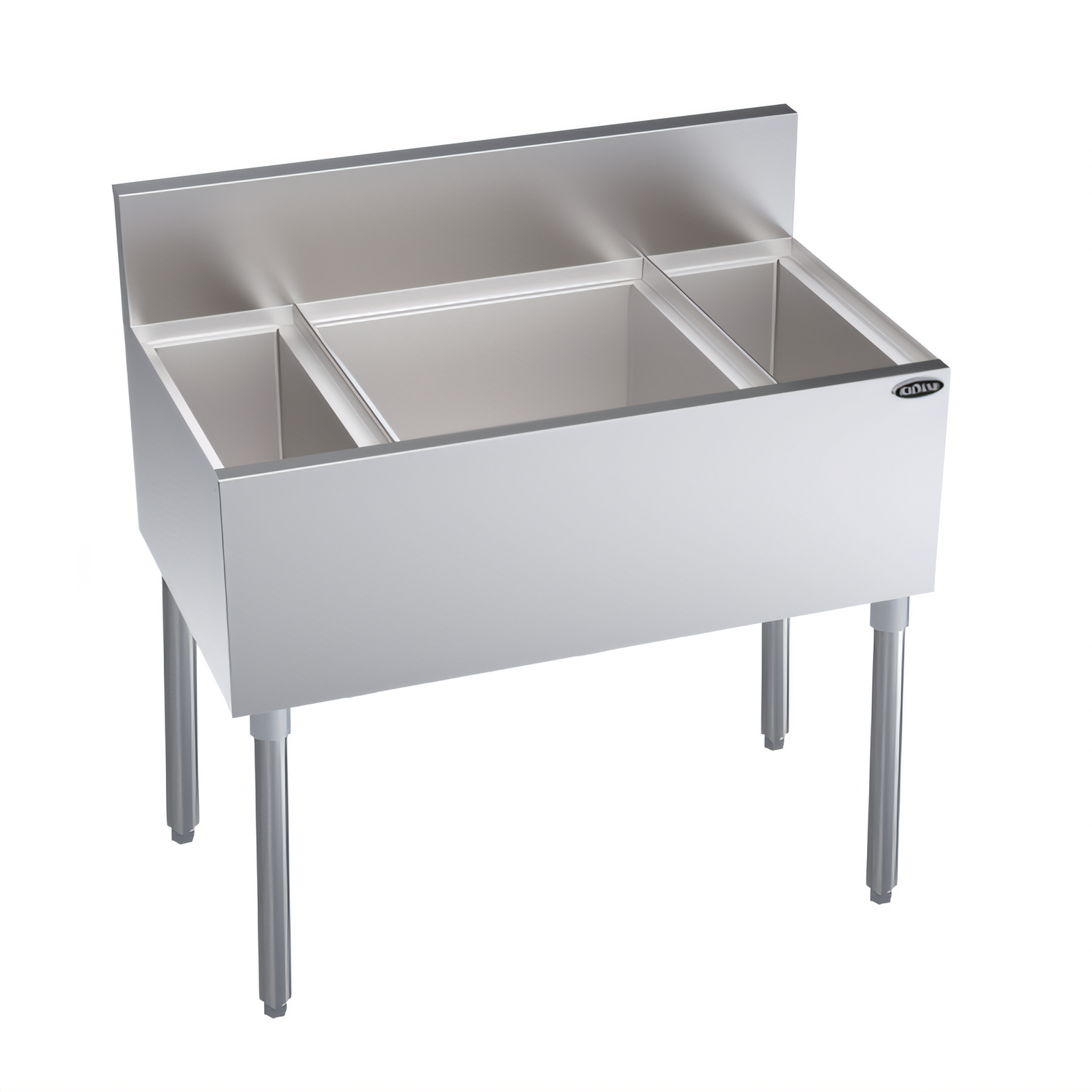

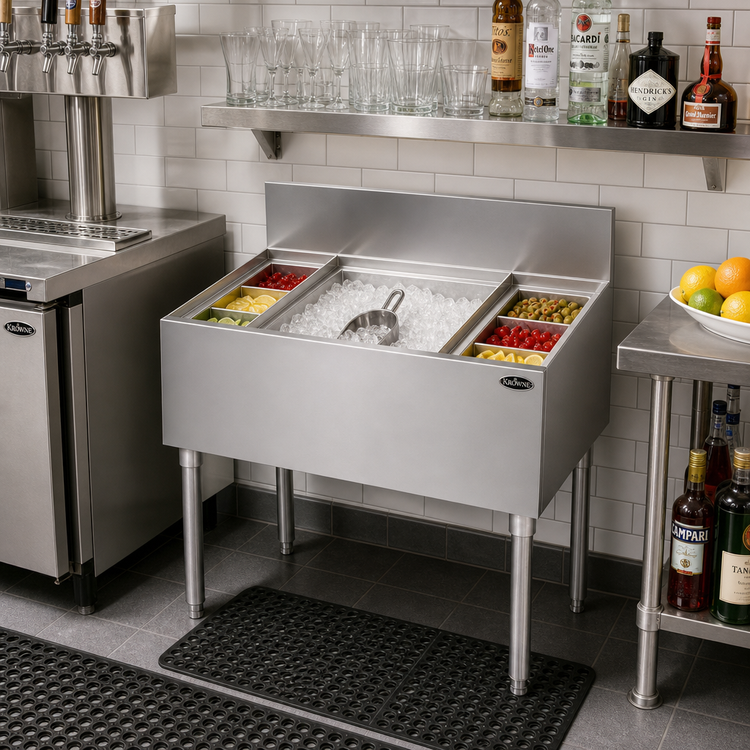

Krowne Royal Series 34" Underbar Speed Multi Station with 7-Circuit Cold Plate

Model KR19-MS34C-7

Engineered for high-volume cocktail and soda programs, this compact multi station keeps ice, mixers and up to 20 of your house elixirs right where bartenders need them—no wasted motion, no lost sales.

Key Features & Benefits

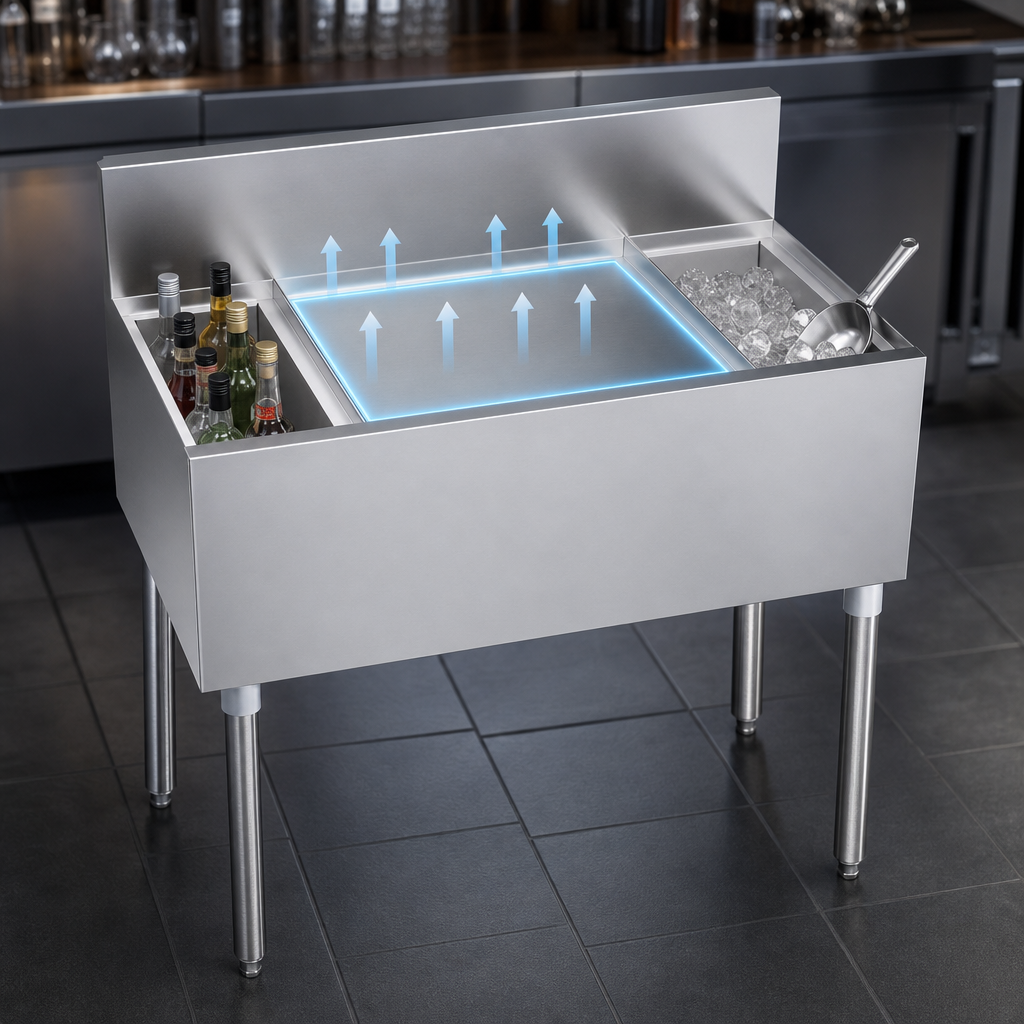

  • Integrated 7-circuit cast-aluminum cold plate chills post-mix lines for ice-cold pours every time.

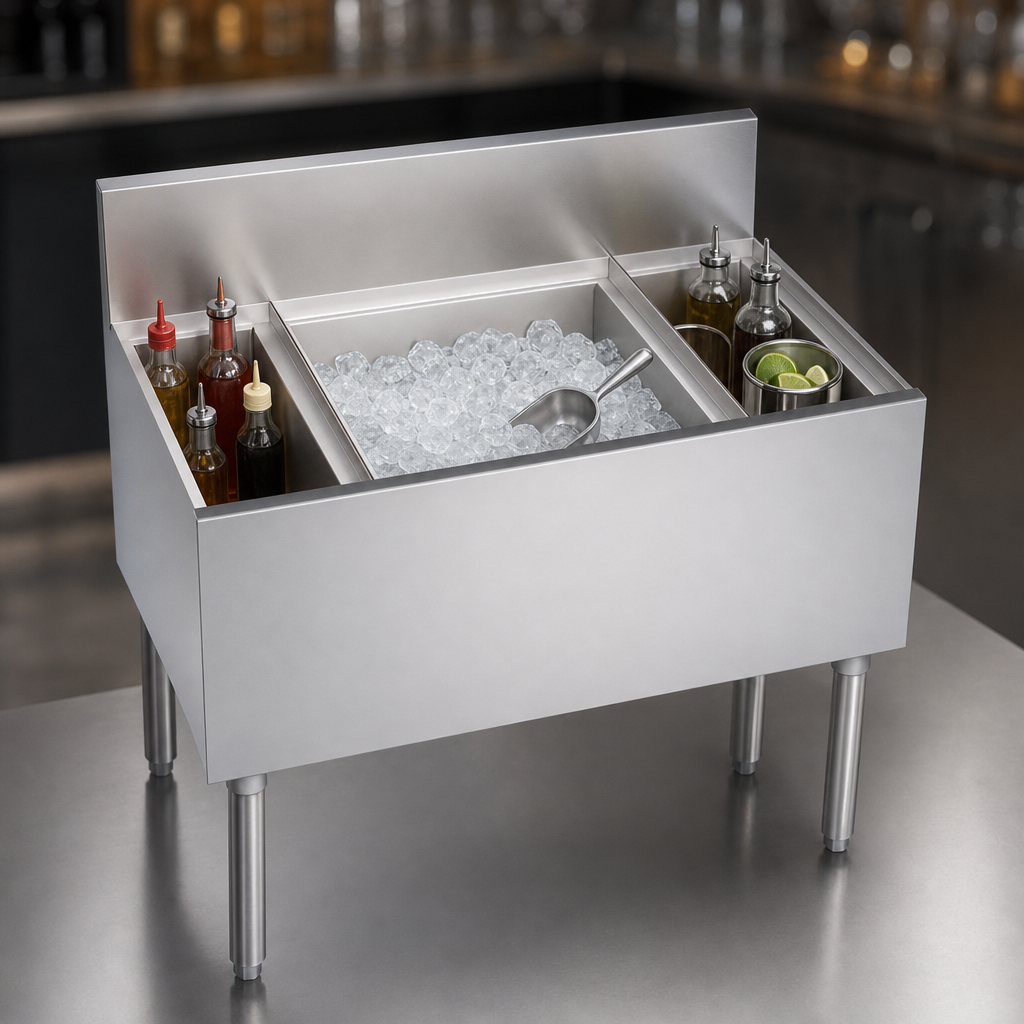

  • 18" center ice bin (12" deep) holds approximately 69 lb of ice and is fully insulated for maximum retention.
  • (2) 8" insulated bottle wells accommodate up to 20 standard 750 ml liquor or elixir bottles (bottles not included).
  • Factory-punched 3/4" x 3-1/2" soda-line cut-out in backsplash simplifies beverage system hook-up.
  • Includes 1/2" PVC tailpiece drain to eliminate condensation common with metal-to-metal connections.
  • Durable 20-gauge stainless steel top, front, sides and interior for a lifetime of corrosion-resistant service.
  • Foamed-in-place polyurethane insulation prevents sweating and keeps contents colder longer.
  • 1-5/8" stainless steel legs with adjustable thermoplastic bullet feet allow fast, rock-solid leveling.
  • Ships fully assembled; simply set in place, connect utilities and start serving.
  • ETL Sanitation & NSF listed—meets or exceeds health-code requirements nationwide.

Technical Specifications

Model KR19-MS34C-7
Overall Width 34" (864 mm)
Overall Depth 19" (483 mm)
Working Height 30" (762 mm)
Overall Height
(incl. backsplash)
36 1/2" (927 mm)
Ice Bin Size 18" L x 12" D (center mounted)
Ice Capacity ≈ 69 lb (31 kg)
Bottle Wells (2) 8" W x 10" D insulated wells
Bottle Capacity Up to 20 bottles (750 ml)
Cold Plate 7 circuits, 5/16" OD stainless tubing, cast aluminum plate sealed to bin bottom
Drain 1/2" NPS with 6" PVC tailpiece
Soda-Line Access 3/4" x 3-1/2" cut-out in backsplash
Construction 20-ga stainless steel top, front, sides & interior
Legs / Feet 1-5/8" stainless legs, adjustable thermoplastic bullet feet
Certifications ETL Sanitation, NSF
Approx. Ship Weight ≈ 167 lb (76 kg)

Optional speed rails, bottle dividers and side splashes are available separately to customize your Royal Series line-up.

Features & Specs

Manufacturer

Krowne

Certifications

NSF, ETL-Sanitation

Height

36.5in

Width

34.0in

Depth

19.0in

Shipping Weight

167.0lbs

Components (left to right)

bottle well, ice bin, bottle well

Cold Plate

(7) circuit

Ice Capacity (approximate)

65 lbs.

Width (side - side) OA

31" - 36"

Bin Depth

12" deep ice bin

Splash

6"

Depth (front - back) OA

18" - 19"

Bottle Capacity

(10)

Construction

stainless steel & galvanized

Specifications

Royal Series Underbar Speed Multi Station with built-in 7-circuit cold plate, 34" overall size, 18" center ice bin, (2) 8" insulated bottle wells, (20) elixir bottle capacity (bottles not included), 1/2" drain, 3/4" x 3-1/2” Soda Line cut out in backsplash, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, ETL-Sanitation, NSF
