Krowne KR19-MS32L-10 Bar Equipment
Description

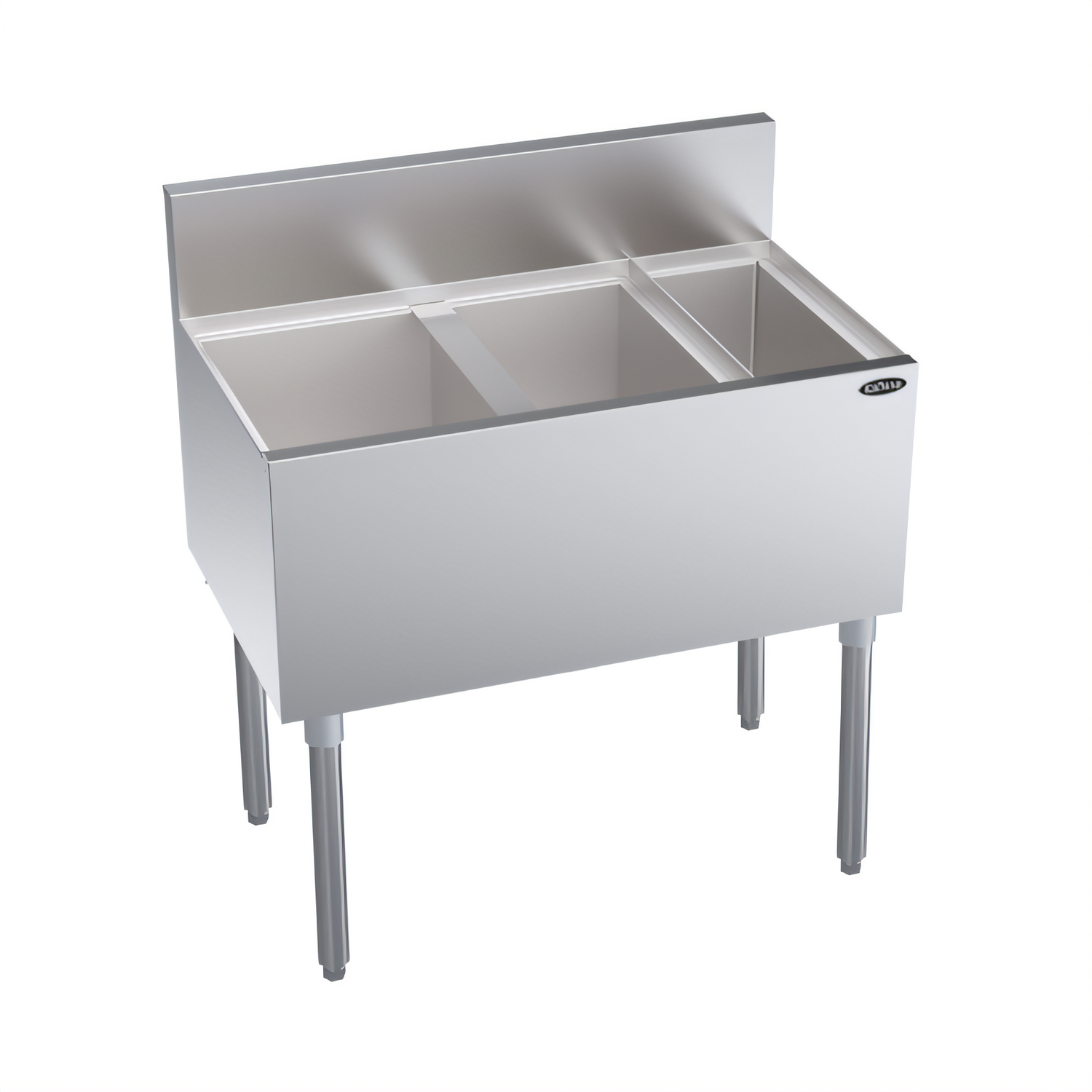

Krowne KR19-MS32L-10 Royal Series 32" Underbar Multi-Station w/ 10-Circuit Cold Plate
Left-Side Ice Bin • 8" Bottle Well • 92 lb Ice CapacityBuild drinks faster and keep your bartenders organized with Krowne’s Royal Series speed multi-station. This compact 32" unit combines a high-capacity ice bin, a 10-circuit cold plate and a dedicated bottle well—everything you need to turn out perfectly chilled cocktails and sodas during peak rush.
Key Features

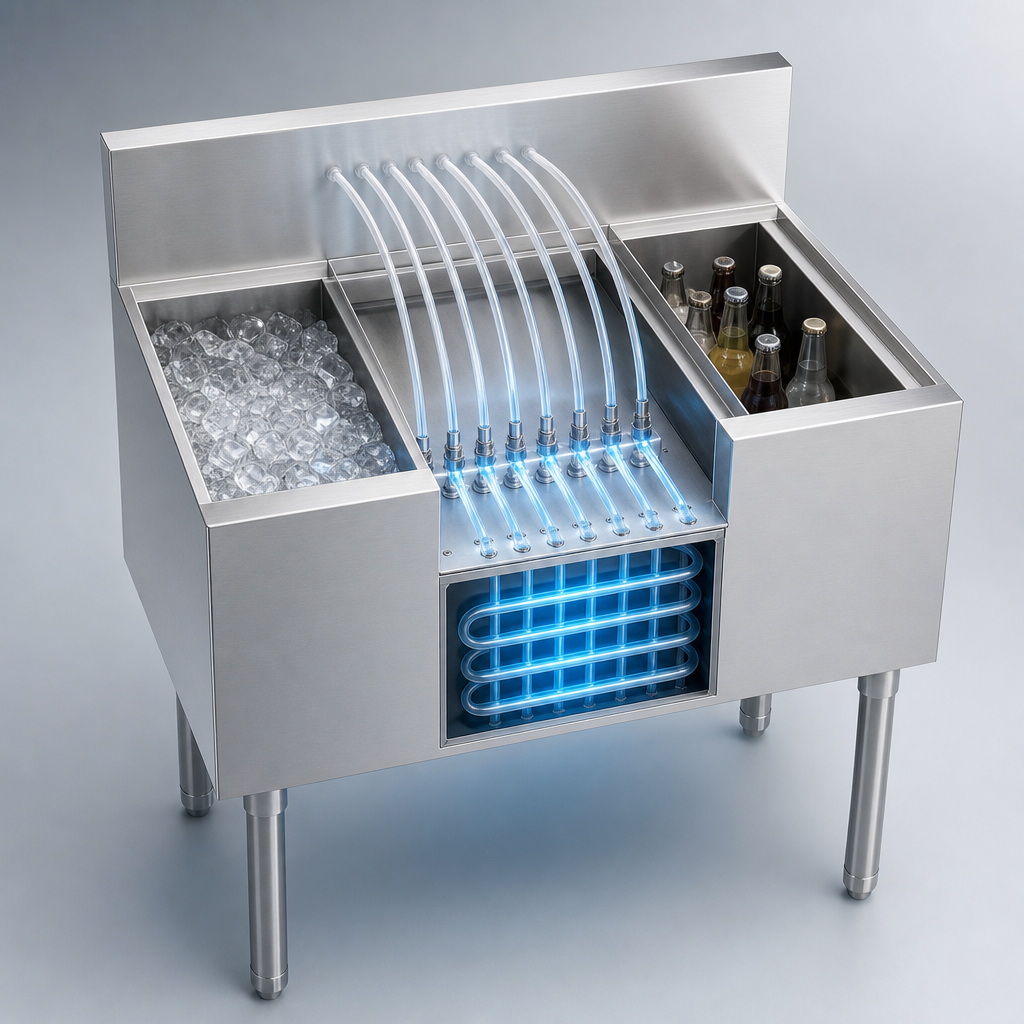

- 10-circuit cast-aluminum cold plate rapidly chills up to ten soda or flavor lines.

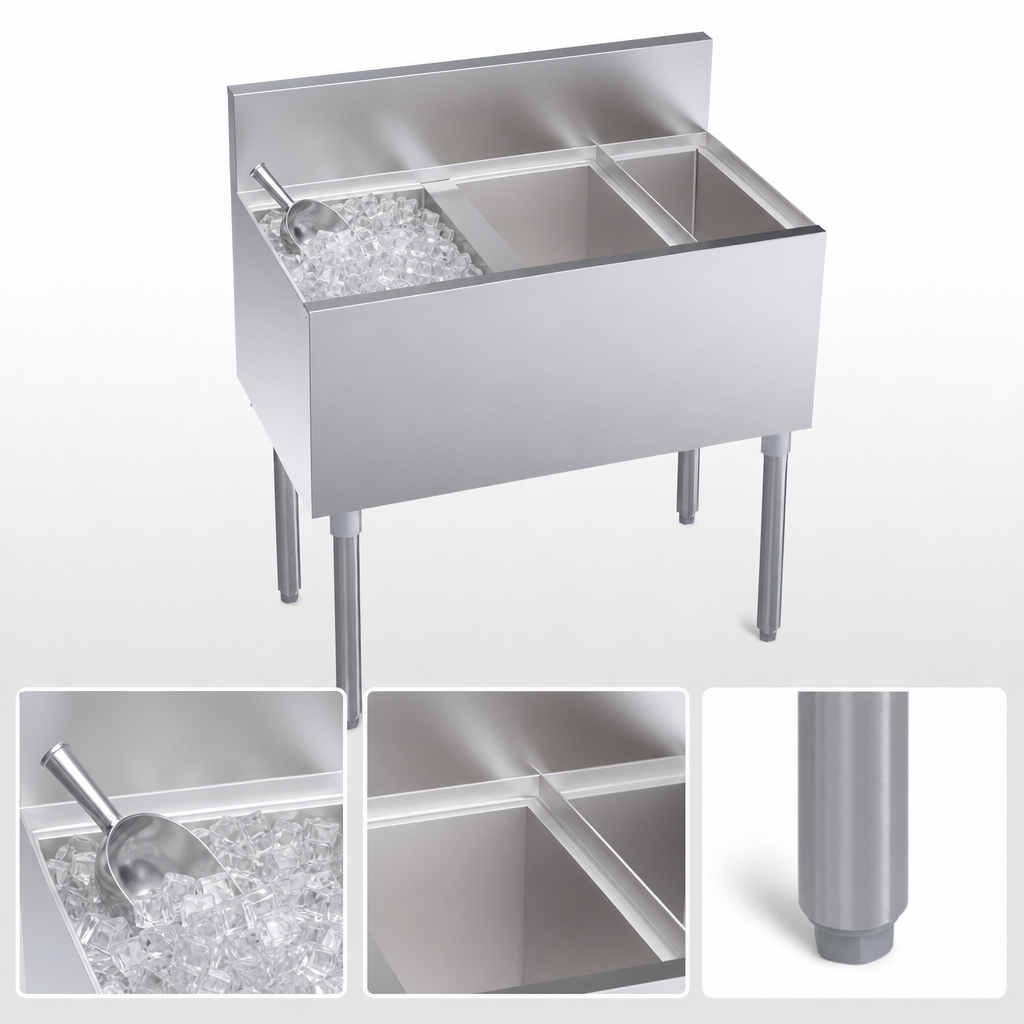

- 24" long, 12" deep ice bin (≈ 92 lb capacity) positioned on the left for right-hand bar layouts.
- Insulated 8" bottle well holds up to 10 standard 750 ml elixir or liquor bottles.
- 3/4" × 3-1/2" soda line cut-out in backsplash keeps lines hidden and protected.
- Stainless steel top, front and sides with foamed-in-place insulation for outstanding durability.
- 1/2" PVC tailpiece drain on cold-plate section reduces sweating and simplifies plumbing.
- 1-5/8" tubular stainless legs with height-adjustable thermoplastic bullet feet for easy leveling.
- Ships fully assembled; ETL-Sanitation & NSF listed for effortless code compliance.
Quick Specs
| Model | KR19-MS32L-10 |
|---|---|
| Overall Dimensions | 32" W × 19" D × 36-1/2" H (work surface) |
| Backsplash | 6-1/2" H × 1-1/2" D |
| Ice Bin | 24" L × 12" D • ≈ 92 lb capacity |
| Bottle Well | 8" W • 10-bottle capacity |
| Cold Plate | 10 stainless-steel circuits (2 full, 8 half) |
| Drain Connections | ½" IPS (cold-plate ice bin) • 1" NPS (bottle well) |
| Soda Line Access | 3/4" × 3-1/2" cut-out, left side of backsplash |
| Materials | 20-ga. stainless interior & exterior; galvanized back & bottom |
| Legs / Feet | 1-5/8" stainless legs with adjustable grey thermoplastic bullet feet |
| Certifications | ETL-Sanitation, NSF |
| Shipping Weight | ≈ 162 lb |
Looking for a different width or center/right ice bin configuration? Browse the full Krowne Royal Series or chat with our bar design team for personalized assistance.
