Krowne  |  SKU: KR19-MS26R-7

Krowne KR19-MS26R-7 Bar Equipment

$4,432.45
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Ice Bins Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

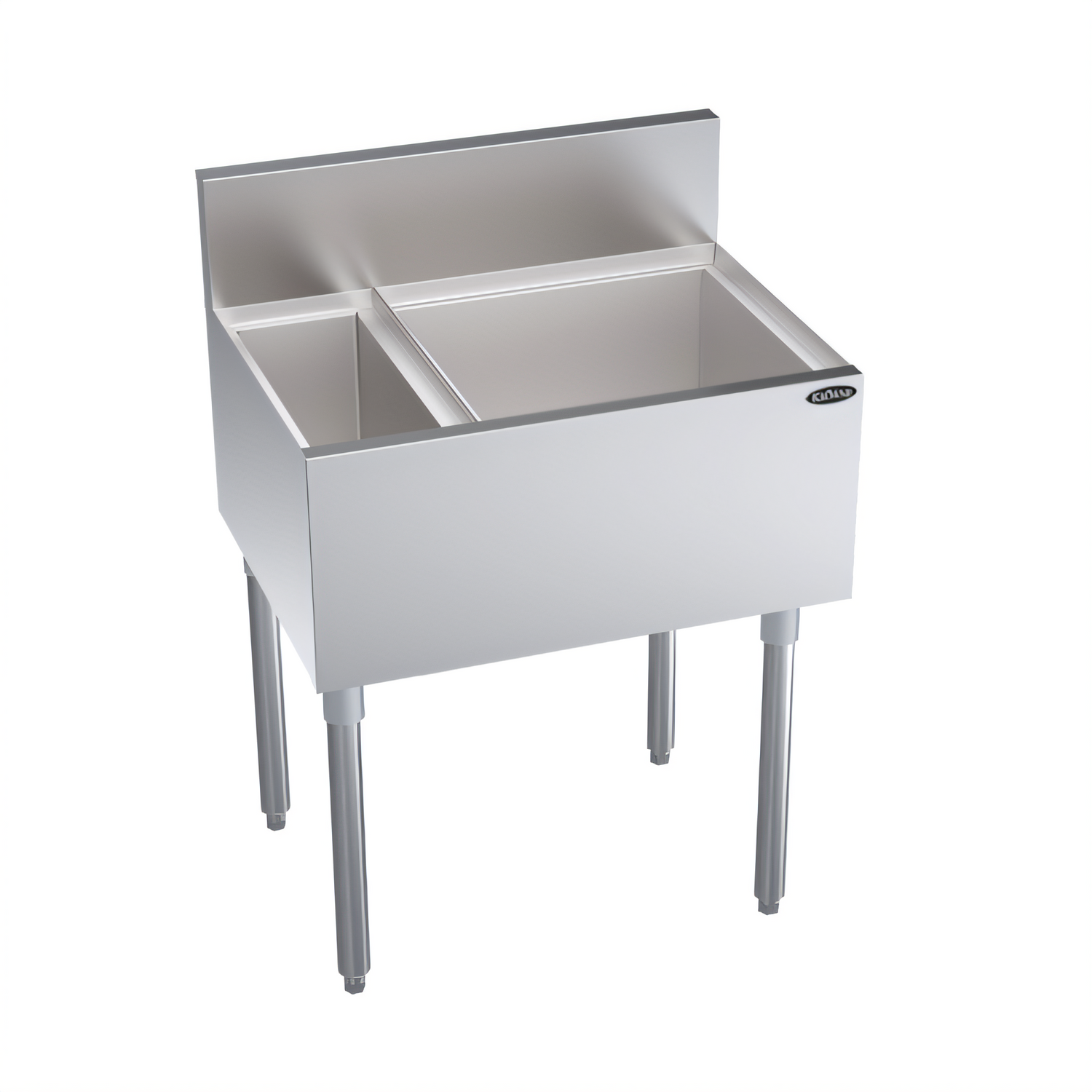

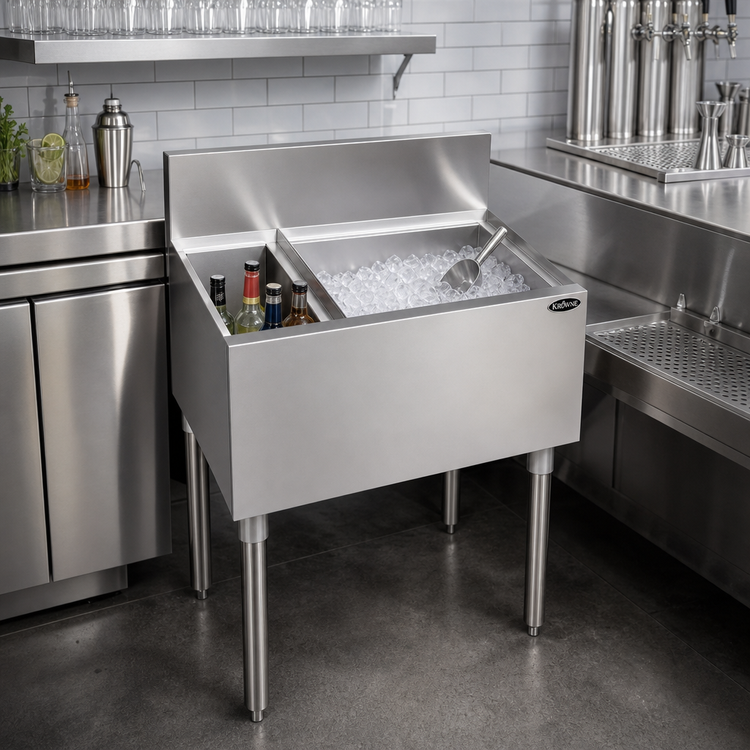

Krowne Royal Series Underbar Speed Multi Station – 26"

Model KR19-MS26R-7 | 7-Circuit Cold Plate

Build cocktails faster and keep beverages ice-cold with Krowne’s 26" Royal Series Speed Multi Station. A right-side 18" ice bin, insulated bottle well and integrated cold plate give bartenders an all-in-one workstation that maximizes productivity in the smallest footprint.

Why You’ll Love It

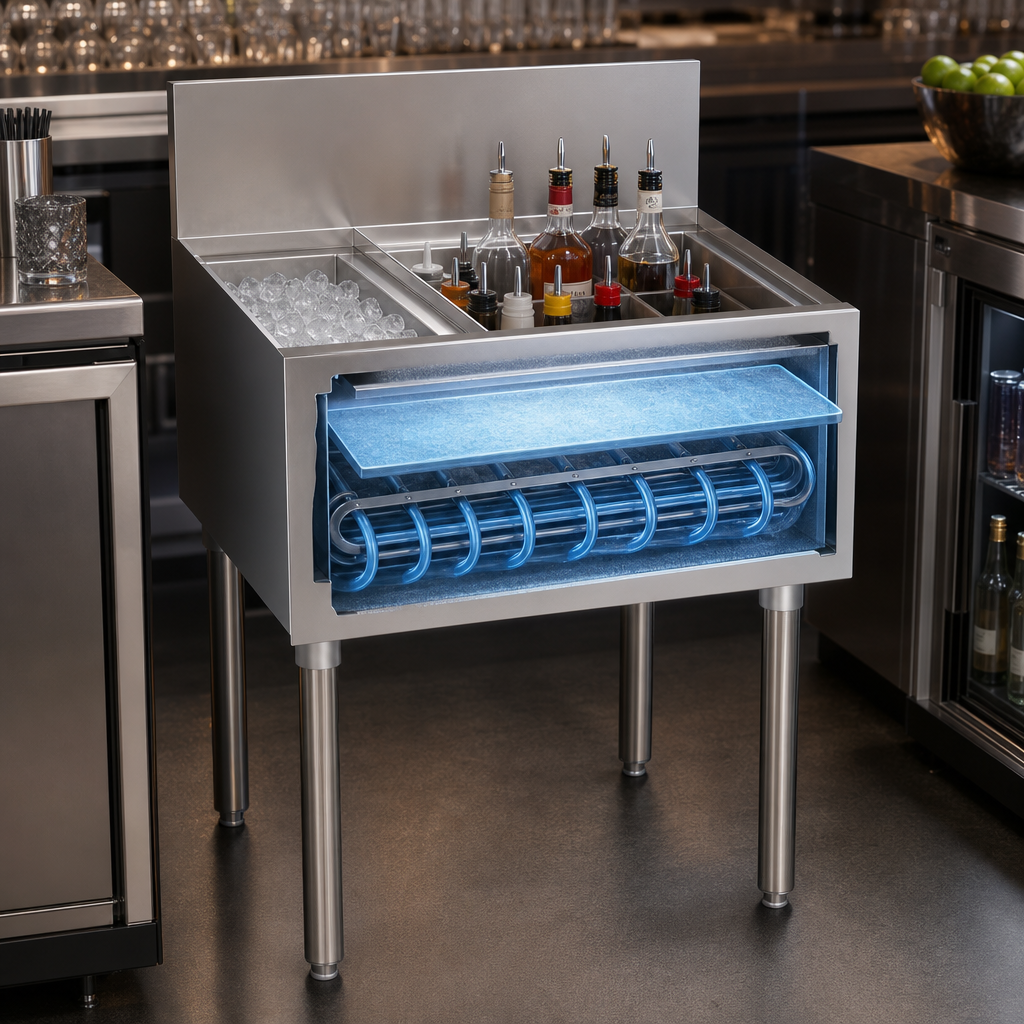

  • Integrated 7-circuit cast-aluminum cold plate with 5/16" OD stainless tubing for perfectly chilled beverage lines.

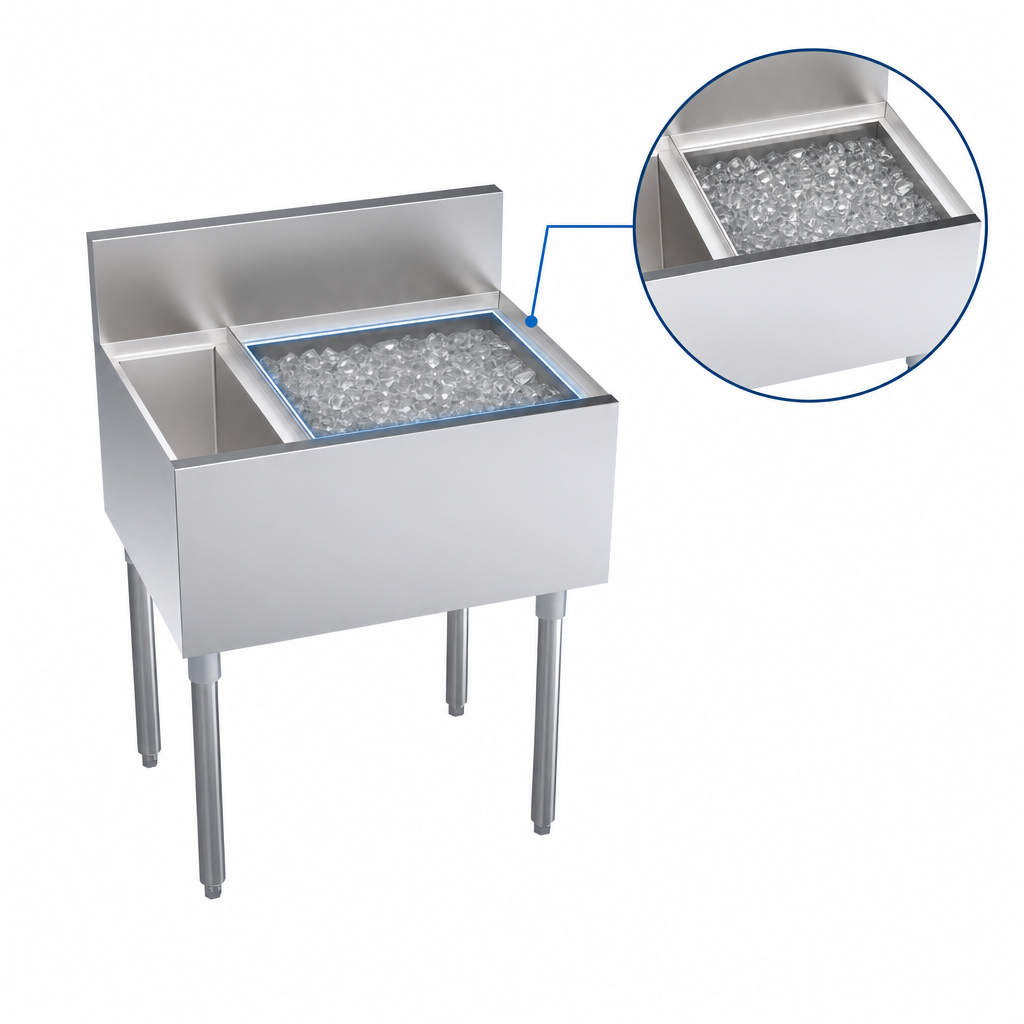

  • 12" deep, right-hand ice bin (18" long) holds up to 69 lb of ice and drains through a 1/2" PVC tailpiece (included).
  • 8" insulated bottle well stores up to 10 elixir or liquor bottles for lightning-fast service (bottles not included).
  • 3/4" × 3-1/2" soda-line access cut-out in the backsplash keeps plumbing neat and hidden.
  • All-stainless-steel top, front, sides and interior—20 ga. construction built for heavy bar use.
  • 1-5/8" stainless tubular legs with adjustable grey thermoplastic bullet feet for rock-solid stability.
  • Foamed-in-place polyurethane insulation maintains ice integrity and reduces condensation.
  • Ships fully assembled and ETL-Sanitation / NSF certified for immediate, worry-free installation.

Technical Specs

Overall Dimensions 26" L × 19" D × 36-1/2" H (to top of backsplash)
Ice Bin Capacity 69 lb, 12" deep (18" long), right-side location
Bottle Well Capacity (10) standard 750 mL bottles
Cold Plate 7 circuits, cast aluminum, factory-sealed
Drain Connection 1/2" NPS with 6" PVC tailpiece (included)
Soda Line Cut-Out 3/4" × 3-1/2" in backsplash
Construction 20 ga. 304 stainless top, front, sides & interior; galvanized back & bottom
Legs / Feet 1-5/8" stainless legs with adjustable thermoplastic bullet feet
Ship Weight Approx. 157 lb
Certifications ETL-Sanitation, NSF

Speed rails, side splashes and additional accessories are available separately—ask our team for details.

Pro Tip: Route beverage lines through the cold plate before connecting to your soda gun or draft tower to ensure every pour is served at optimal temperature.

Features & Specs

Manufacturer

Krowne

Certifications

NSF, ETL-Sanitation

Height

36.5in

Width

26.0in

Depth

19.0in

Shipping Weight

157.0lbs

Ice Capacity (approximate)

65 lbs.

Components (left to right)

bottle well, ice bin

Bin Depth

12" deep ice bin

Splash

6"

Depth (front - back) OA

18" - 19"

Width (side - side) OA

25" - 30"

Bottle Capacity

(10)

Cold Plate

(7) circuit

Construction

stainless steel & galvanized

Specifications

Royal Series Underbar Speed Multi Station with built-in 7-circuit cold plate, 26" overall size, 18" ice bin on right, 8" insulated bottle well, (10) elixir bottle capacity (bottles not included), 1/2" drain, 3/4" x 3-1/2” Soda Line cut out in backsplash, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, ETL-Sanitation, NSF
