Krowne KR19-M48R Royal Series Bar Equipment
Description

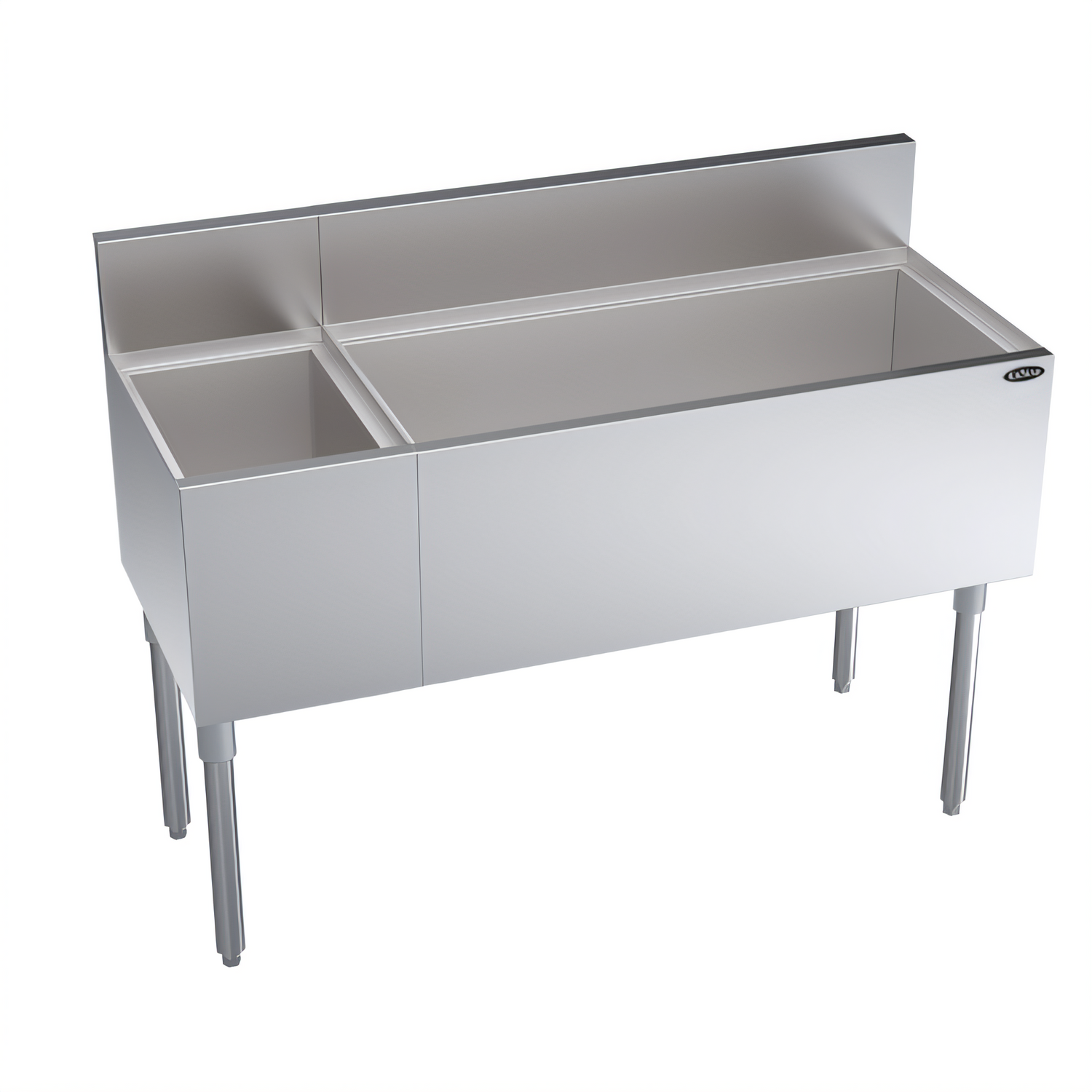

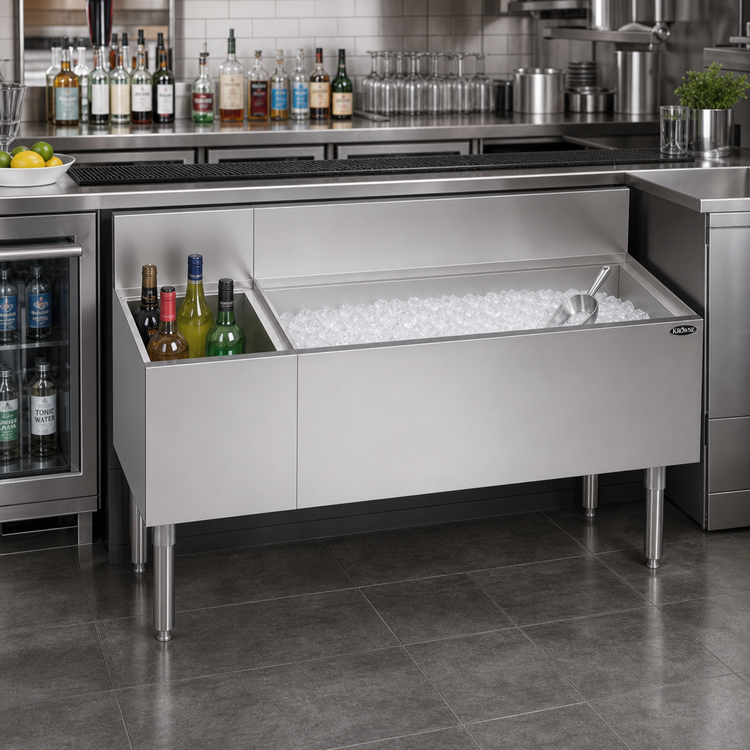

Krowne Royal Series 48" Combination Ice Bin with 12" Bottle Storage – 19" Depth
Model KR19-M48R | Right-Hand Ice Bin | NSF ListedGive your bartenders a single, space-saving station for ice and mixers. This 48" Royal Series underbar unit combines a high-capacity ice chest with an insulated bottle well, keeping up to 110 lbs. of ice and six frequently-used bottles right where service happens.
Key Features

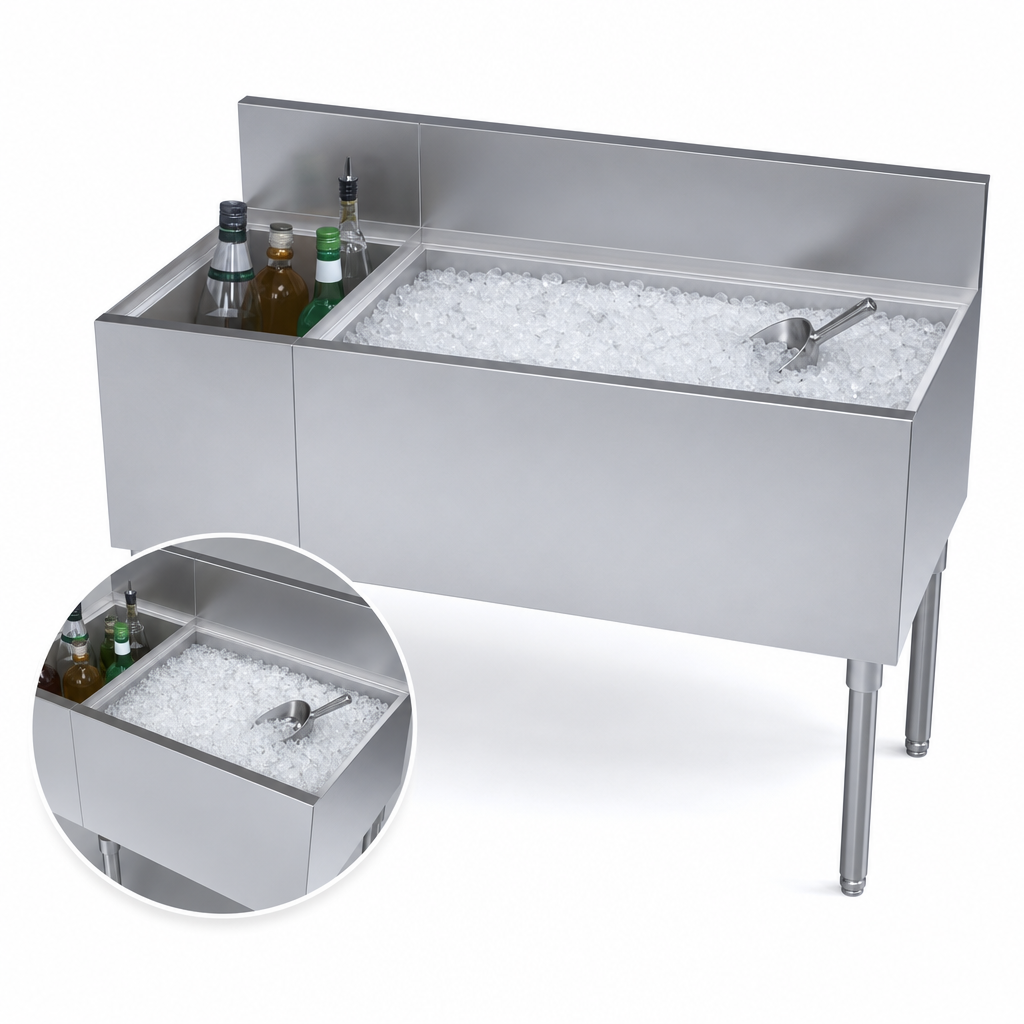

- 36" long 12"-deep ice bin on the right side – foamed-in-place insulation maximizes ice retention.

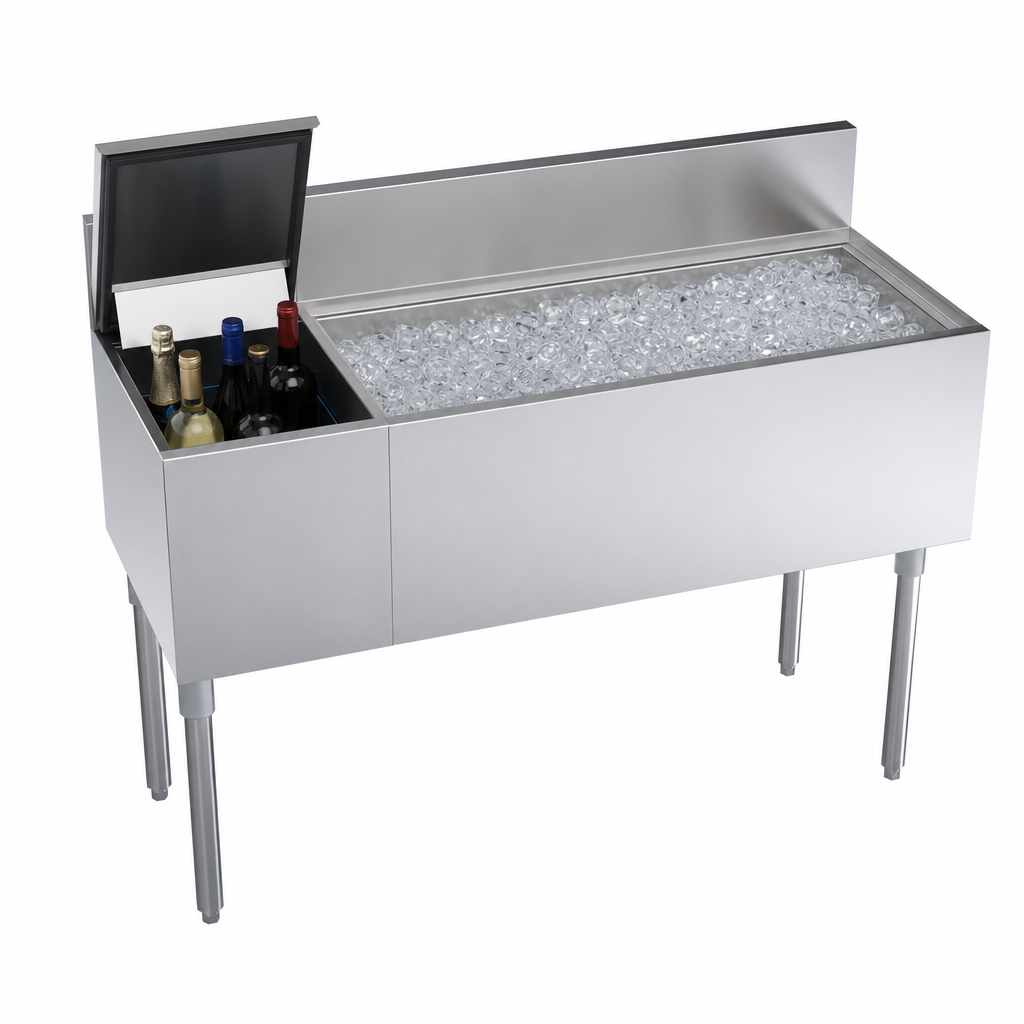

- Left-side 12" insulated bottle well keeps six mixers, juices or wines cold and within arm’s reach.
- Heavy-duty 20 ga stainless steel top, front and sides stand up to everyday bar abuse.
- 6 ½" backsplash with rolled top edge keeps splashes off adjacent equipment and walls.
- Independent 1" drains for ice bin and bottle well simplify plumbing and cleaning.
- Adjustable thermoplastic bullet feet level the unit on uneven floors.
- Ships fully assembled – drop it in place and hook up the drains.
Specifications
| Overall width | 48" (1219 mm) |
|---|---|
| Overall depth | 19" (483 mm) |
| Work surface height | 36 1⁄2" (927 mm) |
| Backsplash height | 6 1⁄2" (165 mm) |
| Ice bin length / capacity | 36" / 110 lbs. (50 kg) |
| Bottle well length / capacity | 12" / 6 bottles |
| Liner depths | Ice bin – 12" • Bottle well – 10" |
| Drains | Ice bin – 1" IPS • Bottle well – 1" NPS |
| Construction | 20 ga stainless (top, front, sides) • 20 ga galvanized (bottom, back) |
| Legs / feet | 1 5⁄8" stainless tubular legs with adjustable thermoplastic bullet feet |
| Shipping weight | 116 lbs. (53 kg) |
| Certifications | NSF |
Plumbing & Utility Info
- 1" IPS drain connection supplied for the ice bin.
- 1" NPS drain on bottle section.
- No pre-punched soda access cut-out (add only if cold plate is ordered).
Compatible Options (sold separately)
- Wire Racks – Model KR-421 (pair) for vertical bottle storage.
- 15" deep liner upgrade – Model KR-502 (adds ≈25% ice capacity).
- Single or double speed rails – Models RS-48 / RD-48.
- Side splashes, sliding covers, towel rings and more – ask your Krowne rep.
Need a factory-installed 10-circuit cold plate or additional speed rails? Contact us for a customized quote prior to purchase.
