Krowne KR19-M48R-10 Royal Series Bar Equipment
$4,125.55
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Krowne KR19-M48R-10 Royal Series Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Krowne KR19-M48R-10 Royal Series Bar Equipment
$4,125.55
Unit price
/
Unavailable
Description

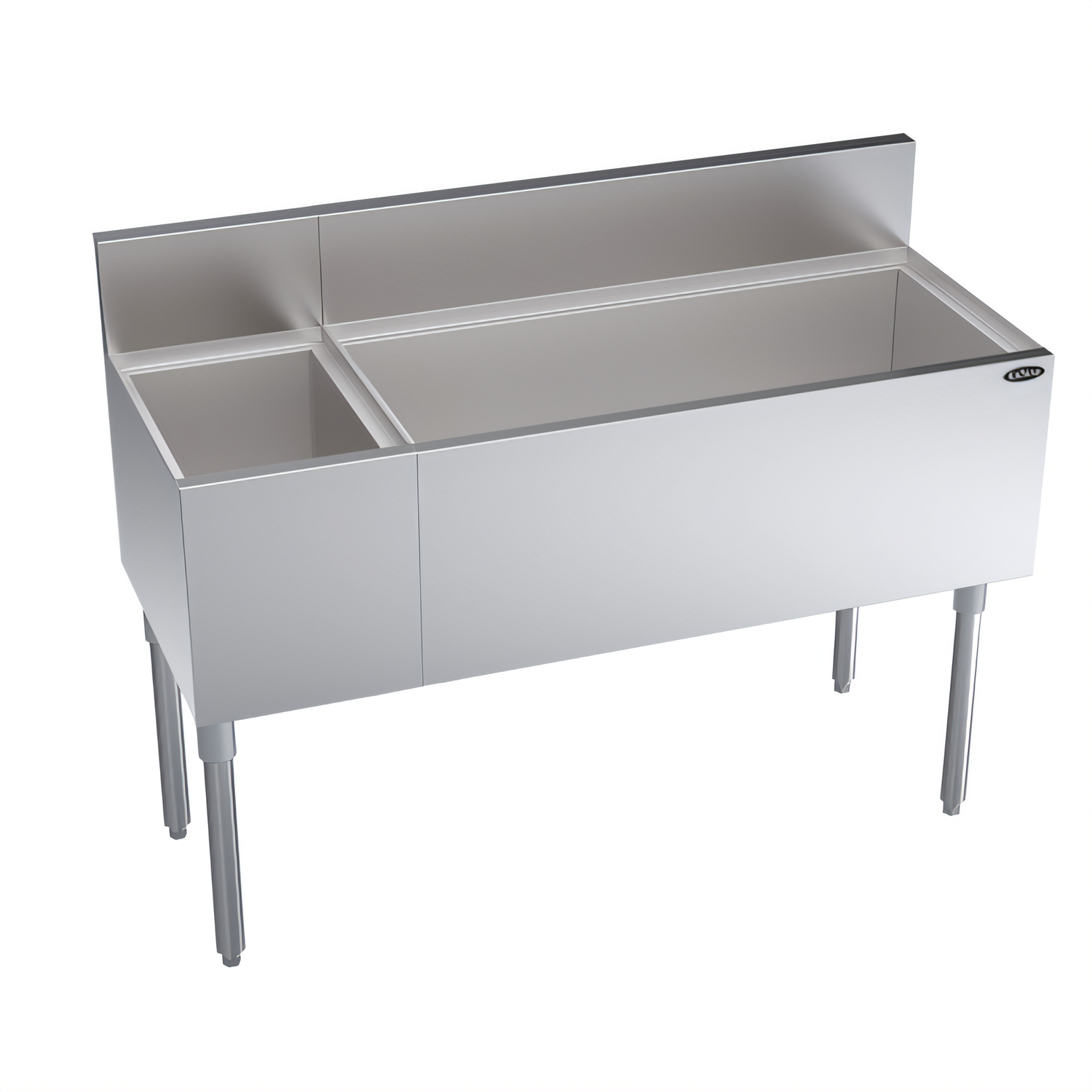

Krowne Royal Series 48" Combination Ice Bin w/ Bottle Storage & 10-Circuit Cold Plate
Model KR19-M48R-10 – Right-Side Ice Bin, NSF ListedBoost beverage output without giving up valued underbar real estate. This fully assembled Krowne Royal Series station merges a high-capacity ice bin, built-in cold plate and insulated bottle well into one durable, space-saving unit.
Key Benefits

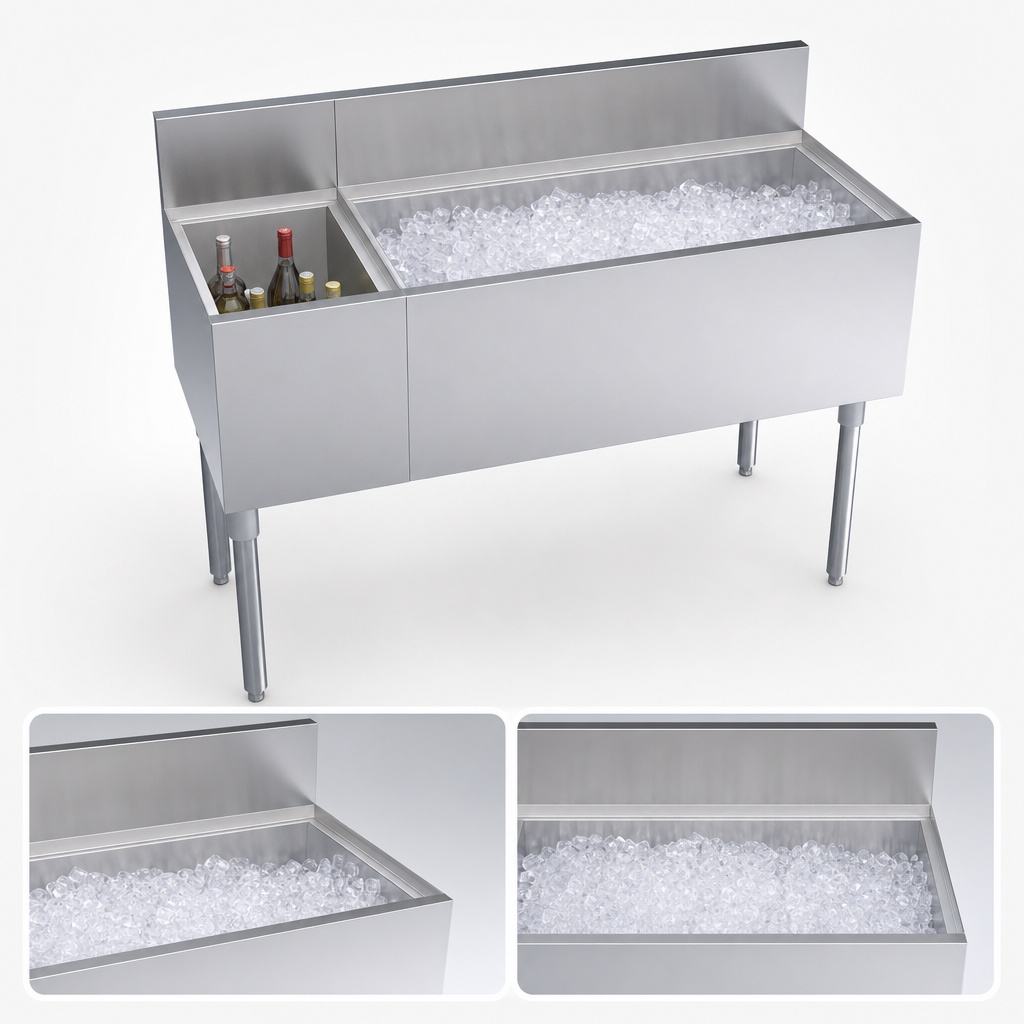

- 36" wide, 12" deep ice bin on the right holds up to 110 lb of ice.
- Cast-aluminum 10-circuit cold plate chills post-mix lines for consistently crisp pours.

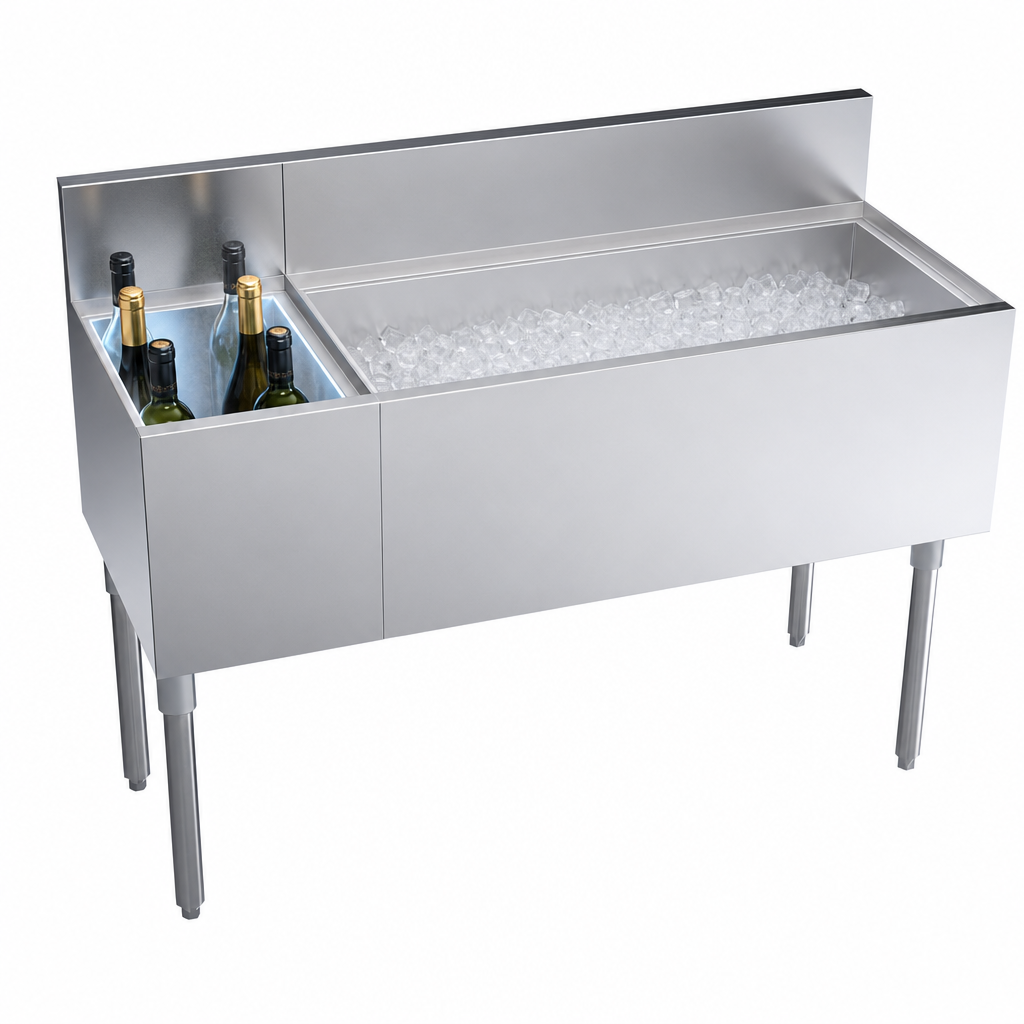

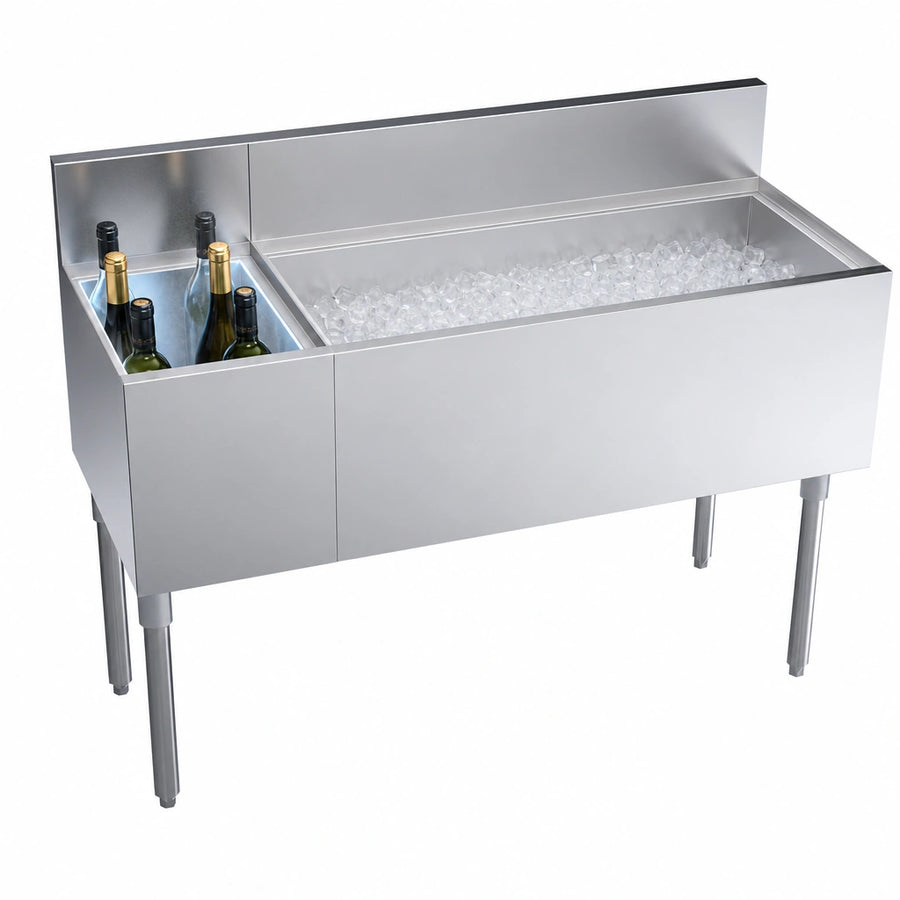

- 12" insulated bottle well on the left keeps up to 6 liquor or juice bottles ice-cold and close at hand.
- 20-gauge stainless steel top, front & sides stand up to daily bar abuse and wipe clean fast.
- Foamed-in-place polyurethane insulation limits melt and eliminates exterior sweating.
- 6 1/2" backsplash with ¾" x 3 1/2" soda-line cutout keeps walls dry and lines organized.
- 1-5/8" tubular stainless legs with adjustable thermoplastic bullet feet level the unit on uneven floors.
- Ships completely assembled and is NSF certified for sanitary operation.
Technical Specs
| Overall Dimensions (W × D × H) | 48" × 19" × 36 1/2" |
|---|---|
| Ice Bin Interior (W × D × H) | 36" × 16 1/2" × 12" |
| Ice Capacity | 110 lb |
| Bottle Well Interior Depth | 10" |
| Bottles Stored | 6 (750 ml) |
| Cold Plate | Cast aluminum, 10 post-mix circuits, 5/16" OD stainless tubing |
| Drain Connections | 1" IPS (ice bin) | 1/2" IPS (cold plate, includes 6" PVC tailpiece) | 1" NPS (bottle well) |
| Backsplash Height × Depth | 6 1/2" × 1 1/2" |
| Construction | 20-ga. stainless interior, top, front & sides; galvanized back & bottom |
| Legs / Feet | (4) 1-5/8" stainless legs with grey thermoplastic bullet feet |
| Shipping Weight | ≈ 193 lb |
| Certifications | NSF |
Ideal Applications
- High-volume cocktail bars & nightclubs
- Restaurant service bars & patios
- Hotel, casino & resort beverage stations
- Event venues & banquet halls
Popular Add-Ons (Sold Separately)
- Single or Double Speed Rails (RS-48 / RD-48)
- Wire Racks for bottle well (KR-421)
- 15" deep ice liner for 25 % more capacity (KR-502)
- Side splashes, dividers, cap catcher, towel ring & more
Looking for a custom underbar layout? Contact us for design assistance and volume pricing.
Features & Specs
Features & Specs
Manufacturer
Krowne
Brand_name
Royal Series
Certifications
NSF
Height
36.5in
Width
48.0in
Depth
19.0in
Shipping Weight
193.0lbs
Components (left to right)
bottle well, ice bin
Bin Depth
12" deep ice bin
Splash
6"
Construction
stainless steel
Cold Plate
(10) circuit
Ice Capacity (approximate)
110 lbs.
Bottle Capacity
(6)
Width (side - side) OA
43" - 48"
Depth (front - back) OA
18" - 19"
Specifications
Royal Series Underbar Combination Ice Bin, ice bin with bottle well, 48"W x 19"D O.A., built-in 10-circuit cold plate, 36"W ice bin on right, 110 lbs. capacity, (1) 12"W insulated bottle storage unit on left, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
