Krowne KR19-M48C Royal Series Bar Equipment
Description

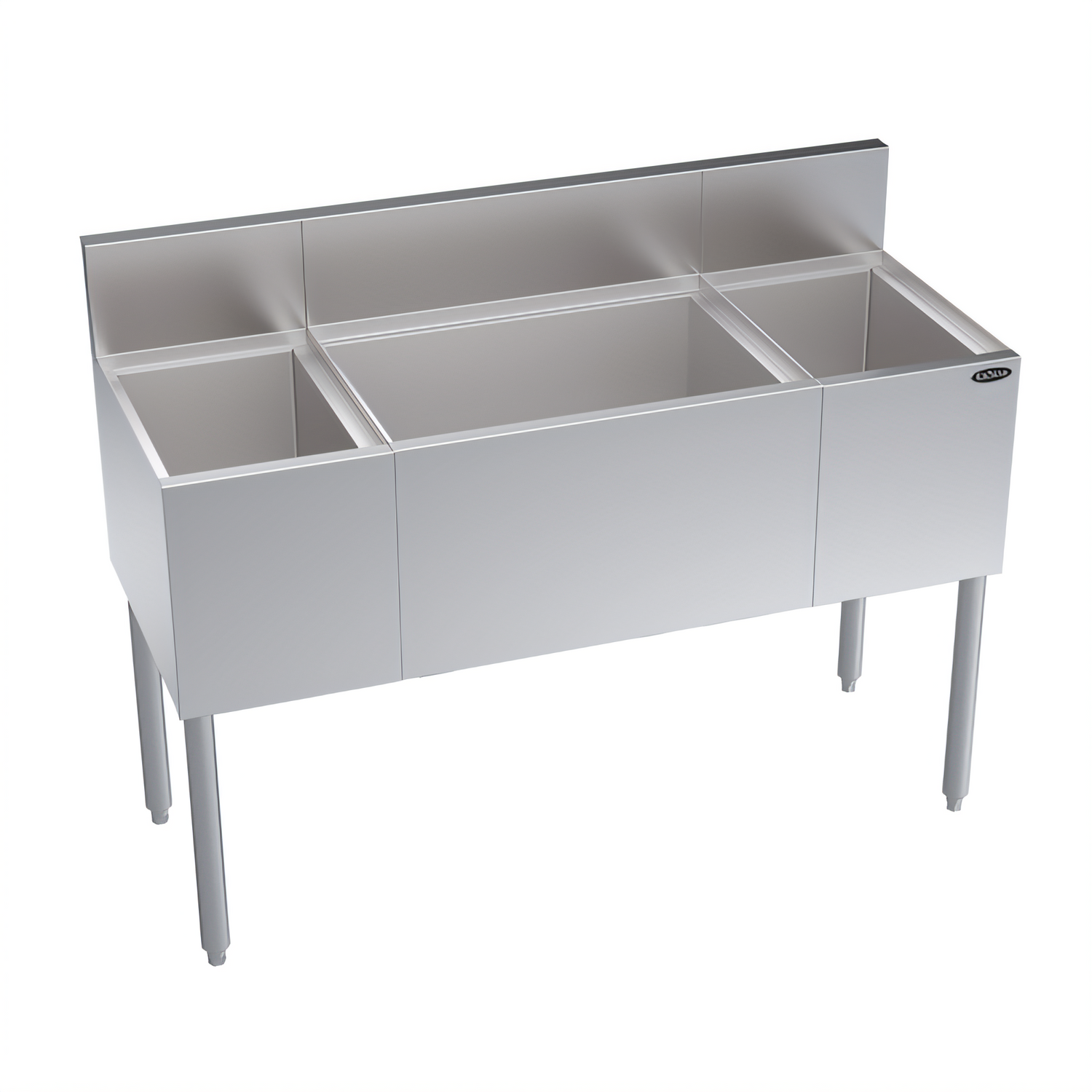

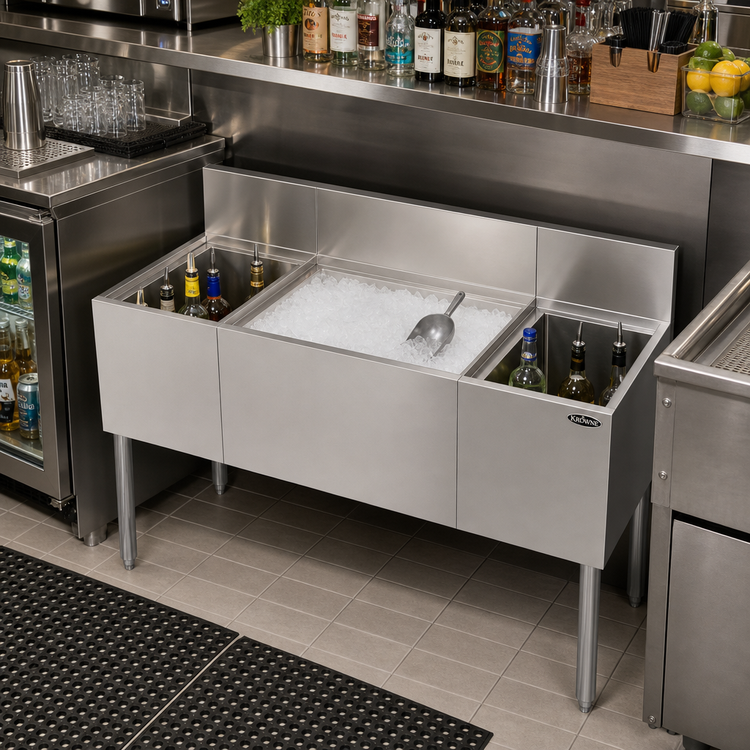

Krowne Royal Series 48" Underbar Combination Ice Bin w/ Center Bin & Dual Bottle Wells
Model KR19-M48C | 74 lb Ice Capacity | NSF ListedBuild a faster, cleaner and more profitable bar with Krowne’s Royal Series 48 inch combination ice bin. A spacious 24 inch ice bin is flanked by two 12 inch insulated bottle wells, giving bartenders instant access to ice and mixers in one ergonomic station that drops easily into any 19 inch-deep underbar line-up.
Why You’ll Love It

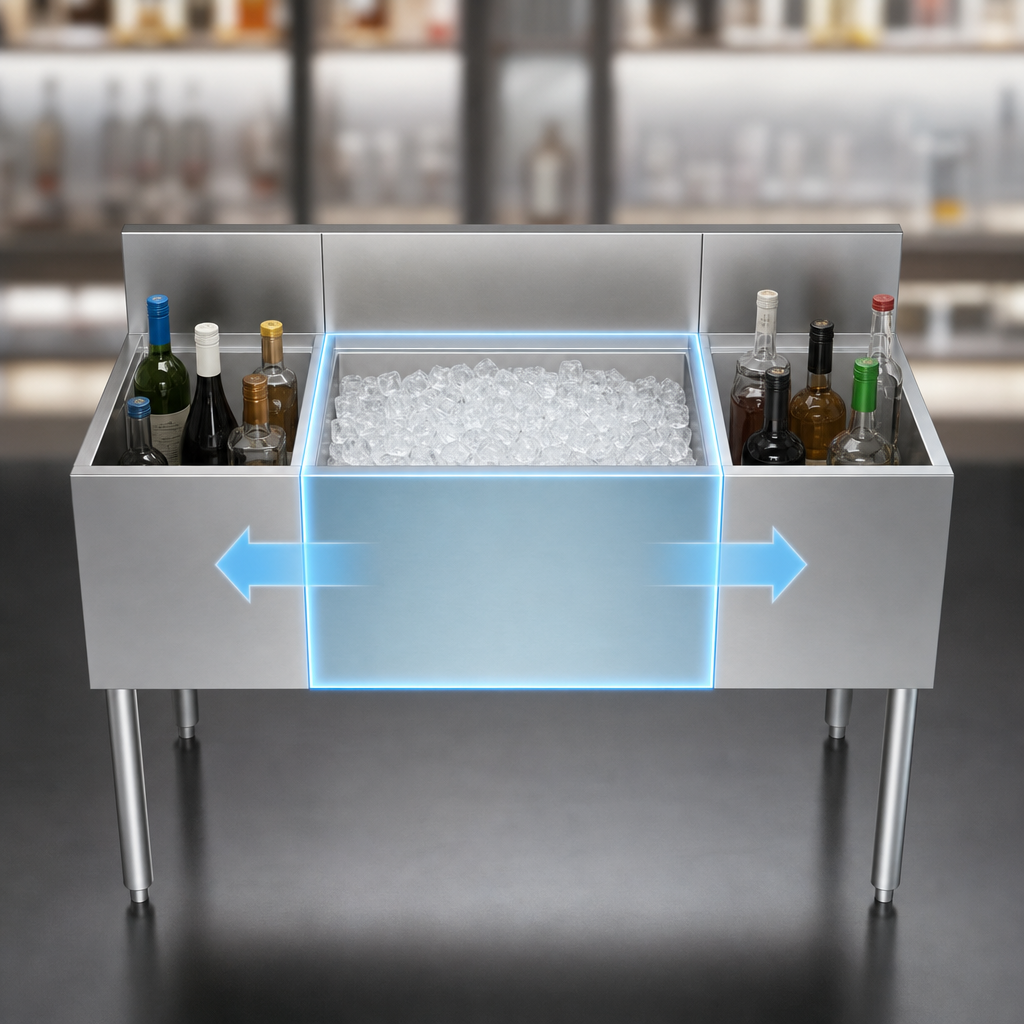

- High output: holds up to 74 lbs of ice in the 12"-deep center bin.

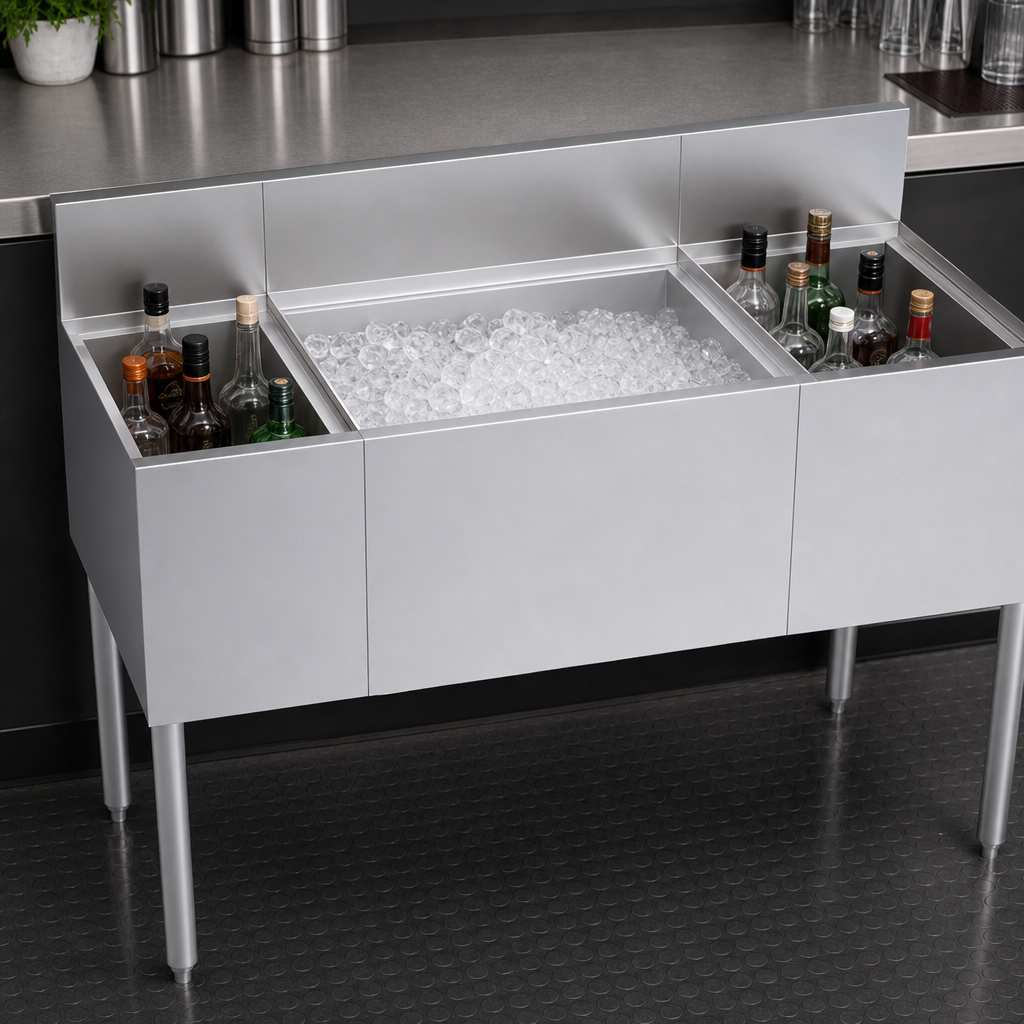

- Dual 12" bottle wells: each insulated well stores up to six 1 L bottles (12 total) and includes its own 1" drain.
- Durable build: 20 ga. stainless steel top, front & sides; foamed-in-place polyurethane insulation keeps ice solid for longer shifts.
- Hygienic & compliant: NSF listed for open-food zones, interior coved corners speed up daily cleaning.
- Adjustable stance: 1⅝" tubular stainless legs with threaded thermoplastic bullet feet level the station on uneven floors.
- Ready-to-install: 1" IPS ice-bin drain and 1" NPS bottle-well drains ship with PVC tailpieces to prevent condensation.
Technical Specifications
| Overall width | 48 in (1219 mm) |
|---|---|
| Overall depth | 19 in (483 mm) |
| Overall height | 36 ½ in to top of 6 ½" backsplash |
| Ice bin size | 24 in W × 12 in D (center) |
| Ice capacity | 74 lbs (33.6 kg) |
| Bottle wells | (2) 12 in W insulated wells, 10 in deep, store 12 bottles |
| Drain connections |
1" IPS (ice bin) | 1" NPS (each bottle well) Includes PVC tailpieces |
| Materials | 20 ga stainless steel interior, top, front & sides; galvanized back & bottom |
| Legs / feet | (4) 1 ⅝" Ø stainless legs with adjustable thermoplastic bullet feet |
| Unit weight | 116 lbs (52.6 kg) shipping |
| Certifications | NSF |
Popular Add-Ons (sold separately)
- KR-502 15" deep ice-bin liner – boost ice capacity by 25%
- RS-48 / RD-48 single or double speed rails for quick-draw bottle storage
- KR-421 wire racks for vertical bottle organization
- Partial or full sliding ice-bin covers – reduce contamination & melt
- 10-circuit cold plate factory-installed (model KR19-M48C-10)
