Krowne KR19-M48C-10 Royal Series Bar Equipment
Description

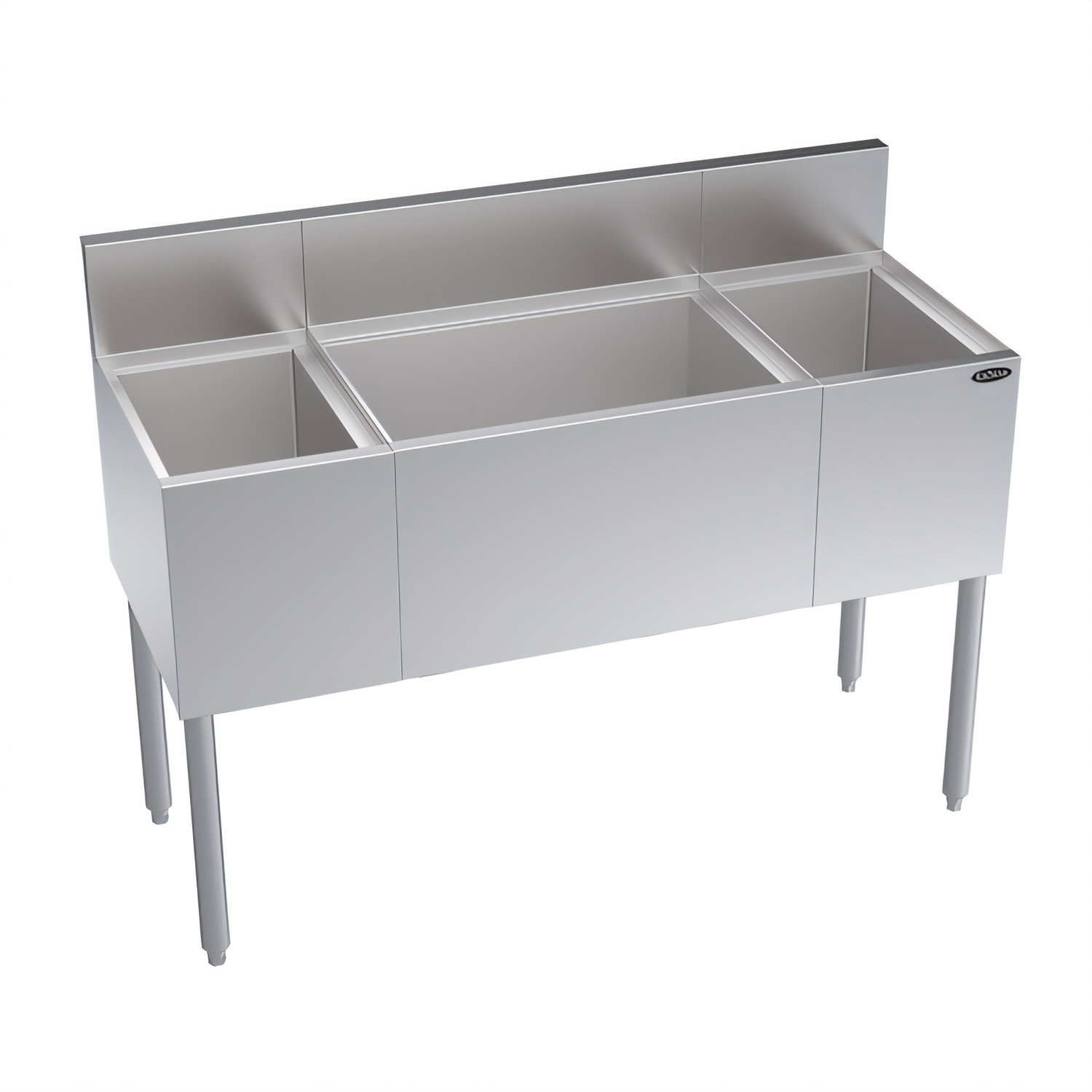

Krowne Royal Series 48" Underbar Combination Ice Bin w/ 10-Circuit Cold Plate
Model KR19-M48C-10 • NSF ListedBuilt for high-volume beverage programs, this Royal Series underbar station combines a center ice bin, dual bottle wells and an integrated 10-circuit cold plate in one space-saving 48" footprint. Premium stainless-steel construction and commercial-grade insulation keep drinks cold and bartenders moving.
Key Features
- 48"W x 19"D overall – fits standard underbar layouts

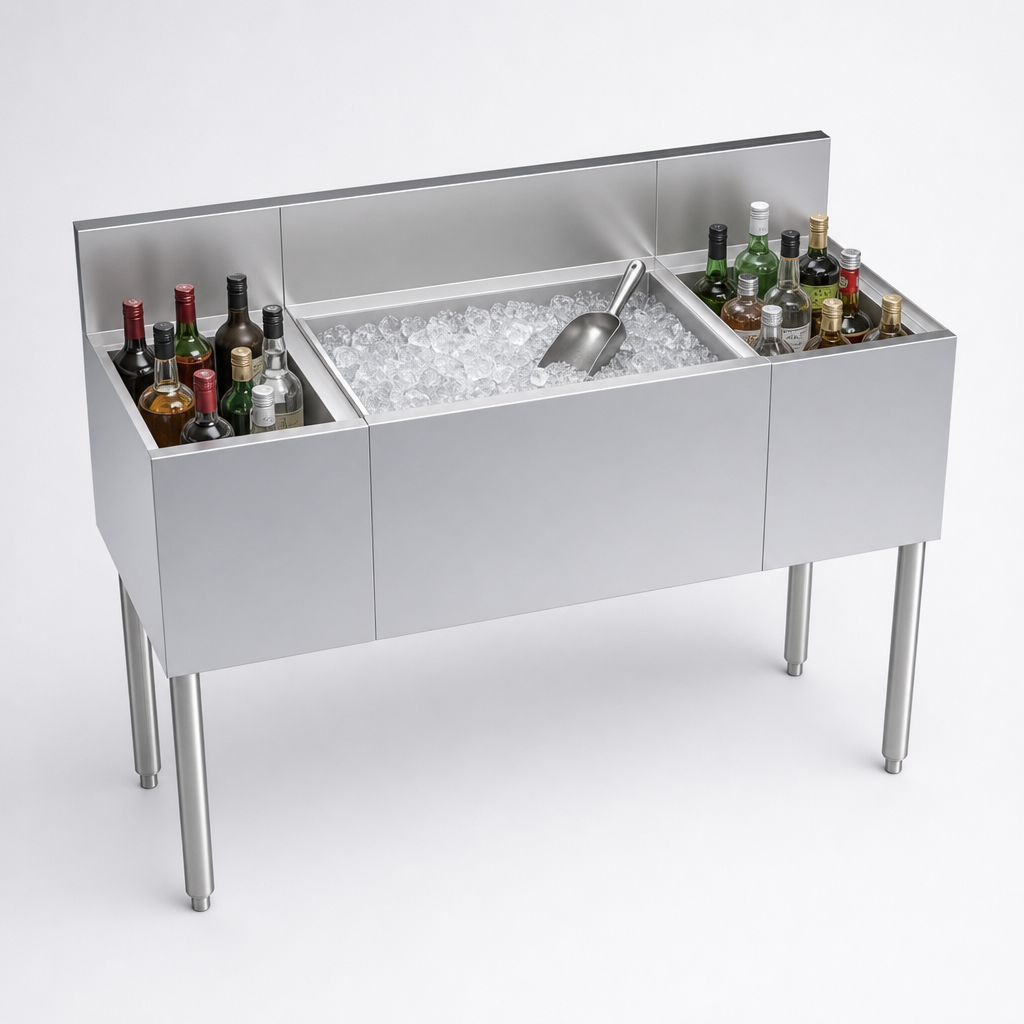

- 24"W center ice bin holds 74 lbs of ice (12" deep)

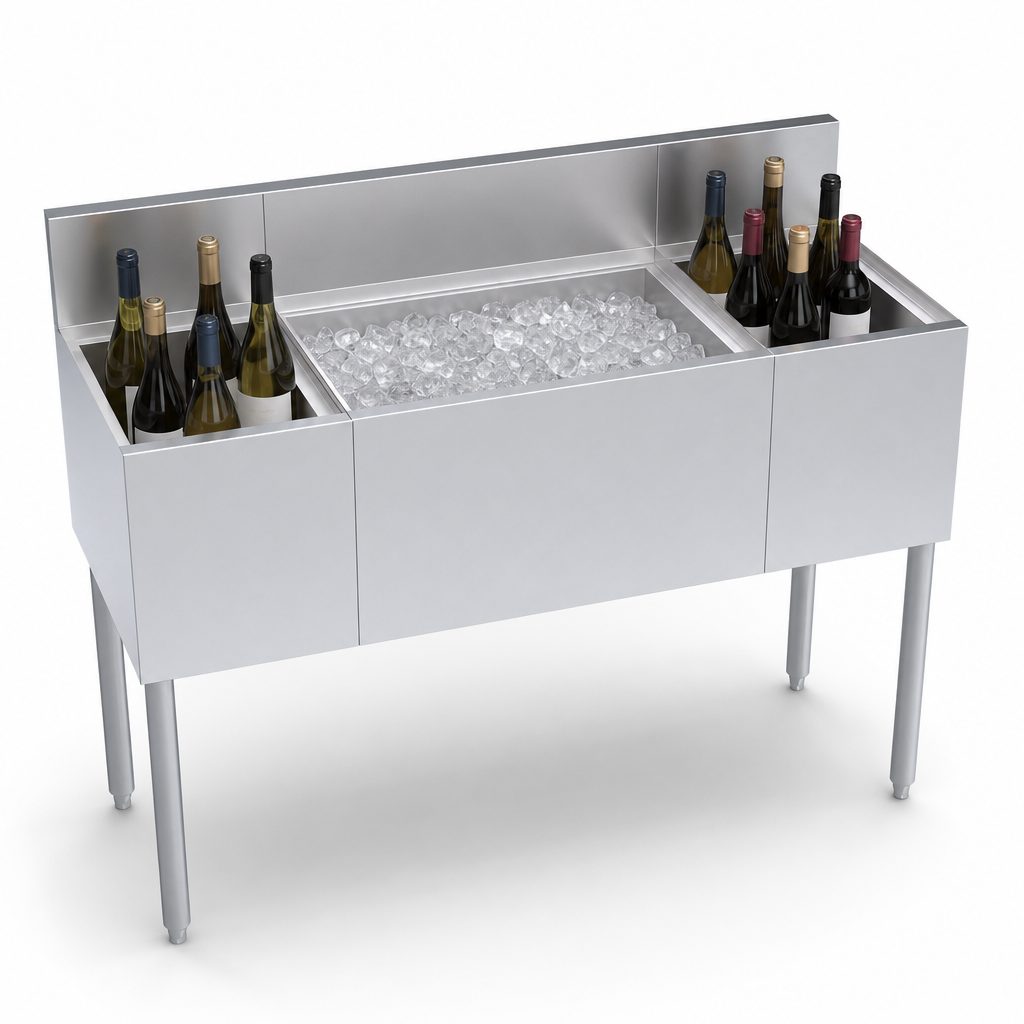

- (2) 12"W insulated bottle wells – stores up to 12 liquor or mixer bottles
- Factory-sealed 10-circuit cast-aluminum cold plate with 5/16" O.D. stainless tubing
- 6 1/2"H backsplash with 3/4" x 3-1/2" soda-line access cut-out
- Foamed-in-place polyurethane insulation for maximum ice retention
- 20-gauge stainless-steel top, front & sides; galvanized back & bottom
- 1 5/8" stainless tubular legs with adjustable grey thermoplastic bullet feet
- Ships as a complete station—no field assembly of components required
- NSF certified for sanitation compliance
Plumbing & Drains
- Ice bin: 1" IPS drain + 1/2" IPS cold-plate drain
- Bottle wells: 1" NPS drain
- Includes 1/2" x 6" PVC tailpiece (prevents condensation from metal-to-metal contact)
Technical Specifications
| Model | KR19-M48C-10 |
|---|---|
| Overall Dimensions (W × D) | 48" × 19" |
| Overall Height | 36 1/2" (to work surface) |
| Ice Bin Size | 24"W × 12"D (center) |
| Ice Capacity | 74 lbs |
| Bottle Wells | (2) 12"W insulated wells, 10" deep – approx. 6 bottles each |
| Cold Plate | Cast aluminum, 10 post-mix circuits, 5/16" O.D. stainless tubing |
| Construction | 20-ga. stainless (top/front/sides); galvanized (back/bottom) |
| Insulation | Foamed-in-place polyurethane |
| Legs / Feet | 1 5/8" dia. stainless legs, adjustable thermoplastic bullet feet |
| Certifications | NSF |
Popular Add-Ons (sold separately)
- KR-421 Wire Racks – keeps juice & syrup bottles organized
- KR-401 Cap Catcher & Opener
- RS / RD Speed Rails – single or double tier, 36"–48" widths
- Sliding Ice Bin Covers – partial or full for sanitary storage
- Side Splashes & Dividers – contain messes and separate products
Need a deeper liner, left/right drain orientation or matching speed rail? Contact us for custom configurations and lead times.
