Description

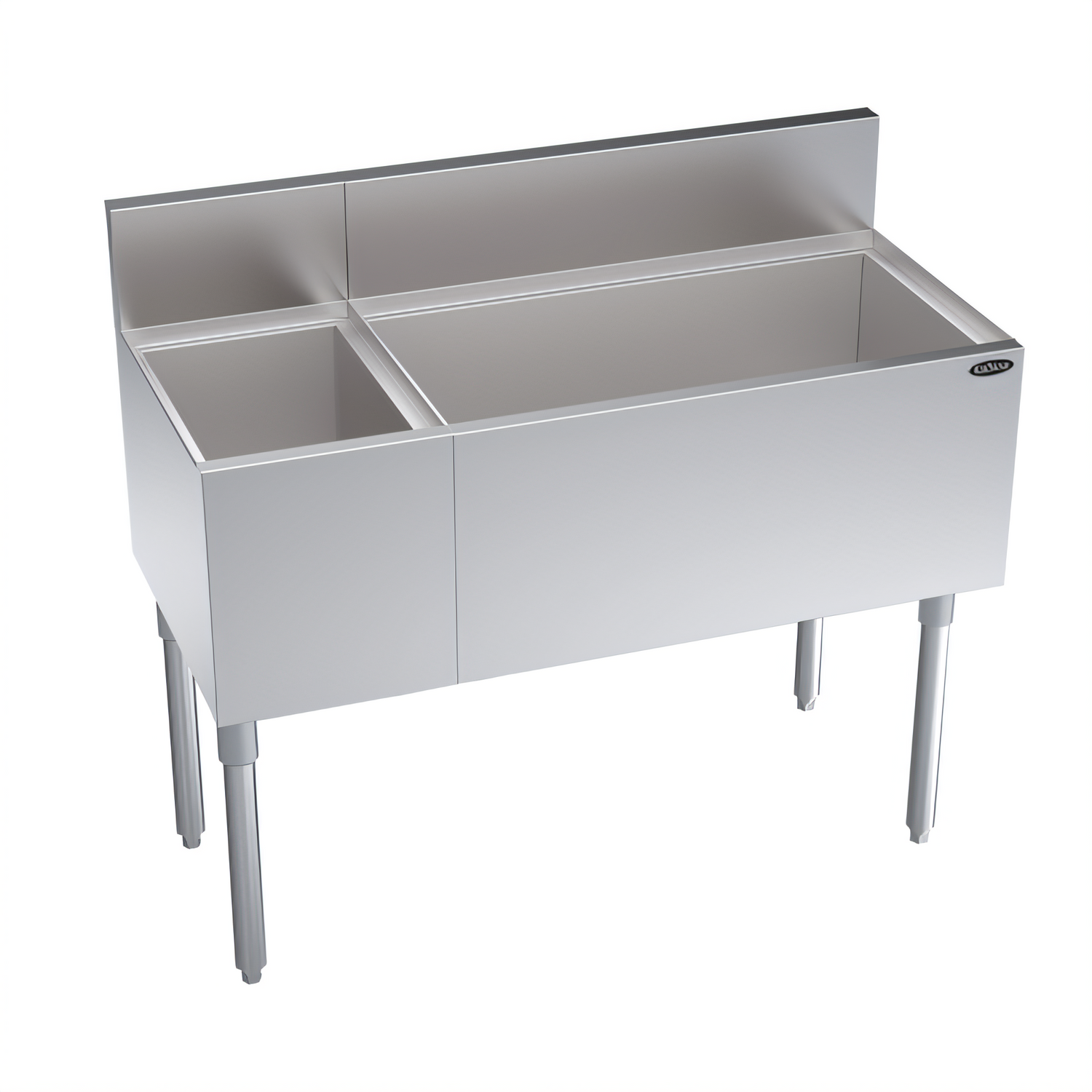

Krowne Royal Series 42" Underbar Combination Ice Bin w/ 10-Circuit Cold Plate

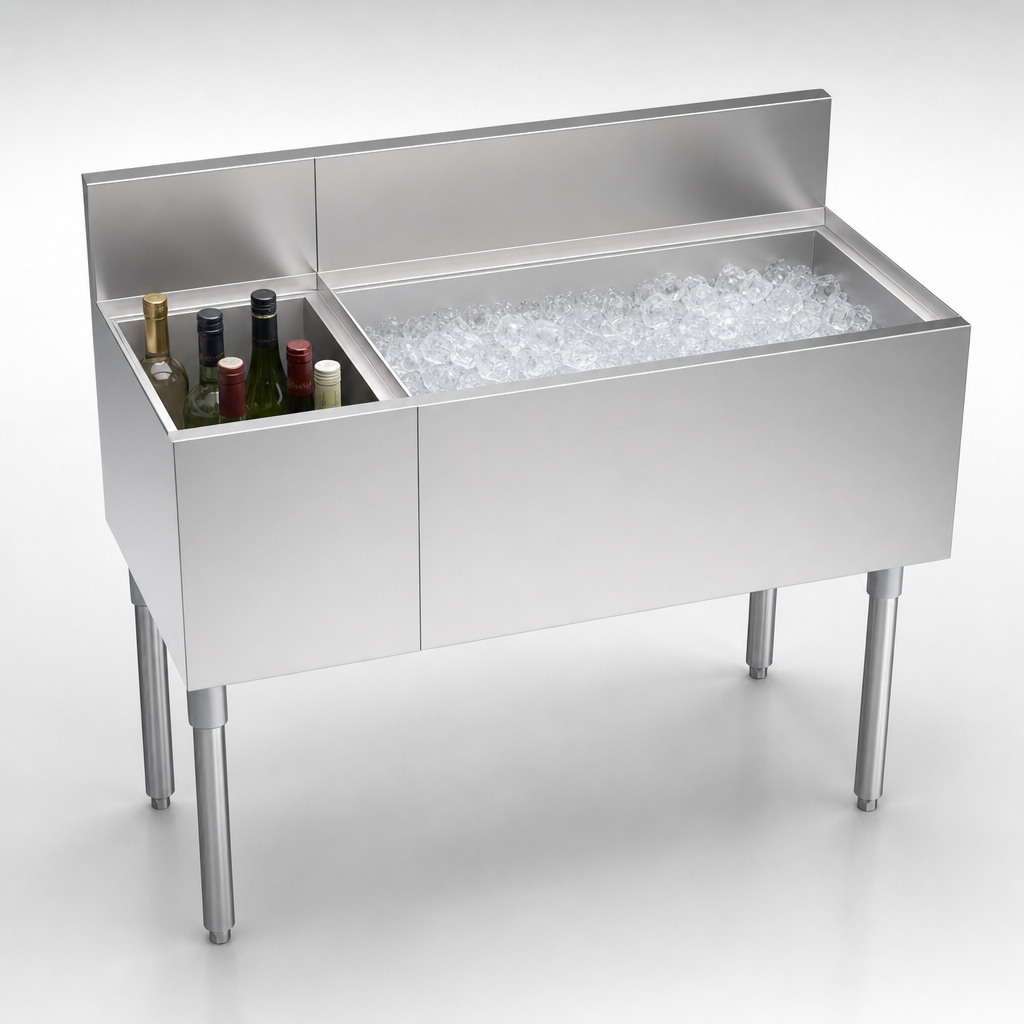

Model KR19-M42R-10 – 30" Ice Bin Right / 12" Bottle Well Left

Power through rush-hour cocktail service with a purpose-built station that keeps ice, mixers and soda lines perfectly chilled and exactly where you need them.

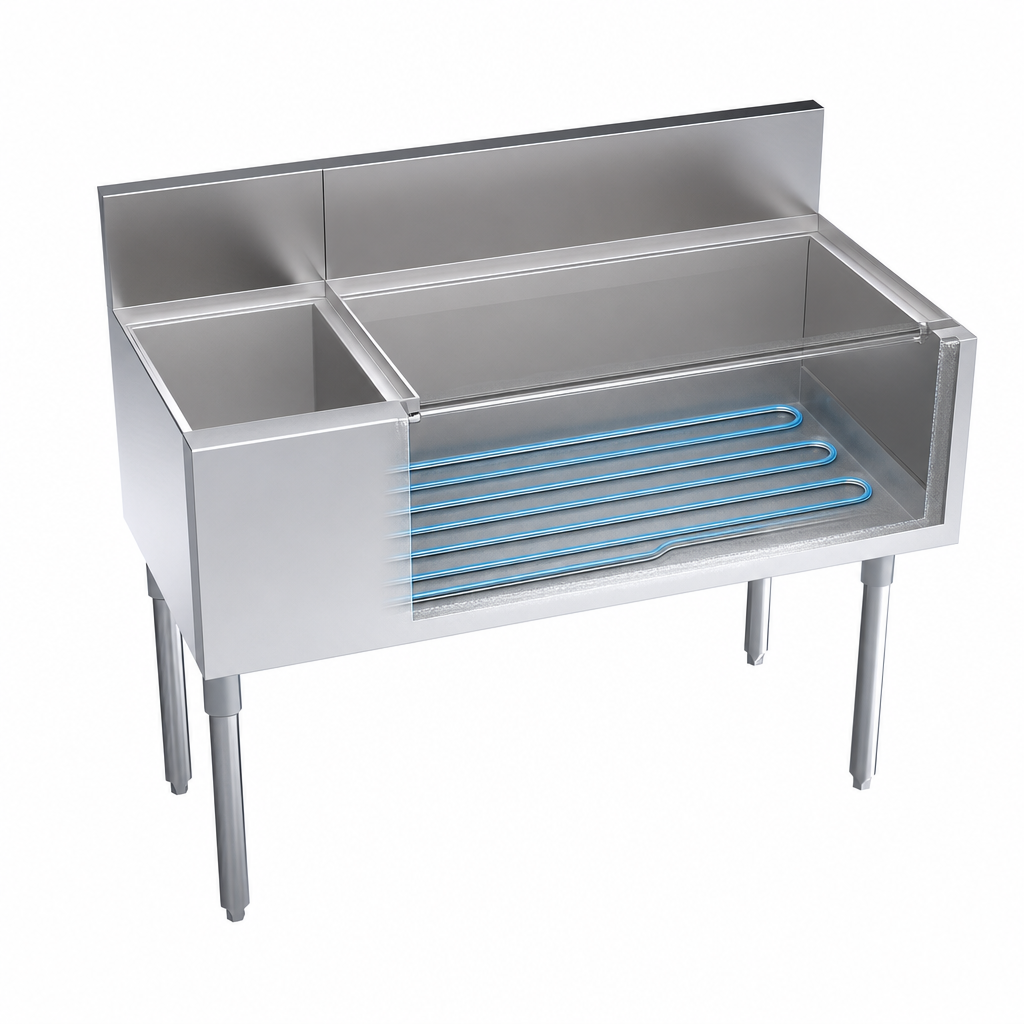

  • Integrated 10-circuit post-mix cold plate chills soda lines at the point of dispense.
  • 30" W × 12" D ice bin (right side) holds up to 92 lbs of ice.
  • 12" W insulated bottle well (left side) stores up to 6 juices or mixers—each within arm’s reach.
  • 20-gauge stainless steel top, front & sides resist dents, scratches and corrosion.
  • Foamed-in-place polyurethane insulation locks in cold and eliminates exterior sweating.
  • 6 ½" backsplash contains splashes; rear cut-out provides soda-line access.
  • 1 ⅝" stainless tubular legs with adjustable thermoplastic bullet feet level easily on uneven floors.
  • Ships fully assembled and carries NSF certification for sanitation.

Specifications

Manufacturer Krowne
Series Royal Series Underbar
Model # KR19-M42R-10
Overall Dimensions 42" W × 19" D × 36 ½" H (42" H to top of backsplash)
Ice Bin 30" W × 12" D, 92 lb capacity, 1" IPS drain
Bottle Well 12" W insulated section, 1" NPS drain, holds 6 bottles
Cold Plate Cast aluminum, 10 circuits, 5/16" OD stainless tubing
Drain Connections 1" IPS (ice bin) • 1/2" IPS tailpiece (cold plate) • 1" NPS (bottle well)
Construction 20-ga stainless top/front/sides; 20-ga galvanized back & bottom
Legs / Feet 1 ⅝" stainless legs with adjustable thermoplastic bullet feet
Insulation Foamed-in-place polyurethane
Certifications NSF

Popular Accessories (sold separately)

  • Single or double speed rails (RS-42 / RD-42)
  • 15" deep ice bin liner for 25 % more capacity (KR-502)
  • Wire bottle racks (KR-421)
  • Side splashes (KR-310 / KR-311)
  • Sliding ice bin covers – partial (SC30H) or full (SC30F)
  • Towel ring, cap catcher, ice bin faucet and more
Installation Note: Use the included 1/2" × 6" PVC tailpiece on cold-plate drains to prevent condensation caused by metal-to-metal contact.

Photographs may show optional accessories. Specifications are subject to change without notice.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

42.0in

Depth

19.0in

Shipping Weight

185.0lbs

Components (left to right)

bottle well, ice bin

Bin Depth

12" deep ice bin

Ice Capacity (approximate)

90 lbs.

Construction

stainless steel

Cold Plate

(10) circuit

Width (side - side) OA

37" - 42"

Splash

6"

Bottle Capacity

(6)

Depth (front - back) OA

18" - 19"

Specifications

Royal Series Underbar Combination Ice Bin, ice bin with bottle well, 42"W x 19"D O.A., built-in 10-circuit cold plate, 30"W ice bin on right, 92 lbs. capacity, (1) 12"W insulated bottle storage unit on left, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
