Krowne KR19-M42L-10 Royal Series Bar Equipment
Description

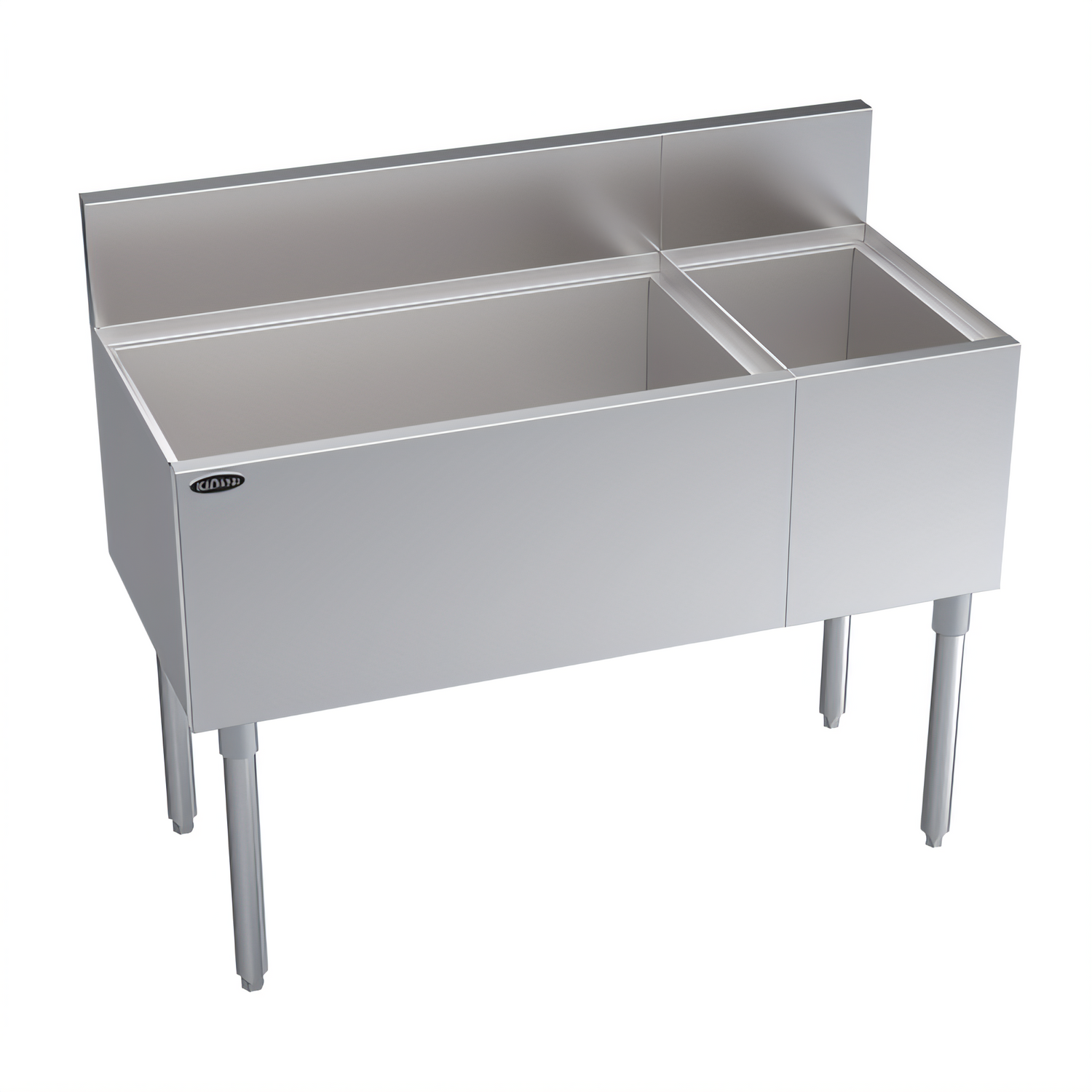

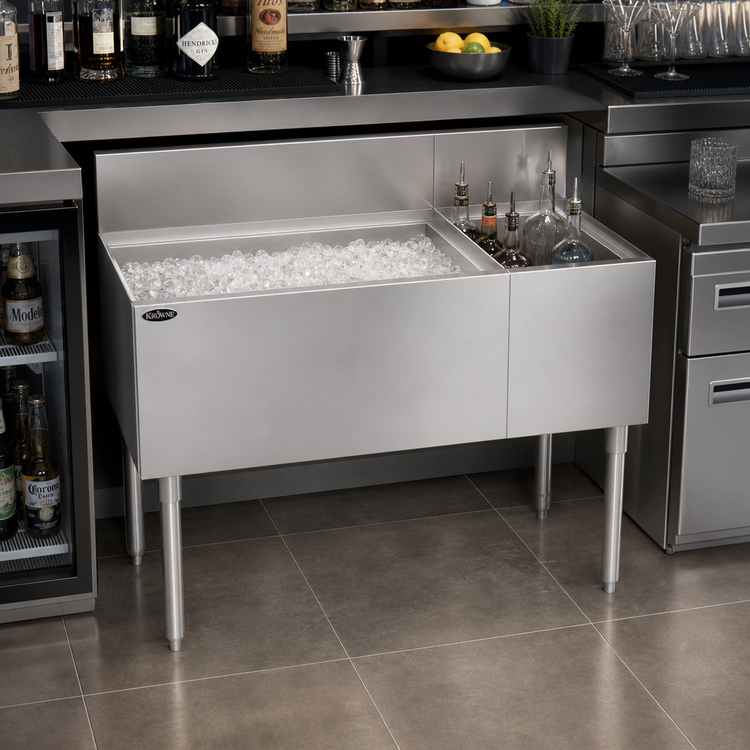

Krowne Royal Series 42" Combination Ice Bin + Bottle Storage with 10-Circuit Cold Plate
Model KR19-M42L-10 • NSF ListedBuild faster, cleaner cocktail service with this all-in-one underbar station. A high-capacity left-side ice bin, insulated right-side bottle well, and built-in 10-circuit cold plate give bartenders everything they need within easy reach while keeping your beverage lines perfectly chilled from keg to glass.
Key Features

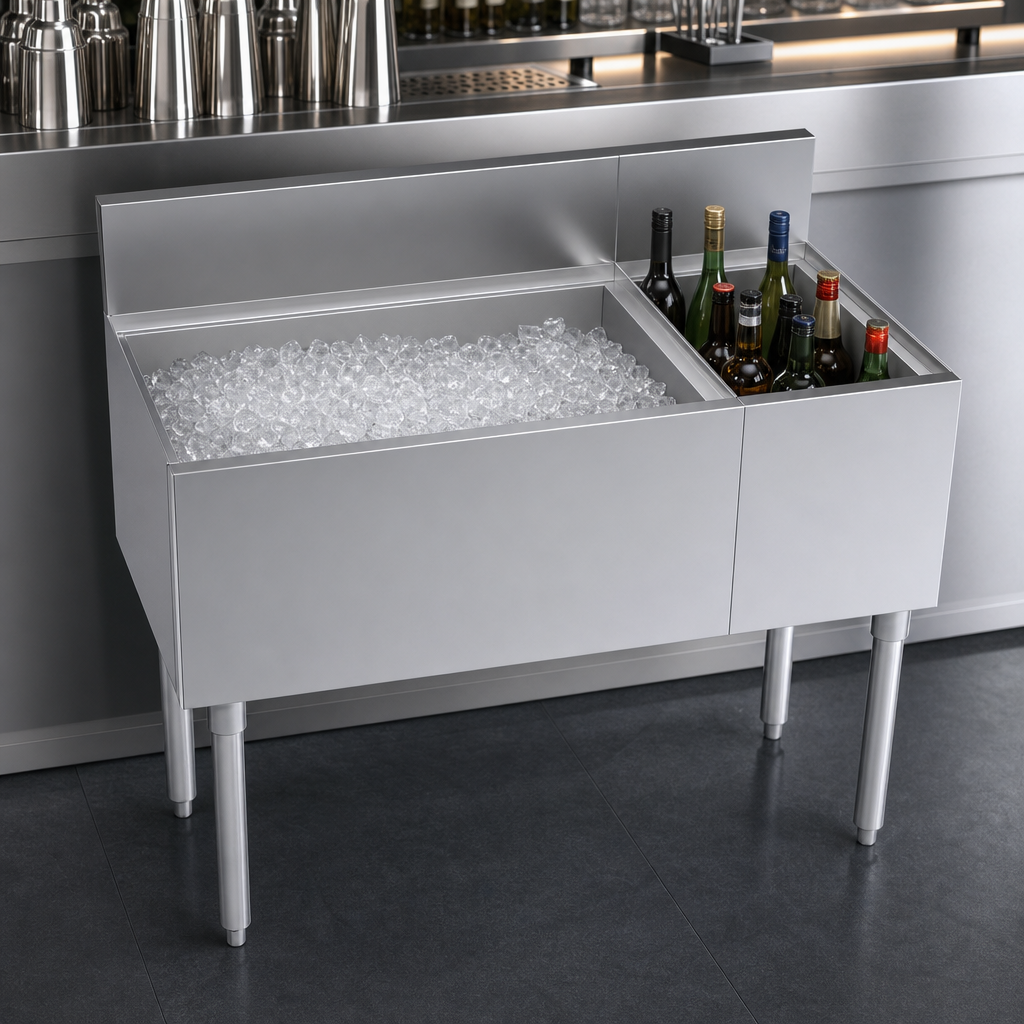

- 30" wide, 12" deep ice bin holds 92 lb. of fresh ice.

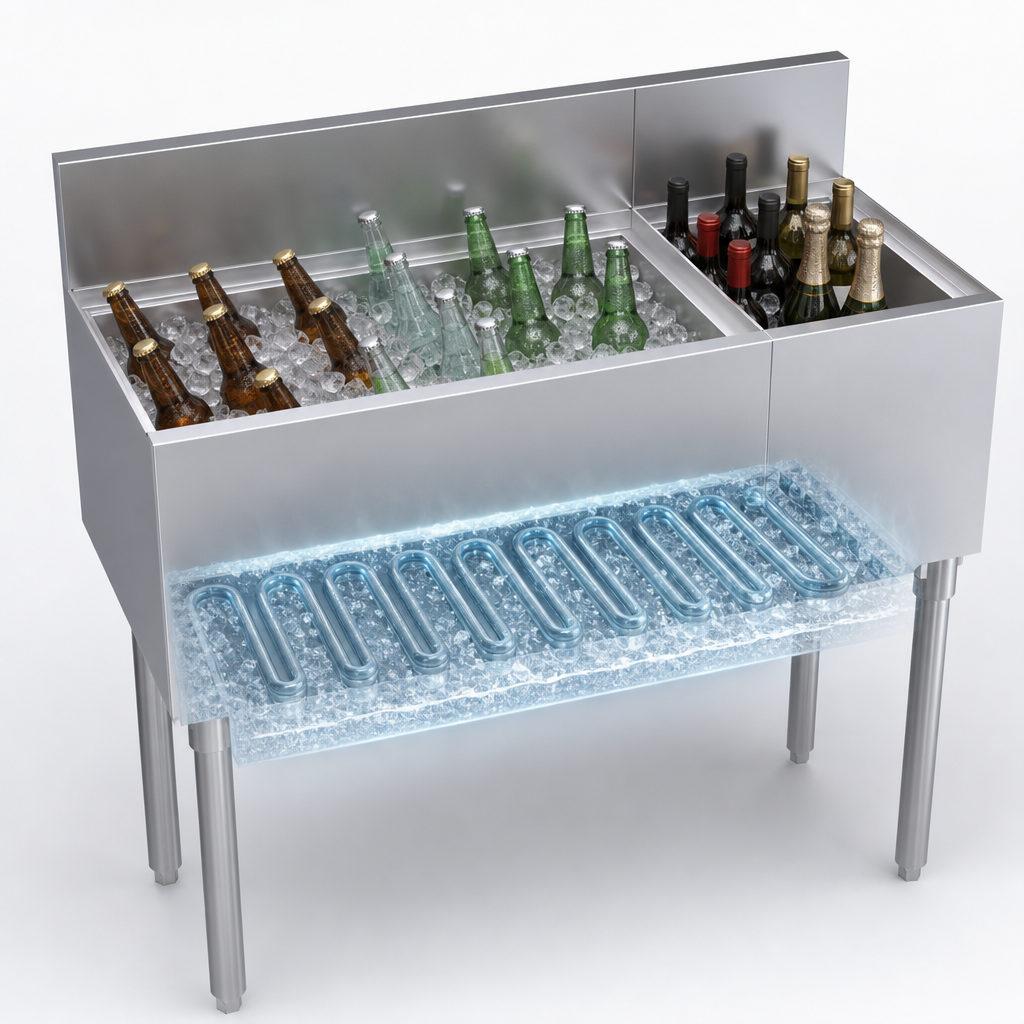

- Integrated 10-circuit cast-aluminum cold plate with 5/16" O.D. stainless tubing—ideal for post-mix soda and cocktail lines.
- 12" wide insulated bottle storage compartment keeps up to 6 mixers, juices, or syrups ice-cold.
- Rear soda-line access cut-out simplifies installations and prevents pinched lines.
- Stainless steel top, front, and side panels for a professional look and lasting corrosion resistance.
- 1-5/8" heavy-duty stainless steel legs with adjustable grey thermoplastic bullet feet for quick, level setup.
- Foamed-in-place polyurethane insulation maximizes ice retention and energy efficiency.
- Ships as a complete, ready-to-install station—including 1/2" x 6" PVC tailpiece to eliminate metal-to-metal condensation.
At-a-Glance Specifications
| Overall Width | 42" (1067 mm) |
|---|---|
| Depth | 19" (483 mm) |
| Deck Height | 30" (762 mm) |
| Overall Height (to top of backsplash) | 36 1/2" (927 mm) |
| Ice Capacity | 92 lb. / 41.7 kg |
| Bottle Well Capacity | 6 standard liquor or mixer bottles |
| Cold Plate | 10 circuits (cast aluminum, post-mix) |
| Interior Bin Depth | 12" ice section • 10" bottle section |
| Drains |
1" IPS ice-bin drain 1/2" IPS cold-plate drain 1" NPS bottle-well drain |
| Construction | 20-ga. stainless (top/front/sides) • 20-ga. galvanized back & bottom |
| Shipping Weight | 185 lb. (84 kg) |
| Certifications | NSF |
Perfect For
- High-volume bars requiring rapid cocktail service
- Restaurants upgrading to dedicated soda gun systems
- Event venues and hotels seeking a compact, all-in-one ice & beverage station
Popular Accessories (Sold Separately)
- KR-421 Wire bottle racks for easy product organization
- KR-502 15" deep liner—adds 25% more ice capacity
- SC30H / SC30F partial or full sliding ice-bin covers
- RS-42 single or RD-42 double speed rails
Need a mirrored layout, extra side-splashes, or a built-in speed rail? Contact us—custom Royal Series configurations are available to fit any bar design.
