Krowne KR19-M36R-10 Royal Series Bar Equipment
Description

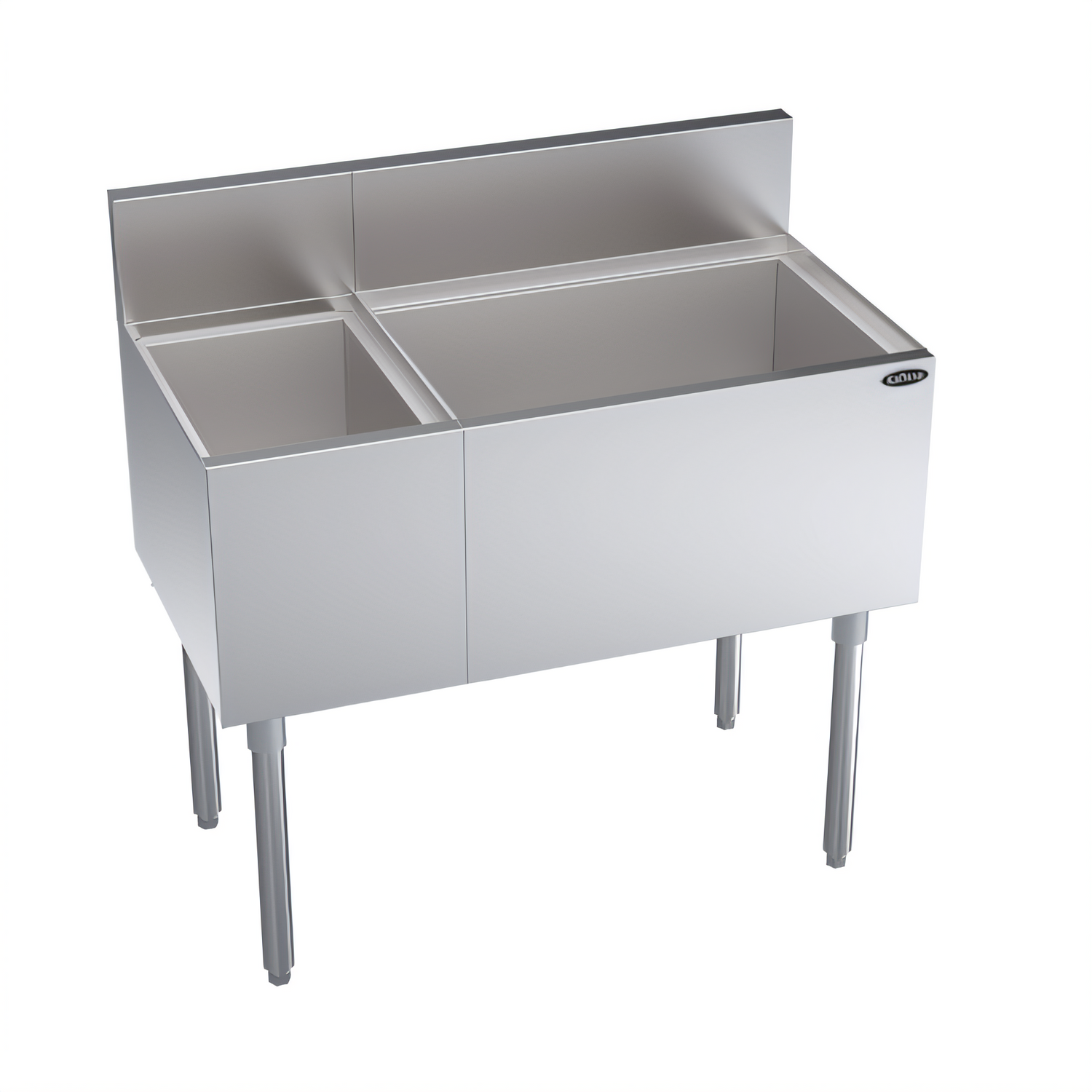

Krowne Royal Series 36" Underbar Combination Ice Bin with 10-Circuit Cold Plate
Model KR19-M36L-10 • NSF ListedEngineered for high-volume beverage programs, the Royal Series KR19-M36L-10 combines a high-capacity ice bin with insulated bottle storage and an integrated 10-circuit cold plate—all in a compact, 36" station that keeps bartenders moving fast and drinks ice-cold.
Why It Belongs Behind Your Bar

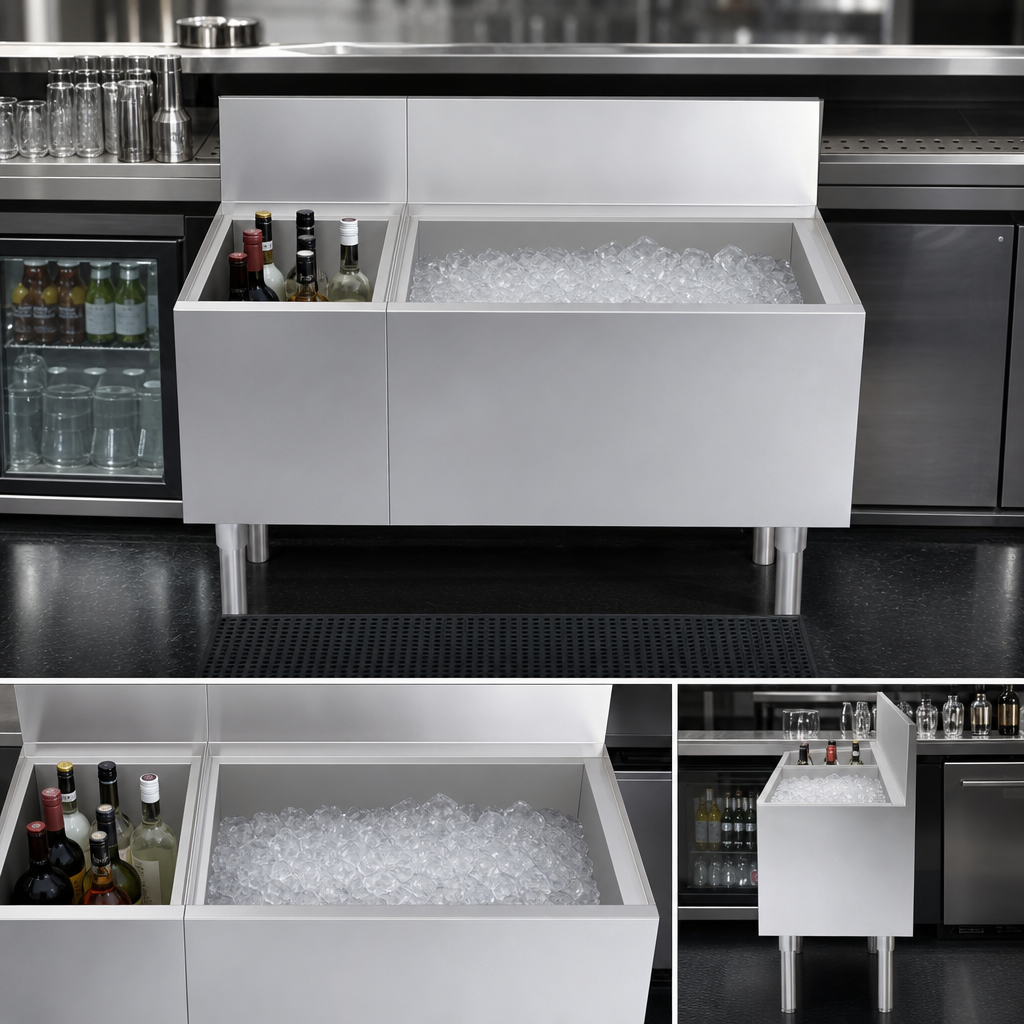

- One-stop cold station – 24" wide ice bin (74 lb capacity) on the right plus a 12" insulated bottle well on the left for up to 6 bottles.
- Built-in 10-circuit cold plate – Cast-aluminum post-mix plate chills soda lines directly in the ice, delivering consistent pour temperatures.
- All stainless where it counts – 20-gauge stainless steel top, front, and sides withstand daily bar abuse and simplify wipe-downs.
- Foamed-in-place insulation – Maximizes ice retention while controlling condensation.
- Rapid installation – Includes 1/2" × 6" PVC tailpiece, 1" NPS bottle-well drain, and dedicated 1/2" IPS cold-plate drain.
- Adjust-on-the-fly legs – 1-5/8" stainless tubular legs with thermoplastic bullet feet level quickly on uneven floors.
- Ships as a complete station – Arrives fully assembled so you can drop it in, hook it up, and start serving.
Specifications
| Overall Dimensions (W × D × H) | 36" W × 19" D × 36 1⁄2" H (to work surface) |
|---|---|
| Ice Bin Location & Size | Right side, 24" W × 12" D × 12" H |
| Ice Capacity | 74 lbs |
| Bottle Storage | Left side, 12" insulated well • Holds 6 bottles |
| Cold Plate | Cast aluminum, 10 post-mix circuits, 5/16" OD stainless tubing |
| Drain Connections |
1" NPS (bottle well) • 1" IPS (ice bin) • 1/2" IPS (cold plate) Includes 1/2" × 6" PVC tailpiece |
| Construction | 20-ga stainless steel interior, top, front & sides; 20-ga galvanized back & bottom |
| Legs / Feet | 1 5⁄8" Ø stainless legs with adjustable thermoplastic bullet feet |
| Unit Weight | 172 lbs (shipping) |
| Certifications | NSF |
Recommended Accessories

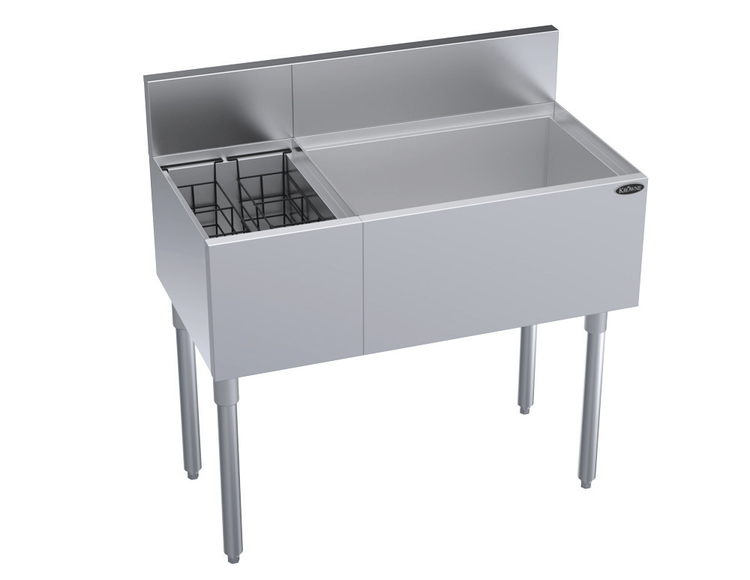

- Wire Racks for bottle well – Model KR-421
- 15" deep liner increases ice capacity by 25% – Model KR-502
- Single or double speed rails for spirits – Models RS-36 / RD-36
- Cap catcher & opener – Model KR-401
- End side splashes to control spills – Models KR-303 / KR-310 / KR-311
Cold-plate units must be connected with the supplied PVC tailpiece to prevent condensation. Always follow local plumbing codes during installation.
