Description

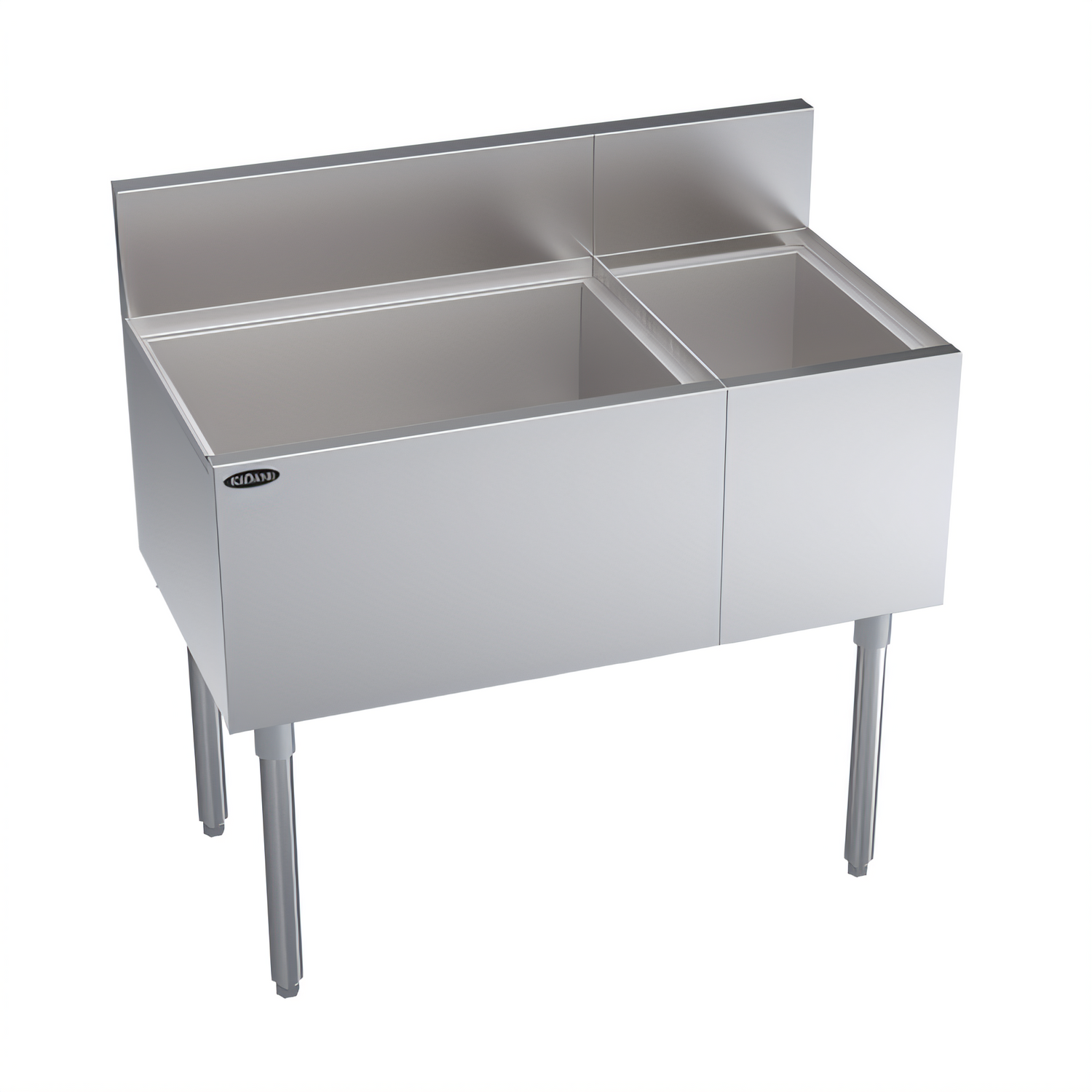

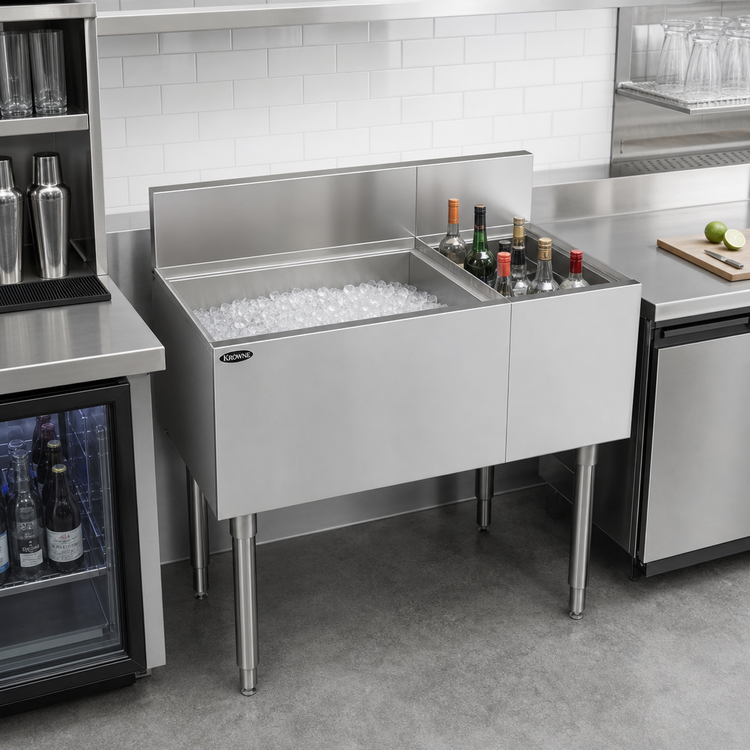

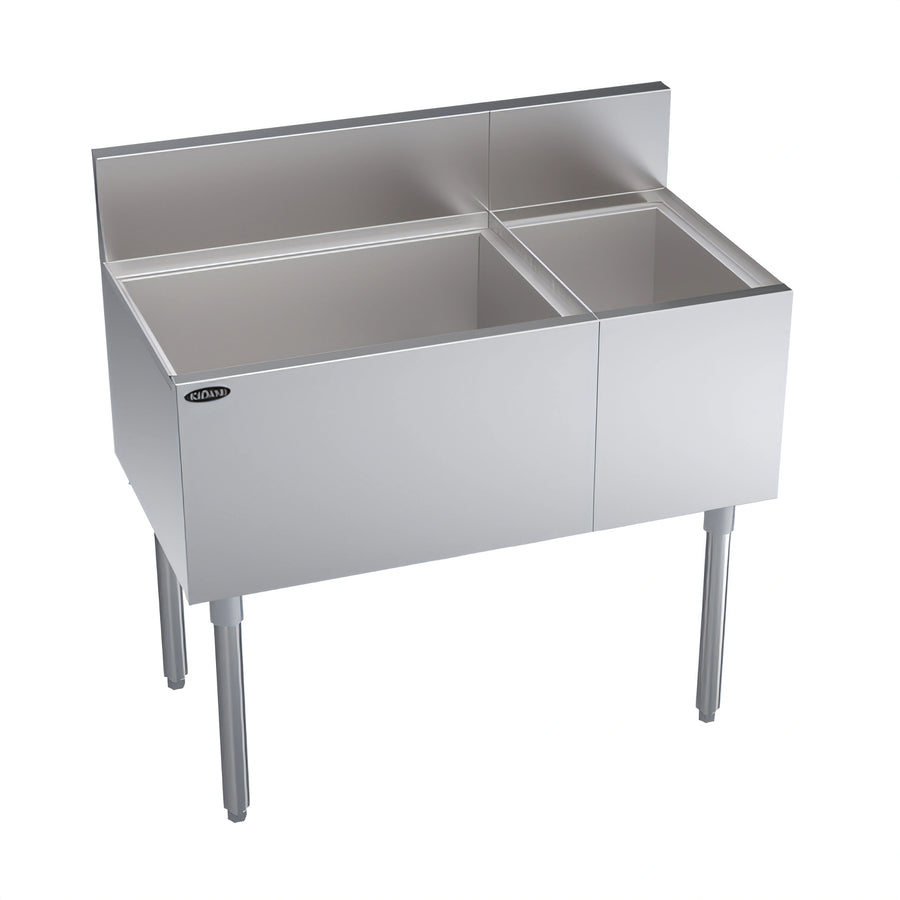

Krowne Royal Series 36" Combination Ice Bin with 12" Bottle Storage – Left Ice Bin (KR19-M36L)

Compact underbar station • 74 lb ice capacity • NSF listed

Boost speed of service and keep every cocktail ingredient at arm’s reach. The KR19-M36L merges a high-capacity ice bin with an insulated bottle well, all in a rugged, stainless steel package built for demanding bar environments.

Key Features

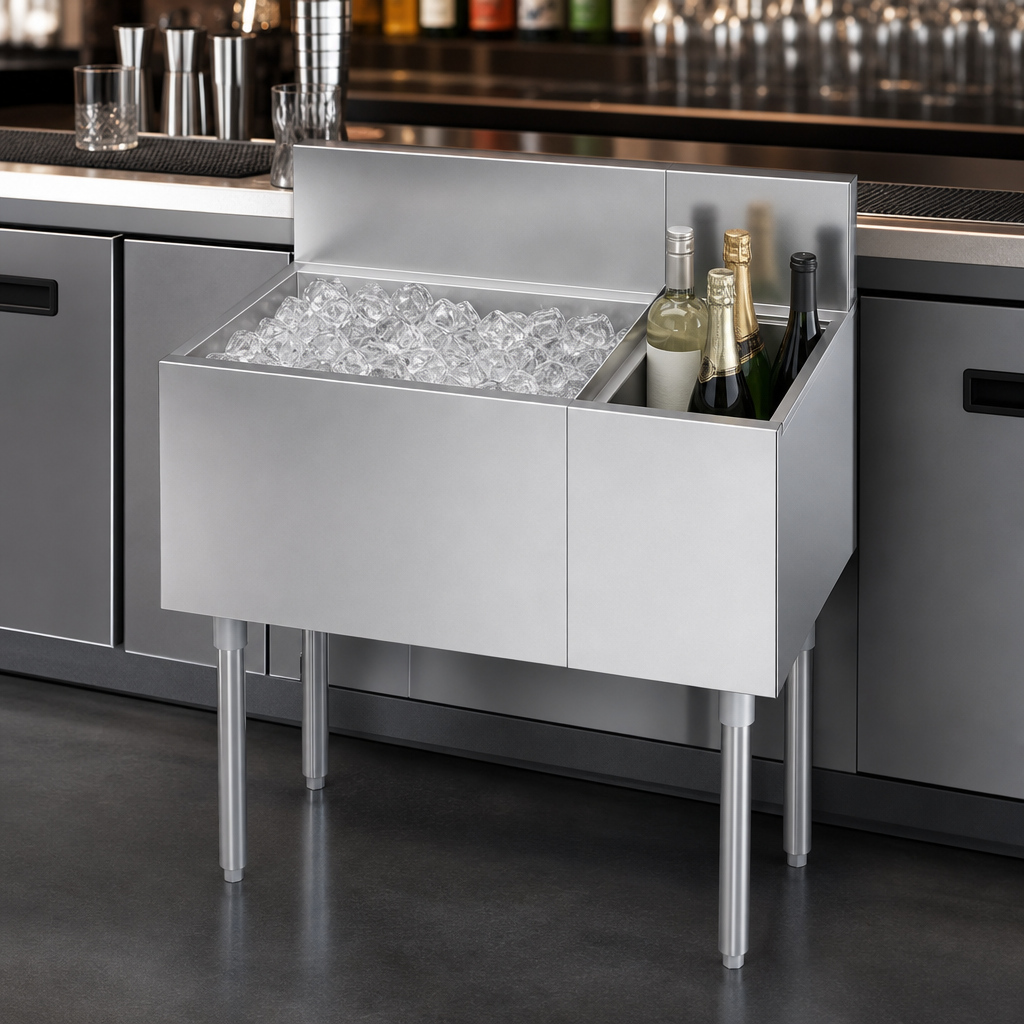

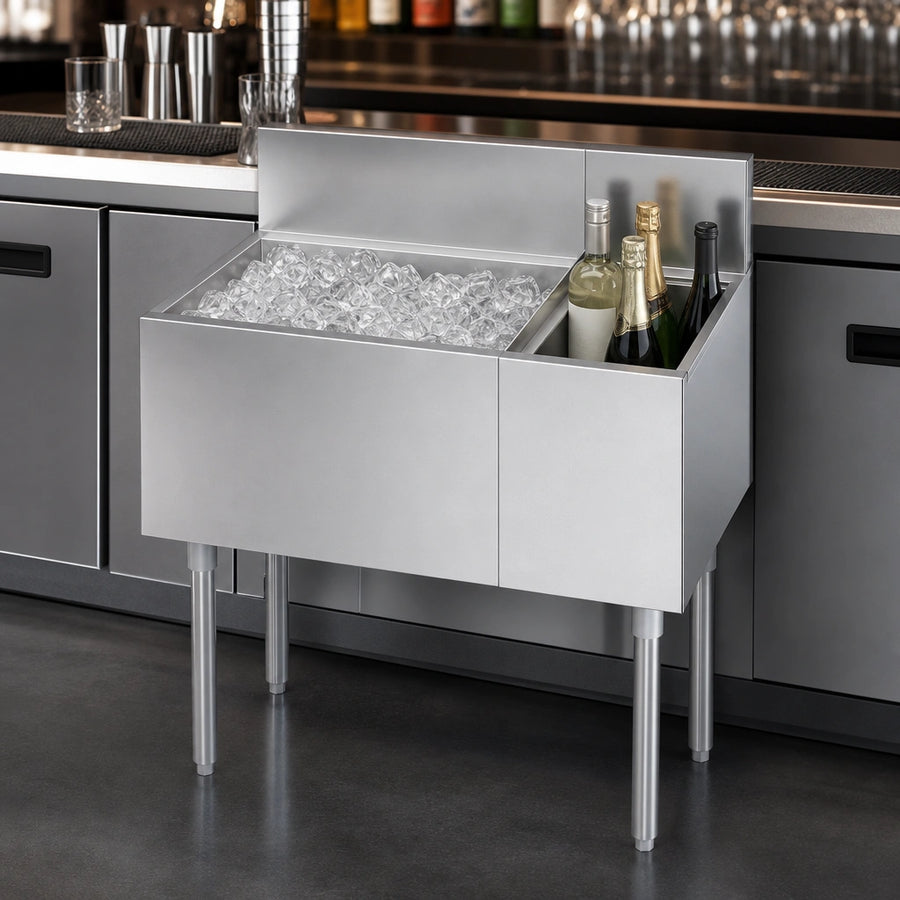

  • 24" wide, 12" deep foamed-in-place ice bin (left side) holds up to 74 lb of ice.

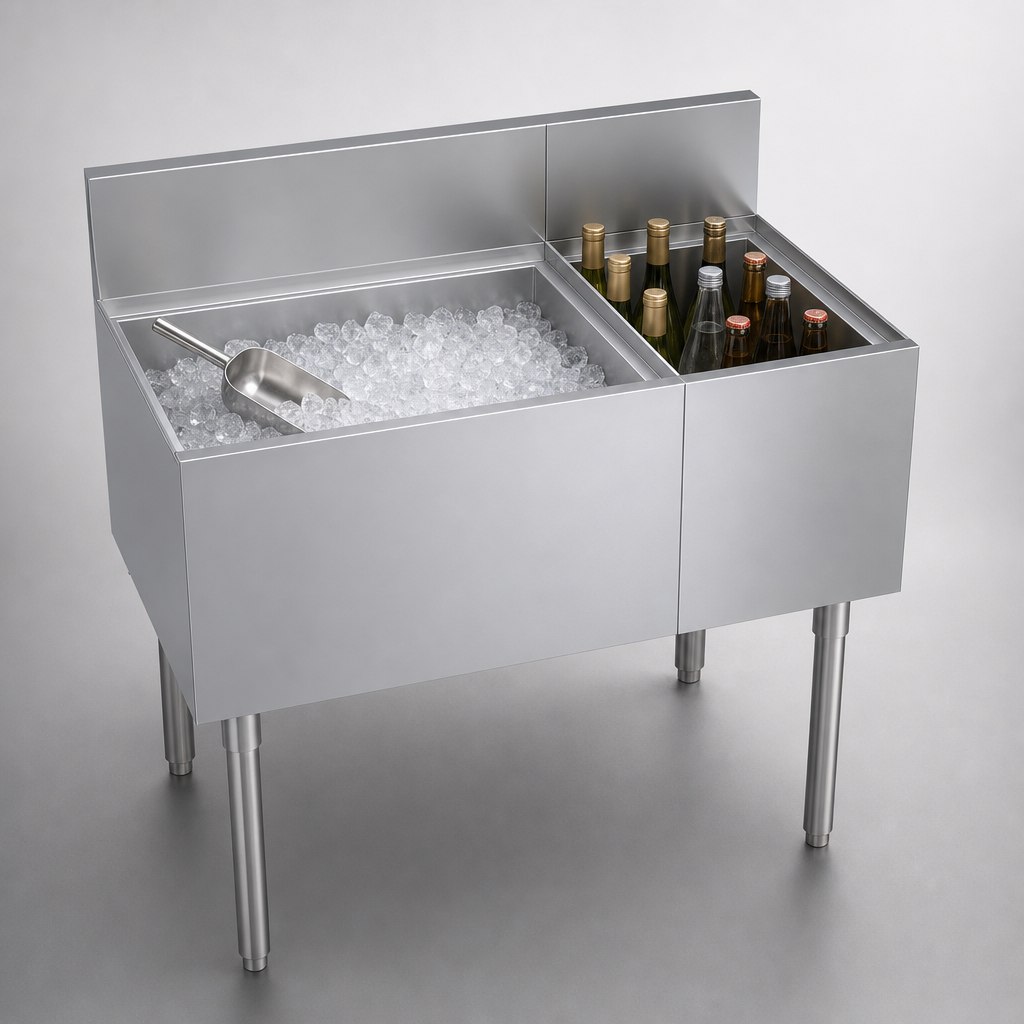

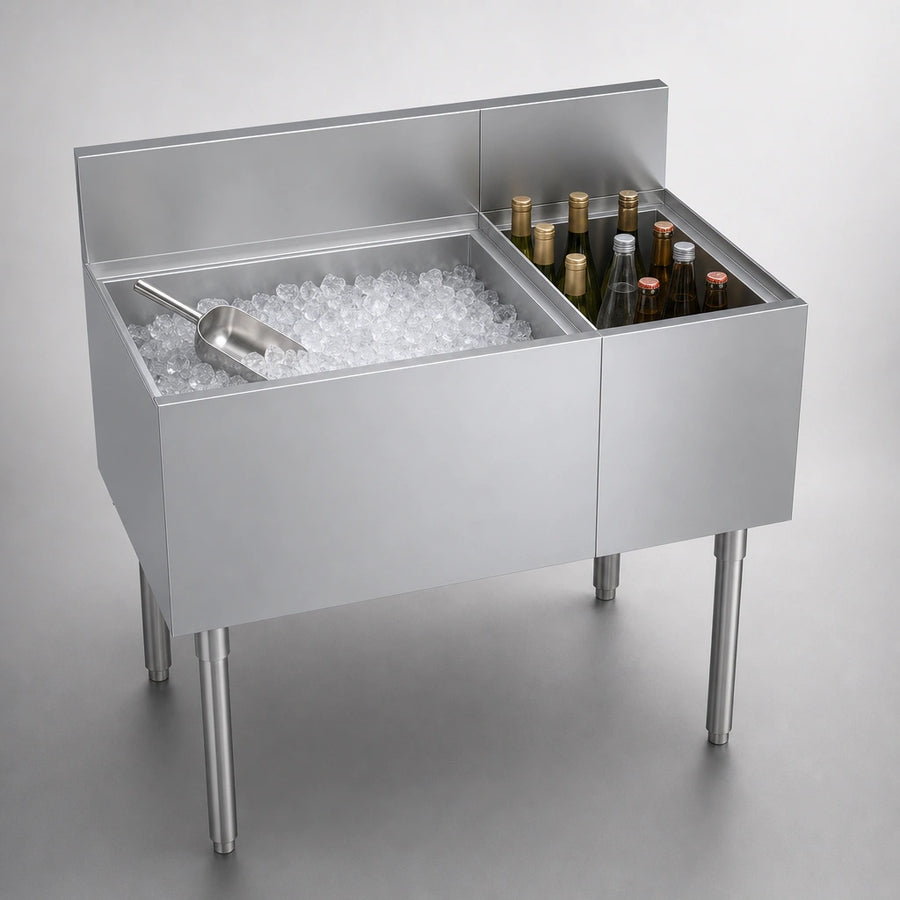

  • 12" wide insulated bottle well (right side) stores up to 6 bottles of mixers or juices.
  • 20 ga. stainless steel top, front, sides & interior for superior corrosion resistance.
  • 6 ½" high backsplash helps contain splashes and protects surrounding walls.
  • 1" IPS ice-bin drain & 1" NPS bottle-well drain for fast, clog-free melt-water removal.
  • (4) 1 ⅝" stainless steel legs with adjustable grey thermoplastic bullet feet level the unit on uneven floors.
  • Ships fully assembled and ready to drop into any underbar lineup.
  • NSF certified for safe, sanitary operation.

Popular Options & Accessories (sold separately)

  • 10-circuit cold plate factory install (model KR19-M36L-10).
  • Single or double speed rails (RS-36 / RD-36).
  • 15" deep liner upgrade for +25 % ice capacity (KR-502).
  • Wire bottle racks (KR-421), towel ring (KR-501) and sliding covers (SCXXH/F) for improved ice protection.

Specifications

Model KR19-M36L
Overall Dimensions (W × D) 36" × 19"
Ice Bin Width 24"
Bottle Well Width 12"
Ice Bin Depth (vertical) 12"
Bottle Well Depth (vertical) 10"
Ice Capacity 74 lb
Bottle Capacity 6 bottles
Drain Connections 1" IPS (ice)  |  1" NPS (bottle)
Construction 20 ga. stainless steel top, sides, interior & backsplash; front apron clad over galvanized steel; galvanized back & bottom
Legs / Feet (4) 1 ⅝" stainless steel tubular legs with adjustable thermoplastic bullet feet
Ship Weight Approx. 95 lb
Certifications NSF

Looking for a cold-plate version or custom accessories? Contact us for help configuring the perfect Krowne underbar station for your operation.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

36.0in

Depth

19.0in

Shipping Weight

95.0lbs

Cold Plate

without

Splash

6"

Construction

stainless steel

Width (side - side) OA

31" - 36"

Ice Capacity (approximate)

75 lbs.

Bottle Capacity

(6)

Components (left to right)

ice bin, bottle well

Depth (front - back) OA

18" - 19"

Bin Depth

12" deep ice bin

Specifications

Royal Series Underbar Combination Ice Bin, ice bin with bottle well, 36"W x 19"D O.A., 24"W ice bin on left, 74 lbs. capacity, (1) 12"W insulated bottle storage unit on right, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
