Krowne

Krowne Royal Series 36-Inch Underbar Combination Ice Bin with Left 24-Inch Ice Bin, Right 12-Inch Bottle Storage, and 10-Circuit Cold Plate

SKU: KR19-M36L-10
GTIN: 822196906702
$4,011.70
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Krowne New Arrivals Restaurant Equipment Underbar Equipment

Krowne Royal Series 36-Inch Underbar Combination Ice Bin with Left 24-Inch Ice Bin, Right 12-Inch Bottle Storage, and 10-Circuit Cold Plate

36" W x 19" D O.A. | 74-lb Ice Capacity | 6-Bottle Storage

This compact underbar station pairs a 74-lb left-side ice bin with insulated bottle storage and a built-in 10-circuit cold plate to streamline bar service.

  • 36-inch overall width and 19-inch overall depth fit underbar beverage stations.
  • Left-side 24-inch ice bin holds approximately 74 lbs. of ice.
  • Right-side 12-inch insulated bottle storage keeps up to 6 bottles organized and chilled.
  • Built-in 10-circuit cold plate helps keep beverage lines cold at the point of service.
  • Stainless steel construction is built for demanding bar use.
  • Foamed-in-place insulation, adjustable bullet feet, and complete-station shipment simplify installation.

Overall Dimensions:

36.0"W x 19.0"D x 36.5"H

Product Weight:

172.0 lb

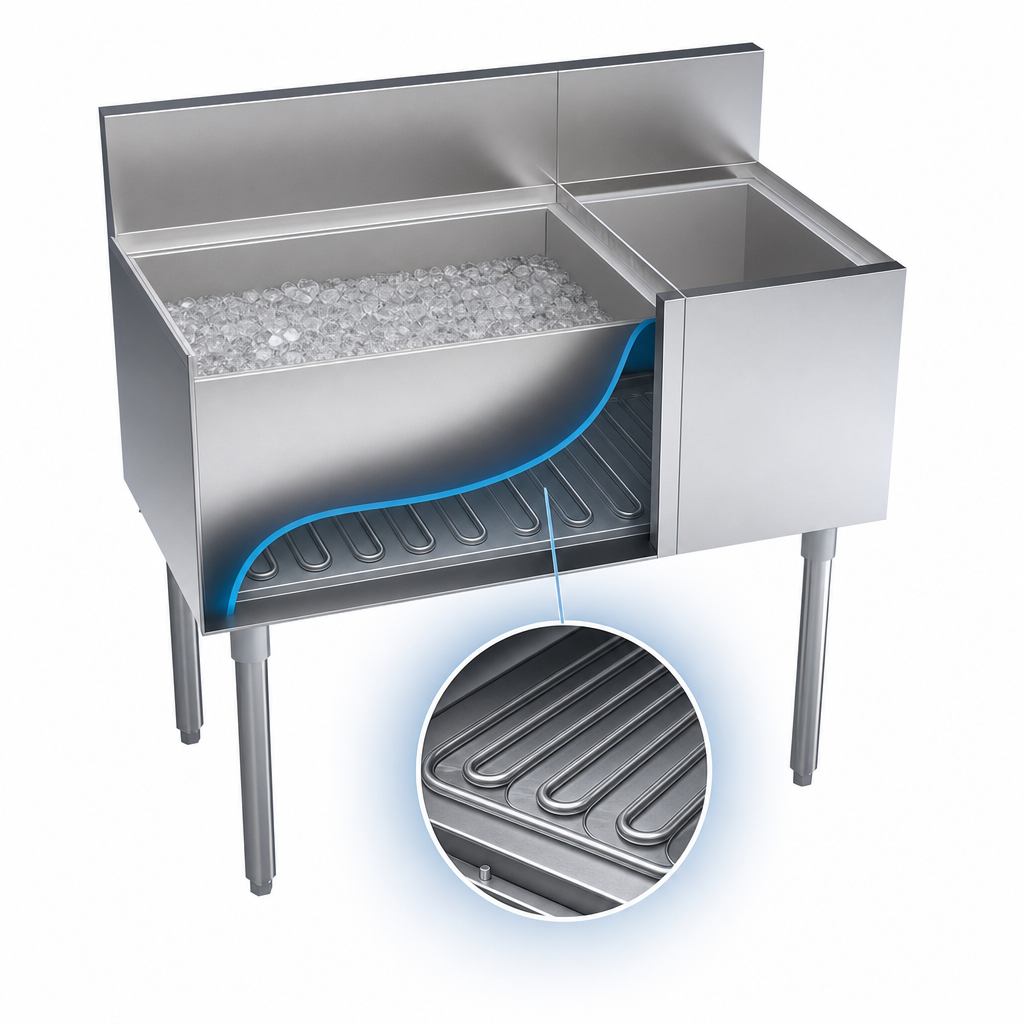

Built-In 10-Circuit Cold Plate

Cast aluminum post-mix plate is sealed into the bottom to help keep beverage lines cold.

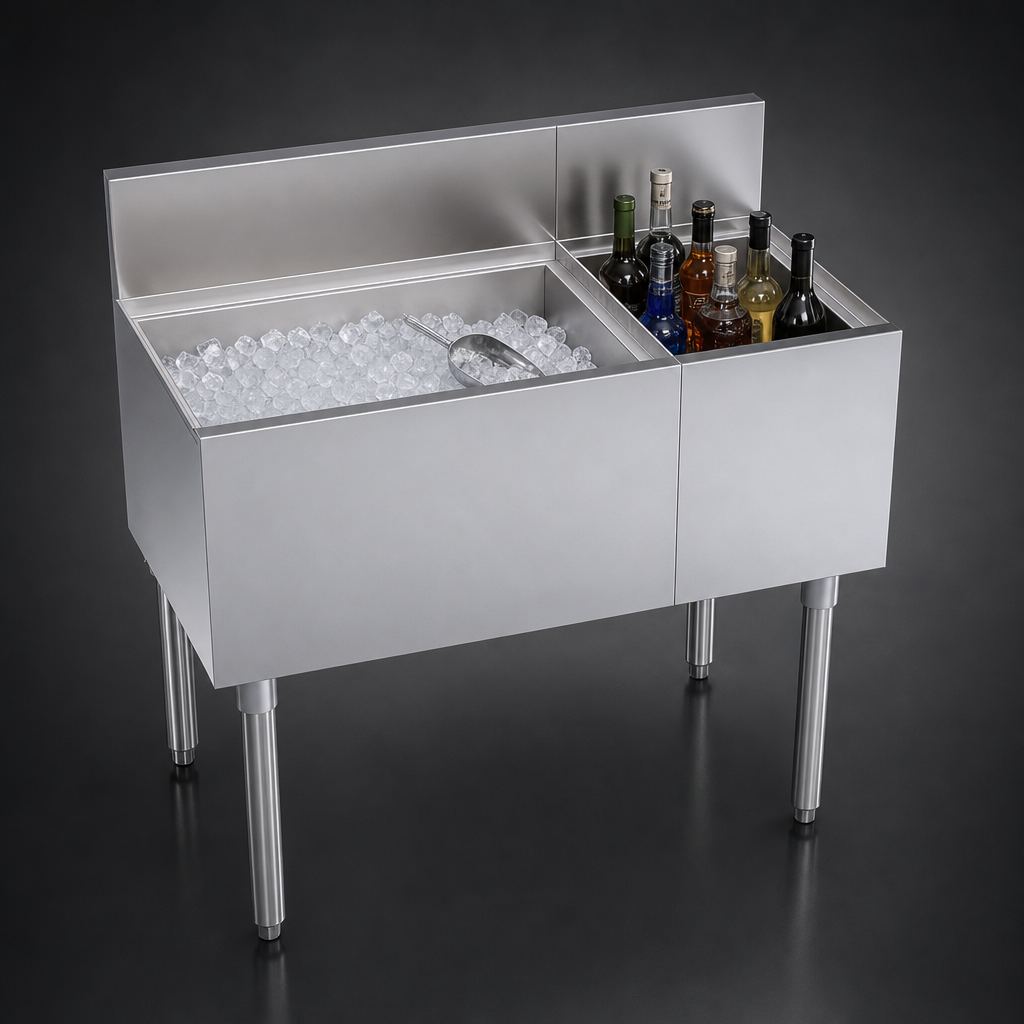

Left Ice Bin / Right Bottle Storage Layout

This model uses a 24-inch ice bin on the left and a 12-inch insulated bottle storage section on the right.

74-Lb Ice Capacity

Sized for fast bar service while keeping ice close to the pour station.

Bottle Storage Capacity

The insulated bottle section stores 6 bottles.

Stainless Steel Construction

Stainless steel top, front, sides, apron, and backsplash are paired with galvanized steel back and bottom for durability.

Foamed-In-Place Polyurethane Insulation

Helps retain ice and stabilize temperatures.

Adjustable Thermoplastic Bullet Feet

Helps level the unit on uneven floors.

Complete Station Shipment

Ships as a complete station for easier setup.

Drain And Line Access

Cold plate units include a rear soda line access cutout and cold plate drain provisions.

Type Combination Ice Bin with Bottle Storage
Style Underbar
Installation Type Undercounter
Compartments 2
Capacity 74 lbs.
Bottle Capacity 6 Bottles
Cold Plate 10-Circuit
Backsplash 6-1/2 Inches
Material Stainless Steel
Shipping Width 36 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 172 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Yes. It includes a built-in 10-circuit cold plate sealed into the bottom.
This model has an approximate ice capacity of 74 lbs.
The insulated bottle storage section holds 6 bottles.
The document lists a 1" NPS drain for the bottle section, a 1" IPS drain for the ice bin, and a 1/2" IPS drain for the ice bin with cold plate.
The unit uses stainless steel on the top, front, sides, apron, and backsplash, with galvanized steel back and bottom and foamed-in-place polyurethane insulation.
Optional items include dividers, side splashes, cap catcher and opener, faucet installation over the ice bin, wire racks, towel ring, sliding covers, speed rails, and a 15" deep liner.
