Krowne KR19-C48R Royal Series Bar Equipment
Description

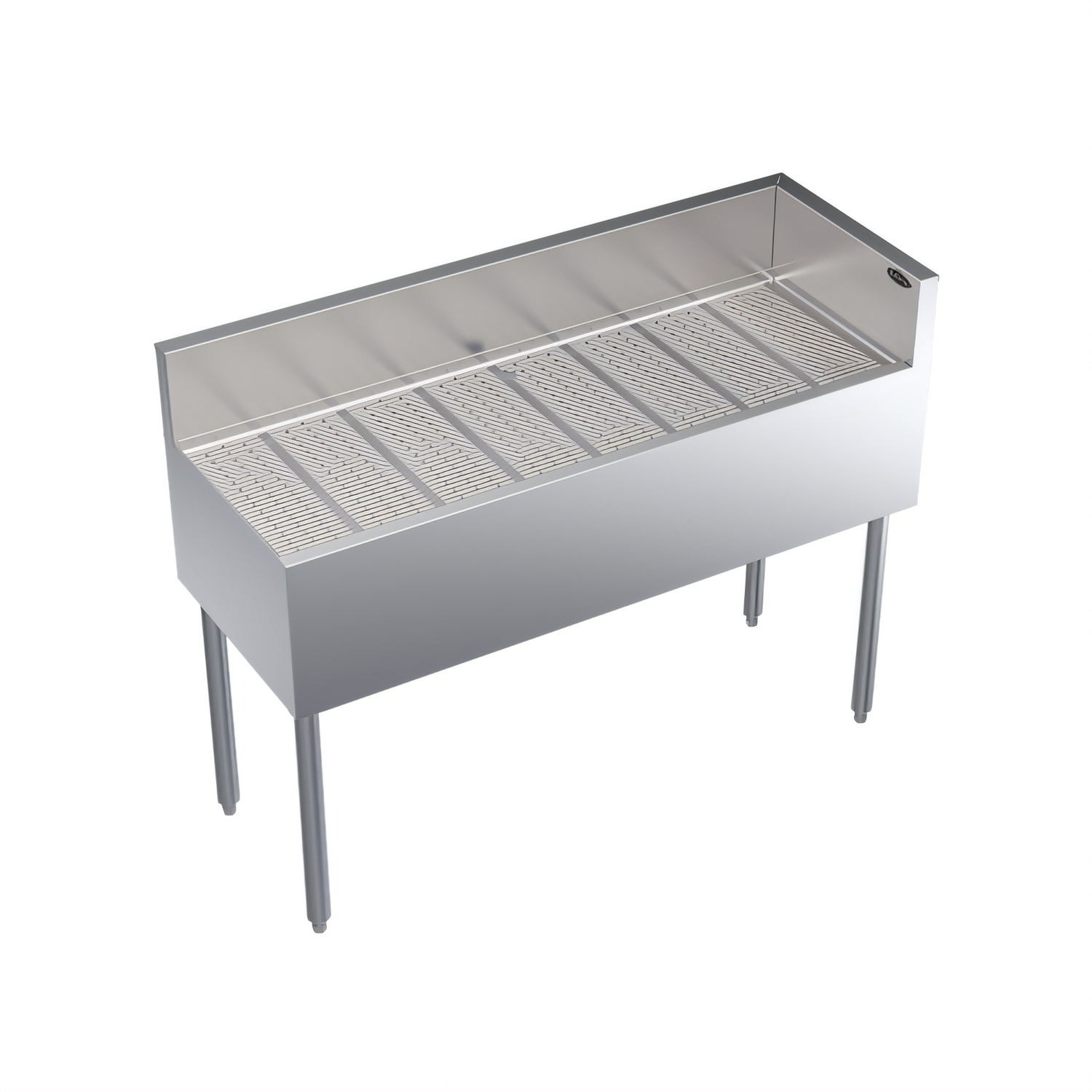

Krowne Royal Series 48" Corner Drainboard – Right End Return
Model KR19-C48R | 19" Deep Free-Standing Underbar DrainboardMaximize underbar efficiency and keep glassware moving with Krowne’s Royal Series 48" corner drainboard. Engineered for heavy everyday use, this NSF Certified unit delivers a spacious embossed work surface, rugged all-stainless construction and a convenient right-hand return that transitions cleanly into the adjoining bar run.
Why You’ll Love It
- Built to last: 20 gauge stainless steel top, sides, front apron, backsplash, back and bottom panels.
- Embossed drainboard: Reinforced every 6" with welded braces for reliable support and faster drying.
- Smooth edges: ¾" radius on all vertical & horizontal edges reduces glassware chipping.
- Right end return: Perfect for turning the end of a bar line into a functional corner without dead space.
- Fast drainage: Integrated 1" IPS drain connection keeps liquids moving to the floor sink.
- Rock-solid stance: 1 5/8"-dia. 16 gauge stainless legs with adjustable thermoplastic bullet feet.
- NSF Standard 2 compliant: Approved for open-food & bar applications.
Technical Specs
| Overall Width | 48" (1219 mm) |
|---|---|
| Overall Depth | 19" (483 mm) |
| Height (H.O.A.) | 36 1/2" (927 mm) |
| Return Orientation | Right End |
| Drainboard Material | Embossed 20 ga. Stainless Steel |
| Drain Outlet | 1" IPS Connection |
| Legs / Feet | (4) 1 5/8" Ø 16 ga. Stainless Legs Adjustable Thermoplastic Bullet Feet |
| Net Weight | Approx. 71 lb. (32 kg) |
| Certifications | NSF Standard 2 |
Popular Accessories (sold separately)
- KR-201 – 4" × 4" Chase for Beer / Soda Lines
- KR-204 – 3 ½" Round Cutout for Soda / Beer Lines
- RS-“XX” – Sound-Deadened Single Speed Rail (specify length)
- RD-“XX” – Sound-Deadened Double Speed Rail (specify length)
- KR-401 – Cap Catcher with Bottle Opener
Krowne Metal Corporation continually improves products. Specifications subject to change without notice.
