Krowne KR19-C48L Royal Series Bar Equipment
Description

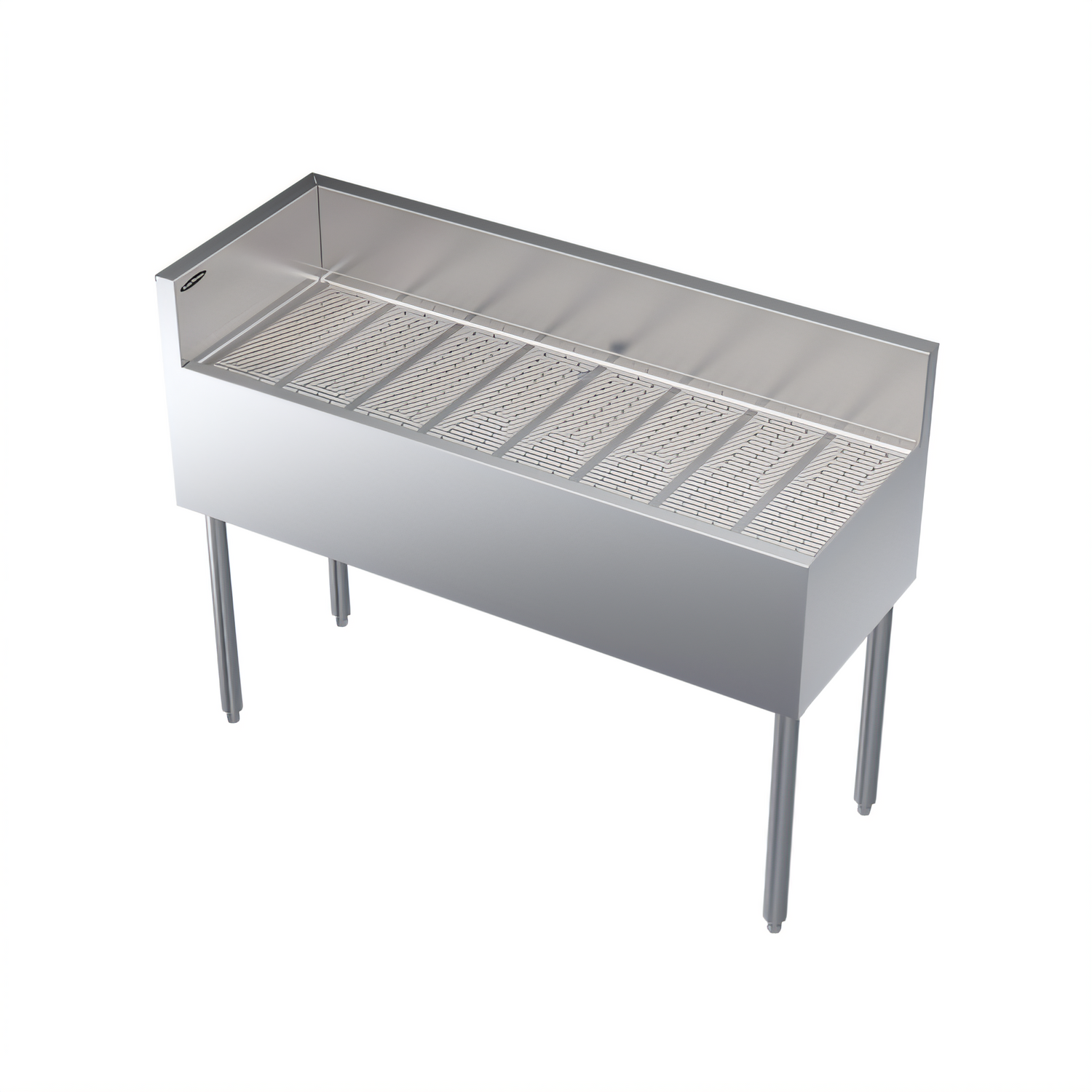

Royal Series 48" Left-Return Corner Drainboard
Model KR19-C48R • NSF CertifiedTurn an unused bar corner into a high-capacity work zone with Krowne’s Royal Series 48" corner drainboard. Built entirely from 20-gauge stainless steel and reinforced every 6 inches, this freestanding unit delivers rock-solid durability, effortless clean-up, and the professional look today’s venues demand.
Key Features
- Left-hand 90° return integrates seamlessly with adjacent underbar equipment.
- Embossed 20-ga. stainless steel drainboard surface with ¾" radius edges—gentle on glassware, easy to wipe down.
- 1" IPS drain connection for fast, unrestricted water removal.
- Stainless steel front, sides, backsplash, and apron resist corrosion and everyday abuse.
- 1 ⅝" O.D. 16-ga. stainless steel legs with adjustable grey thermoplastic bullet feet for rock-steady leveling.
- Freestanding design—no additional support framing required.
- NSF/ANSI Standard 2 listed for food-zone safety and sanitation.
Dimensions & Specifications
| Overall Width | 48" (1219 mm) |
|---|---|
| Overall Depth | 19" (483 mm) |
| Height (H.O.A.) | 36 ½" (927 mm) |

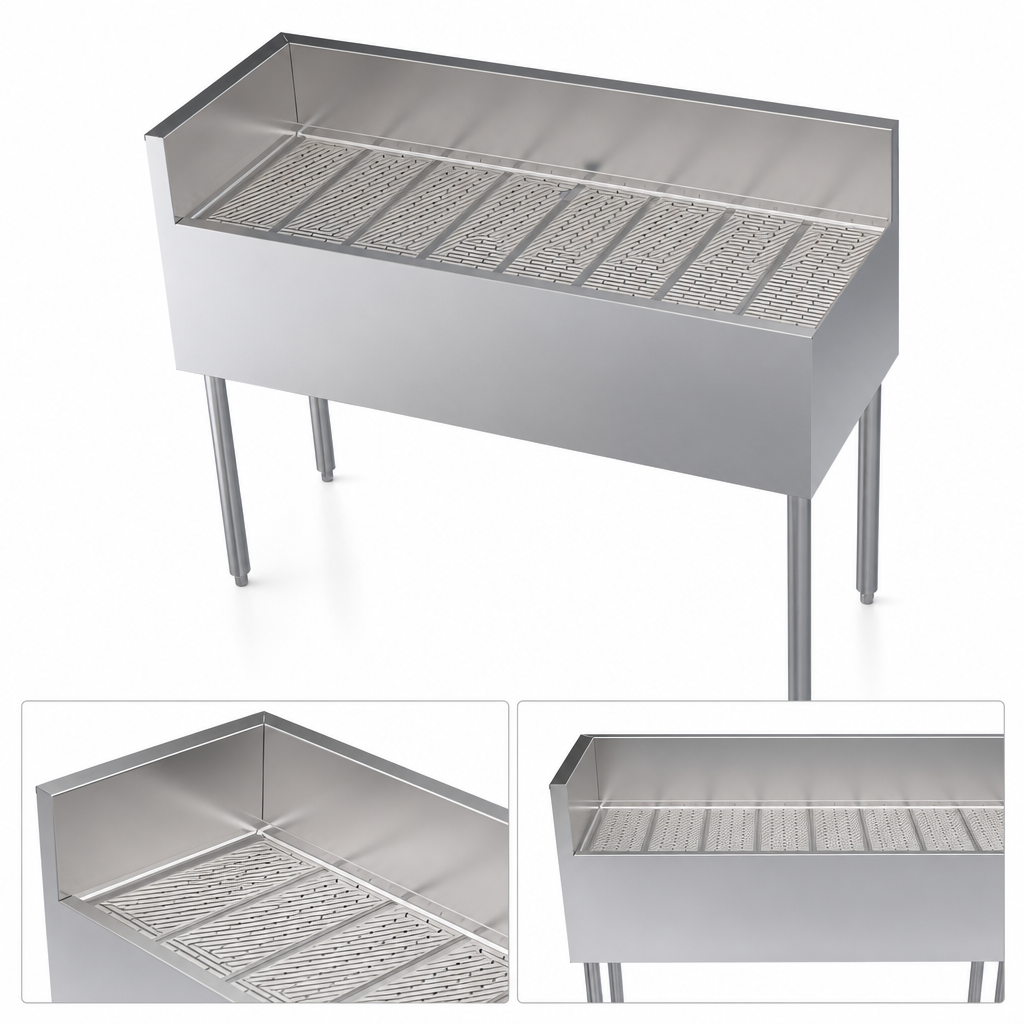

| Return Orientation | Left end return (corner) |
| Drain Connection | 1" IPS |
| Shipping Weight | ≈ 71 lb |
| Work Surface | Embossed 20-ga. stainless steel, reinforced every 6" |
| Legs / Feet | 1 ⅝" O.D. 16-ga. stainless steel legs with adjustable thermoplastic bullet feet |
| Series | Krowne Royal Series |
| Certification | NSF Std. 2 |
Popular Accessories (sold separately)
- KR-201 – 4" × 4" chase for beer/soda lines
- KR-203 – ¾" × 3 ½" soda line cut-out in backsplash
- KR-204 – 3 ½" round cut-out in drainboard for beverage bundles
- RS-XX – Sound-deadened single speed rail (specify length)
- RD-XX – Sound-deadened double speed rail (specify length)
- KR-401 – Built-in cap catcher & bottle opener
- End / side splashes to suit unique install requirements
Need a different length or right-hand return? Explore the complete Krowne Royal Series for matching drainboards, ice bins, and speed rails.
