Krowne KR19-C42R Royal Series Bar Equipment
Description

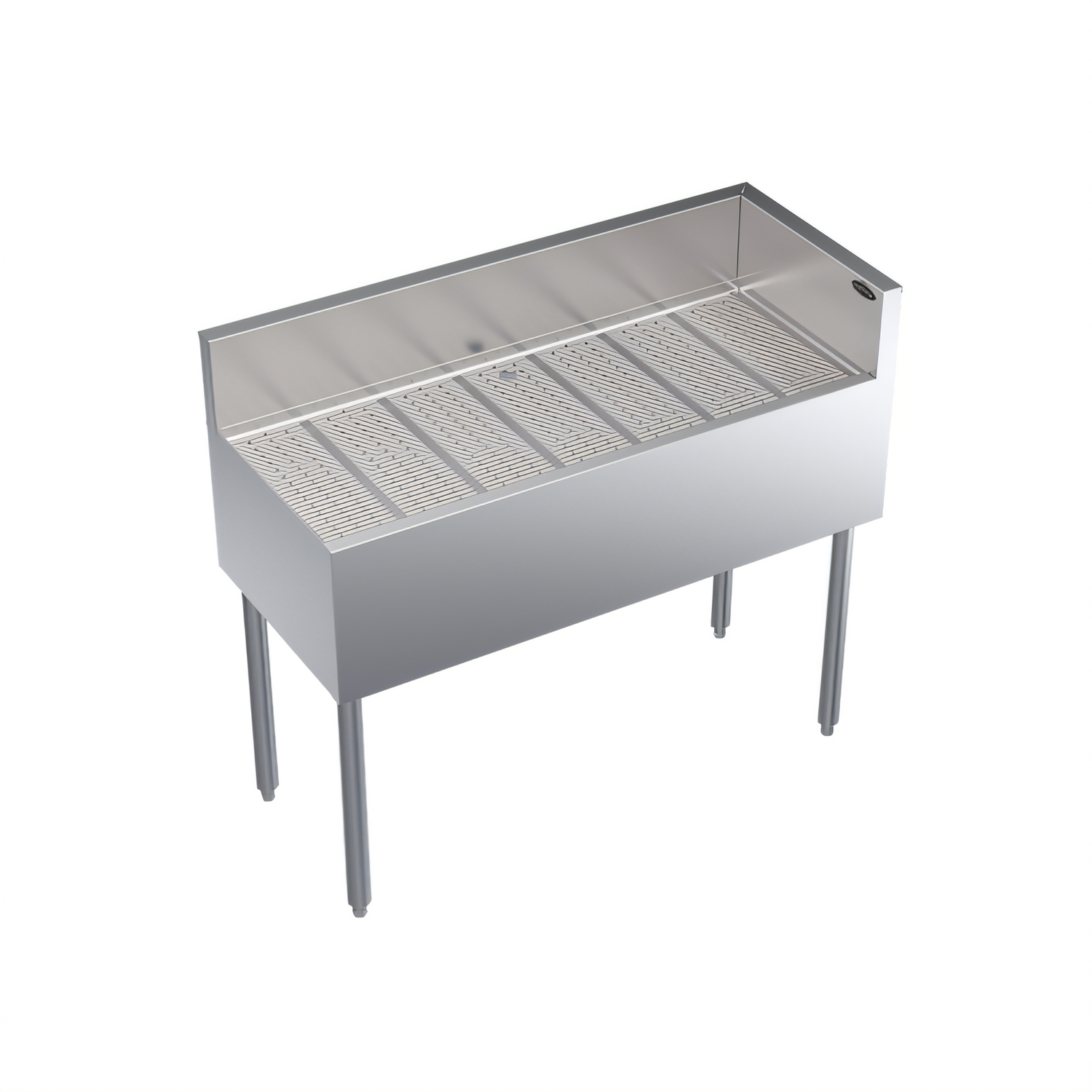

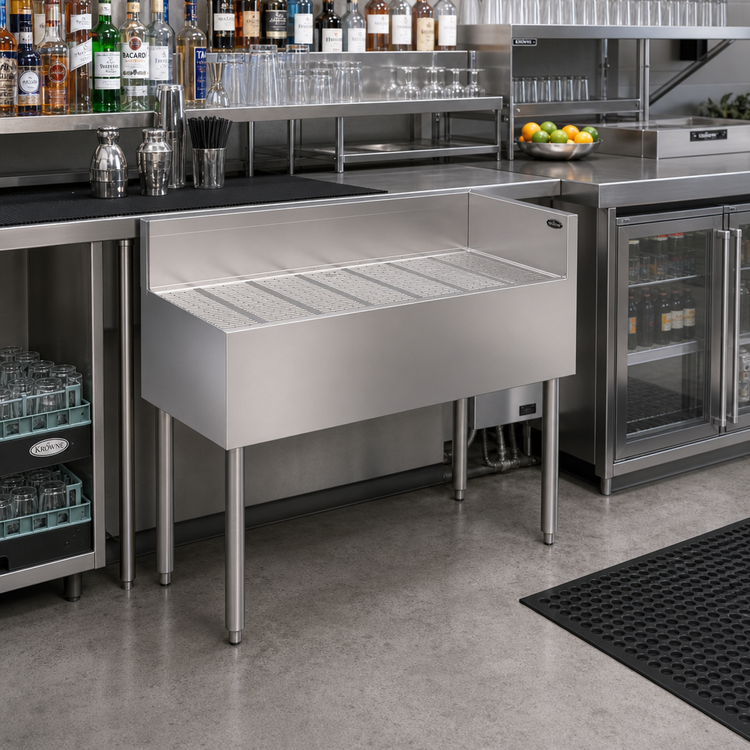

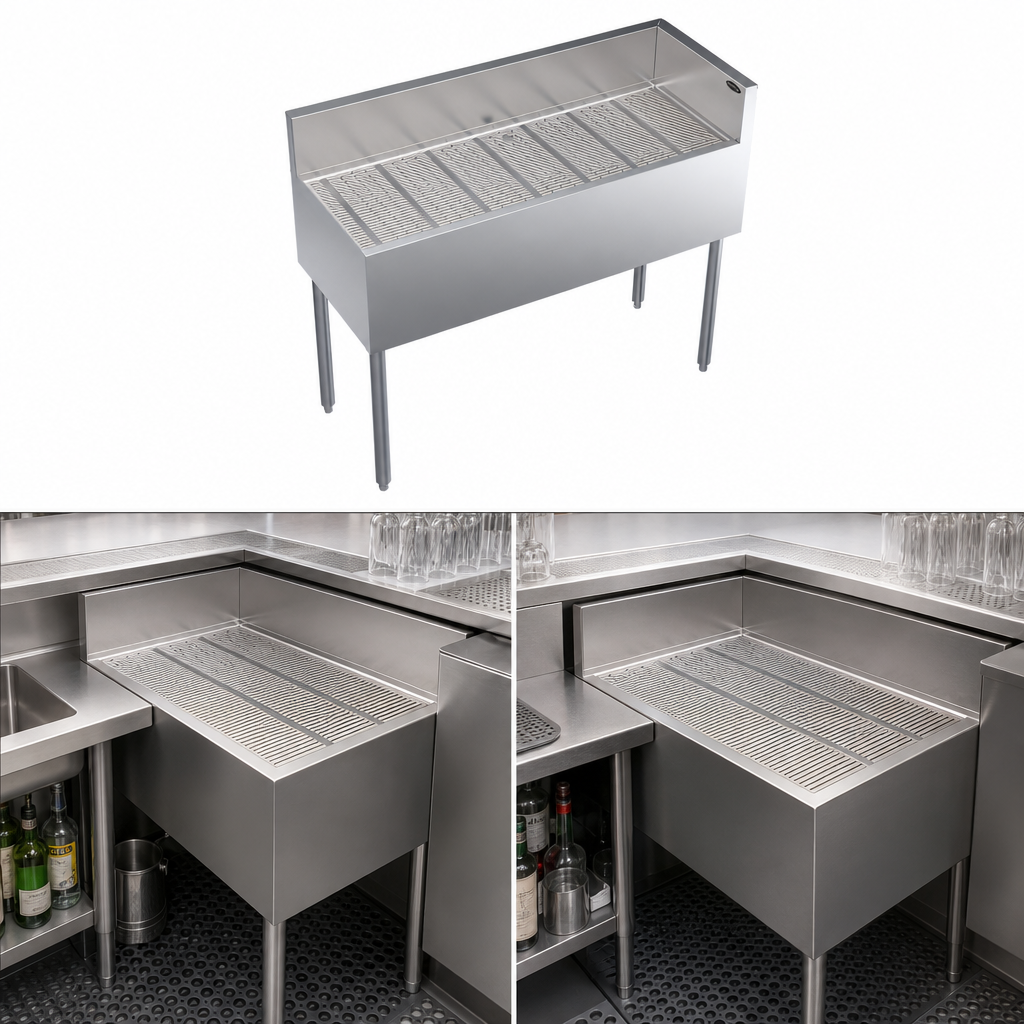

Krowne Royal Series Underbar Corner Drainboard
Model KR19-C42R | Right-Hand Return, 42" W x 19" DBuild a clean, efficient underbar workflow with Krowne’s Royal Series 42-inch corner drainboard. Designed for demanding bar environments, this free-standing unit delivers robust stainless-steel construction, easy drainage and a space-saving right-hand return that nests perfectly into 90° layouts.
Why It Stands Out
- Embossed 20-gauge stainless-steel drainboard with welded braces every 6" for superior rigidity
- 3/4" radius on all vertical and horizontal edges—no sharp corners to trap debris
- 1" IPS drain connection centered in the board for fast, reliable water removal
- Stainless-steel top, front apron, sides, back and bottom for full corrosion resistance
- 1-5/8" OD, 16-gauge stainless-steel legs with adjustable grey thermoplastic bullet feet
- Right-hand return forms a smooth 90° corner to the bartender’s right, freeing up straight-line bar space
- NSF Standard 2 listed for open food, beverage and ice applications
Technical Specs
| Model | KR19-C42R |
|---|---|
| Series | Royal Series |
| Overall Width | 42 in (1067 mm) |
| Overall Depth | 19 in (483 mm) |
| Overall Height | 36-1/2 in (927 mm) to work surface |
| Return Orientation | Right end (forms right-hand corner) |
| Drain Connection | 1" IPS |
| Leg Construction | 1-5/8" Ø, 16-ga. stainless steel, adjustable bullet feet |
| Approx. Shipping Weight | ≈ 65 lb (29 kg) |
| Certifications | NSF Std 2 |
Popular Accessories (Sold Separately)
- KR-201 – 4" × 4" Chase for beer/soda trunk lines
- KR-204 – 3-1/2" round cut-out in drainboard for beverage lines
- KR-310 / KR-311 – End splashes to guard adjacent equipment
- RS-“XX” – Sound-deadened single speed rails (specify length)
- RD-“XX” – Sound-deadened double speed rails (specify length)
- KR-401 – Cap catcher and bottle opener kit
Looking for a left-hand return or 24"-deep version? Search models KR19-C42L or KR24-C42R/L. Dimensions and specifications are nominal and subject to change without notice.
