Krowne KR19-C36R Royal Series Bar Equipment
Krowne KR19-C36R Royal Series Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Krowne KR19-C36R Royal Series Bar Equipment
Description

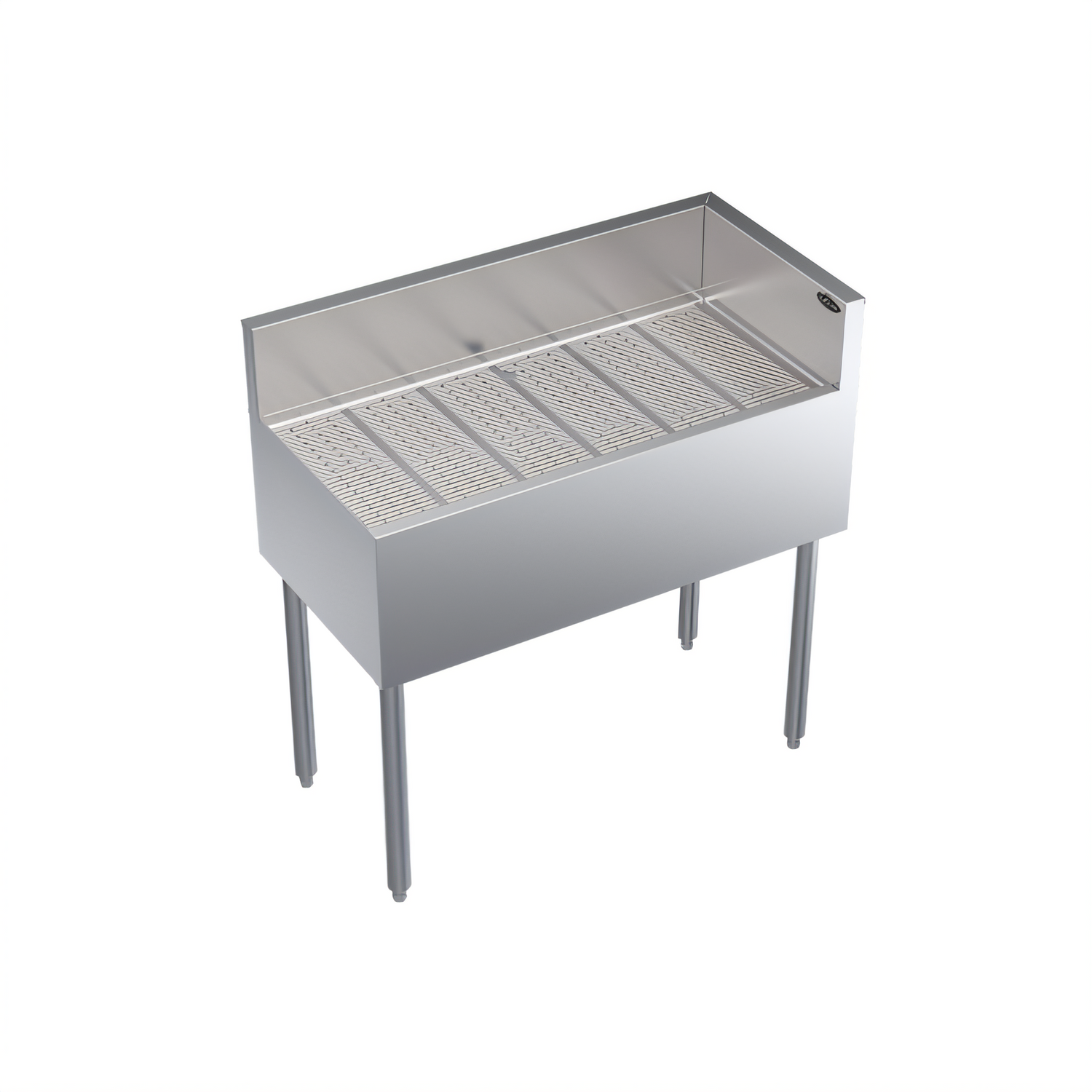

Krowne Royal Series 36" Corner Drainboard – Right End Return
Model: KR19-C36R | NSF CertifiedEngineered for busy bar environments, this free-standing 36" Royal Series corner drainboard lets you create a seamless 90° turn while keeping glassware, pitchers and cocktails safely off the work counter. Heavy-duty stainless construction, an embossed drain surface and a true 1" IPS drain connection combine for unmatched durability and effortless clean-up shift after shift.
Why You’ll Love It
- 20 ga. embossed stainless drainboard reinforced with welded braces every 6" for superior rigidity
- 3/4" radius on all vertical & horizontal edges – quick wipe-downs, no sharp corners
- Right-hand 90° return turns your underbar line without custom fabrication
- True 1" IPS drain with welded outlet for direct tie-in to your waste line
- 1 5/8" O.D. 16 ga. stainless legs with adjustable grey thermoplastic bullet feet for perfect leveling
- Stainless steel top, front & sides resist rust, corrosion and bar-chemical damage
- NSF/ANSI Standard 2 listed for open food & beverage zones
At-a-Glance Specs
| Overall Width | 36" (914 mm) |
|---|---|
| Overall Depth | 19" (483 mm) |
| Overall Height | 36 1/2" H.O.A. (927 mm) (height adjustable via bullet feet) |
| Return Orientation | Right-end 90° corner |
| Drain Size / Type | 1" IPS threaded connection |
| Material Thickness | 20 ga. top, apron, sides & backsplash |
| Legs | 1 5/8" O.D. 16 ga. stainless tubing |
| Approx. Weight | 59 lbs (26.8 kg) |
| Certifications | NSF/ANSI Std 2 |
Popular Accessories (sold separately)
- KR-310 / KR-311 End splashes to keep walls dry
- KR-201 4" x 4" chase for beer or soda lines
- RS-XX single speed rails & RD-XX double speed rails
- KR-401 cap catcher & bottle opener kit
Need help planning your entire underbar line? Our bar design team can configure sinks, ice bins and speed rails to match this corner drainboard perfectly.
