Krowne KR19-C36L Royal Series Bar Equipment
Description

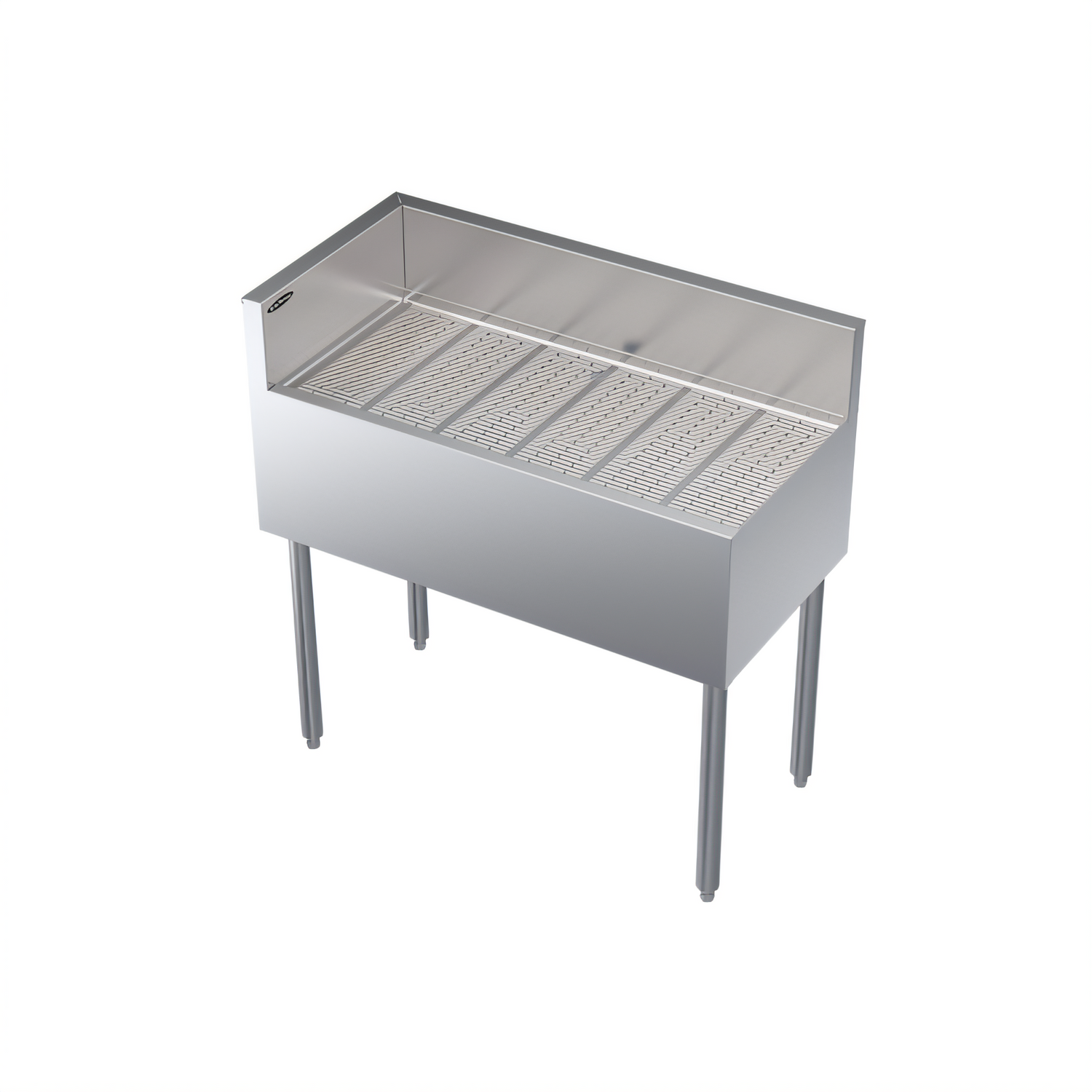

Royal Series 36" Left-End Return Corner Drainboard
Krowne • Free-Standing Underbar Drainboard • NSF Std. 2Engineered for busy bar environments, the Krowne Royal Series corner drainboard delivers rugged stainless-steel construction, rapid drainage and a clean 90° transition between adjoining underbar runs. Its left-hand return design maximizes workspace while keeping glassware and bar tools safely off the counter.
Key Features
- Embossed 20 ga. stainless-steel drainboard reinforced every 6"
- Smooth ¾" radius on all vertical & horizontal edges for effortless wipe-down
- Integrated 1" IPS drain; perforated board speeds water evacuation
- 20 ga. stainless front apron, sides, back & bottom for long-term corrosion resistance
- 1 5⁄8" O.D. 16 ga. stainless legs with adjustable thermoplastic bullet feet
- Free-standing design—no additional support frame required
- NSF/ANSI Standard 2 listed for open foodservice use
Dimensions & Utilities
| Overall Width | 36" (914 mm) |
|---|---|
| Overall Depth | 19" (483 mm) |
| Overall Height | 36 1⁄2" (927 mm) H.O.A. |

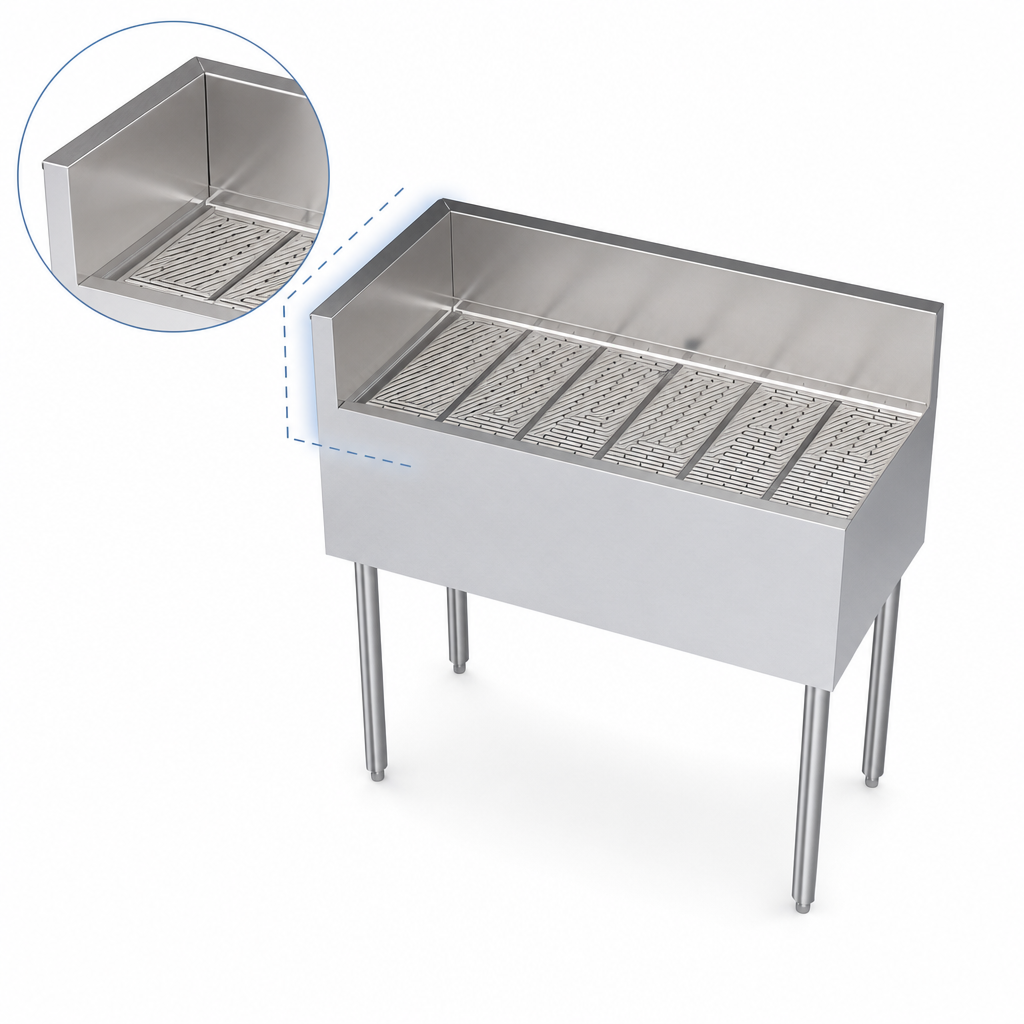

| Return Orientation | Left-end return (90° corner) |
| Drain Connection | 1" IPS |
| Shipping Weight | ≈ 59 lb (27 kg) |
| Certification | NSF Standard 2 |
Compatible Accessories (sold separately)
- KR-201 4" × 4" chase for beer/soda lines
- KR-203 ¾" × 3 ½" soda-line backsplash cut-out
- KR-204 3 ½" round drainboard cut-out for beverage lines
- KR-310/311 end splashes for additional spill protection
- RS-XX single & RD-XX double sound-deadened speed rails
- KR-401 cap catcher with bottle opener
Looking for a different size or right-hand configuration? Royal Series corner drainboards are available in 18"–48" lengths with either return orientation, plus matching sinks, ice bins and speed rails.
