Krowne  |  Royal Series  |  SKU: KR19-84C  |  UPC: 822196890483

Krowne KR19-84C Royal Series Bar Equipment

$3,108.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

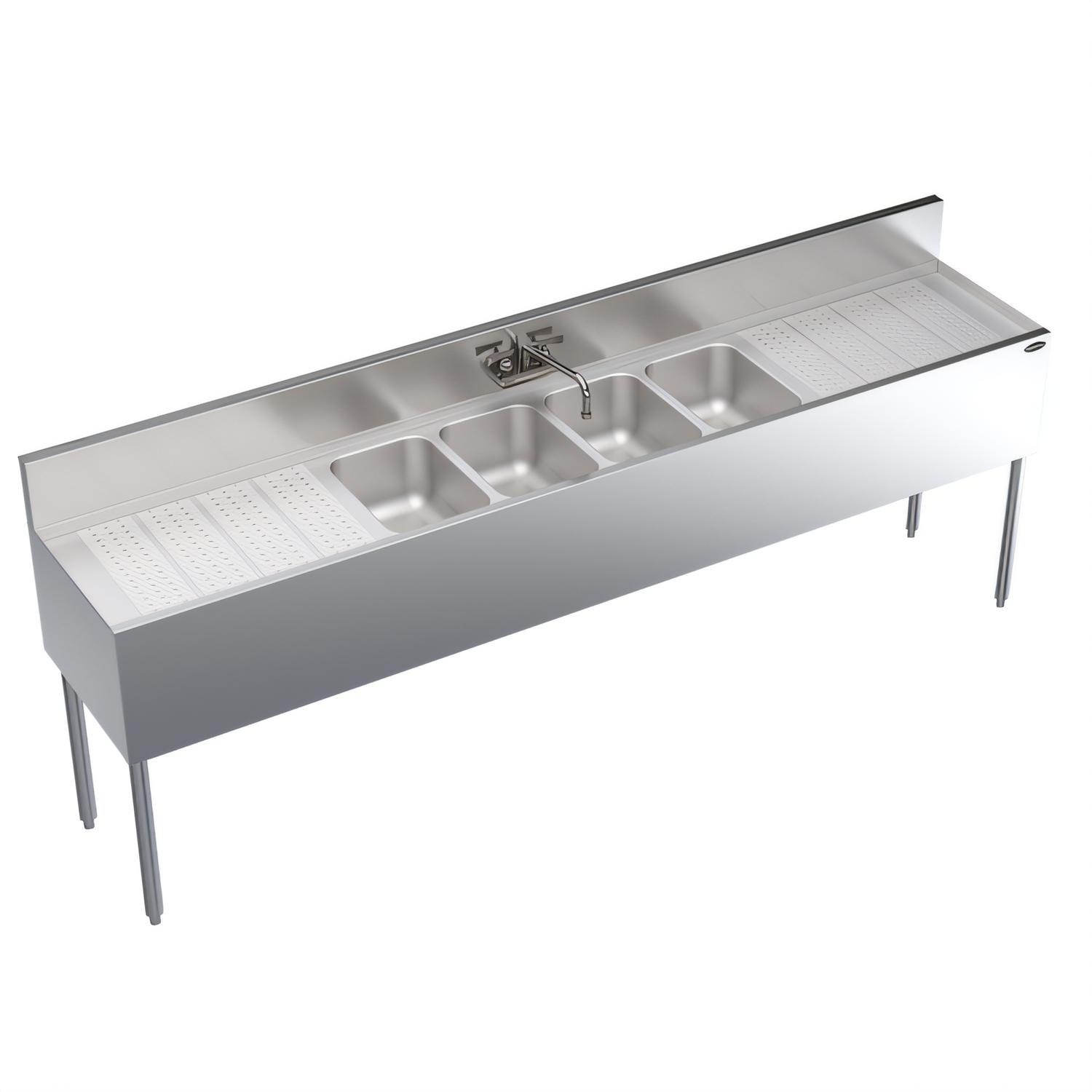

Krowne Royal Series 96" Four-Compartment Underbar Sink with Dual 24" Drainboards (KR19-84C)

High-volume performance, built-in durability — NSF certified

Engineered for the busiest bars, the Krowne KR19-84C delivers a full 8 feet of fast, efficient ware-handling while safeguarding glassware with smooth, easy-clean stainless steel. Dual 24 inch embossed drainboards let staff stage dirty and clean items simultaneously, while four deep sink bowls handle everything from cocktail shakers to beer pitchers without slowing service.

Why You’ll Love It

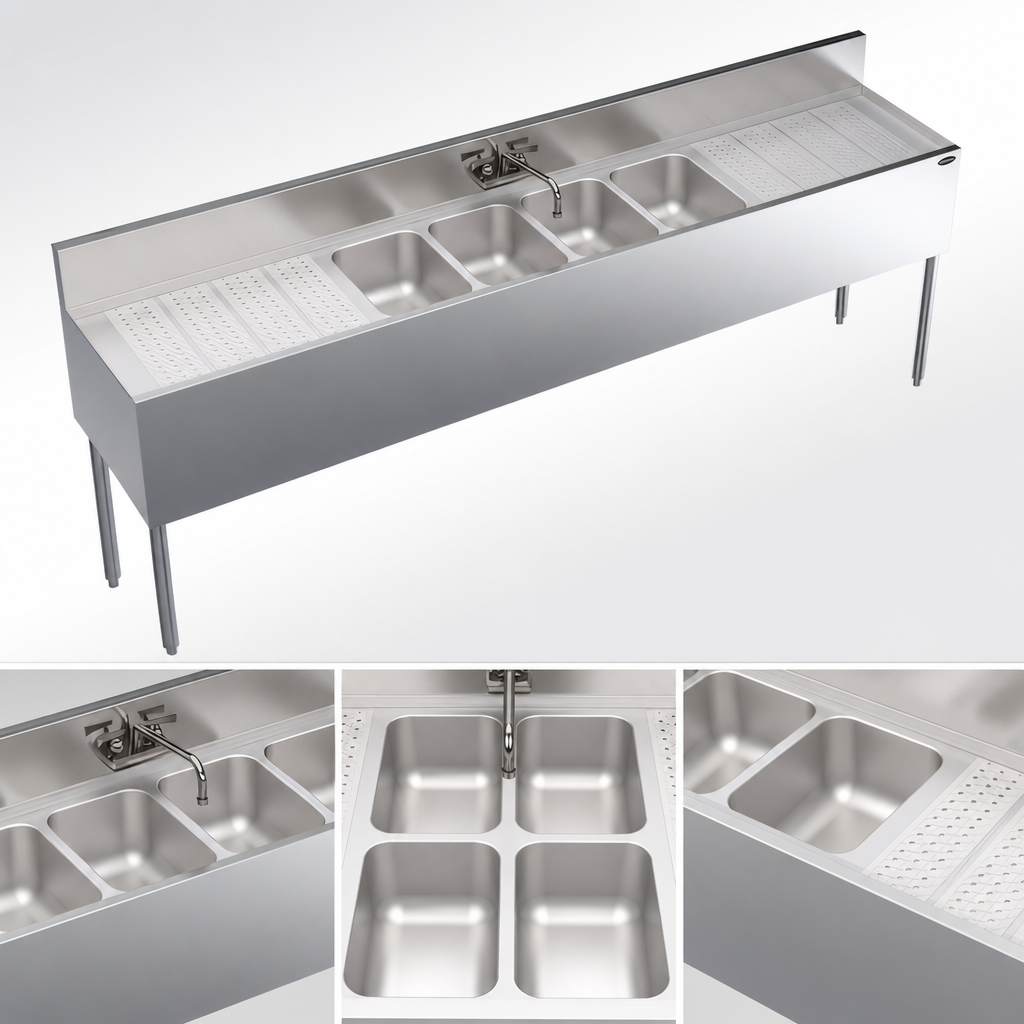

  • Four 10" W × 14" D × 10" H compartments for maximum throughput

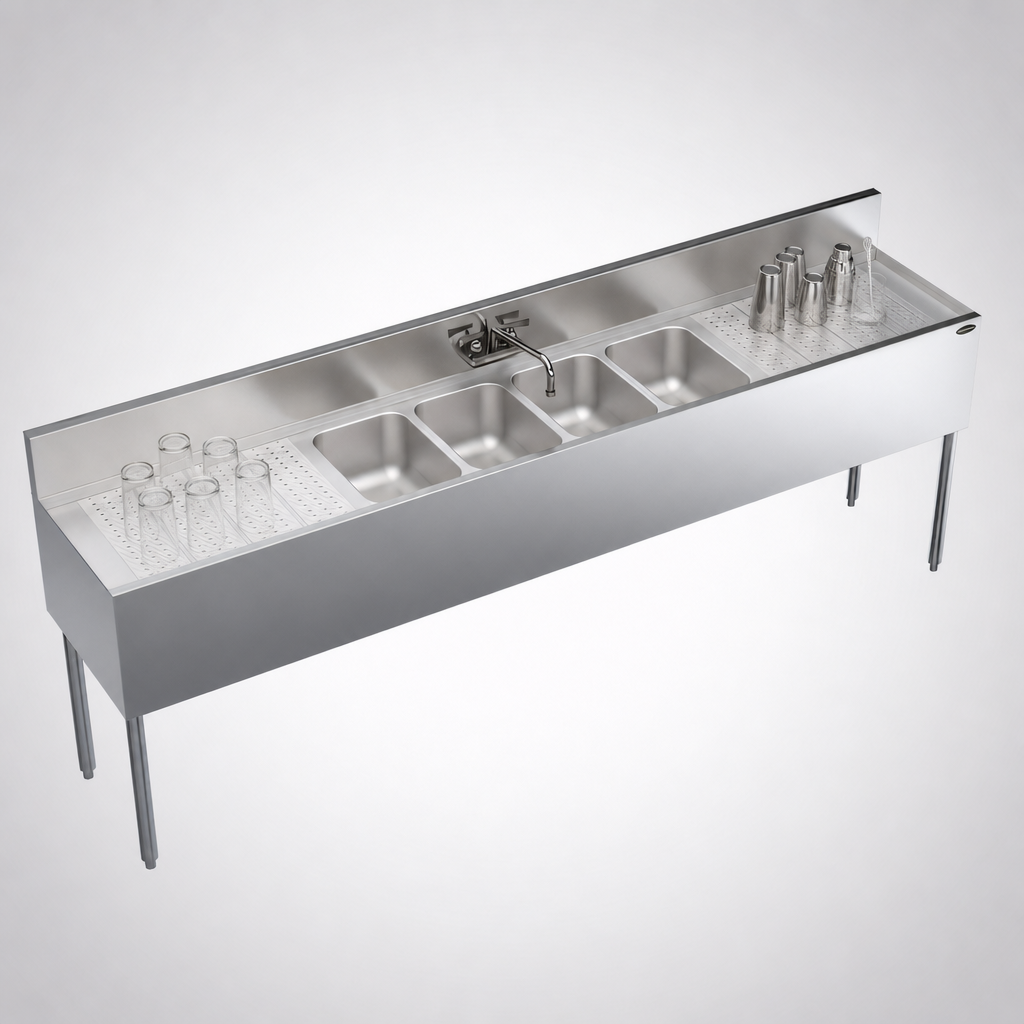

  • (2) 24" integral drainboards (left & right) with welded braces every 6" for added strength
  • Splash-mount Royal Series faucet with 4" on-center ceramic-cartridge valves and double-jointed spout
  • (4) removable 7 1⁄2" overflow standpipes to keep water at optimal level
  • 20-gauge stainless steel top, bowls, sides, and backsplash resist corrosion and speed clean-up
  • 1 5⁄8" 16-gauge tubular stainless legs with adjustable thermoplastic bullet feet for rock-solid stability
  • Front & side aprons shield plumbing and give a finished, professional look
  • NSF/ANSI 2 & ASME A112.19.3/CSA B45.4 listed for food-service peace of mind
Technical Specifications
Model KR19-84C
Overall Dimensions 96" W × 19" D (30" H to work surface)
Sink Compartments 10" W × 14" D × 10" H (each), 20-gauge stainless
Drainboards (2) 24" embossed integral drainboards with 1 1⁄2" IPS rear-corner drains
Faucet Details 4" OC splash-mount, 1⁄4-turn ceramic valves, double-jointed spout
Plumbing Connections Hot/Cold: 1⁄2" IPS  |  Drain: 1 1⁄2" IPS
Materials Top/Bowls/Sides/Backsplash: 20-ga SS  |  Legs: 16-ga 1 5⁄8" SS tube
Weight Approx. 99 lb
Certifications NSF/ANSI 2, ASME A112.19.3 / CSA B45.4

Also available in alternate sizes and bowl arrangements. Contact us for a custom configuration that fits your bar perfectly.

Professional Installation Required: All plumbing connections must be completed by qualified personnel in accordance with local codes.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

96.0in

Depth

19.0in

Shipping Weight

190.0lbs

Bowl Size

10" x 14" front-to-back

Width (side - side) OA

91" - 96"

Sink Compartments

(4)

Drainboards

drainboards on left & right

Construction

stainless steel top, front, ends & legs

Splash

6"

Depth (front - back) OA

18" - 19"

Bowl Depth (rim - drain)

10"

Specifications

Royal Series Underbar Sink Unit, four compartment, 96"W x 19"D, 10" wide x 14" front-to-back x 10" deep compartments, 24" embossed integral drainboards on left & right, splash mount Royal Series faucet with double jointed spout, apron on front & sides, (4) removable overflow standpipes, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
