Description

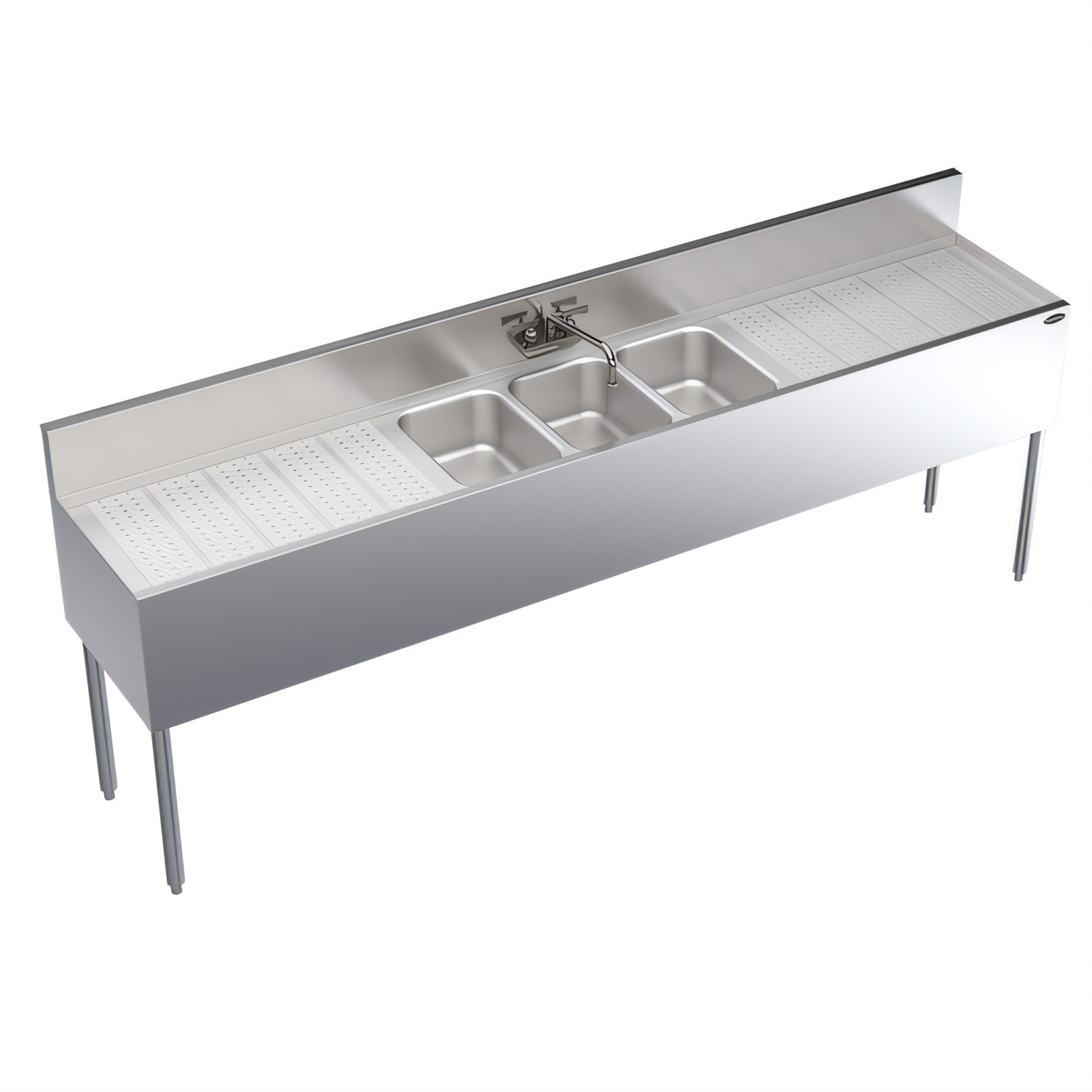

Royal Series 96" Three-Compartment Underbar Sink
Krowne Model KR19-83CGive your bar the professional edge it deserves with the Krowne Royal Series 96 inch underbar sink. Two full-size embossed drainboards flank three deep stainless bowls, creating a generous, all-in-one work zone for high-volume glass washing and prep.
Why You’ll Love It

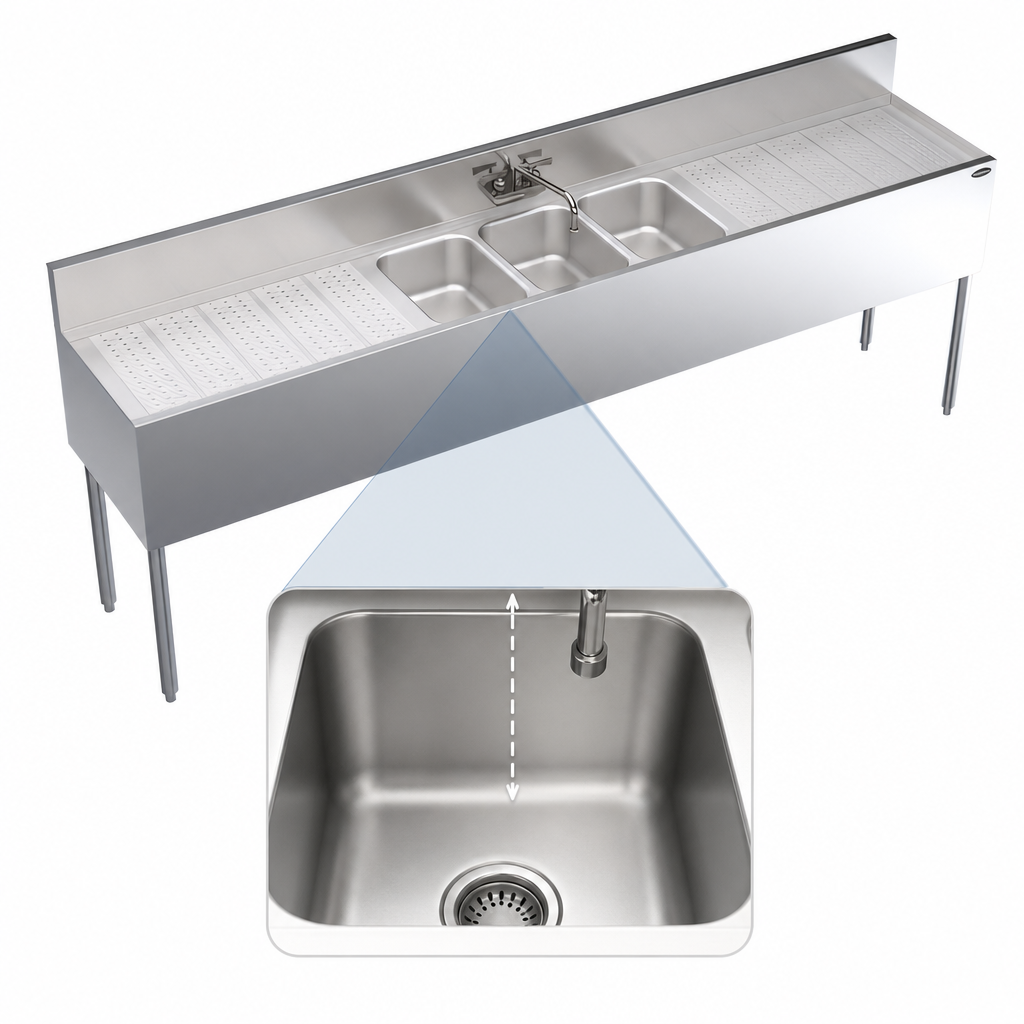

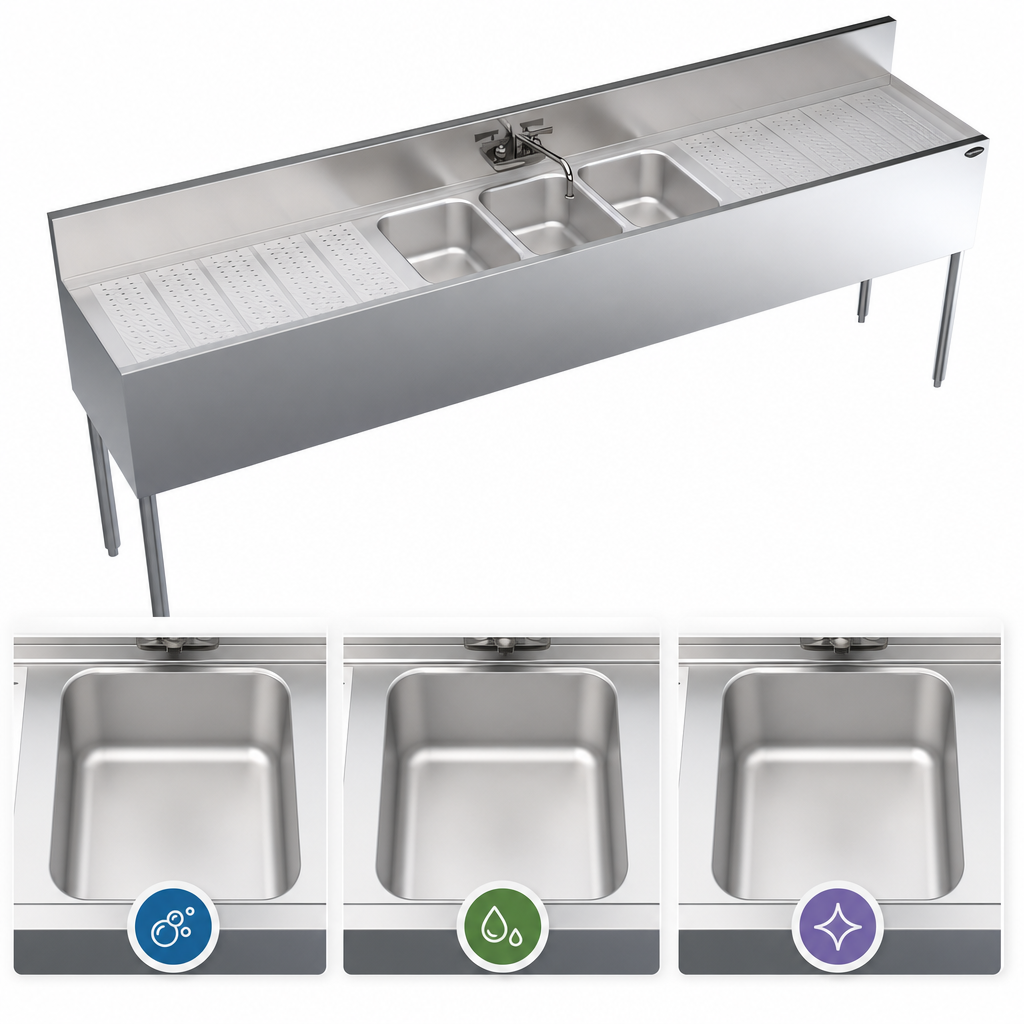

- Triple 10" × 14" × 10" deep bowls handle anything from rocks glasses to barware pitchers.
- Dual 30" integrated drainboards (left & right) speed up drying and staging.
- 4" O.C. splash-mount Royal Series faucet with swing spout and smooth ¼-turn ceramic valves.
- All 20-gauge stainless steel top, bowls, front & sides for decades of corrosion-free performance.
- 16-gauge, 1⅝" tubular stainless legs with adjustable thermoplastic bullet feet level on any floor.
- (3) removable overflow standpipes keep you operating within health-code requirements.
- NSF/ANSI 2 & ASME A112.19.3/CSA B45.4 certified—built to pass every inspection.
Technical Specs
| Overall Width | 96" / 2,438 mm |
|---|---|
| Front-to-Back Depth | 19" / 483 mm |
| Bowl Count | 3 (centered) |
| Individual Bowl Size | 10" W × 14" F-B × 10" D |
| Drainboards | (2) 30" embossed, integral (left & right) |
| Faucet | 4" O.C. splash-mount; swing spout; ½" IPS hot/cold |
| Drains | 1½" IPS rear-corner (includes (3) standpipes) |
| Construction | 20-ga. stainless bowls/top/front/sides; galvanized back & bottom |
| Legs & Feet | 1⅝" O.D. 16-ga. tubular stainless with adjustable thermoplastic bullet feet |
| Ship Weight | 94 lb / 42.6 kg (approx.) |
| Certifications | NSF/ANSI 2; ASME A112.19.3/CSA B45.4 |
Royal Series bar equipment is engineered & manufactured by Krowne Metal Corporation, Wayne, NJ USA.
Installation Notice: All plumbing connections must be performed by qualified personnel in accordance with local codes.
Features & Specs
Features & Specs
Manufacturer
Krowne
Brand_name
Royal Series
Certifications
NSF
Height
36.5in
Width
96.0in
Depth
19.0in
Shipping Weight
185.0lbs
Bowl Size
10" x 14" front-to-back
Width (side - side) OA
91" - 96"
Depth (front - back) OA
18" - 19"
Sink Compartments
(3)
Construction
stainless steel top, front, ends & legs
Splash
6"
Bowl Depth (rim - drain)
10"
Drainboards
drainboards on left & right
Specifications
Royal Series Underbar Sink Unit, three compartment, 96"W x 19"D, 10" wide x 14" front-to-back x 10" deep compartments, 30" embossed integral drainboards on left & right, splash mount Royal Series faucet with swing spout, apron on front & sides, (3) removable overflow standpipes, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF
