Krowne Royal Series 84-Inch Wide x 19-Inch Deep Three-Compartment Stainless Steel Underbar Sink Unit with Dual Drainboards and Faucet

SKU: KR19-73C
GTIN: 822196888152
$2,724.70
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Krowne New Arrivals Restaurant Equipment Underbar Equipment

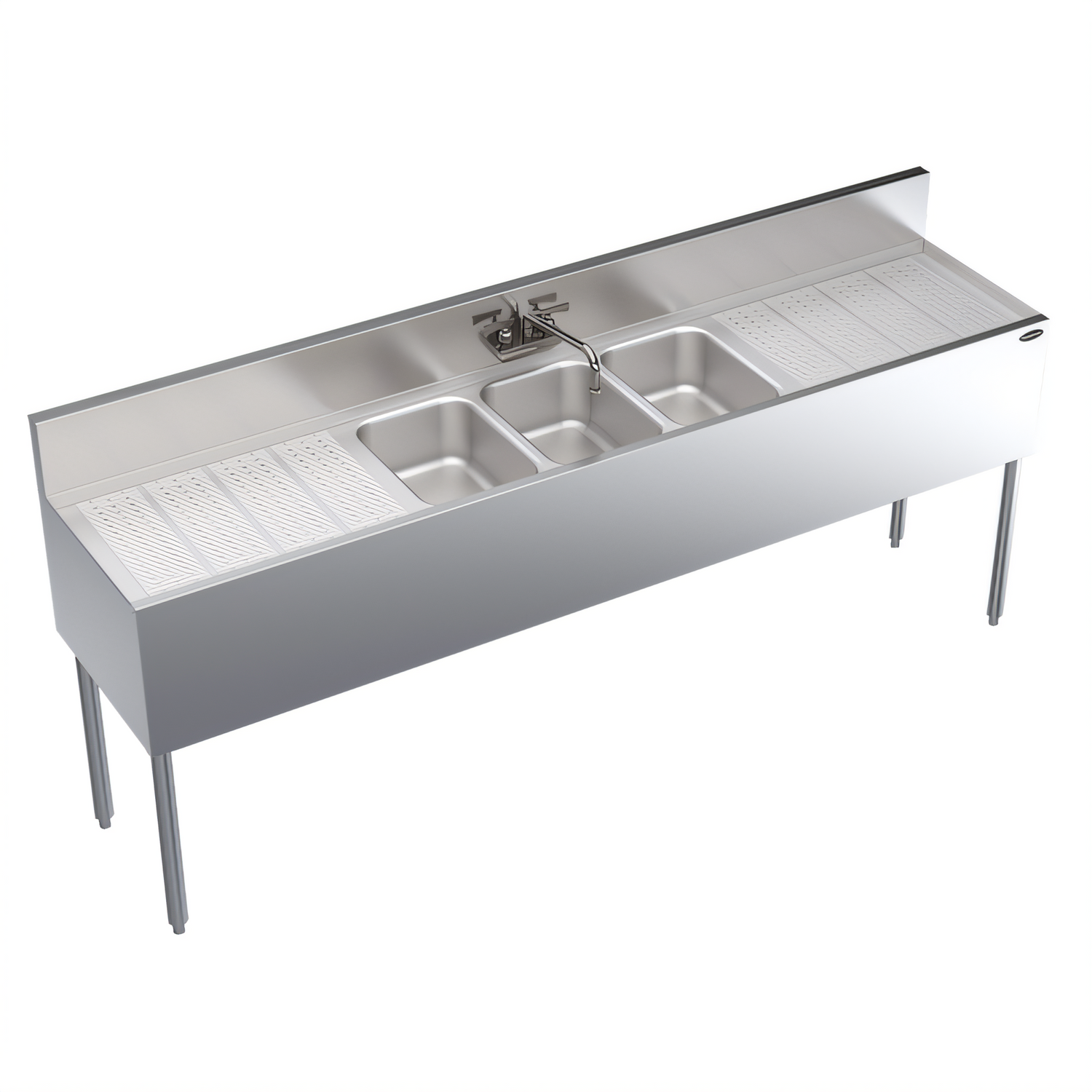

Krowne Royal Series 84-Inch Wide x 19-Inch Deep Three-Compartment Stainless Steel Underbar Sink Unit with Dual Drainboards and Faucet

Center Bowl Location, 10" x 14" x 10" Deep Bowls

Built for busy bars, this three-compartment sink combines deep bowls, dual drainboards, and an included faucet in one durable underbar station.

  • 84-inch-wide Royal Series underbar sink with three compartments for high-volume bar service.
  • Each bowl measures 10" x 14" x 10" deep for washing, rinsing, and sanitizing.
  • 24-inch embossed integral drainboards are located on both the left and right sides.
  • Includes a splash/wall-mount Royal Series faucet with swing spout and three removable overflow standpipes.
  • Stainless steel top, front, sides, and legs are paired with adjustable thermoplastic bullet feet.
  • NSF listed for commercial foodservice and beverage environments.

Overall Dimensions:

84.0"W x 19.0"D x 36.5"H

Product Weight:

150.0 lb

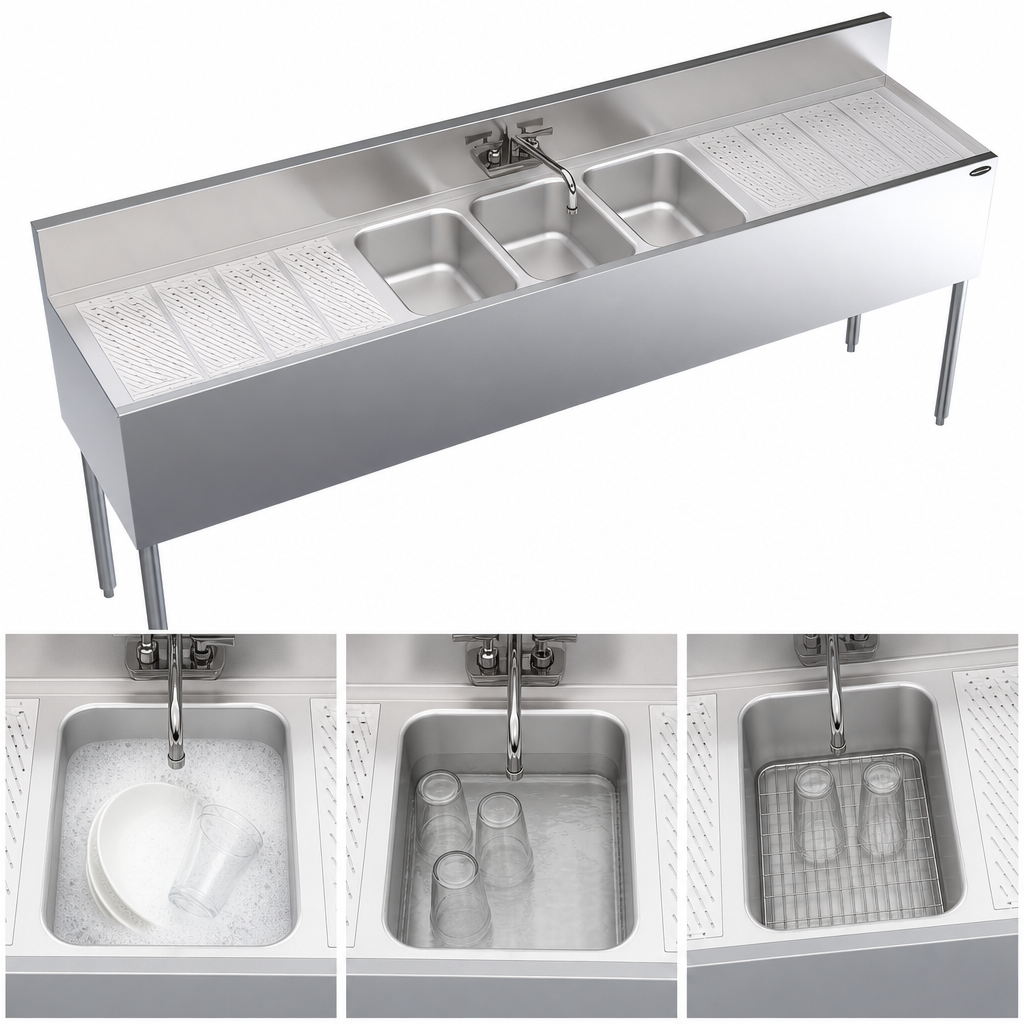

Three-Compartment Layout

Provides separate wash, rinse, and sanitize stations in a single underbar unit.

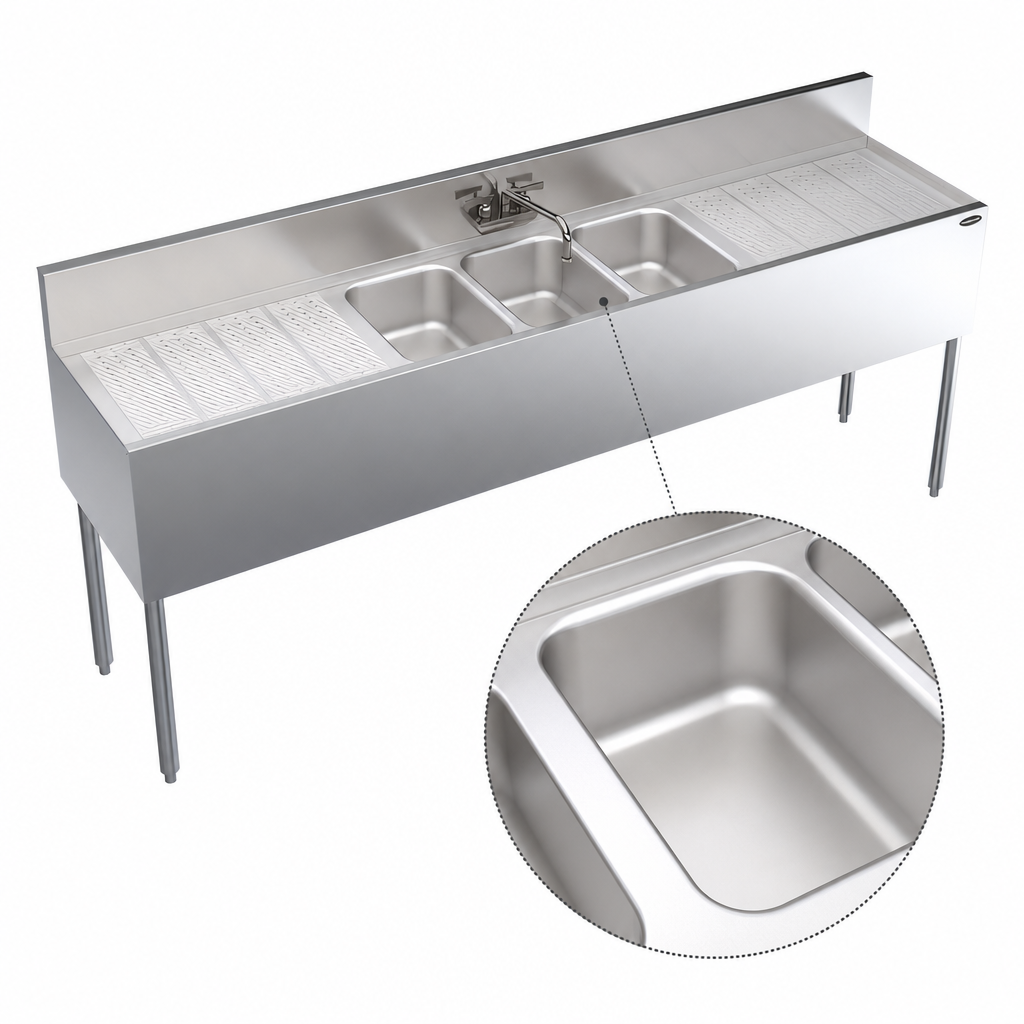

Deep Stainless Steel Bowls

Three bowls measure 10" x 14" x 10" deep for practical glassware and prep handling.

Dual 24-Inch Drainboards

Embossed integral drainboards on the left and right add landing and drip-drying space.

Included Swing-Spout Faucet

A Royal Series splash/wall-mount faucet with swing spout is included for convenient water access.

Removable Overflow Standpipes

Three removable standpipes help manage bowl drainage and simplify cleaning.

Stainless Steel Construction

Stainless steel top, front, sides, and legs are built for long-lasting underbar use.

Adjustable Bullet Feet

Thermoplastic bullet feet help level the sink on uneven floors.

6-Inch Splash and Apron Protection

The 6-inch splash and front/side apron help contain spills and protect surrounding surfaces.

Type Underbar Sink Unit
Style Three Compartment
Installation Type Freestanding
Material Stainless Steel
Compartments 3
Water Inlet Size 1/2 Inch IPS
Drain Connection Size 1-1/2 Inch IPS
Water Connection Required
Drain Connection Required
Shipping Width 84 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 150 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Each compartment measures 10" x 14" x 10" deep.
Yes. The unit includes a Royal Series swing-spout faucet.
It has 24-inch embossed integral drainboards on both the left and right sides.
The unit uses 1/2" IPS hot/cold water connections and a 1-1/2" IPS drain connection.
Yes. The product is NSF listed/compliant according to the documentation.
The overall dimensions are 84" W x 19" D x 36.5" H.
