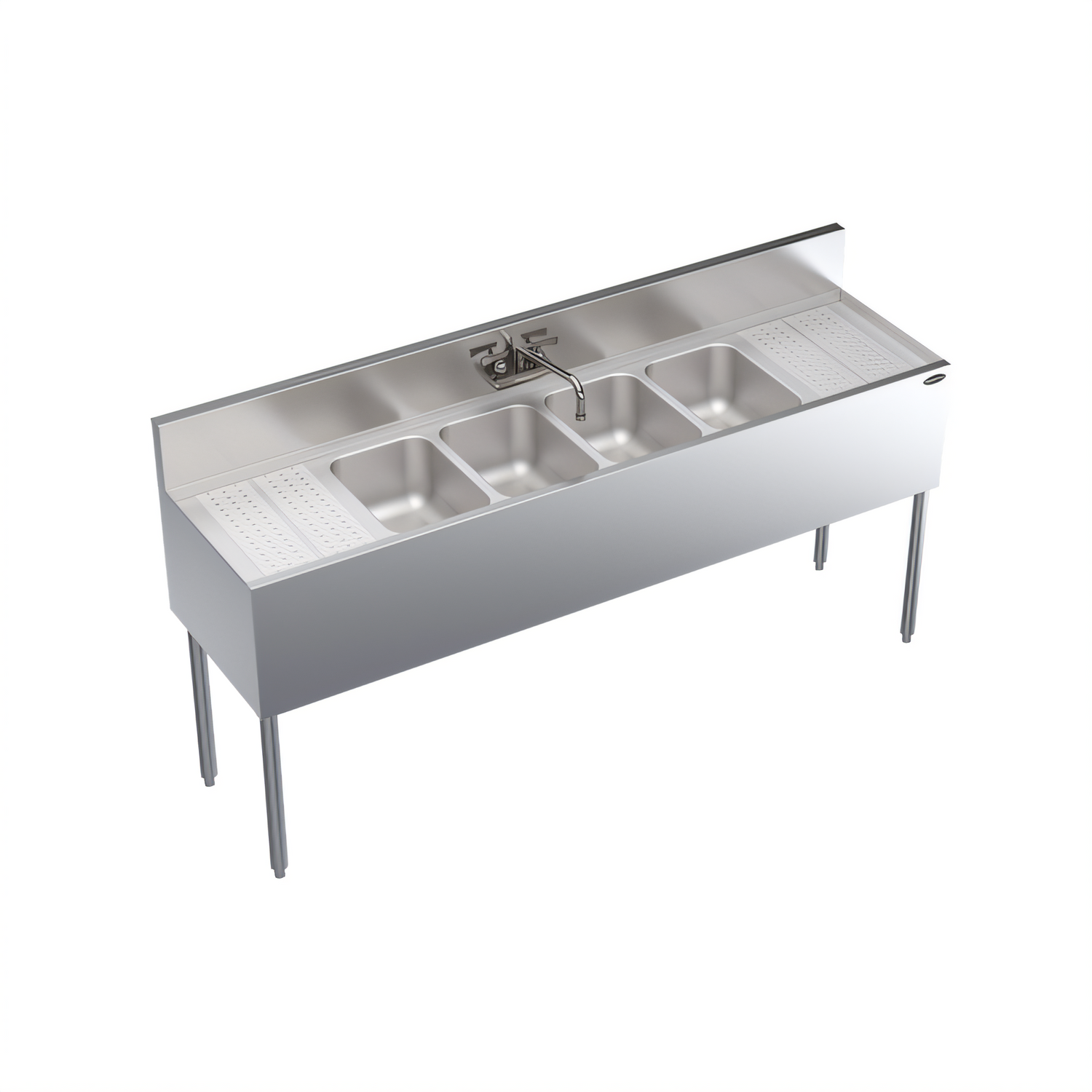

Krowne Royal Series Four-Compartment Stainless Steel Underbar Sink Unit with Left and Right Drainboards and Faucet, 72 Inch

SKU: KR19-64C
GTIN: 822196887483
$3,007.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Krowne New Arrivals Restaurant Equipment Underbar Equipment

Krowne Royal Series Four-Compartment Stainless Steel Underbar Sink Unit with Left and Right Drainboards and Faucet, 72 Inch

19-Inch Deep, 6-Inch Backsplash, 10 x 14 x 10 Inch Bowls

Designed for busy bar areas, this four-compartment underbar sink combines dual drainboards, durable stainless steel construction, and an included faucet in a space-efficient 72-inch footprint.

  • Four-compartment layout supports rinsing, washing, and staging tasks at the same time.
  • 12-inch embossed drainboards on the left and right sides add valuable landing space.
  • Stainless steel top, front, sides, and legs are built for demanding commercial use.
  • Includes a Royal Series faucet with double-jointed spout plus removable overflow standpipes.
  • 6-inch backsplash helps contain splashes in underbar installations.
  • NSF-compliant design supports commercial sanitation requirements.

Overall Dimensions:

72.0"W x 19.0"D x 36.5"H

Product Weight:

140.0 lb

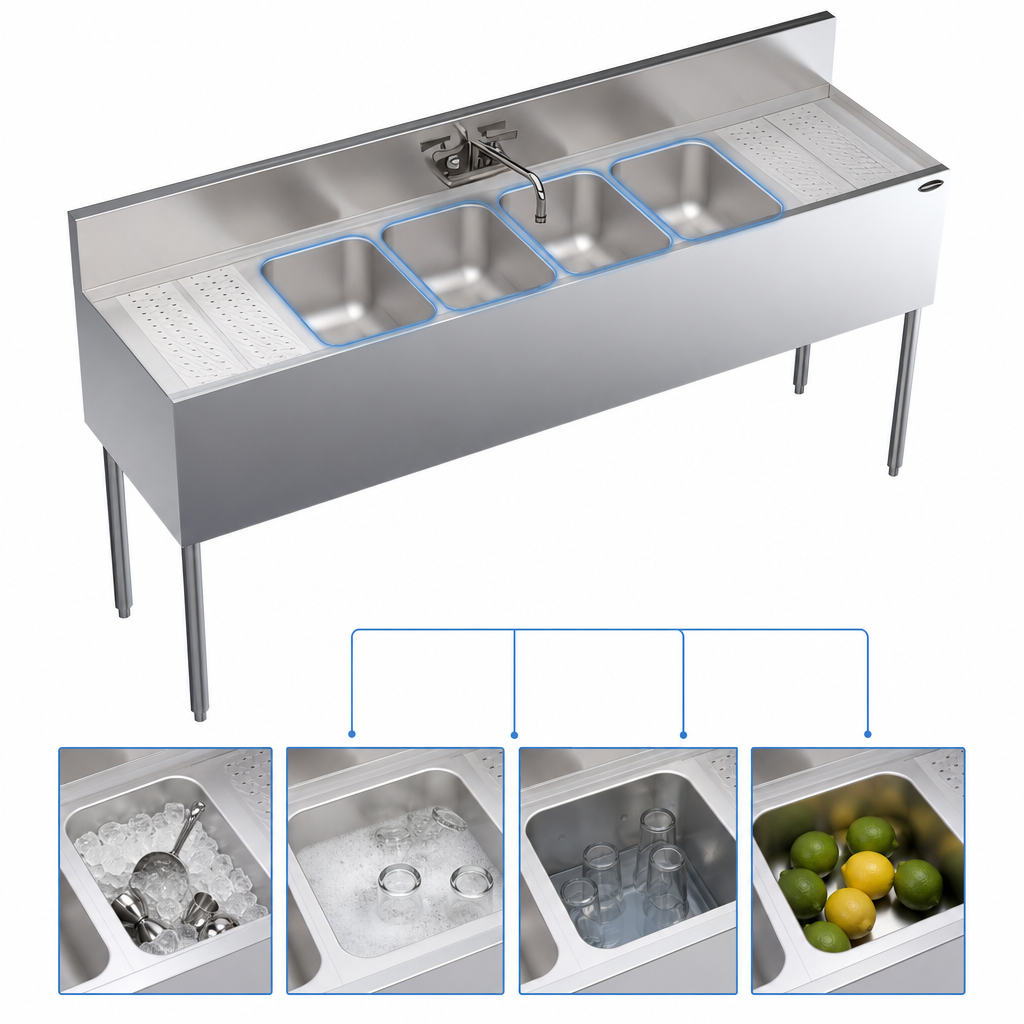

Four-Compartment Layout

Four separate sink compartments help staff manage multiple bar-prep and cleanup tasks efficiently.

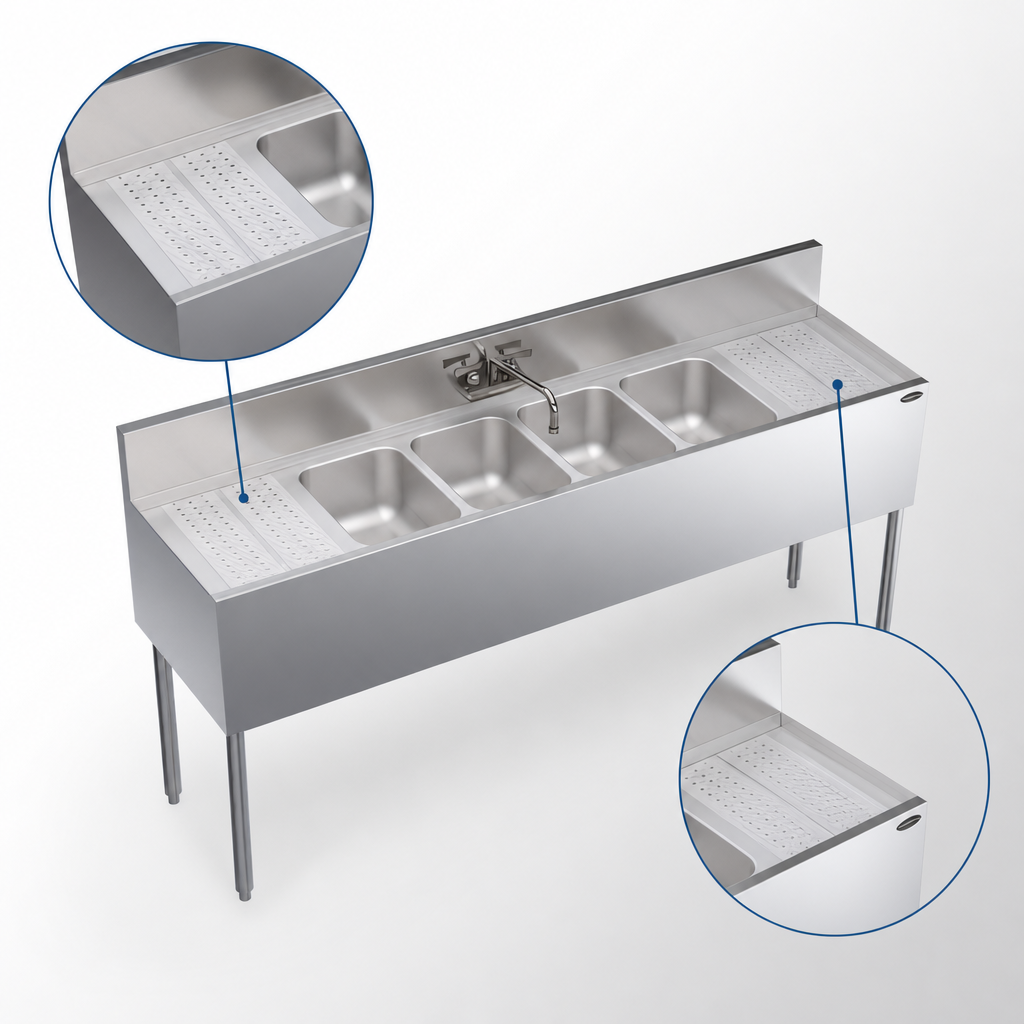

Integrated Dual Drainboards

Embossed 12-inch drainboards on both sides provide convenient space for draining and staging.

Stainless Steel Construction

Stainless steel top, front, sides, and legs offer durability and easier cleaning in high-traffic areas.

Included Faucet

Supplied with a Royal Series faucet and double-jointed spout for flexible water positioning.

Removable Overflow Standpipes

Four removable overflow standpipes are included to help manage overflow and simplify maintenance.

Front And Side Apron

The front and side apron adds protection and a finished look around the work area.

Adjustable Bullet Feet

Thermoplastic bullet feet make leveling easier and help stabilize the unit on uneven floors.

Plumbing Connections

Requires 1/2-inch IPS hot and cold water connections and a 1-1/2-inch IPS drain connection.

6-Inch Backsplash

The 6-inch splash height helps contain water and keep surrounding surfaces cleaner.

Type Sink Unit
Style Underbar
Installation Type Freestanding
Material Stainless Steel
Compartments 4
Bowl Size 10 Inches W x 14 Inches D
Bowl Depth 10 Inches
Bowl Location Center
Drainboard Size 12 Inches
Drainboard Location Left And Right
Backsplash Height 6 Inches
Water Inlet Size 1/2 Inch IPS
Drain Connection Size 1-1/2 Inch IPS
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 72 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 140 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The unit measures 72 inches wide, 19 inches deep, and 36.5 inches high.
It has four compartments, each measuring 10 inches wide x 14 inches front-to-back x 10 inches deep.
Yes, it includes 12-inch embossed integral drainboards on the left and right sides.
It uses 1/2-inch IPS hot and cold water connections and a 1-1/2-inch IPS drain connection.
The unit includes a Royal Series faucet with a double-jointed spout, four removable overflow standpipes, and adjustable thermoplastic bullet feet.
Yes, the product is NSF-compliant for commercial sanitation requirements.
